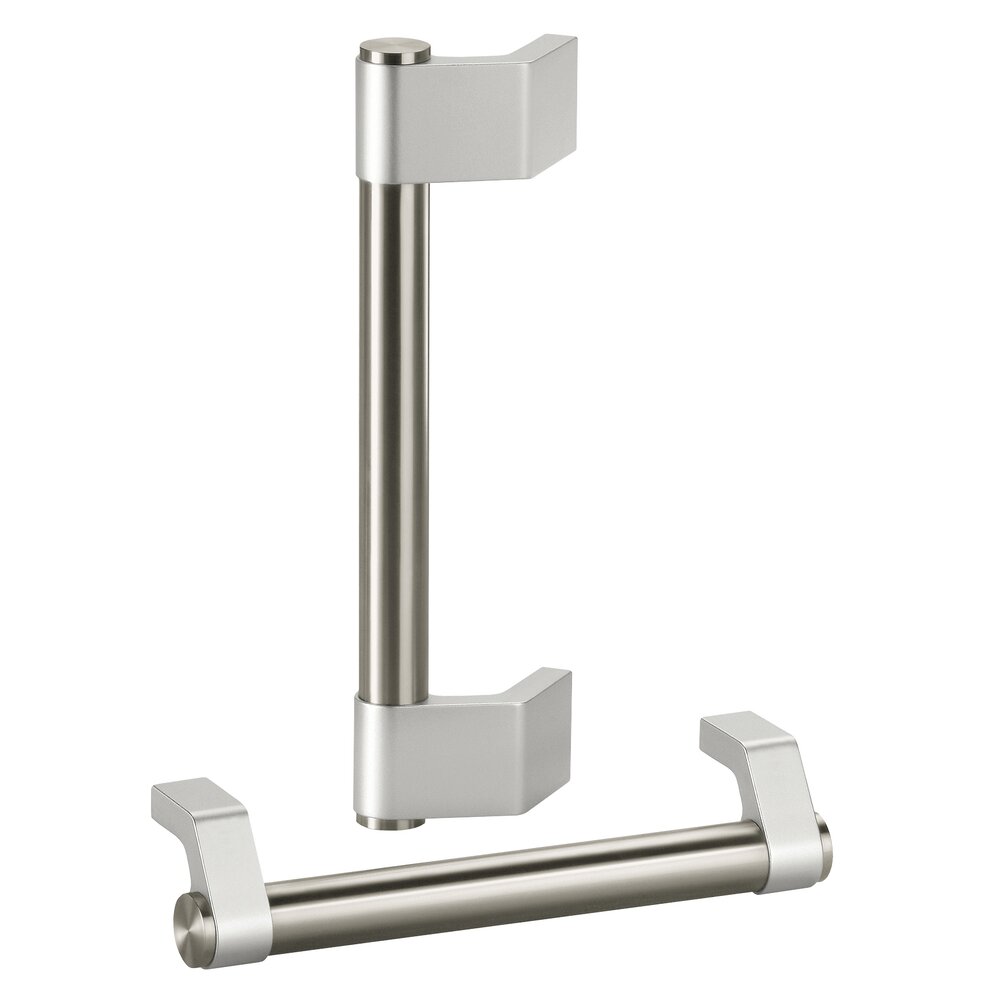

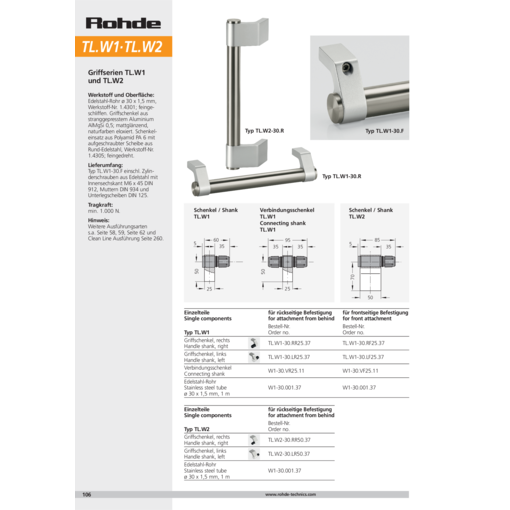

Handles TL.W1

Material and surface:
Tube ø30x1,5 mm of stainless steel, material no. 1.4301; fine ground. Handle shanks of extruded aluminium AlMgSi 0.5; natural colour anodized with dull bright finish. Shank insert of polyamide PA6 with a fixed disc of stainless steel, material no. 1.4305; fine lathed.

Scope of supply:
Type TL.W1-30.F incl. stainless steel cylinder head socket screws M6x45 DIN 912, nuts DIN 934 and washers DIN 125.

Stress resistance:
min. 1000 N.

show more show less
Technical schematic shows three views (section, side elevation, sectional side) of a cylindrical mechanical handle assembly with threaded components.
Technical line drawing showing multiple views of the TL.W1 handle shank component made of stainless steel and aluminum, including sectional and assembly details.
Unit of measure
Fitting type
A L attachment from the front
Order-No. 		attachment from behind
Order-No.
A L attachment from the front
Order-No. 		attachment from behind
Order-No.
A 200 L 225 attachment from the front
Order-No. TL.W1-30.F200.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R200.37 3D+CAD
A 250 L 275 attachment from the front
Order-No. TL.W1-30.F250.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R250.37 3D+CAD
A 300 L 325 attachment from the front
Order-No. TL.W1-30.F300.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R300.37 3D+CAD
A 350 L 375 attachment from the front
Order-No. TL.W1-30.F350.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R350.37 3D+CAD
A 400 L 425 attachment from the front
Order-No. TL.W1-30.F400.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R400.37 3D+CAD
A 500 L 525 attachment from the front
Order-No. TL.W1-30.F500.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R500.37 3D+CAD
A 600 L 625 attachment from the front
Order-No. TL.W1-30.F600.37 3D+CAD 		attachment from behind
Order-No. TL.W1-30.R600.37 3D+CAD
Fitting type
Single parts attachment from the front
Order-No. 		attachment from behind
Order-No.
Single parts attachment from the front
Order-No. 		attachment from behind
Order-No.
Single parts Connecting shank attachment from the front
Order-No. W1-30.VF25.11 		attachment from behind
Order-No. W1-30.VR25.11
Single parts Handle shank, left attachment from the front
Order-No. TL.W1-30.LF25.37 		attachment from behind
Order-No. TL.W1-30.LR25.37
Single parts Handle shank, right attachment from the front
Order-No. TL.W1-30.RF25.37 		attachment from behind
Order-No. TL.W1-30.RR25.37 3D+CAD
Single parts Stainless steel tube Ø30 x 1,5mm, 1m attachment from the front
Order-No. W1-30.001.37 		attachment from behind
Order-No. —
