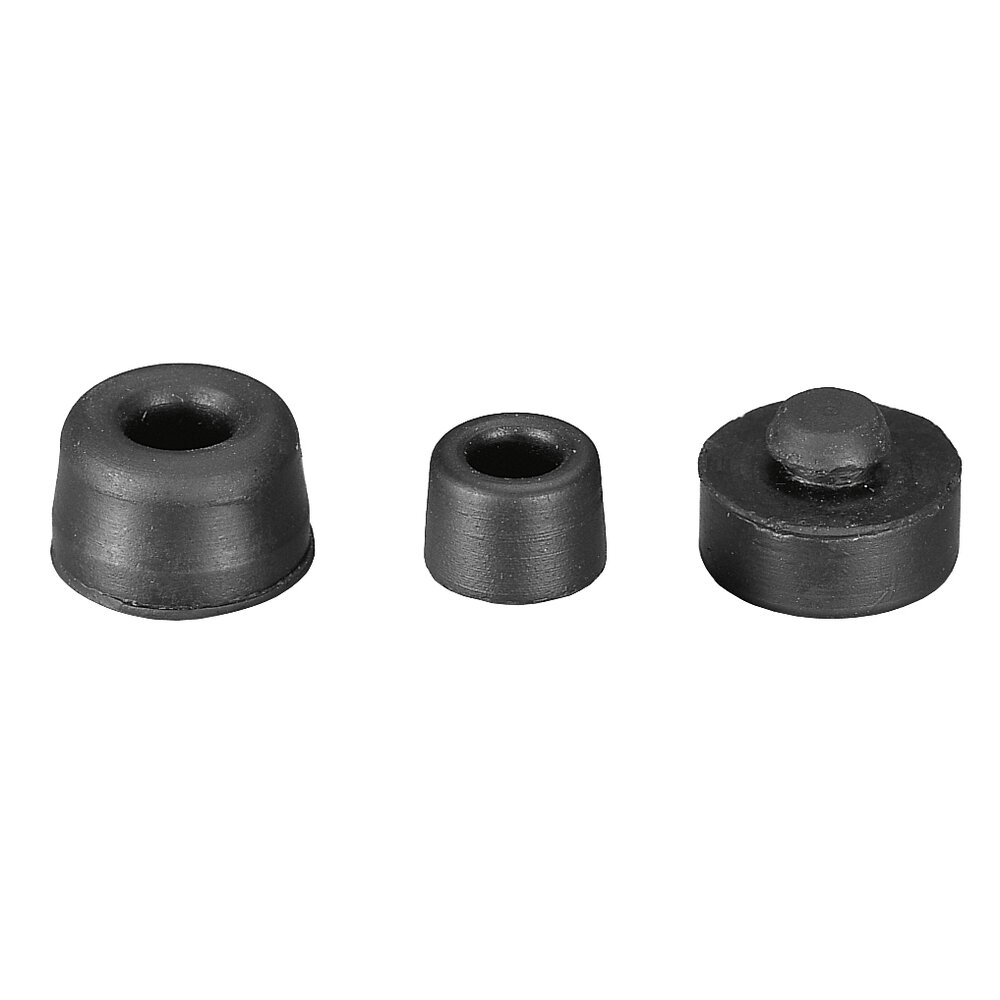

Three black cylindrical mounting components made of PVC and natural rubber, including two hollow tapered pieces with central holes and one solid piece with a raised circular top

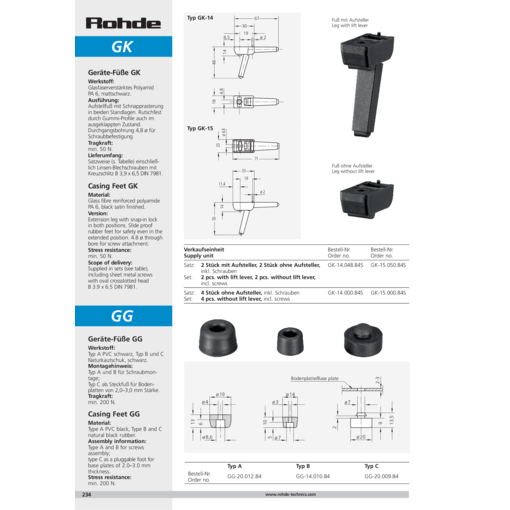

gk-gg.pdf

Casing feet GG

Material:
Type A PVC black, Type B and C natural black rubber.

Mounting remarks:
Type A and B for screws assembly.
Type C as a pluggable foot for base plates of 2–3 mm thickness.

Stress resistance:
min. 200 N.

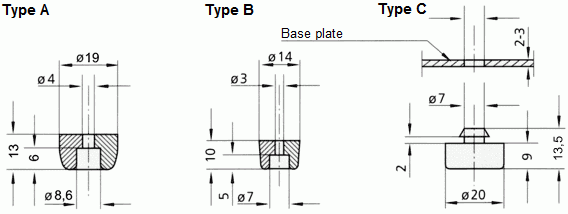

Technical drawing of three types of GG handles and feet with detailed cross-sections and measurements for Types A, B, and C.

Technical data
Unit of measure
Type
Type A Order-No.	Type B Order-No.	Type C Order-No.
Type A Order-No. GG-20.012.84 3D+CAD	Type B Order-No. GG-14.010.84 3D+CAD	Type C Order-No. GG-20.009.84 3D+CAD
