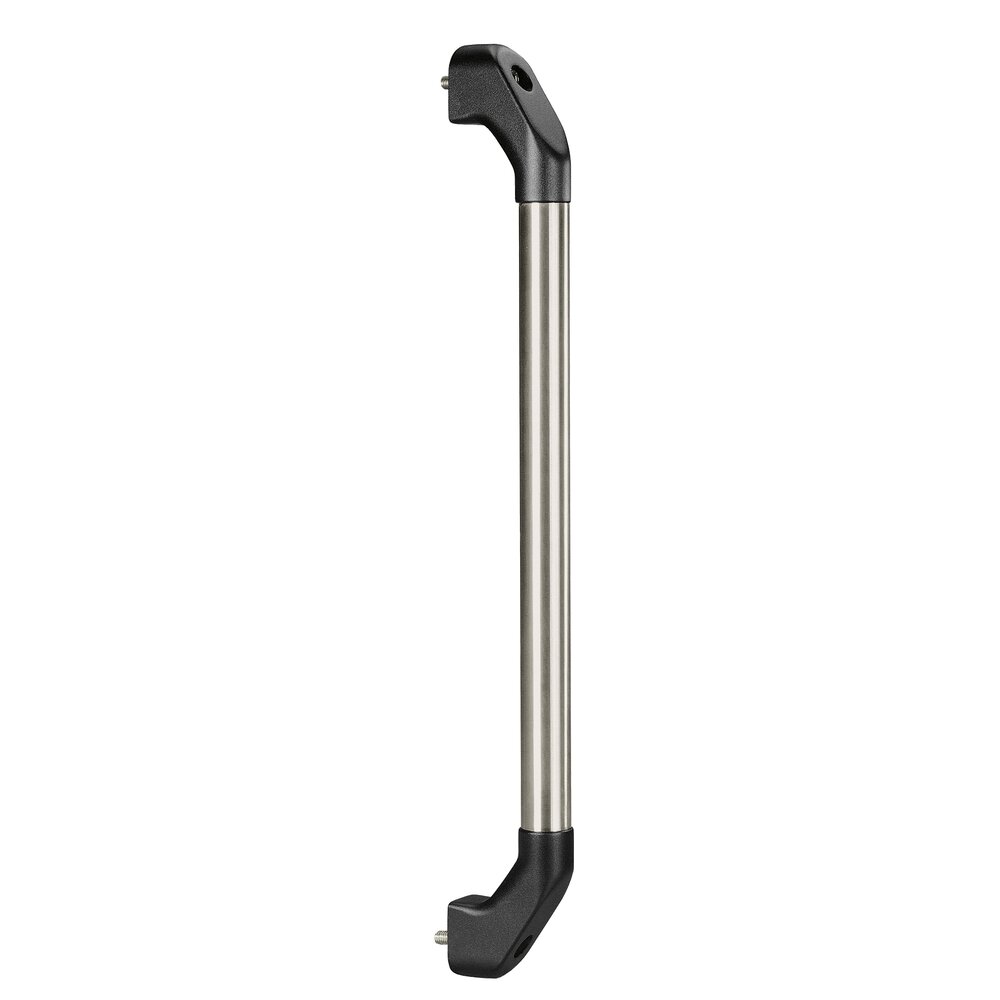

Single-element handle consisting of a smooth silver aluminium tube with black plastic shanks at both ends equipped with mounting screws

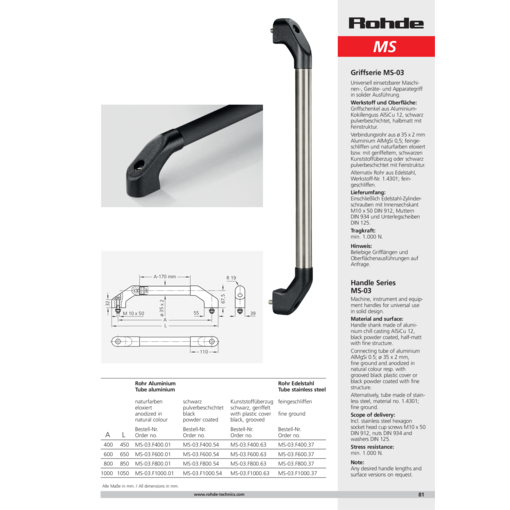

ms-03.pdf
PDF

Handles MS-03

Machine, instrument and equipment handles for universal use in solid design.

Material and surface:
Handle shank made of aluminium chill casting AlSiCu 12, black powder coated, half-matt with fine structure. Connecting tube of aluminium AlMgSi 0.5; ø35x2 mm, fine ground and anodized in natural colour resp. with grooved black plastic cover or black powder coated with fine structure. Alternatively, tube made of stainless steel, material no. 1.4301; fine ground.

Scope of delivery:
Incl. stainless steel hexagon socket head cup screws M10x50 DIN 912, nuts DIN 934 and washers DIN 125.

Note:
Any desired handle lengths and surface versions on request.

Stress resistance:
min. 1000 N.

Technical data
Unit of measure
Type
AL Anodizing version natural-colored
Order-No. 		Polished stainless steel
Order-No. 		powder coated black
Order-No. 		Aluminum with corrugated plastic coating
Order-No.
A400 L450 Anodizing version natural-colored
Order-No. MS-03.F400.01 3D+CAD 		Polished stainless steel
Order-No. MS-03.F400.37 3D+CAD 		powder coated black
Order-No. MS-03.F400.54 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. MS-03.F400.63 3D+CAD
A600 L650 Anodizing version natural-colored
Order-No. MS-03.F600.01 3D+CAD 		Polished stainless steel
Order-No. MS-03.F600.37 3D+CAD 		powder coated black
Order-No. MS-03.F600.54 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. MS-03.F600.63 3D+CAD
A800 L850 Anodizing version natural-colored
Order-No. MS-03.F800.01 3D+CAD 		Polished stainless steel
Order-No. MS-03.F800.37 3D+CAD 		powder coated black
Order-No. MS-03.F800.54 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. MS-03.F800.63 3D+CAD
A1000 L1050 Anodizing version natural-colored
Order-No. MS-03.F1000.01 3D+CAD 		Polished stainless steel
Order-No. MS-03.F1000.37 3D+CAD 		powder coated black
Order-No. MS-03.F1000.54 3D+CAD 		Aluminum with corrugated plastic coating
Order-No. MS-03.F1000.63 3D+CAD
