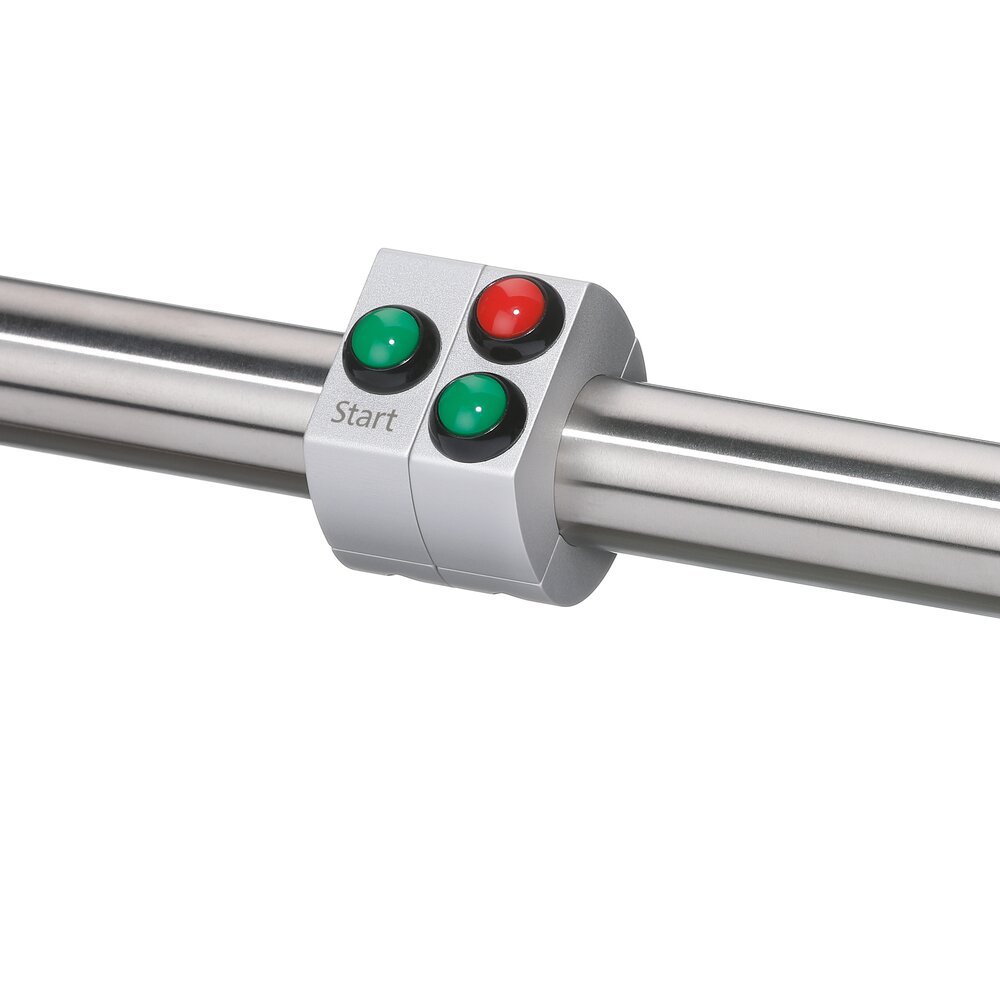

Switch Housing TG3
Ideal for retrofitting of switching functions. High holding forces due to the clamping version.
Material and surface:

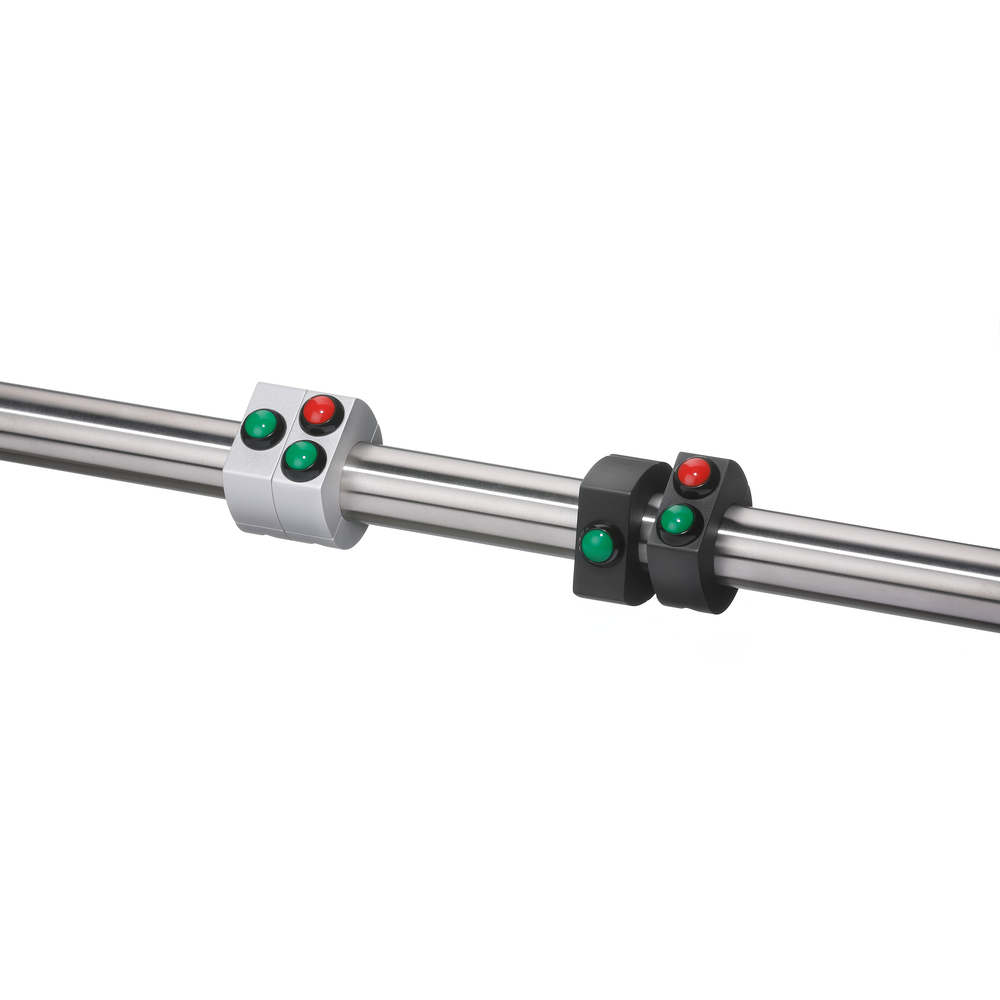

Clamping ring made of aluminum AlMgSi 0.5; blasted black or natural anodized.
Note:
Other dimensions and variations on request.

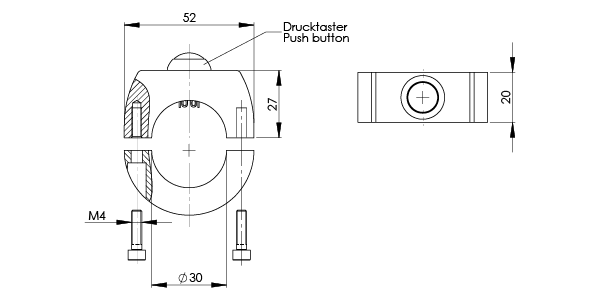

Version TG3-01
|
Unit of measure
|
|||
|---|---|---|---|
| Anodizing version | |||
| Product Type | Description |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
| Product Type | Description |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
|---|---|---|---|
| Product Type TG3-01 | Description 1 push button |
Anodizing version natural-colored with satin finish
Order-No. TG3-01.030.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. TG3-01.030.14 3D+CAD |

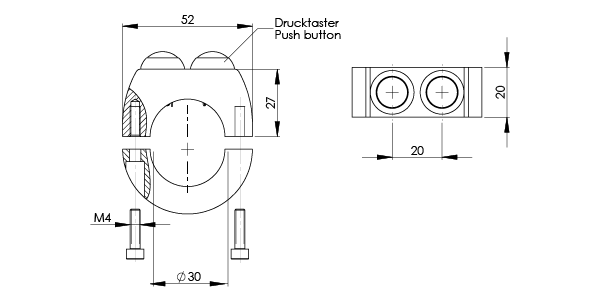

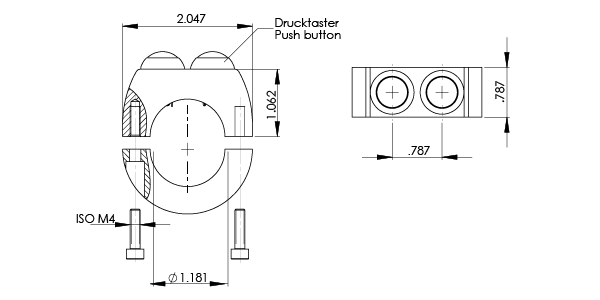

Version TG3-02
|
Unit of measure
|
|||
|---|---|---|---|
| Anodizing version | |||
| Product Type | Description |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
| Product Type | Description |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
|---|---|---|---|
| Product Type TG3-02 | Description 2 push buttons |
Anodizing version natural-colored with satin finish
Order-No. TG3-02.030.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. TG3-02.030.14 3D+CAD |
