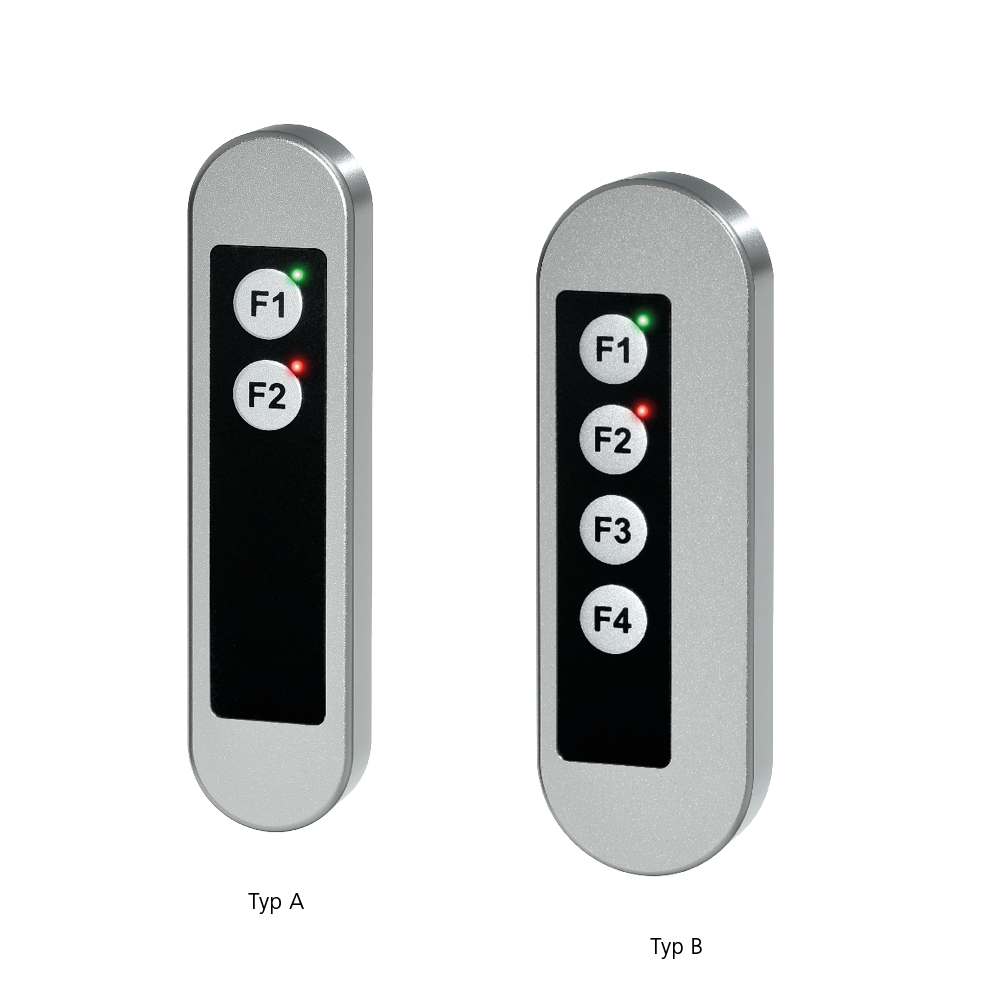

Two stainless steel TG6 switch housings, Typ A with two push buttons labeled F1 and F2 with LED indicators, and Typ B with four buttons labeled F1 to F4 with LED indicators on a black background.
Switch Housing TG6
Switch Housing TG6
Switch Housing TG6

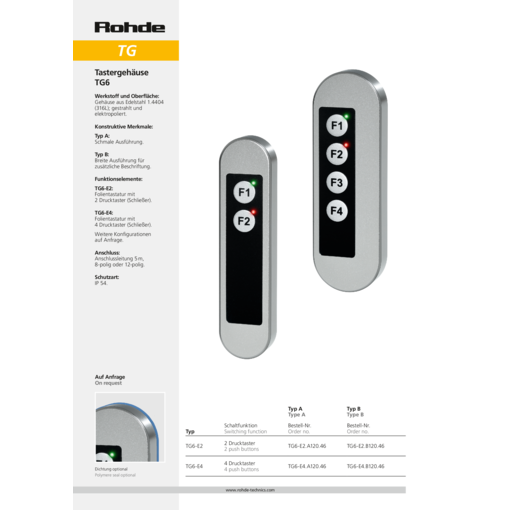

TG6.pdf
PDF

Switch Housing TG6

Material and surface:
Housing made of stainless steel 1.4404 (316L); blasted and electropolished.

Design features:

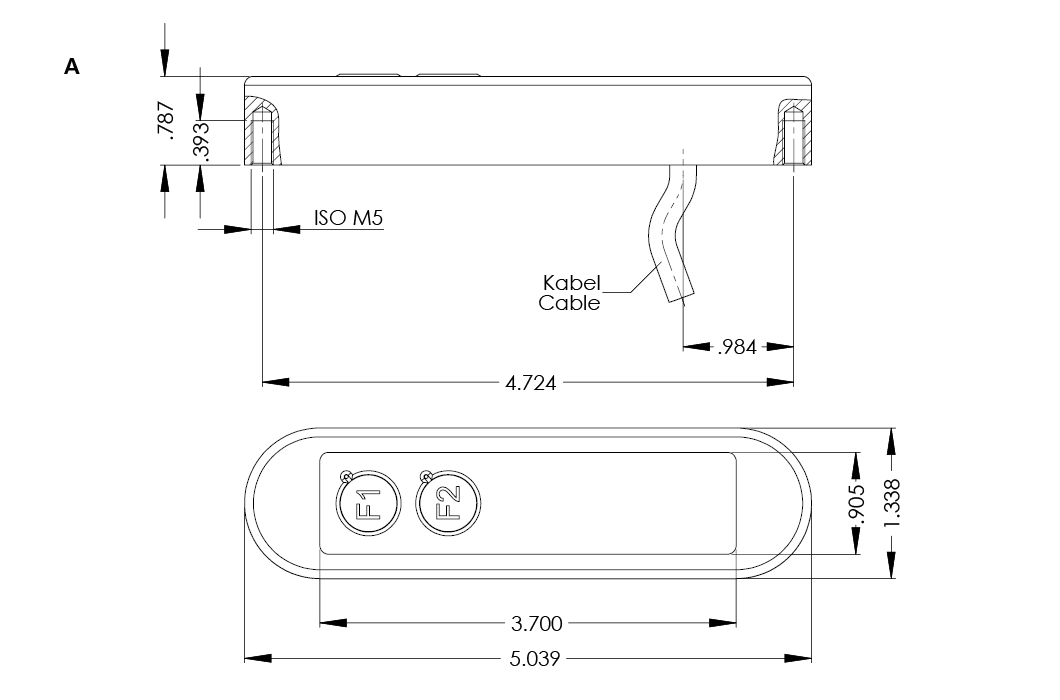

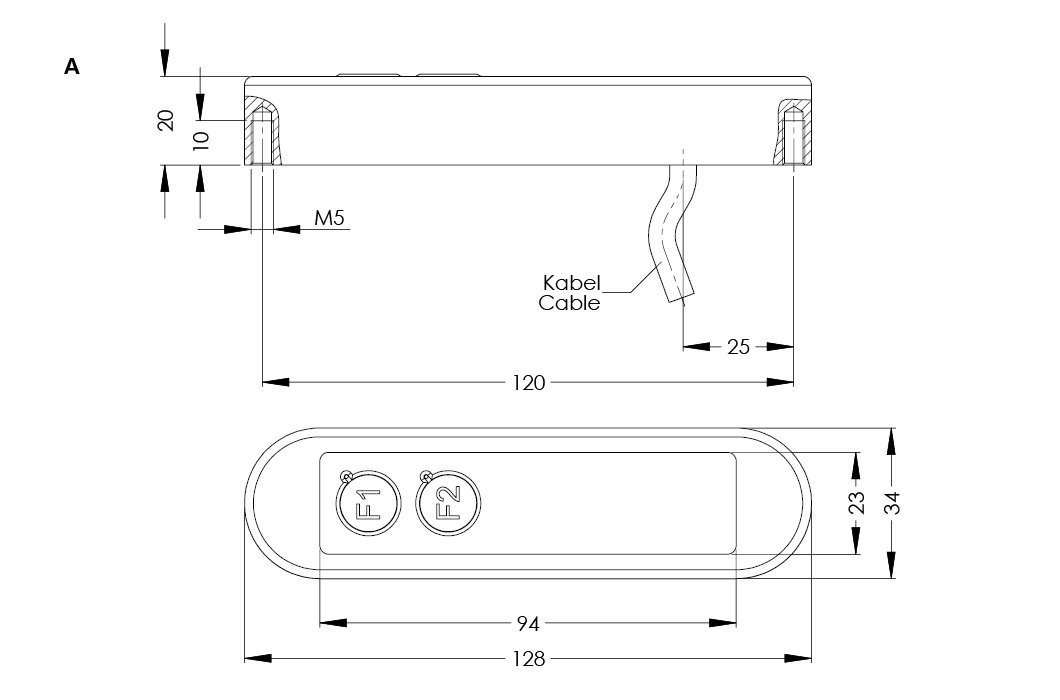

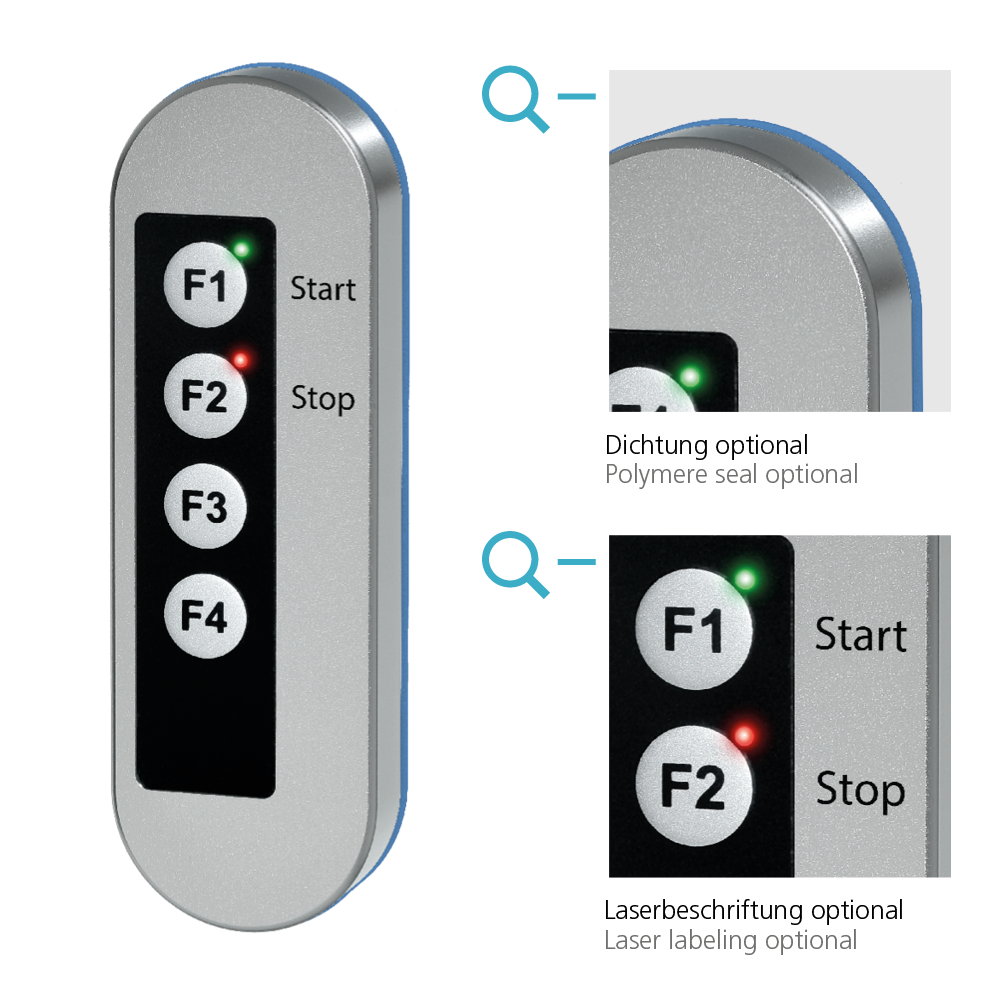

Type A narrow version.

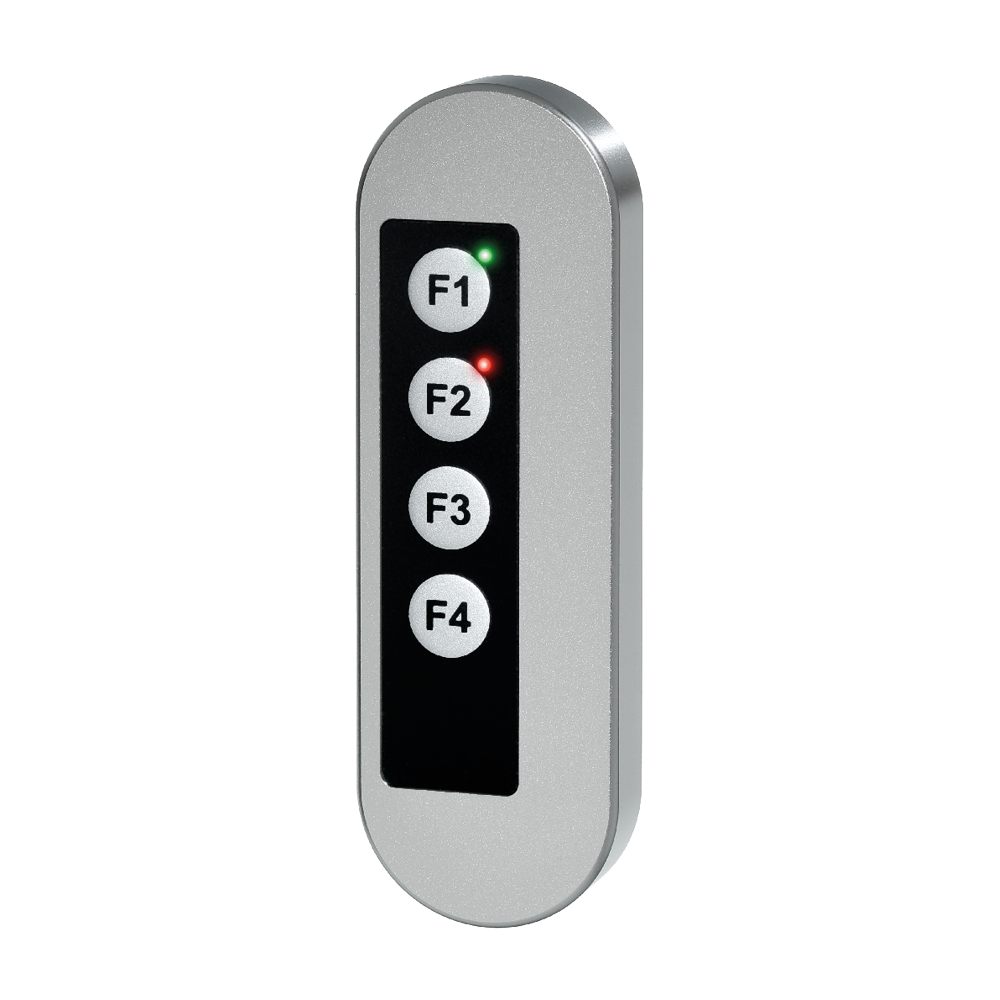

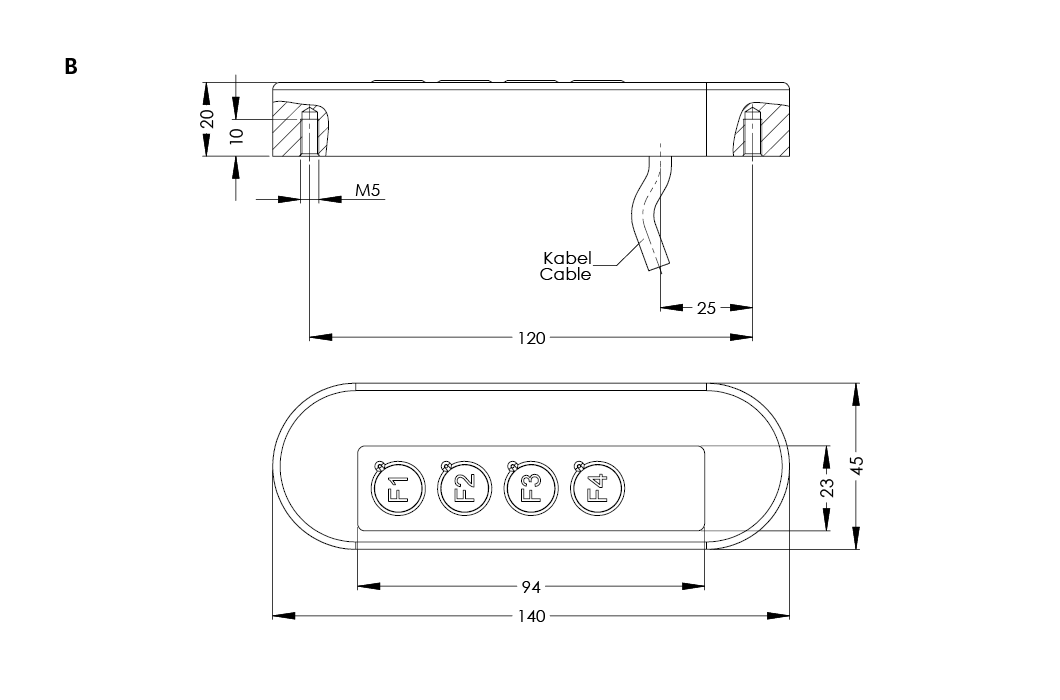

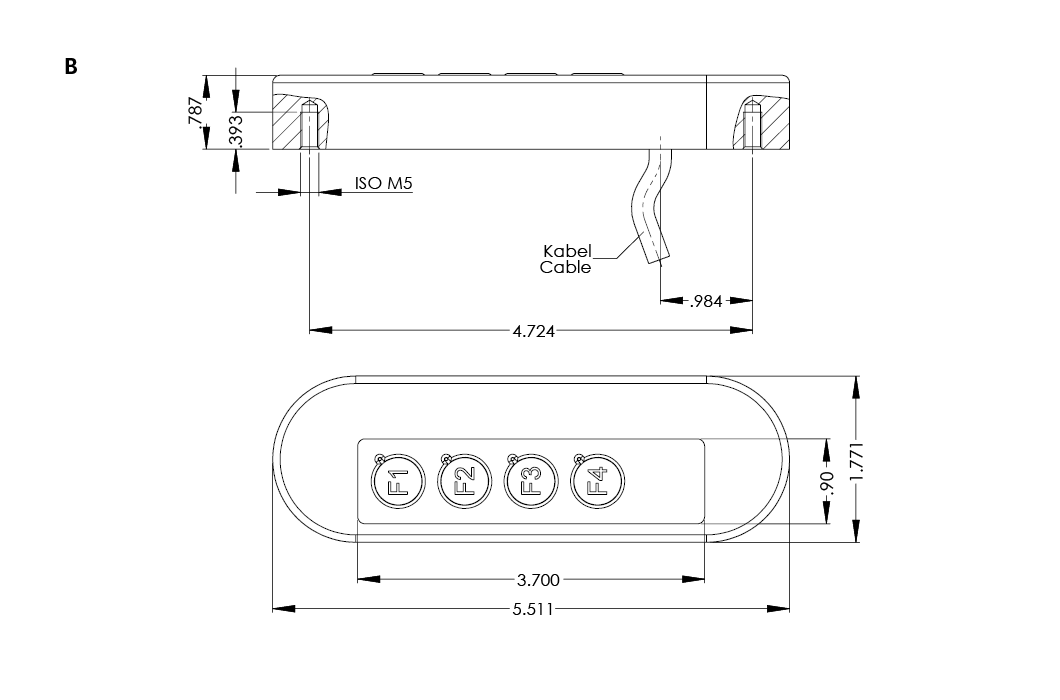

Type B wide version for additional labeling.

Functional elements:
TG6-E2:
membrane keypad 2 Push buttons (NO contact)
TG6-E4:
membrane keypad 4 Push buttons (NO contact)

Further configurations on request.

Connection:
Connection cable 5 m 8-pole or 12-pole.

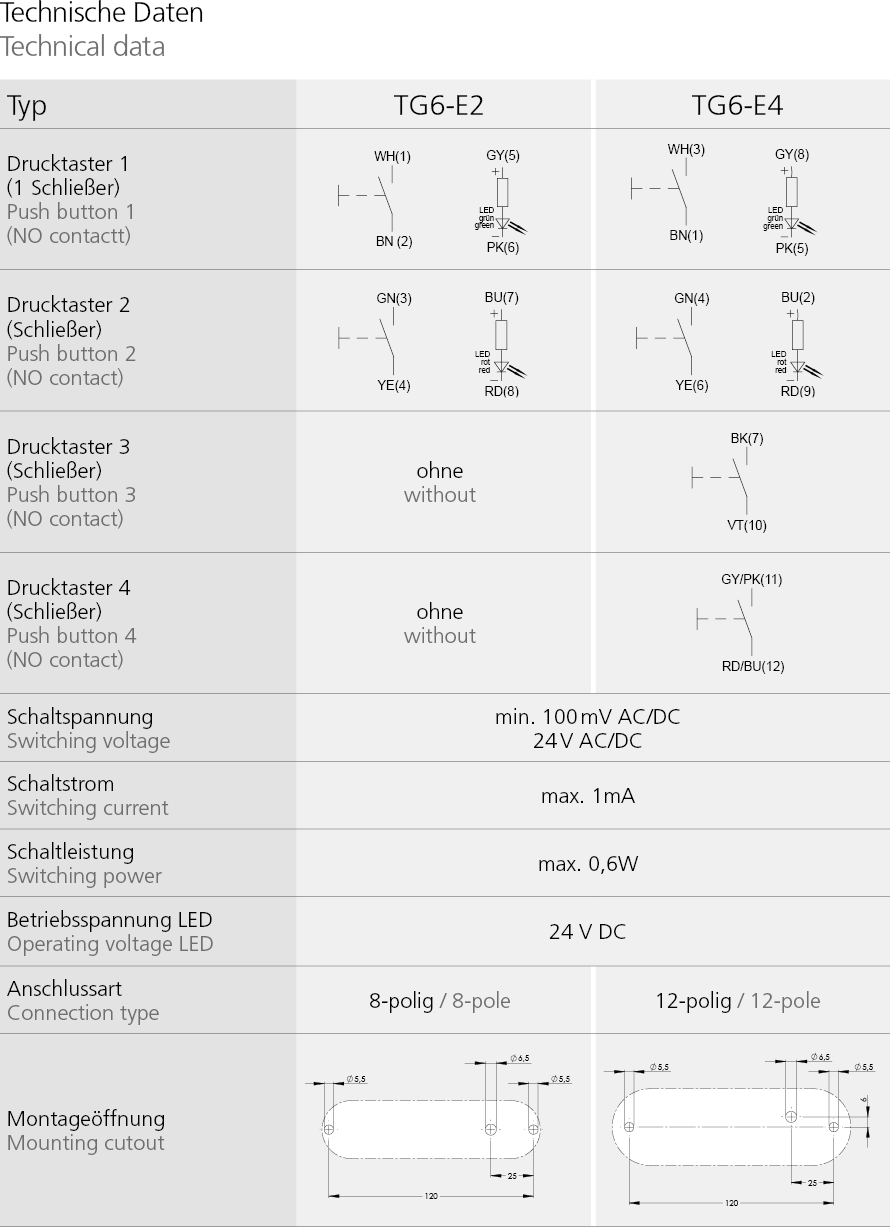

Technical data
Unit of measure
Version
Product TypeDescription Version A
Order-No. 		Version B
Order-No.
Product TypeTG6-E2 Description2 push buttons Version A
Order-No. TG6-E2.A120.46 3D+CAD 		Version B
Order-No. TG6-E2.B120.46 3D+CAD
Product TypeTG6-E4 Description4 push buttons Version A
Order-No. TG6-E4.A120.46 3D+CAD 		Version B
Order-No. TG6-E4.B120.46 3D+CAD
