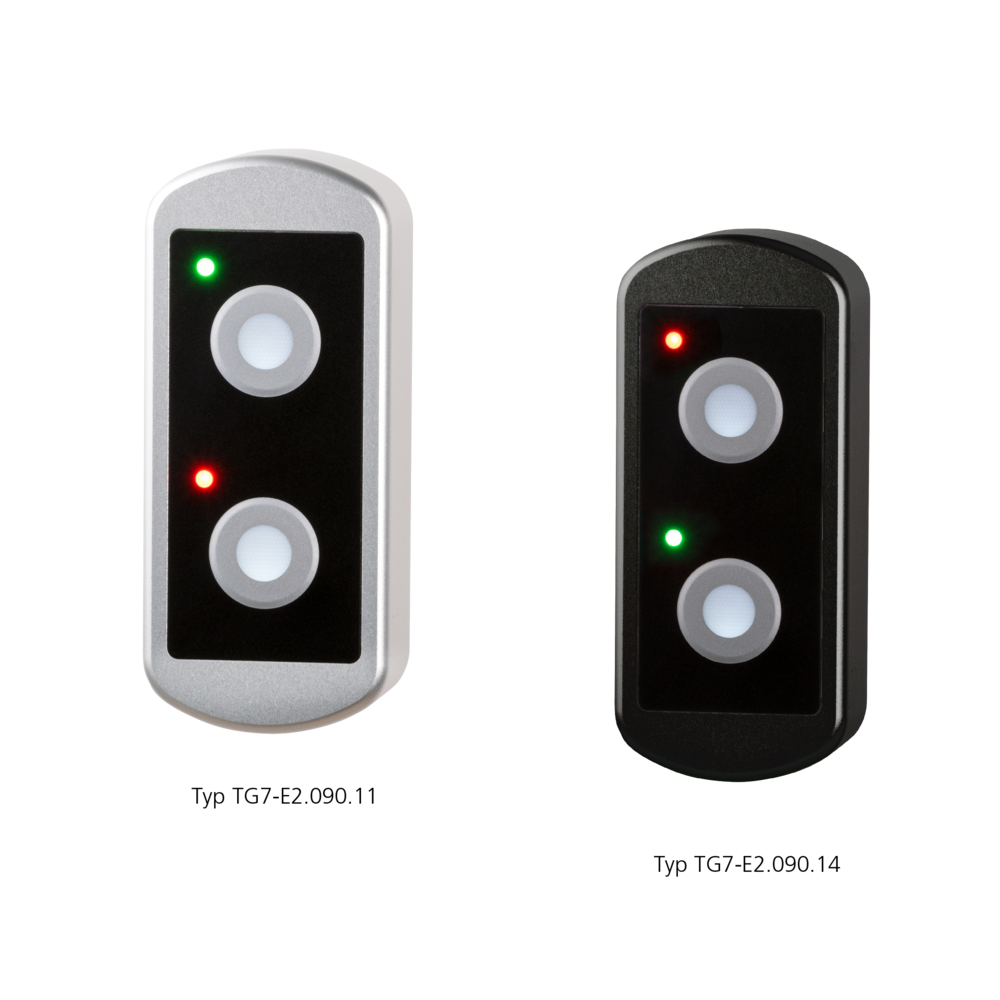

Two TG7 switch housings, one silver and one black, each with two illuminated push-buttons and red and green status LEDs on a black membrane keypad | © Rohde AG
TG7 switch housing with two circular illuminated push-buttons and green and red status lights, featuring laser-labeled 'Start' text above the buttons. | © Rohde AG

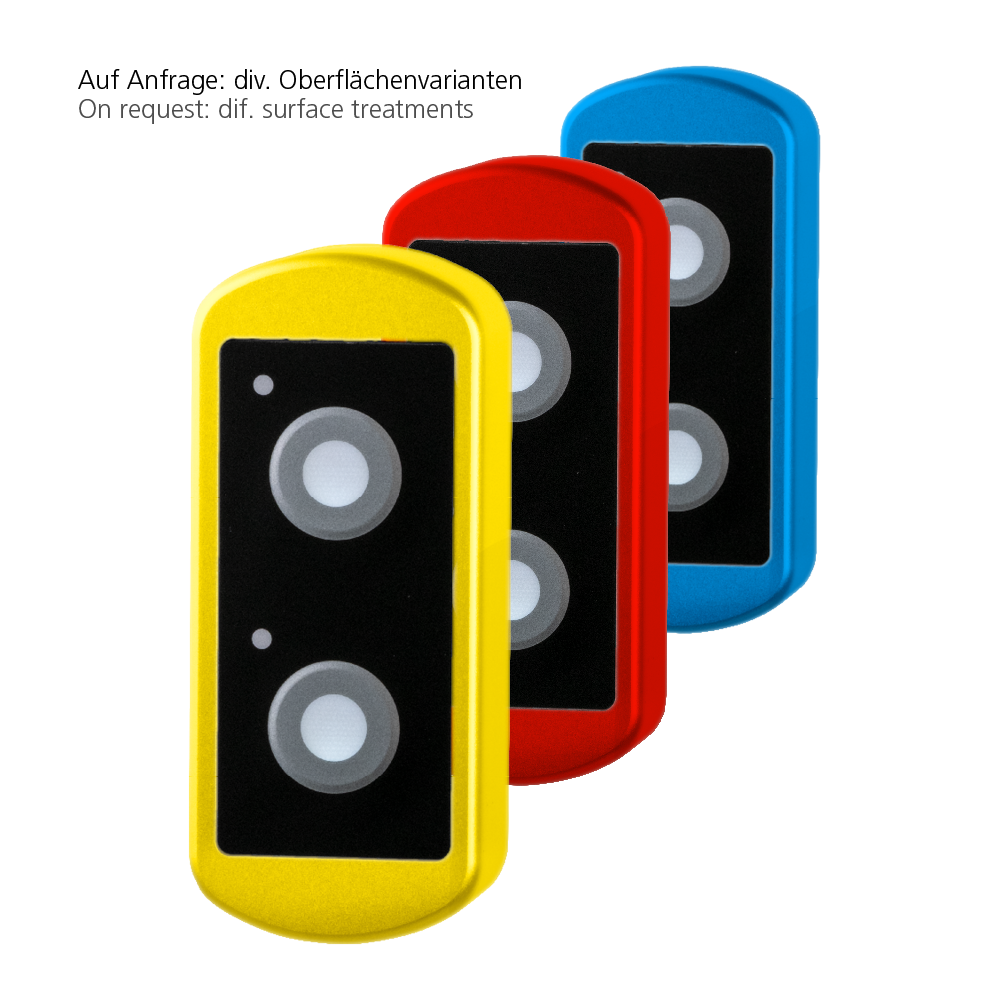

Three TG7 switch housings in yellow, red, and blue with black membrane keypads and illuminated circular push-buttons, displayed side by side with bilingual text about surface treatments. | © Rohde AG

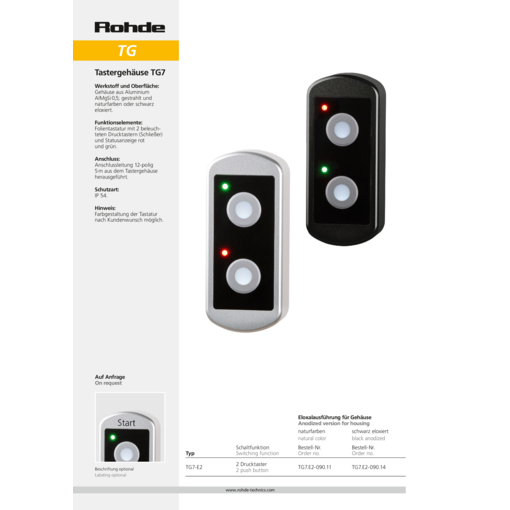

TG7.pdf
PDF

Switch Housing TG7

Material and surface:
Housing made of aluminium AlMgSi 0.5; blasted and natural colour or black anodised.

Functional elements:
Membrane keypad with 2 illuminated push-buttons (NO contact) and status display red or green.

Connection:
Connection cable 12-pole 5m led out of the push-button housing.

Protection:
IP 54.

Note:
Colour design of the keypad possible according to customer requirements.

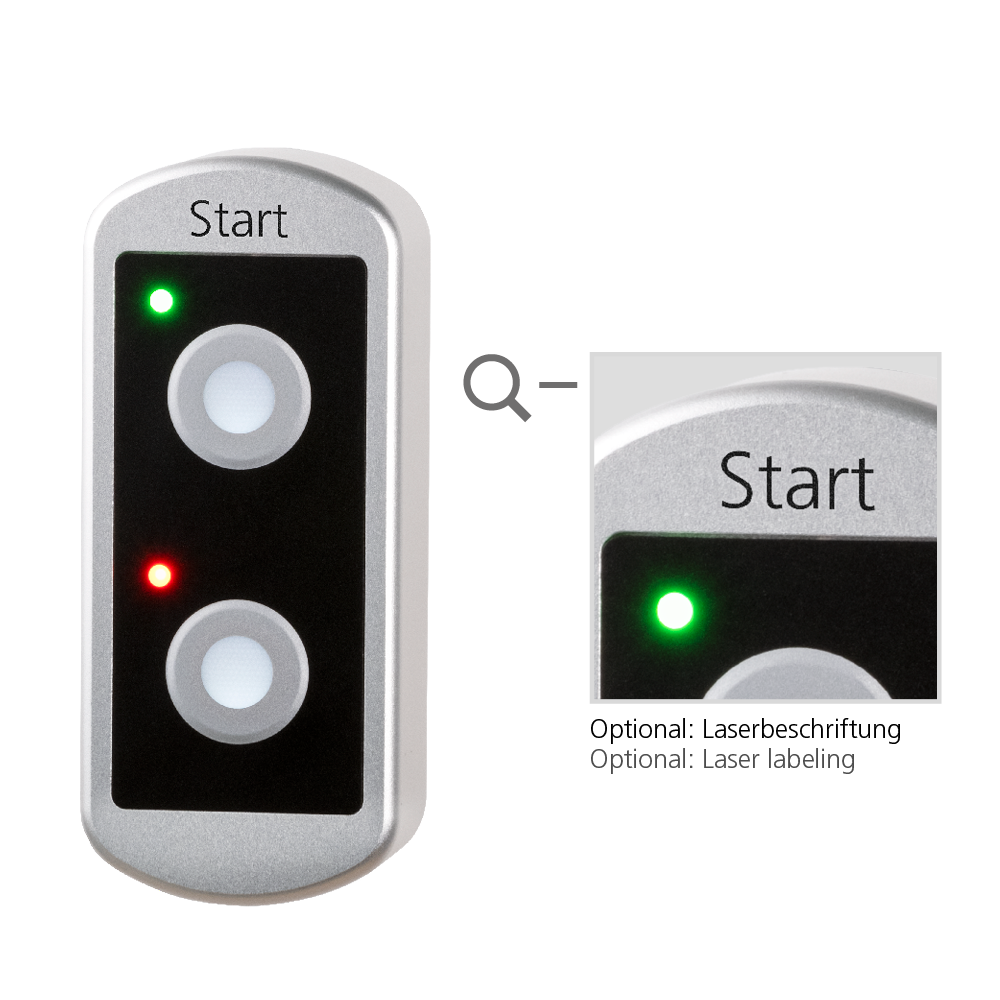

Laser labeling optional.

Technical data
Unit of measure
Type
Description Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Description2 push buttons Anodizing version natural-colored with satin finish
Order-No. TG7-E2.090.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. TG7-E2.090.14 3D+CAD
