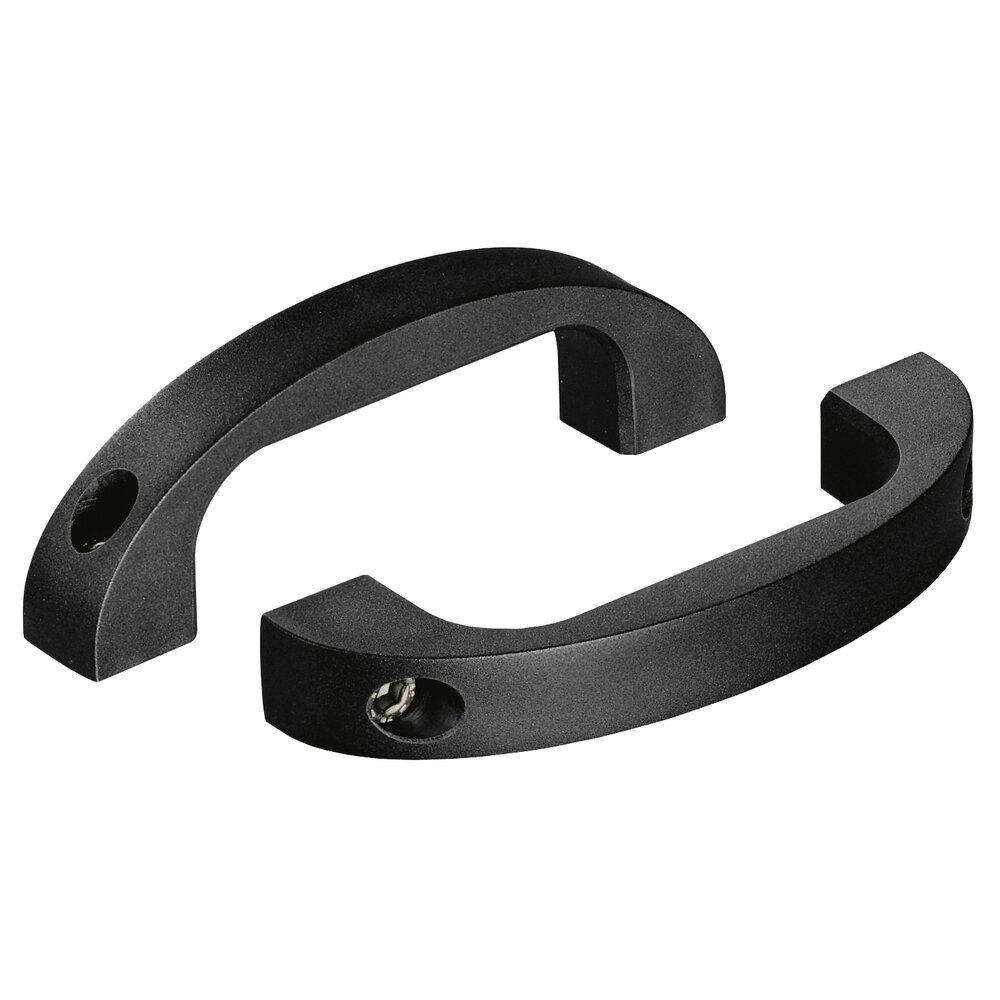

Two black plastic bow-type handles made of duroplastic with mounting holes on each end
db.pdf
PDF

Handles DB

High carrying capacity and heat resistant plastic handle for high temperature applications.

Material and surface:
Duroplastic PF31, black with fine structure.

Temperature resistance:
From -40°C to 150°C.

Scope of supply:
Incl. stainless steel cylinder head socket screws M8x30 DIN 912, nuts DIN 934 and washers DIN 125. Supplied without screws if desired.

Stress resistance:
min. 1000 N.

Technical data
Unit of measure
Scope of delivery
with stainless steel screws
Order-No. 		without screws
Order-No.
with stainless steel screws
Order-No. DB-25.N140.84 3D+CAD 		without screws
Order-No. DB-25.D140.84 3D+CAD
