EE-03 - Rohde AG | Aluminum, stainless steel and plastic handles

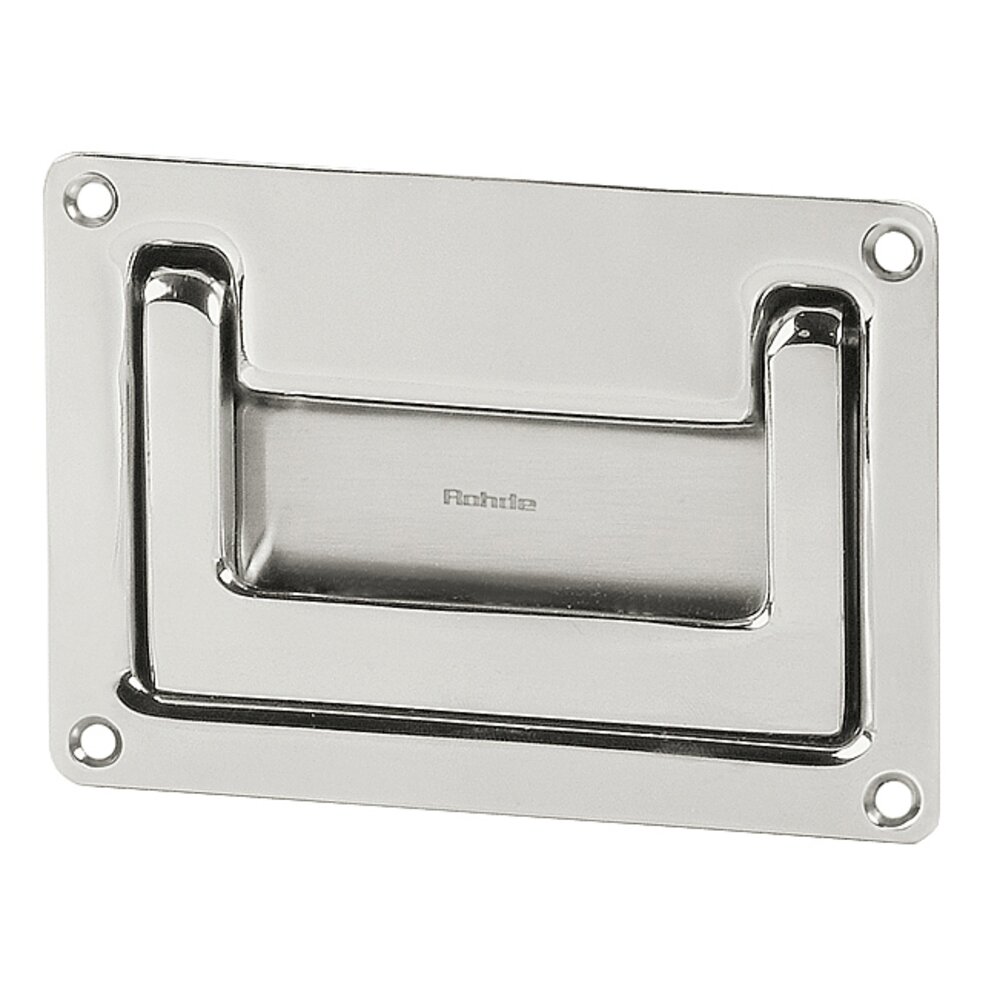

  • Rectangular collapsible stainless steel handle with four corner screw holes and recessed grip
Rectangular collapsible stainless steel handle with four corner screw holes and recessed grip

Handles EE-03

Collapsible stainless steel handles with small installation depth, for devices and clapping doors.

Material and surface:
Stainless steel high gloss electropolished from the material no. 1.4301 or 1.4404 (316L); version brushed finish made of material no. 1.4301 available.

Design advantages:
With pull-back spring from the working to the resting position.

Stress resistance:
min. 200 N.

show more show less
Rectangular collapsible stainless steel handle EE-03 technical drawing with detailed dimensions and mounting hole specifications
Unit of measure
Material no.
Version 1.4301
Order-No. 		1.4404
Order-No.
Version 1.4301
Order-No. 		1.4404
Order-No.

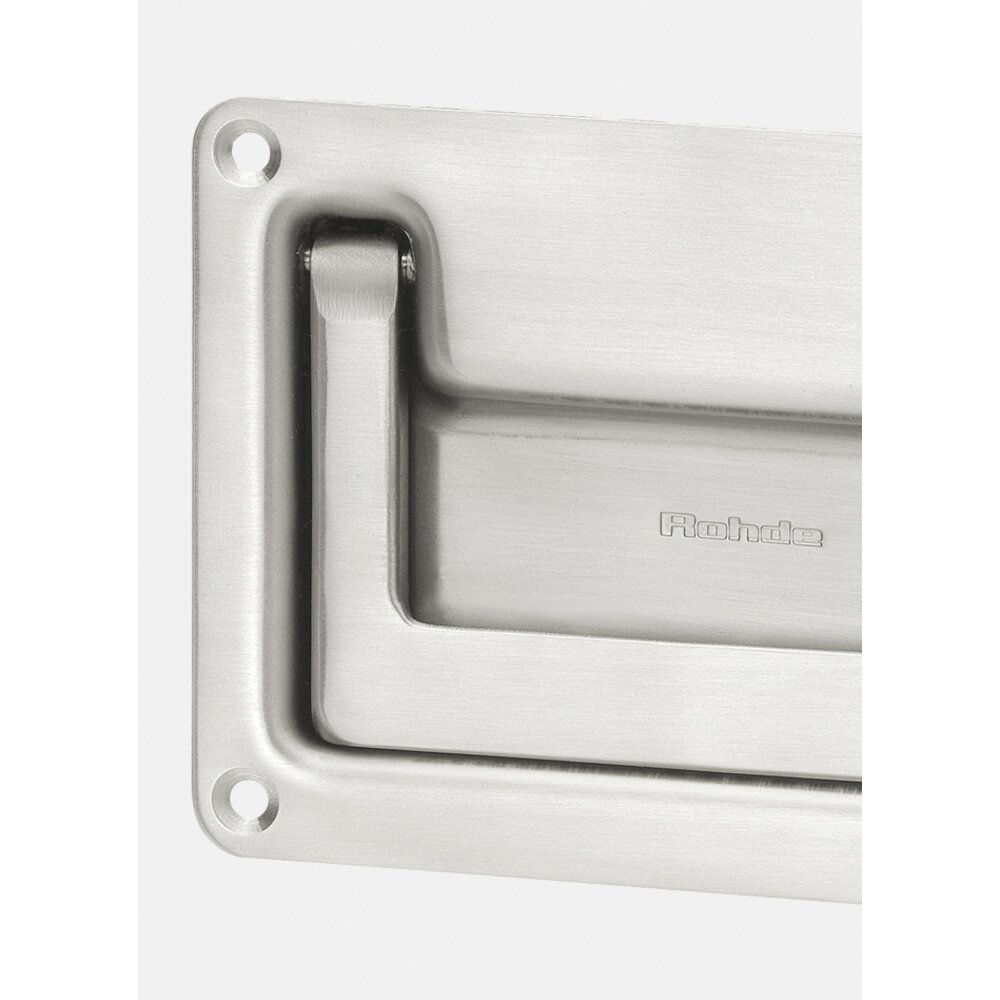

Version brushed 1.4301
Order-No. EE-03.118.33 3D+CAD 		1.4404
Order-No. —
Version electropolished 1.4301
Order-No. EE-03.118.39 3D+CAD 		1.4404
Order-No. EE-03.118.49 3D+CAD
