  • Stainless Steel Handles EM, marine grade

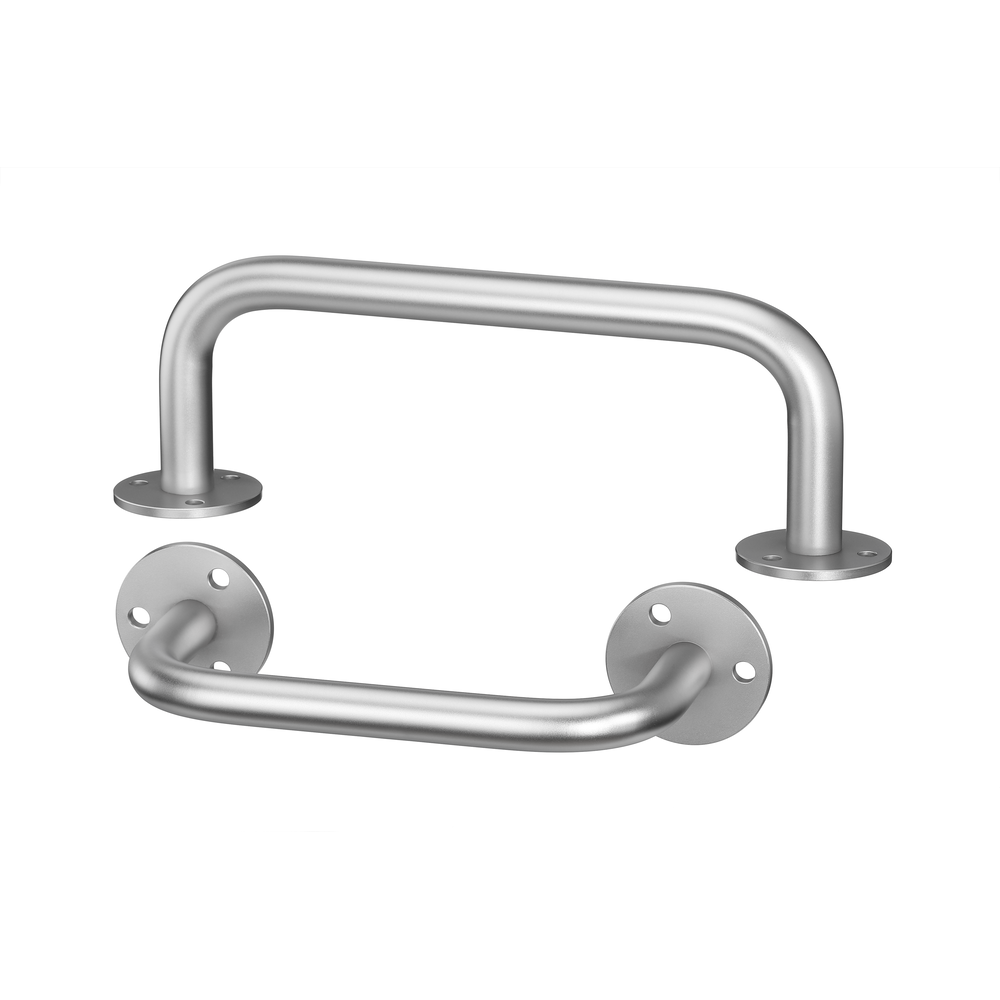

Stainless Steel Handles EM, marine grade

Handles EM

Material and surface:
Round stainless steel material No. 1.4404 (316L). Surface barrel finished, blasted and electropolished with a half-matt finish.

Scope of delivery:
Incl. DIN 912 socket head cap screws M8x35 made of stainless steel.

Stress resistance:
min. 2000 N.

show more show less

Version EM-20

Technical drawing of a round stainless steel handle EM with mounting bases and screw holes
Unit of measure
øD H Order-No.
øD H Order-No.
øD 20 H 75 Order-No. EM-20.200.075.46 3D+CAD
øD 20 H 90 Order-No. EM-20.200.090.46 3D+CAD

Version EM-25

Unit of measure
øD H Order-No.
øD H Order-No.
øD 25 H 90 Order-No. EM-25.300.090.46 3D+CAD
øD 25 H 120 Order-No. EM-25.300.120.46 3D+CAD
