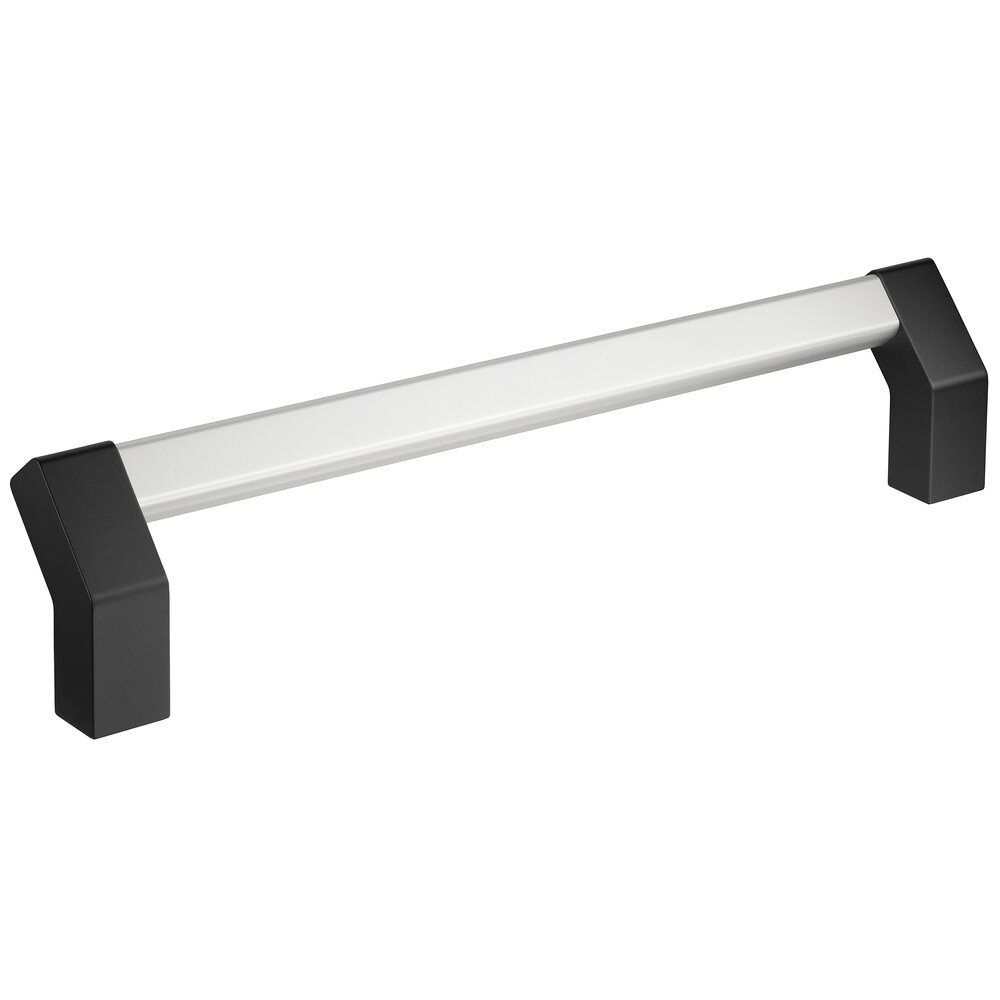

MS-06 solid handle with silver anodized aluminum shank and black anodized end caps, modern industrial design
Handles MS-06
Handles MS-06

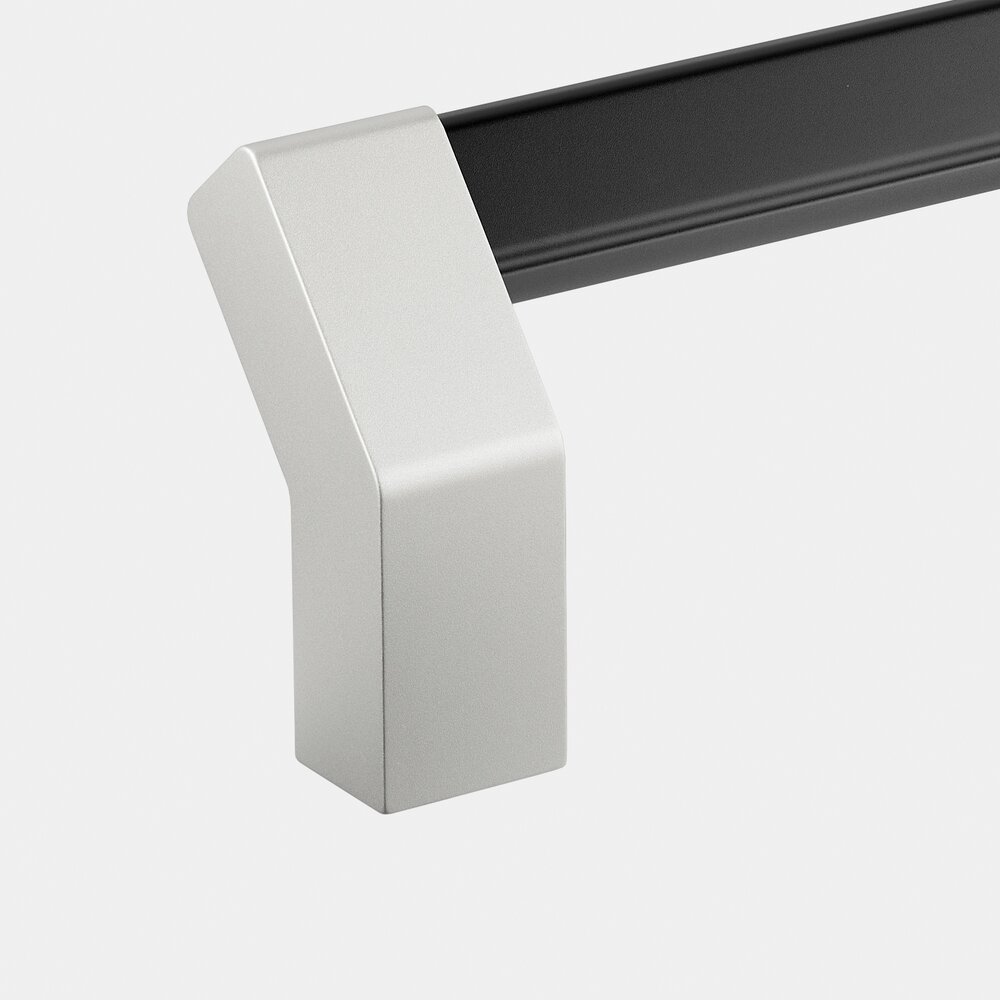

Close-up of an MS-06 aluminium handle with black shank and silver satin-finished ledge

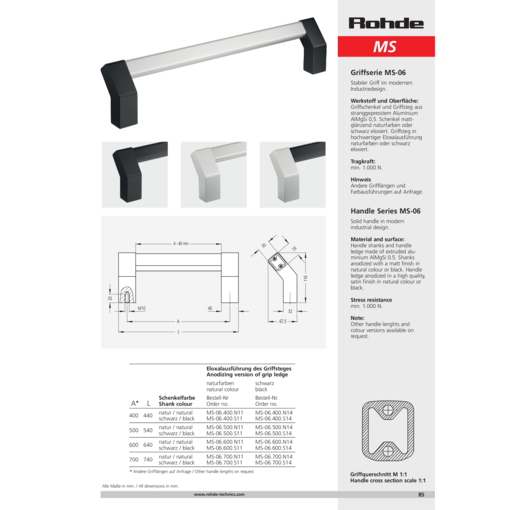

ms-06.pdf
PDF

Handles MS-06

Solid handle in modern industrial design.

Material and surface:
Handle shanks and handle ledge made of extruded aluminium AlMgSi 0.5. Shanks anodized with a matte finish in natural colour or black. Handle ledge anodized in a high quality, satin finish in natural colour or black.

Note:
Other handle lenghts and colour versions available on request.

Stress resistance:
min. 1000 N.

Technical data
Unit of measure
Type
ALLeg colour Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
A400 L440 Leg colourblack Anodizing version natural-colored with satin finish
Order-No. MS-06.400.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.400.S14 3D+CAD
A400 L440 Leg colournatural Anodizing version natural-colored with satin finish
Order-No. MS-06.400.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.400.N14 3D+CAD
A500 L540 Leg colourblack Anodizing version natural-colored with satin finish
Order-No. MS-06.500.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.500.S14 3D+CAD
A500 L540 Leg colournatural Anodizing version natural-colored with satin finish
Order-No. MS-06.500.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.500.N14 3D+CAD
A600 L640 Leg colourblack Anodizing version natural-colored with satin finish
Order-No. MS-06.600.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.600.S14 3D+CAD
A600 L640 Leg colournatural Anodizing version natural-colored with satin finish
Order-No. MS-06.600.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.600.N14 3D+CAD
A700 L740 Leg colourblack Anodizing version natural-colored with satin finish
Order-No. MS-06.700.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.700.S14 3D+CAD
A700 L740 Leg colournatural Anodizing version natural-colored with satin finish
Order-No. MS-06.700.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. MS-06.700.N14 3D+CAD
