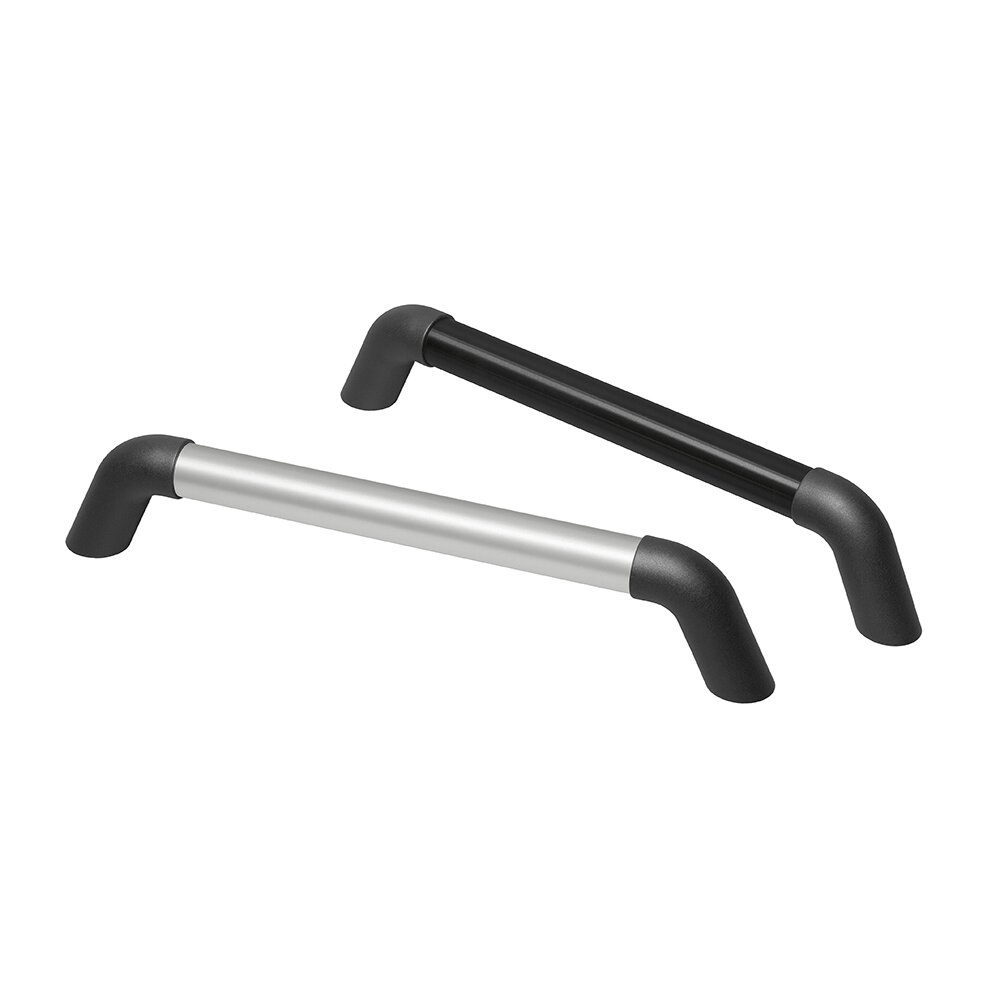

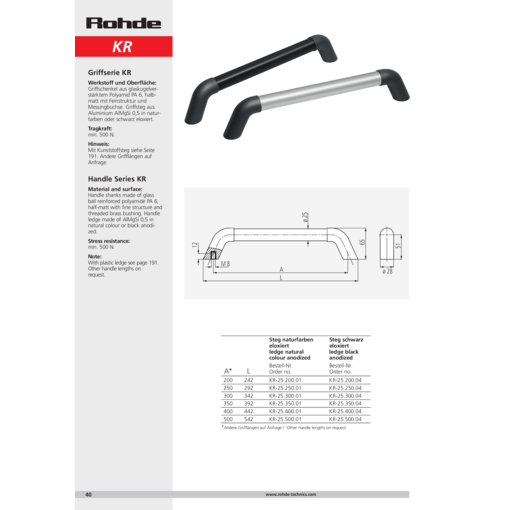

Handles KR

Material and surface:
Handle shanks made of glass ball reinforced polyamide PA 6 , flat-lustrous with fine structure and threaded brass bushing. Handle ledge made of aluminum AlMgSi 0,5 in natural color or black anodized.

Note:
Other handle lengths on request.

Stress resistance:
min. 500 N.

40
Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
A200	L242	Anodizing version natural-colored Order-No. KR-25.200.01 3D+CAD	Anodized aluminum black Order-No. KR-25.200.04 3D+CAD
A250	L292	Anodizing version natural-colored Order-No. KR-25.250.01 3D+CAD	Anodized aluminum black Order-No. KR-25.250.04 3D+CAD
A300	L342	Anodizing version natural-colored Order-No. KR-25.300.01 3D+CAD	Anodized aluminum black Order-No. KR-25.300.04 3D+CAD
A350	L392	Anodizing version natural-colored Order-No. KR-25.350.01 3D+CAD	Anodized aluminum black Order-No. KR-25.350.04 3D+CAD
A400	L442	Anodizing version natural-colored Order-No. KR-25.400.01 3D+CAD	Anodized aluminum black Order-No. KR-25.400.04 3D+CAD
A500	L542	Anodizing version natural-colored Order-No. KR-25.500.01 3D+CAD	Anodized aluminum black Order-No. KR-25.500.04 3D+CAD
