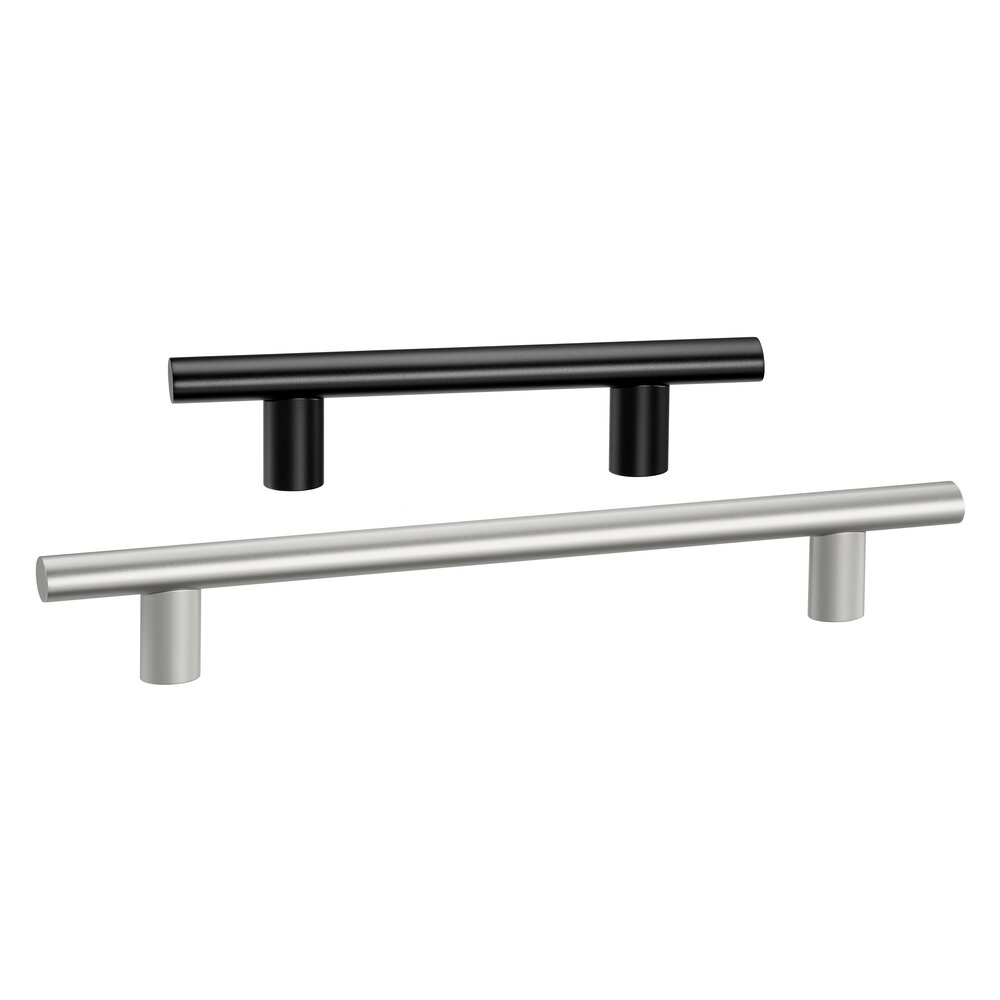

Two U9 handles in different lengths and colors, one black and one natural satin anodized aluminium

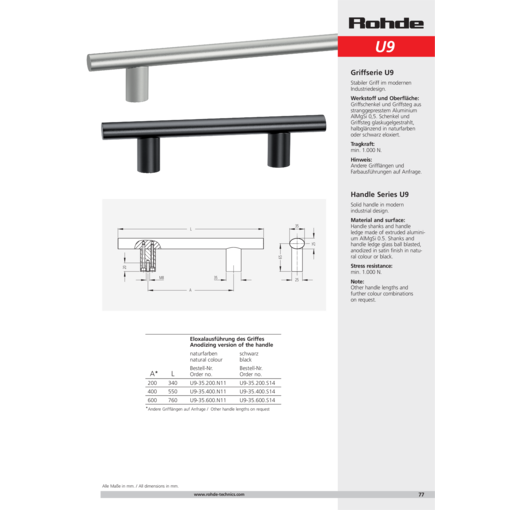

u9.pdf
PDF

Handles U9

Solid handle in modern industrial design.

Material and surface:
Handle shanks and handle ledge of extruded aluminium AlMgSi 0,5. Shanks and handle ledge glass ball blasted, anodized in satin finish in natural colour or black.

Note:
Other handle lenghts and colour versions available on request.

Stress resistance:
min. 1000 N.

Technical data
Unit of measure
Type
AL Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
A200 L340 Anodizing version natural-colored with satin finish
Order-No. U9-35.200.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. U9-35.200.S14 3D+CAD
A400 L550 Anodizing version natural-colored with satin finish
Order-No. U9-35.400.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. U9-35.400.S14 3D+CAD
A600 L760 Anodizing version natural-colored with satin finish
Order-No. U9-35.600.N11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. U9-35.600.S14 3D+CAD
