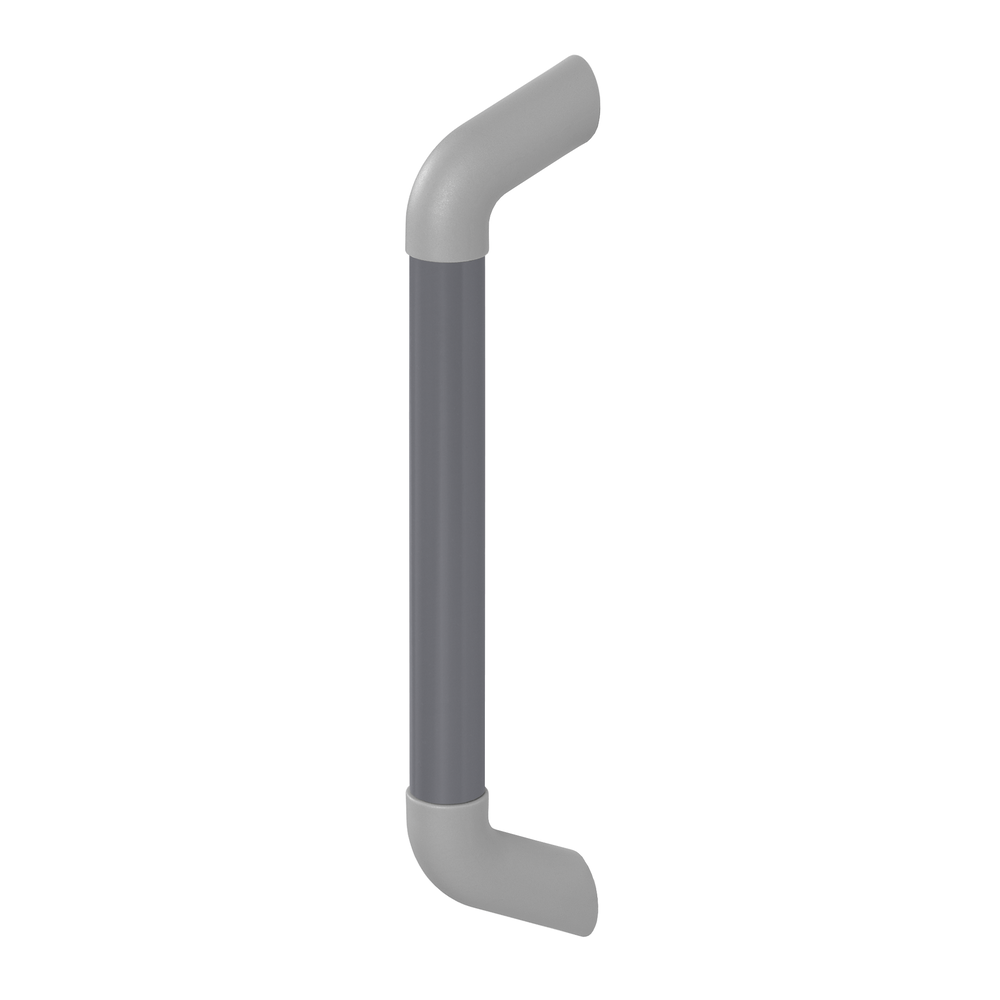

Handles KR

Material and surface:
Handle shanks made of glass ball reinforced polyamide PA 6, flat-lustrous with fine structure.
Handle ledge made of POM in grey or black.

Note:
Any desired handle lengths on request.

Stress resistance:
min. 500 N.

Technical data
Unit of measure
		Type
A	L	black Order-No.	grey Order-No.
A200	L242	black Order-No. KR-25.200.S84 3D+CAD	grey Order-No. KR-25.200.G7046 3D+CAD
A250	L292	black Order-No. KR-25.250.S84 3D+CAD	grey Order-No. KR-25.250.G7046 3D+CAD
