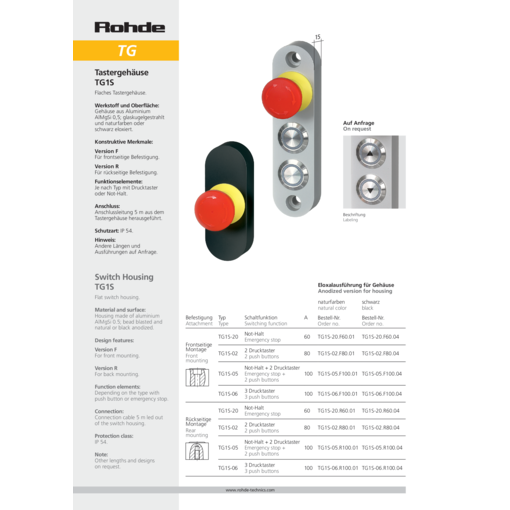

Switch housing TG1S

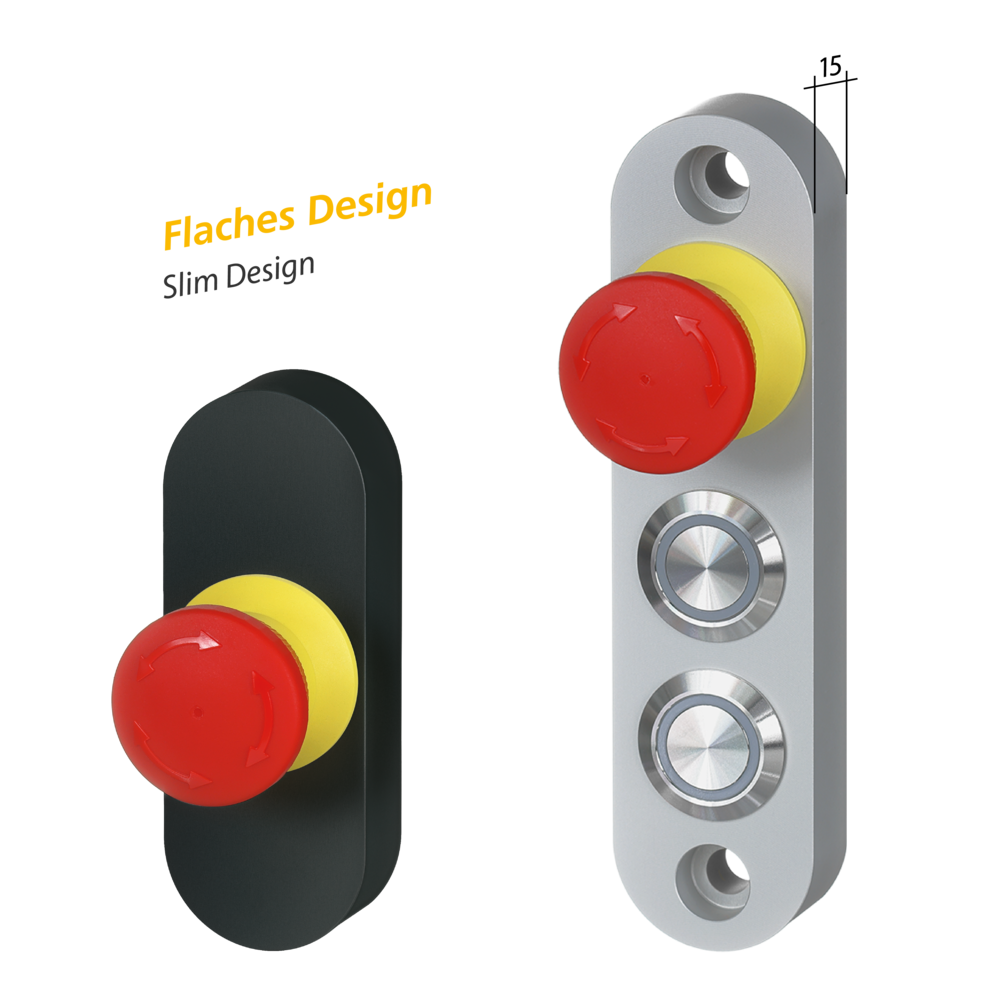

Flat switch housing.

Material and surface:
Housing made of aluminium AlMgSi 0.5; bead blasted and natural or black anodized.

Design features:
Version F for front mounting.
Version R for back mounting.

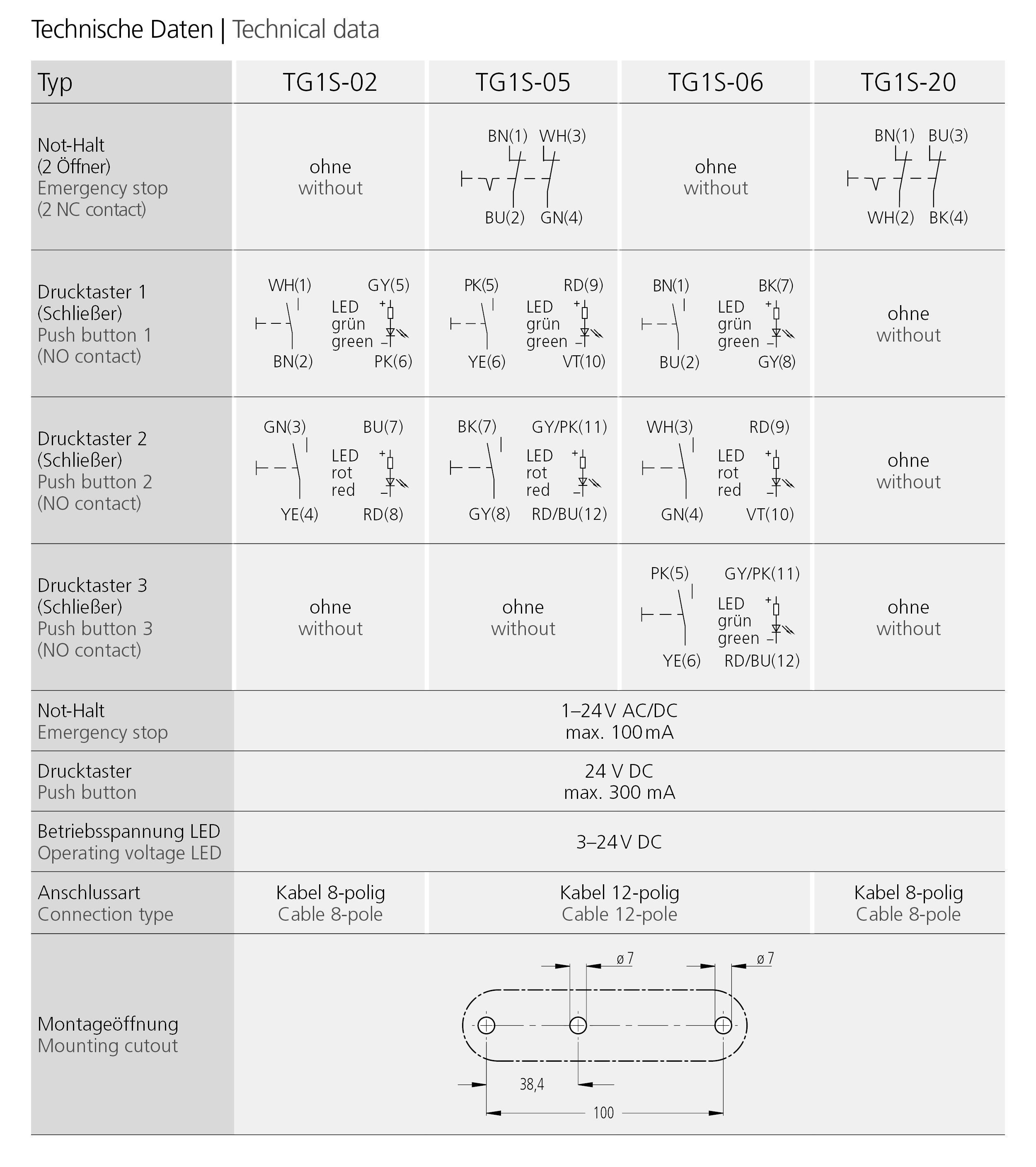

Function elements:
Depending on the type with push button or emergency stop.

TG1S-02: 2 push buttons
TG1S-05: 2 push buttons + emergency stop
TG1S-06: 3 push buttons
TG1S-20: emergency stop

Connection:
Connection cable 5 m led out of the switch housing.

Protection class:
IP 54.

Note:
Other lengths and designs on request.

show more show less

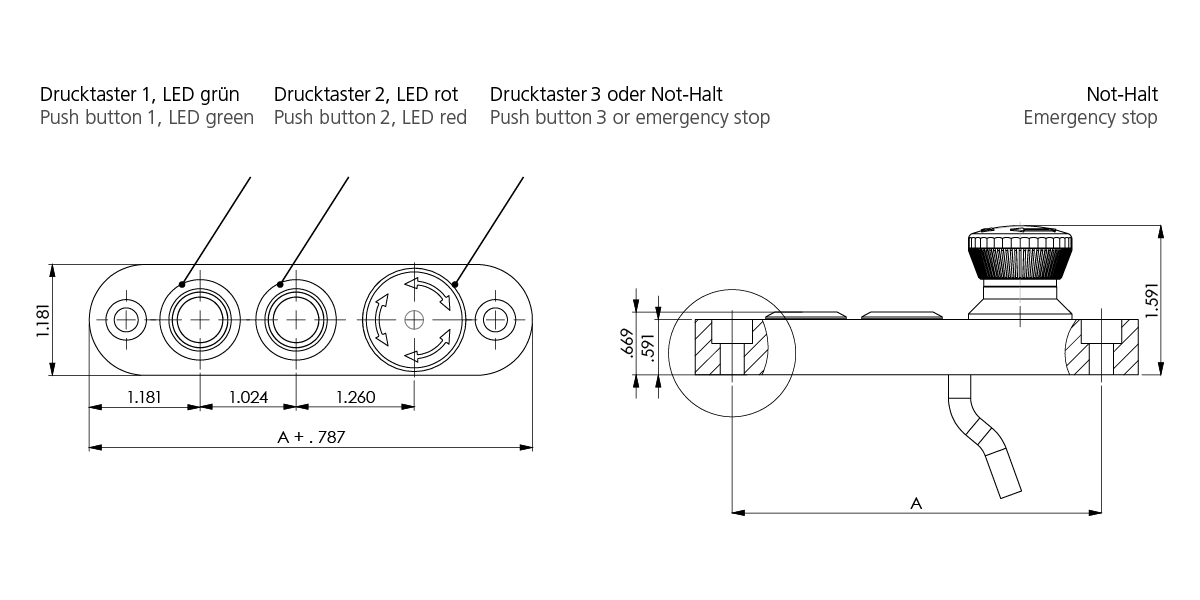

Version F

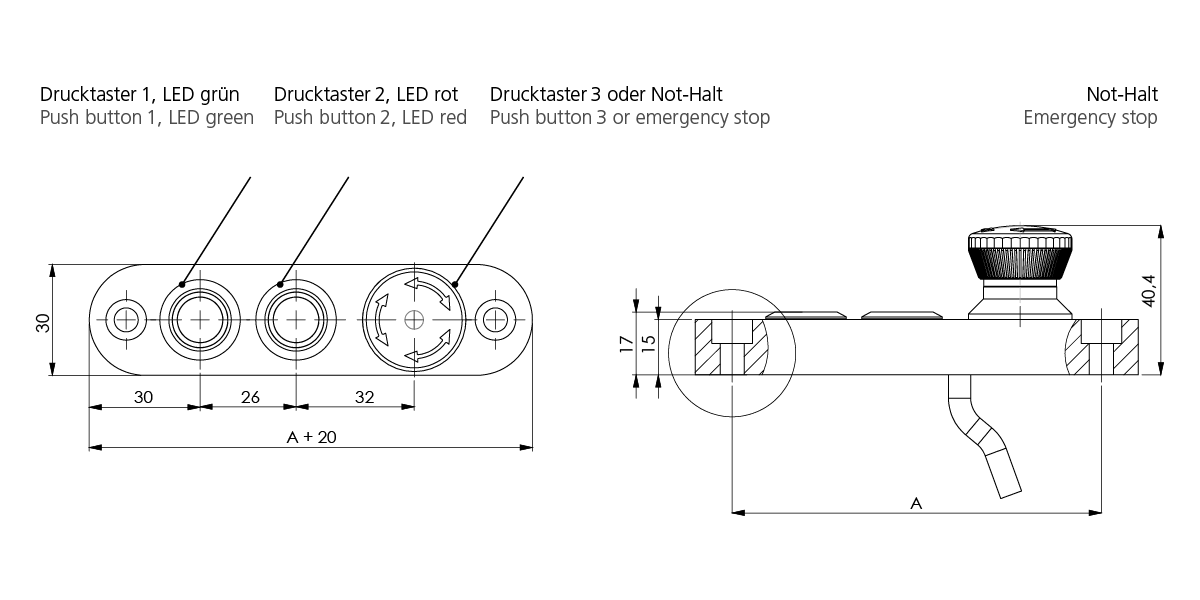

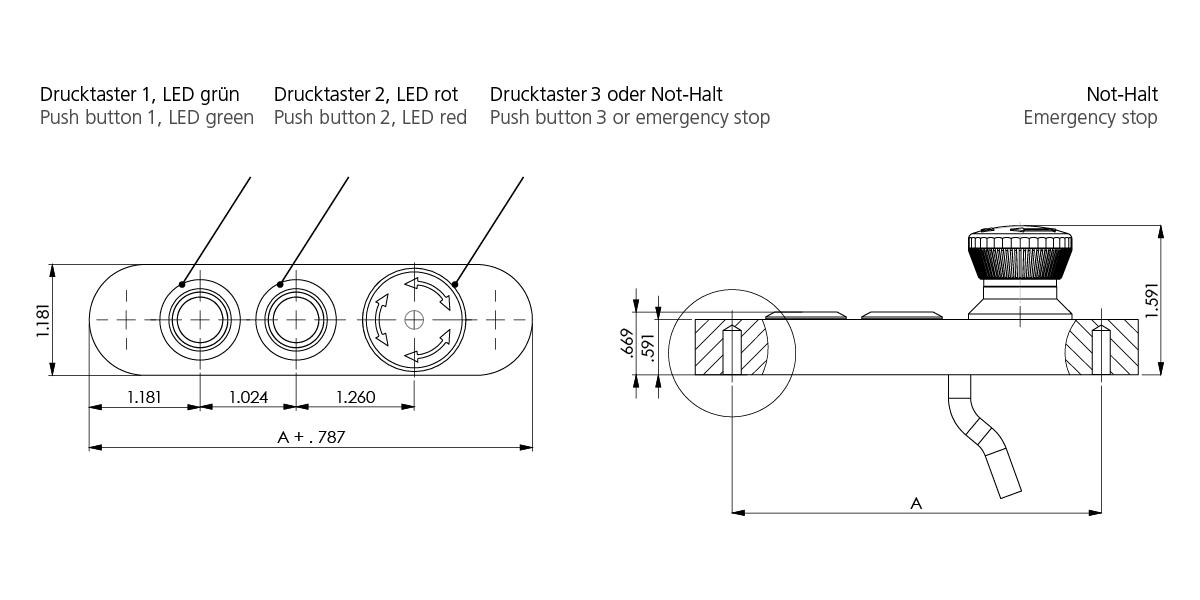

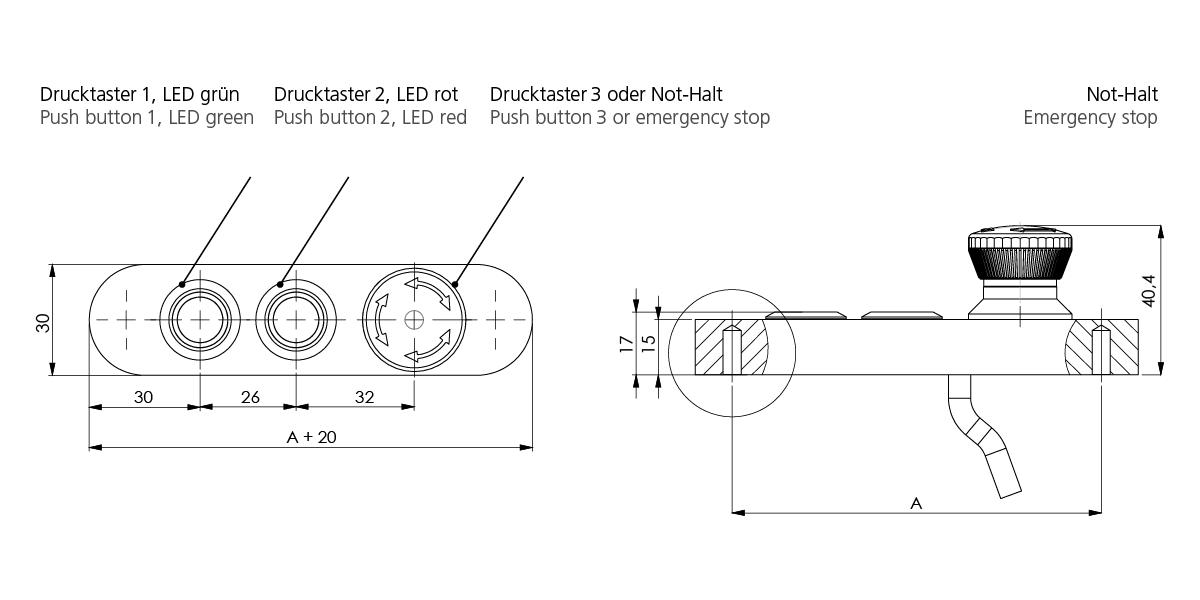

Technical drawing of the TG1S flat switch housing, front and side views, showing push buttons with green and red LEDs and an emergency stop button, including detailed dimensional annotations.

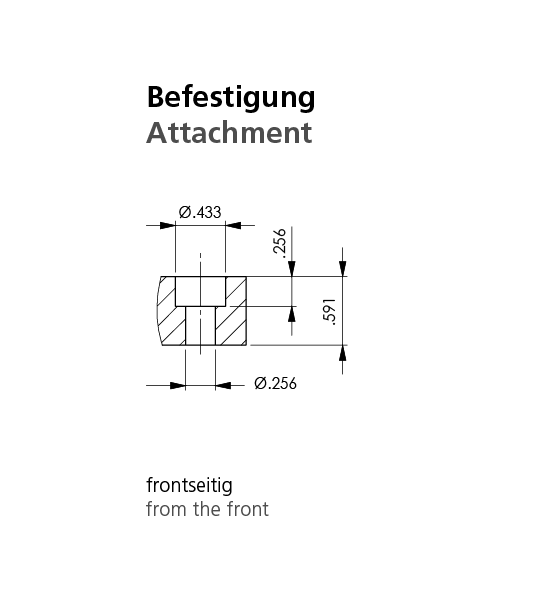

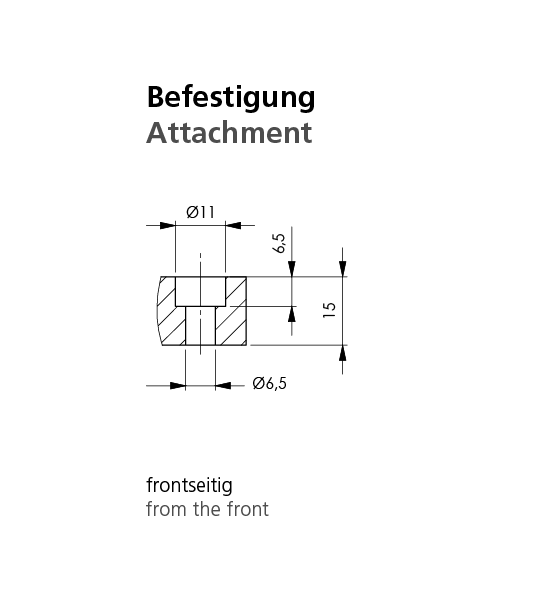

Cross-sectional technical drawing of TG1S switch housing attachment showing diameter and thickness measurements for front mounting.
Unit of measure
Anodizing version
Product Type Description A Anodizing version natural-colored
Order-No. 		Anodized aluminum black
Order-No.
Product Type Description A Anodizing version natural-colored
Order-No. 		Anodized aluminum black
Order-No.
Product Type TG1S-02 Description 2 push buttons A 80 Anodizing version natural-colored
Order-No. TG1S-02.F80.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-02.F80.04 3D+CAD
Product Type TG1S-05 Description 2 push buttons + emergency stop A 100 Anodizing version natural-colored
Order-No. TG1S-05.F100.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-05.F100.04 3D+CAD
Product Type TG1S-06 Description 3 push buttons A 100 Anodizing version natural-colored
Order-No. TG1S-06.F100.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-06.F100.04 3D+CAD
Product Type TG1S-20 Description emergency stop A 60 Anodizing version natural-colored
Order-No. TG1S-20.F60.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-20.F60.04 3D+CAD

Version R

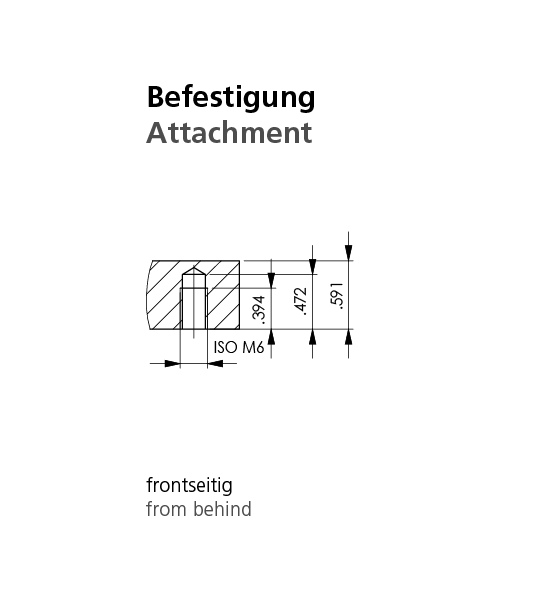

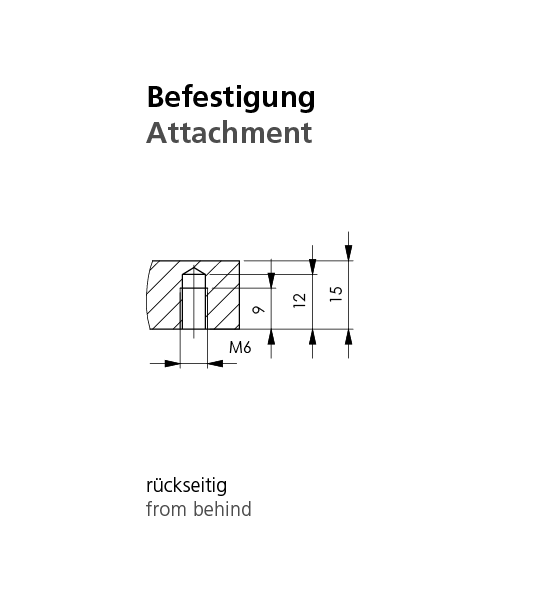

Technical drawing of TG1S switch housing attachment showing mounting hole dimensions in inches with ISO M6 thread and orientation notes in German and English.
Unit of measure
Anodizing version
Product Type Description A Anodizing version natural-colored
Order-No. 		Anodized aluminum black
Order-No.
Product Type Description A Anodizing version natural-colored
Order-No. 		Anodized aluminum black
Order-No.
Product Type TG1S-02 Description 2 push buttons A 80 Anodizing version natural-colored
Order-No. TG1S-02.R80.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-02.R80.04 3D+CAD
Product Type TG1S-05 Description 2 push buttons + emergency stop A 100 Anodizing version natural-colored
Order-No. TG1S-05.R100.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-05.R100.04 3D+CAD
Product Type TG1S-06 Description 3 push buttons A 100 Anodizing version natural-colored
Order-No. TG1S-06.R100.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-06.R100.04 3D+CAD
Product Type TG1S-20 Description emergency stop A 60 Anodizing version natural-colored
Order-No. TG1S-20.R60.01 3D+CAD 		Anodized aluminum black
Order-No. TG1S-20.R60.04 3D+CAD
