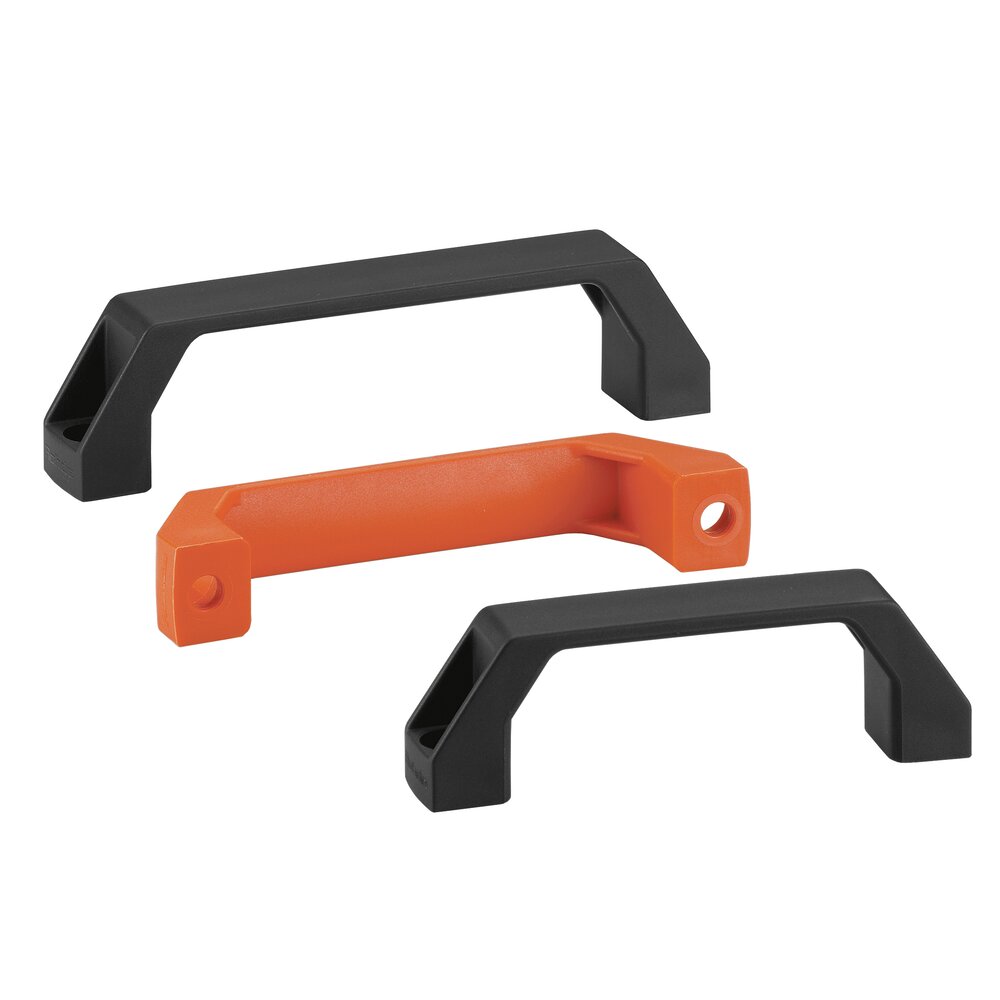

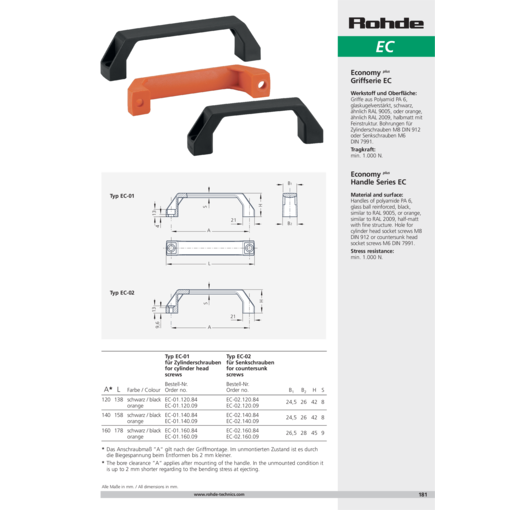

Handles EC
Material and surface:
Handles of polyamide PA6, glass ball reinforced, black, similar to RAL 9005, or orange, similar to RAL 2009, half-matt with fine structure. Hole for cylinder head socket screws M8 DIN 912 or countersunk head socket screws M6 DIN 7991.
* The bore clearance "A" applies after mounting of the handle. In the unmounted condition it is up to 2 mm shorter regarding to the bending stress at ejecting.
Stress resistance:
min. 1000 N.
Version EC-01
|
Unit of measure
|
|||||||
|---|---|---|---|---|---|---|---|
| Version | |||||||
| A | L |
orange
Order-No. |
black
Order-No. |
B₁ | B₂ | H | S |
| A | L |
orange
Order-No. |
black
Order-No. |
B₁ | B₂ | H | S |
|---|---|---|---|---|---|---|---|
| A 120 | L 138 |
orange
Order-No. EC-01.120.09 3D+CAD |
black
Order-No. EC-01.120.84 3D+CAD |
B₁ 24,5 | B₂ 26 | H 42 | S 8 |
| A 140 | L 158 |
orange
Order-No. EC-01.140.09 3D+CAD |
black
Order-No. EC-01.140.84 3D+CAD |
B₁ 24,5 | B₂ 26 | H 42 | S 8 |
| A 160 | L 178 |
orange
Order-No. EC-01.160.09 3D+CAD |
black
Order-No. EC-01.160.84 3D+CAD |
B₁ 26,5 | B₂ 28 | H 45 | S 9 |
Version EC-02
|
Unit of measure
|
|||||||
|---|---|---|---|---|---|---|---|
| Version | |||||||
| A | L |
orange
Order-No. |
black
Order-No. |
B₁ | B₂ | H | S |
| A | L |
orange
Order-No. |
black
Order-No. |
B₁ | B₂ | H | S |
|---|---|---|---|---|---|---|---|
| A 120 | L 138 |
orange
Order-No. EC-02.120.09 3D+CAD |
black
Order-No. EC-02.120.84 3D+CAD |
B₁ 24,5 | B₂ 26 | H 42 | S 8 |
| A 140 | L 158 |
orange
Order-No. EC-02.140.09 3D+CAD |
black
Order-No. EC-02.140.84 3D+CAD |
B₁ 24,5 | B₂ 26 | H 42 | S 8 |
| A 160 | L 178 |
orange
Order-No. EC-02.160.09 3D+CAD |
black
Order-No. EC-02.160.84 3D+CAD |
B₁ 26,5 | B₂ 28 | H 45 | S 9 |
