Functional handles FG21

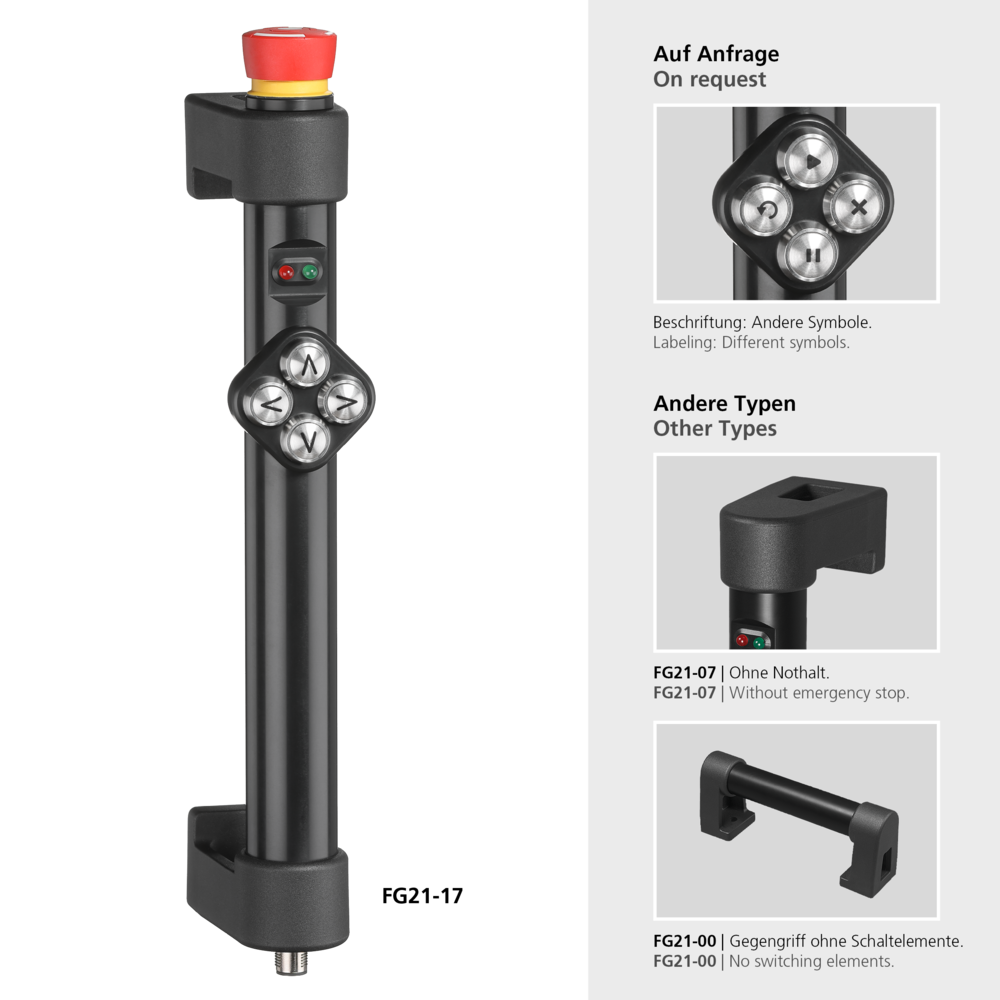

Black industrial FG21 handle with a red emergency stop button, two status LEDs, and a panel of four directional push buttons on the shank, shown alongside alternative button configurations and other handle versions
Black industrial handle with tubular grip and two mounting ends with holes for screws

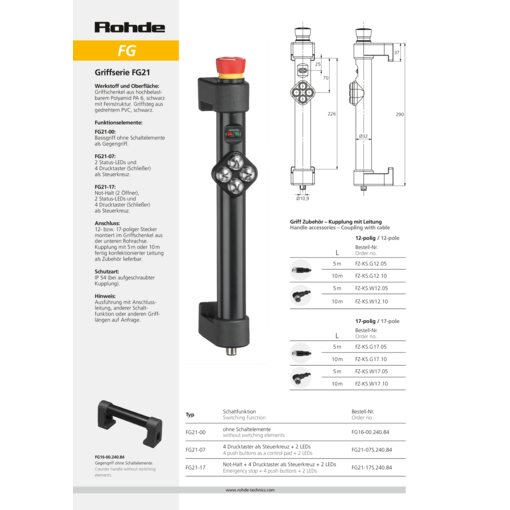

FG21.pdf
PDF

Functional handles FG21

Material and surface:
Handle shanks made of high strength polyamide PA 6, black with fine structure. Handle ledge made of lathed PVC, black.

Function elements:

FG21-00:
Basic handle without switching elements as counter handle.

FG21-07:

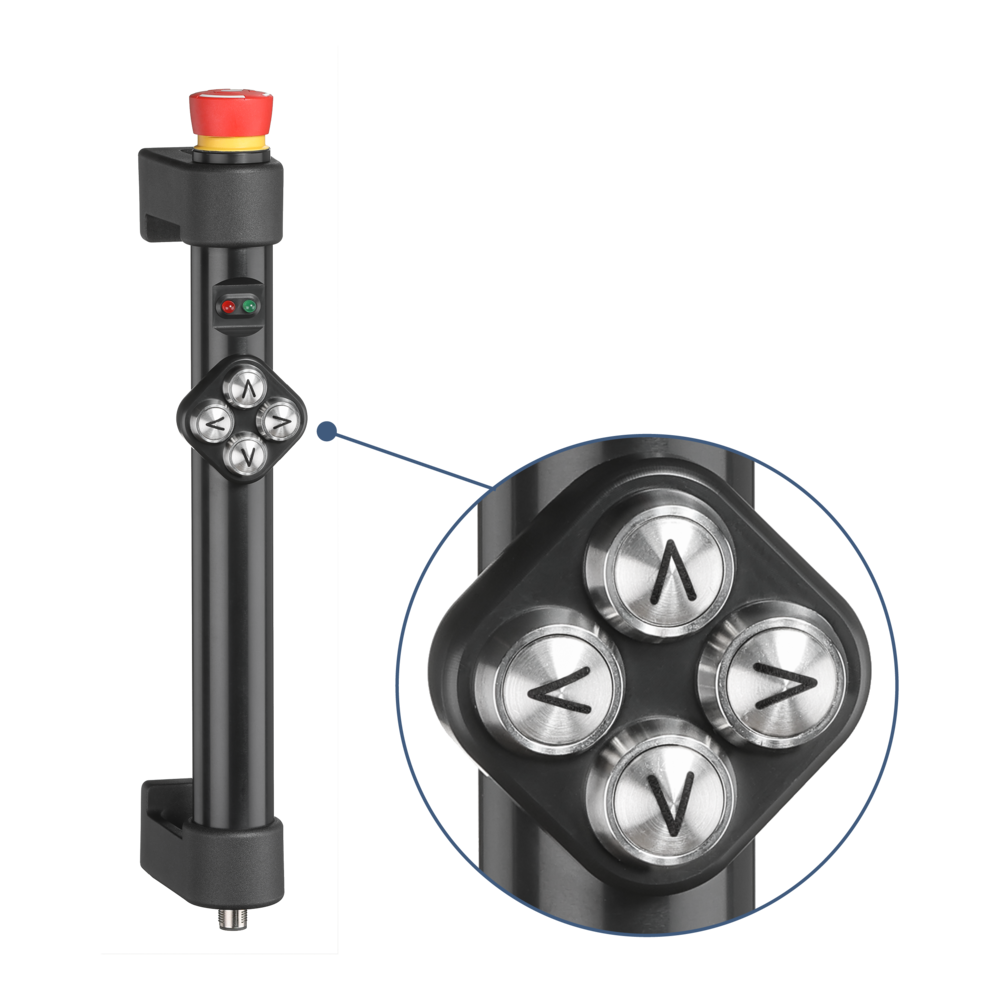

2 status LEDs and 4 push buttons (NO contact) as a control pad.

FG21-17:
Emergency stop (2 NC contacts), 2 status LEDs and 4 push buttons (NO contact) as a control pad.

Connection:
12-pole or 17-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 5  m or 10 m readymade cable available as accessory.

Protection class:
IP 54 (with the coupling screwed on).

Note:
With connection cable, other button configurations, or other handle lengths upon request.

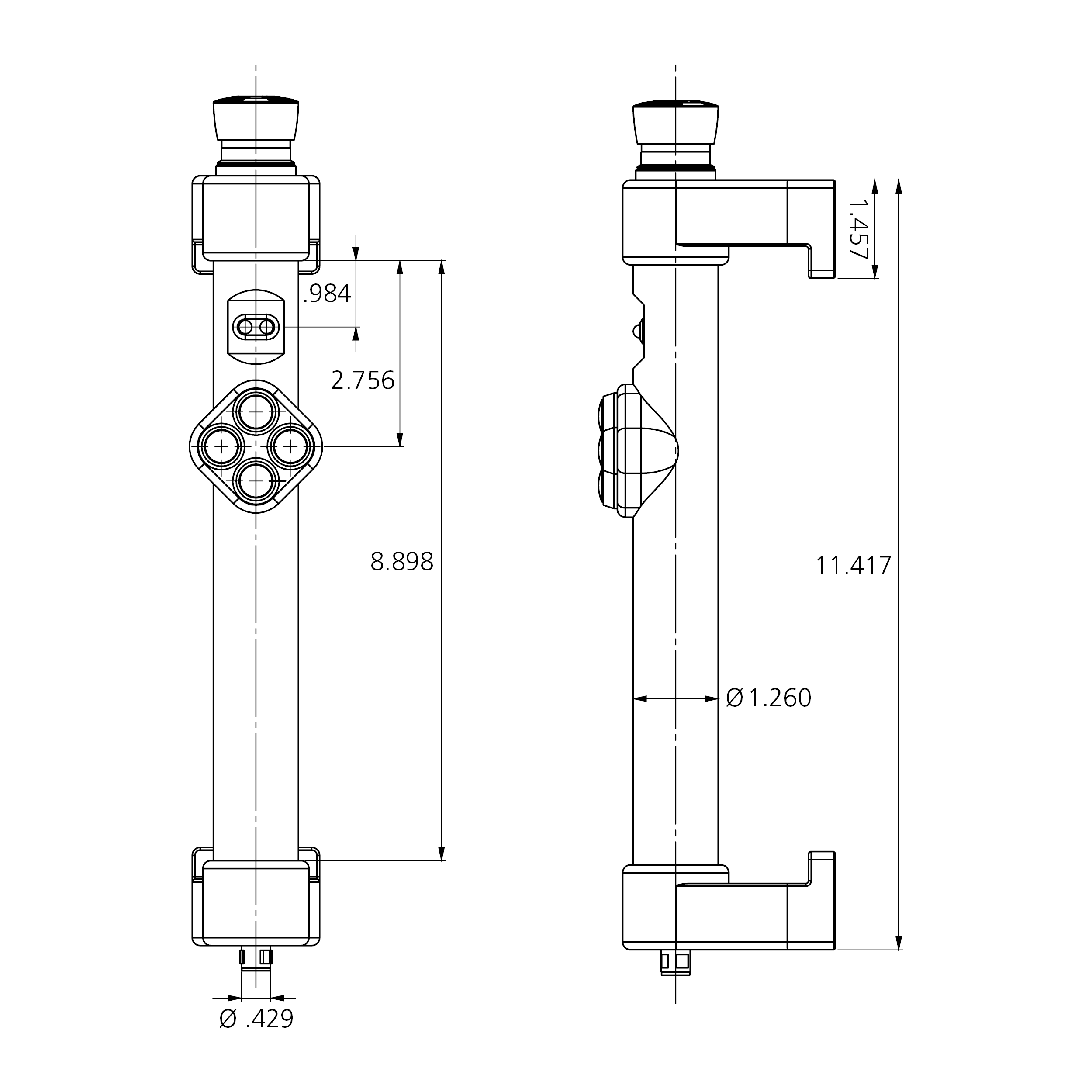

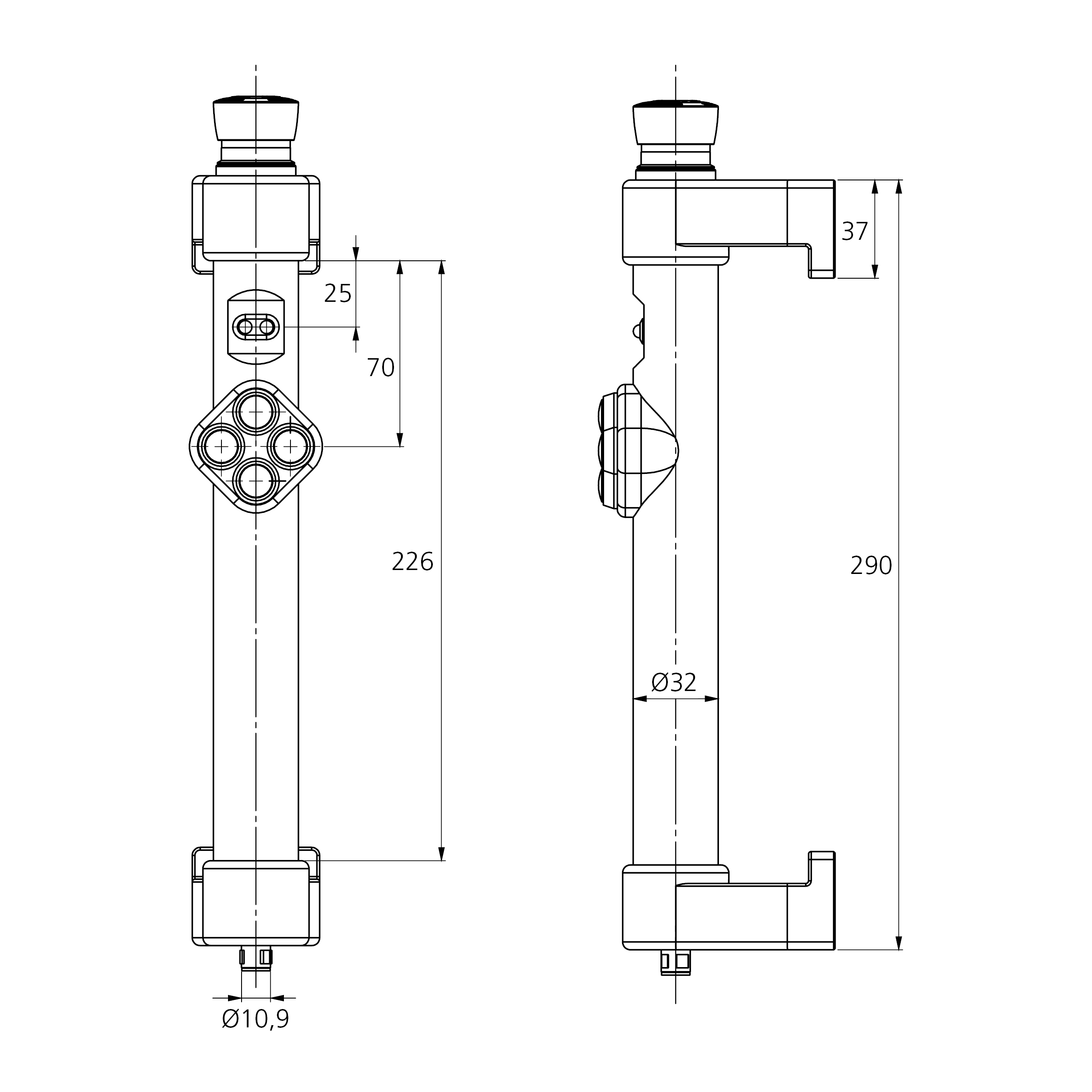

Technical data
Unit of measure
Product TypeDescription Order-No.
Product TypeFG21-00 DescriptionCounter handle without function Order-No. FG16-00.240.84 3D+CAD
Product TypeFG21-07 Description4 push buttons as a control pad + 2 LEDs Order-No. FG21-07S.240.84 3D+CAD
Product TypeFG21-17 Description4 push buttons + 2 LEDs + emergency stop Order-No. FG21-17S.240.84 3D+CAD
Zubehör
Handle accessories
CouplingLength 12-pole (M12 x 1)
Order-No. 		17-pole (M12 x 1)
Order-No.
Couplingangled Length5m 12-pole (M12 x 1)
Order-No. FZ-KS.W12.05 		17-pole (M12 x 1)
Order-No. Z-KS.W17.05
Couplingangled Length10m 12-pole (M12 x 1)
Order-No. FZ-KS.W12.10 		17-pole (M12 x 1)
Order-No. FZ-KS.W17.10
Couplingstraight / axial Length5m 12-pole (M12 x 1)
Order-No. FZ-KS.G12.05 		17-pole (M12 x 1)
Order-No. Z-KS.G17.05
Couplingstraight / axial Length10m 12-pole (M12 x 1)
Order-No. FZ-KS.G12.10 		17-pole (M12 x 1)
Order-No. FZ-KS.G17.10
Table showing technical specifications for FG16-02 and FG16-05 types including emergency stop, push button contacts, LED colors, voltage ratings, and connector pin assignments.
