Functional handles FG23
Functional handles FG23

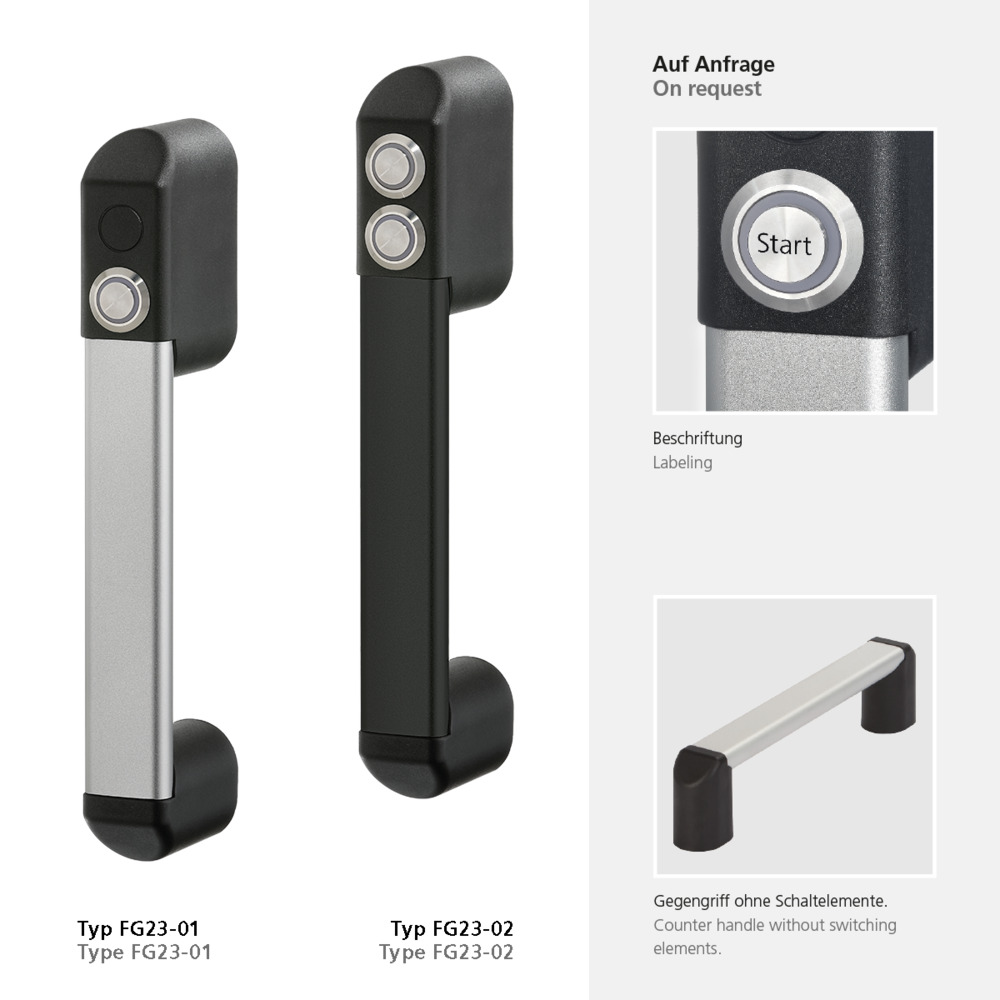

Two FG23 series handles, FG23-01 with one push button and FG23-02 with two push buttons, black and silver colored with black polyamide ends and aluminum grip sections. Close-up image of a start-labeled push button and an image of a counter handle without switches.
Functional handles FG23

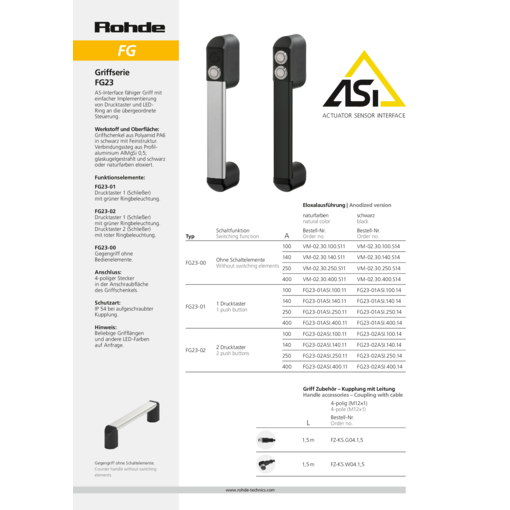

FG23.pdf
PDF

Functional handles FG23

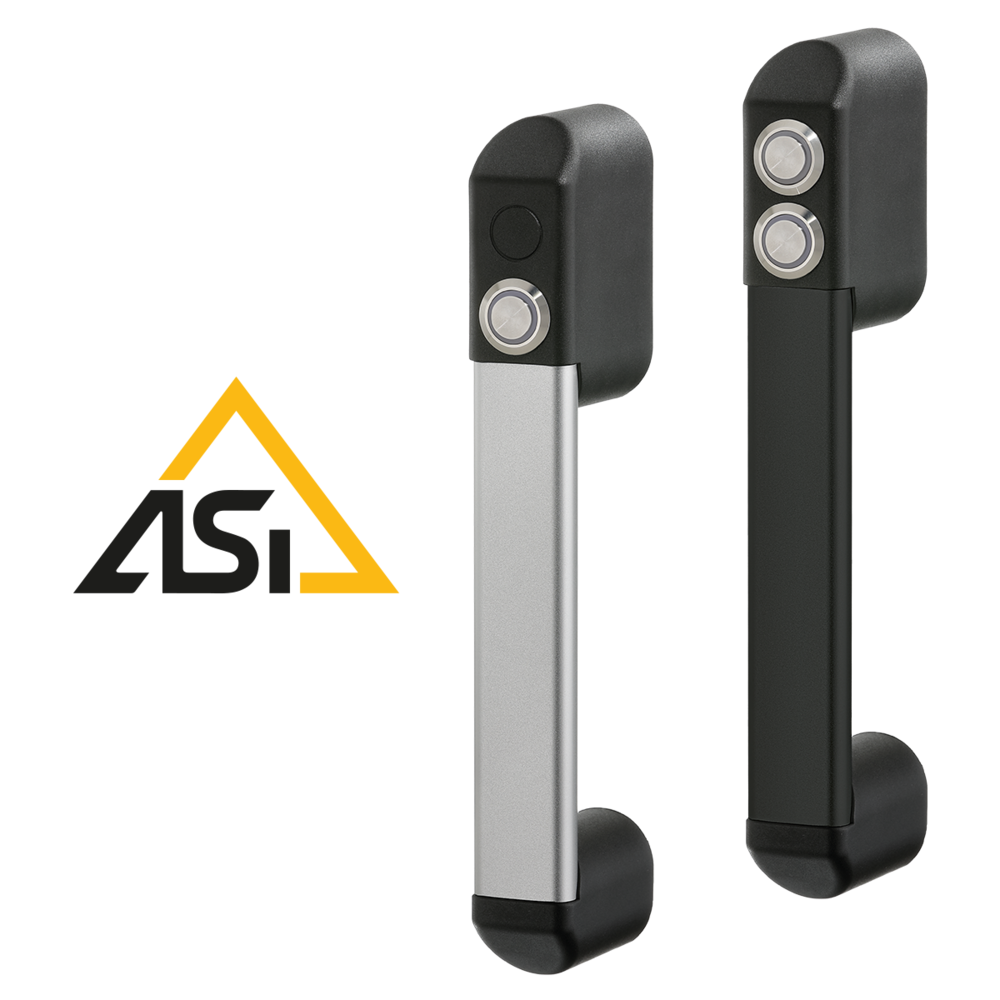

AS-Interface capable handle with easy implementation of push button and LED ring to higher level controller.

Material and surface:
Handle shanks made of polyamide PA6 in black with fine structure. Connecting ledge made of profiled aluminum AlMgSi 0.5; glass bead blasted and anodized in black or natural color.

Function elements:

FG23-01:
Push button 1 (NO contact) with green ring light.

FG23-02:
Push button 1 (NO contact) with green ring light.
Push button 2 (NO contact) with red ring light.

FG23-00:

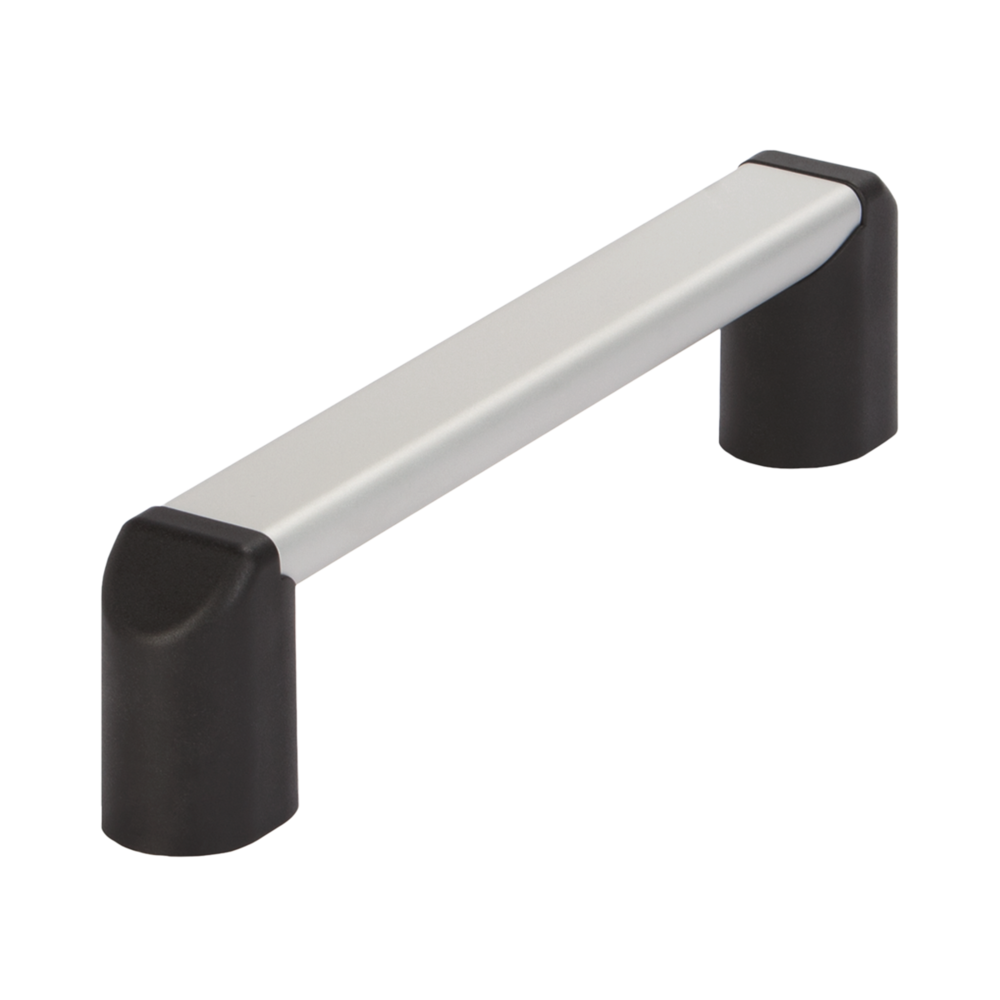

Counter handle without control elements.

Connection:
4-pin connector in the mounting surface of the shank.

Protection class:
IP 54 with coupling screwed on.

Note:
Other handle lengthsand other LED colors upon request.

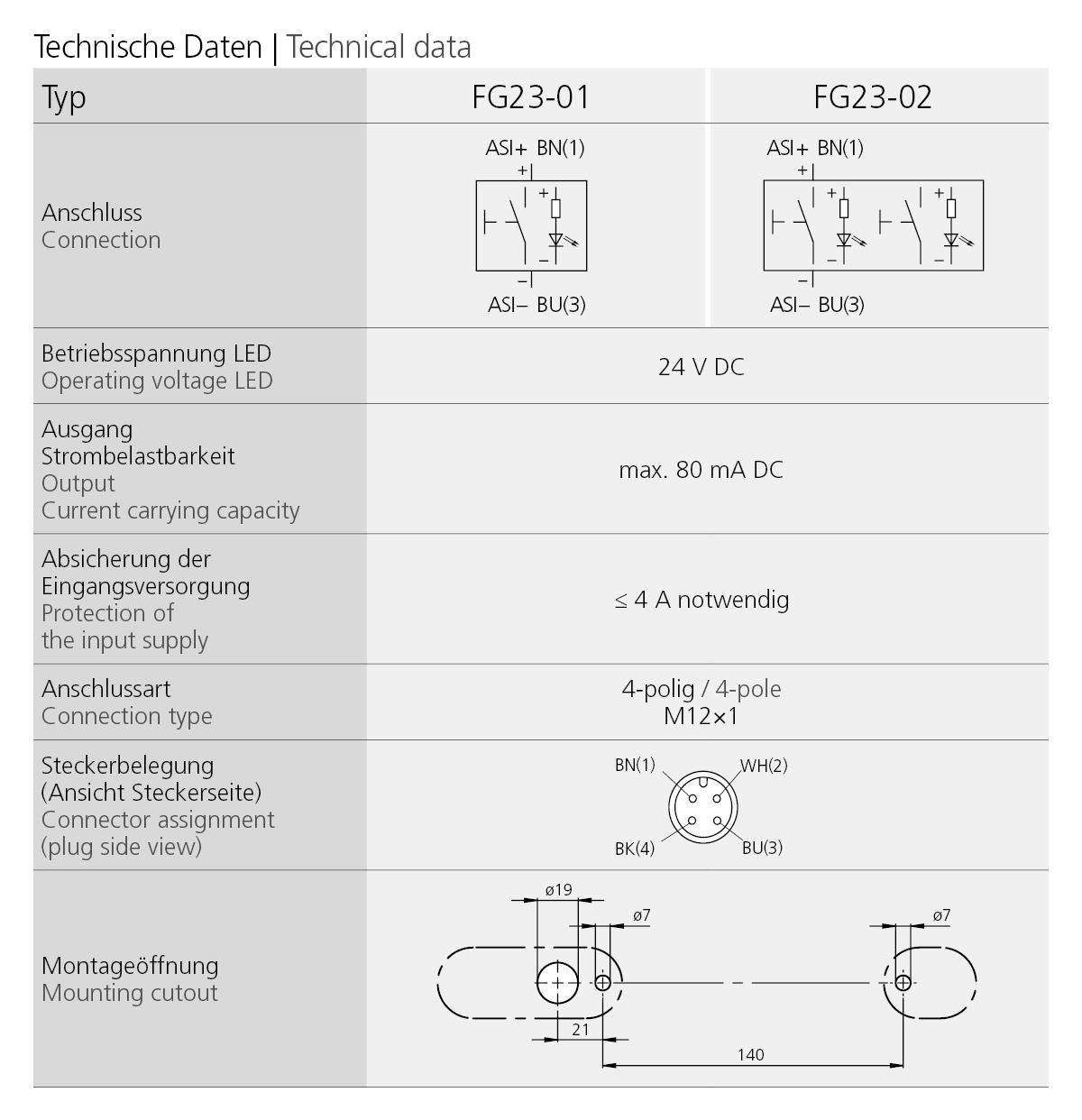

Technical data
Unit of measure
Type
Product TypeDescriptionA Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Product TypeFG23-00 Descriptionwithout operating elements A100 Anodizing version natural-colored with satin finish
Order-No. VM-02.30.100.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. VM-02.30.100.S14 3D+CAD
Product TypeFG23-00 Descriptionwithout operating elements A140 Anodizing version natural-colored with satin finish
Order-No. VM-02.30.140.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. VM-02.30.140.S14 3D+CAD
Product TypeFG23-00 Descriptionwithout operating elements A250 Anodizing version natural-colored with satin finish
Order-No. VM-02.30.250.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. VM-02.30.250.S14 3D+CAD
Product TypeFG23-00 Descriptionwithout operating elements A400 Anodizing version natural-colored with satin finish
Order-No. VM-02.30.400.S11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. VM-02.30.400.S14 3D+CAD
Product TypeFG23-01 Description1 push button A100 Anodizing version natural-colored with satin finish
Order-No. FG23-01ASI.100.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-01ASI.100.14 3D+CAD
Product TypeFG23-01 Description1 push button A140 Anodizing version natural-colored with satin finish
Order-No. FG23-01ASI.140.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-01ASI.140.14 3D+CAD
Product TypeFG23-01 Description1 push button A250 Anodizing version natural-colored with satin finish
Order-No. FG23-01ASI.250.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-01ASI.250.14 3D+CAD
Product TypeFG23-01 Description1 push button A400 Anodizing version natural-colored with satin finish
Order-No. FG23-01ASI.400.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-01ASI.400.14 3D+CAD
Product TypeFG23-02 Description2 push buttons A100 Anodizing version natural-colored with satin finish
Order-No. FG23-02ASI.100.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-02ASI.100.14 3D+CAD
Product TypeFG23-02 Description2 push buttons A140 Anodizing version natural-colored with satin finish
Order-No. FG23-02ASI.140.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-02ASI.140.14 3D+CAD
Product TypeFG23-02 Description2 push buttons A250 Anodizing version natural-colored with satin finish
Order-No. FG23-02ASI.250.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-02ASI.250.14 3D+CAD
Product TypeFG23-02 Description2 push buttons A400 Anodizing version natural-colored with satin finish
Order-No. FG23-02ASI.400.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG23-02ASI.400.14 3D+CAD
Zubehör
Handle accessories
LengthCoupling 4-pole (M12 x 1)
Order-No.
Length1,5m Couplingangled 4-pole (M12 x 1)
Order-No. FZ-KS.W04.1,5
TG-R stainless steel handle with M12 x 1 plug connection and black grip Length1,5m Couplingstraight / axial 4-pole (M12 x 1)
Order-No. FZ-KS.G04.1,5
