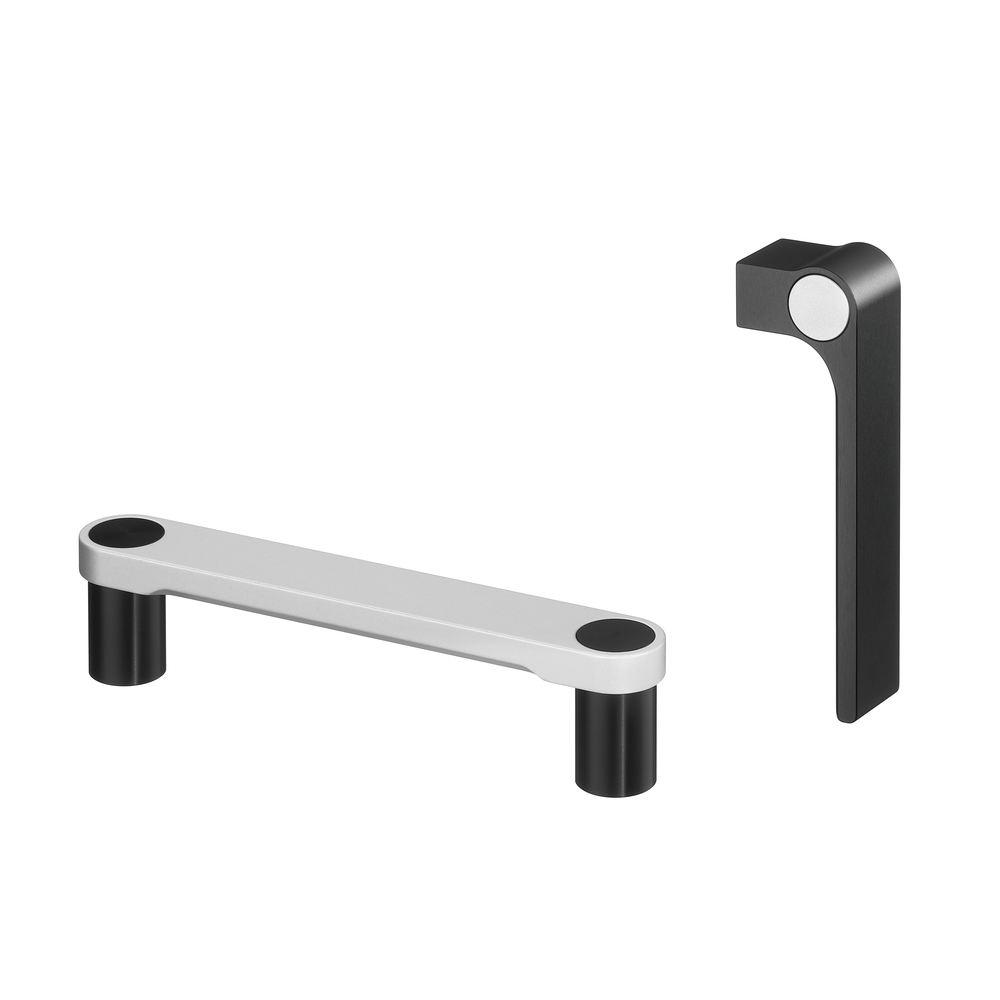

Two aluminium handles, one silver horizontal handle with black legs and one black vertical handle with silver circular detail

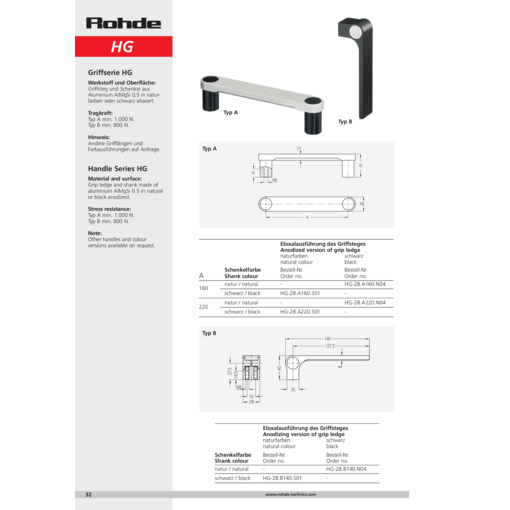

hg.pdf

Handles HG

Material and surface:
Grip ledge and shank made of aluminium AlMgSi 0.5 in natural colour or black anodized.

Stress resistance:
Typ A min. 1000 N.
Typ B min. 800 N.

Note:
Other handles and colour versions available on request.

Version HG-28.A

Technical drawing of HG handle with front and top views, including cross-sectional detail on one mounting end.

HG-28.A
Unit of measure
		Anodizing version
A	Leg colour	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
A160	Leg colourblack	Anodizing version natural-colored Order-No. HG-28.A160.S01 3D+CAD	Anodized aluminum black Order-No. —
A160	Leg colournatural	Anodizing version natural-colored Order-No. —	Anodized aluminum black Order-No. HG-28.A160.N04 3D+CAD
A220	Leg colourblack	Anodizing version natural-colored Order-No. HG-28.A220.S01 3D+CAD	Anodized aluminum black Order-No. —
A220	Leg colournatural	Anodizing version natural-colored Order-No. —	Anodized aluminum black Order-No. HG-28.A220.N04 3D+CAD

Version HG-28.B

Technical drawing

HG-28.B
Unit of measure
		Anodizing version
A	Leg colour	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
A140	Leg colourblack	Anodizing version natural-colored Order-No. HG-28.B140.S01 3D+CAD	Anodized aluminum black Order-No. —
A140	Leg colournatural	Anodizing version natural-colored Order-No. —	Anodized aluminum black Order-No. HG-28.B140.N04 3D+CAD
