Display housing DG (analog)

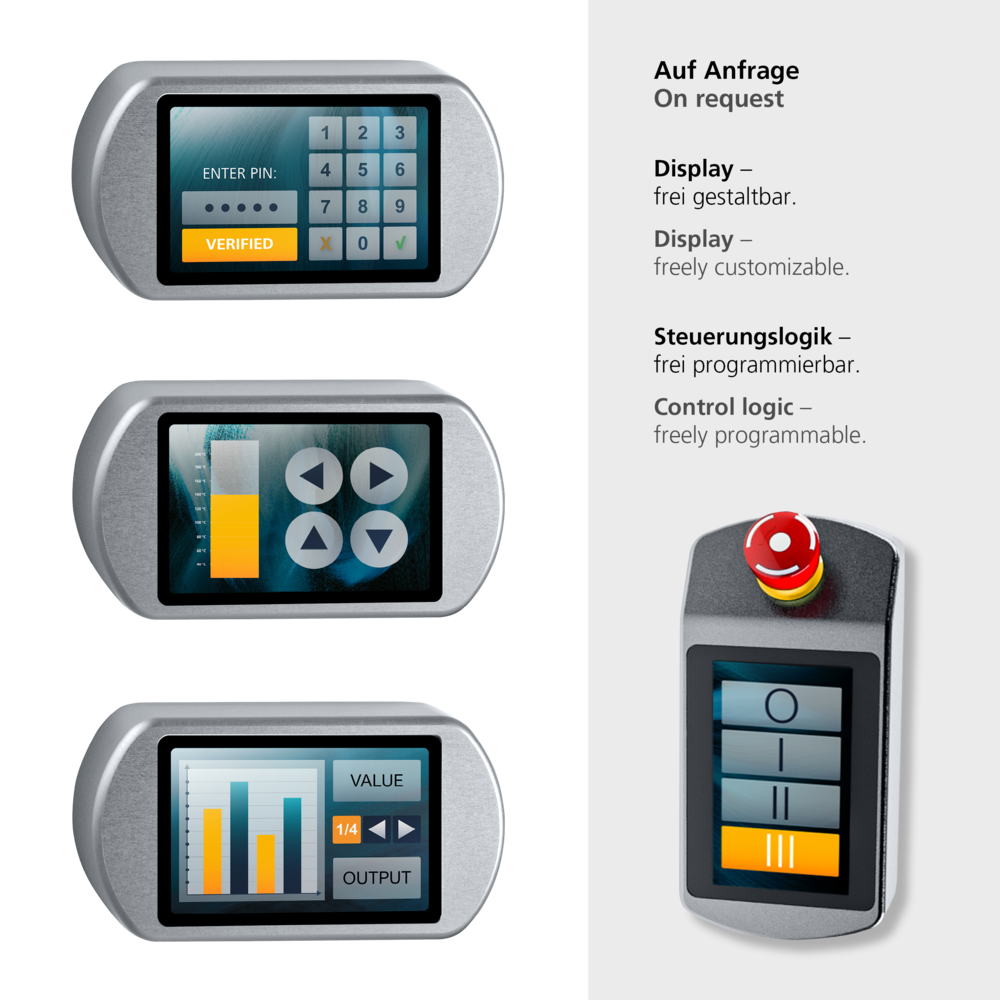

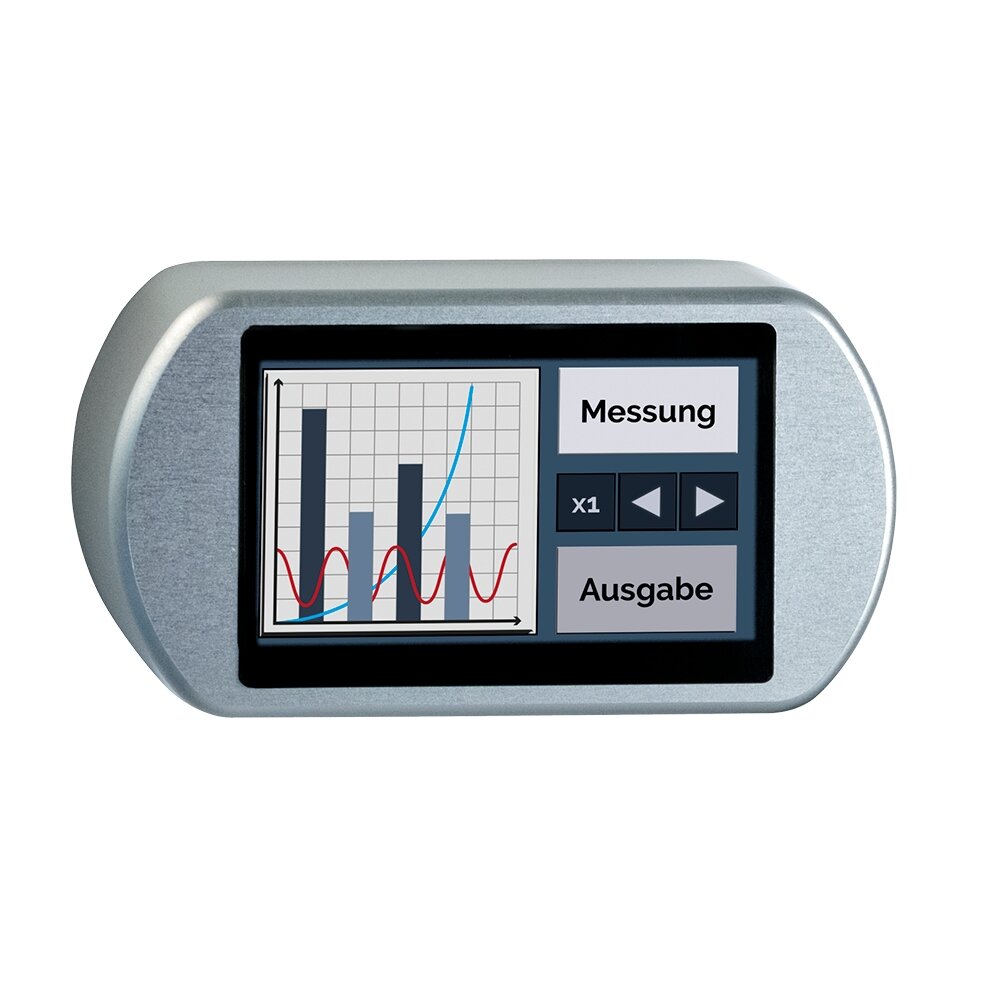

Control unit with modern touch screen HMI solution for operating or monitoring e.g. machines or systems. Standard user interface or customised user interface selectable. Complete plug & play ready solution for your requirements.

Material and surface:
Housing made of aluminium AlMgSi 0.5, blasted and natural colored or black anodised.

Function:

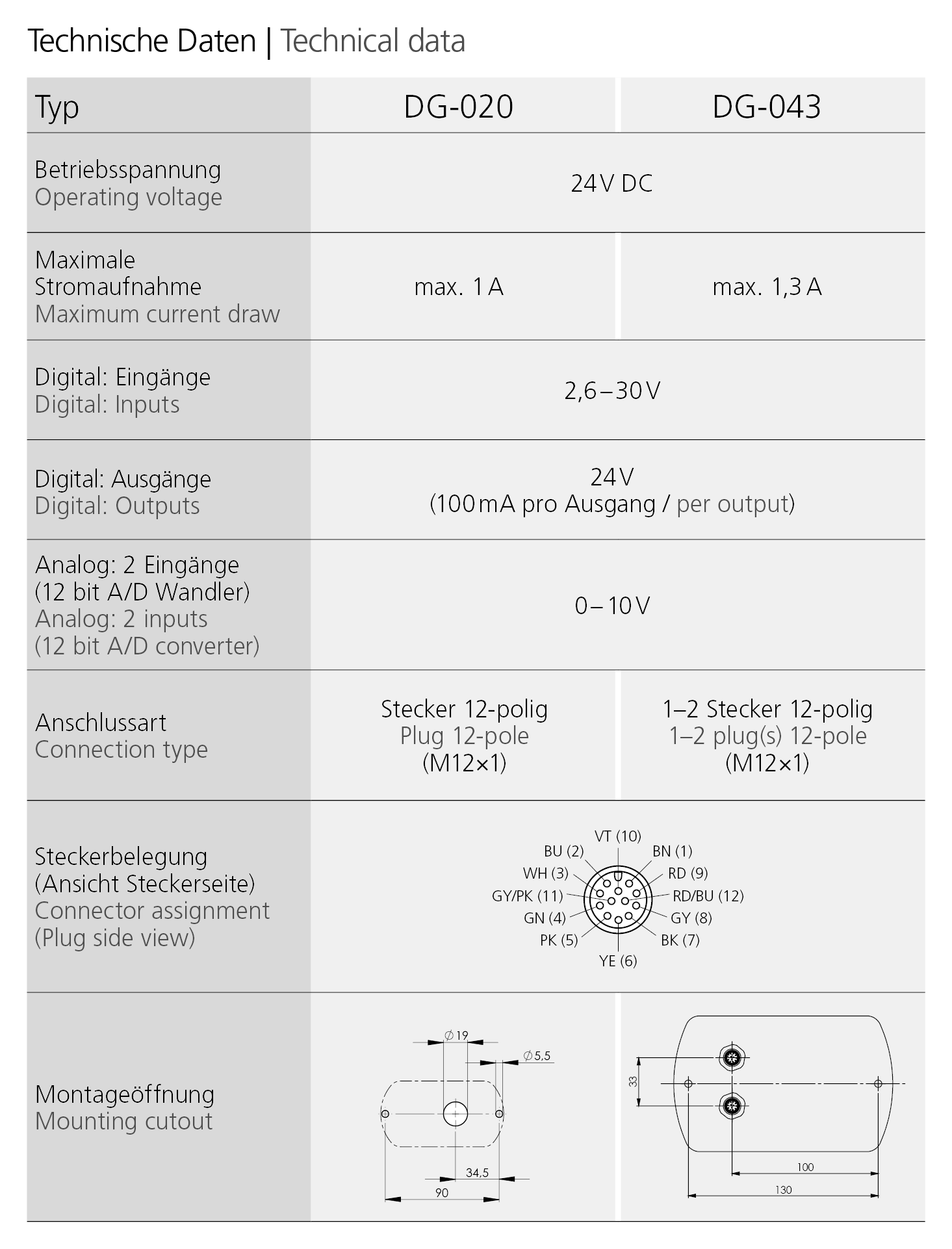

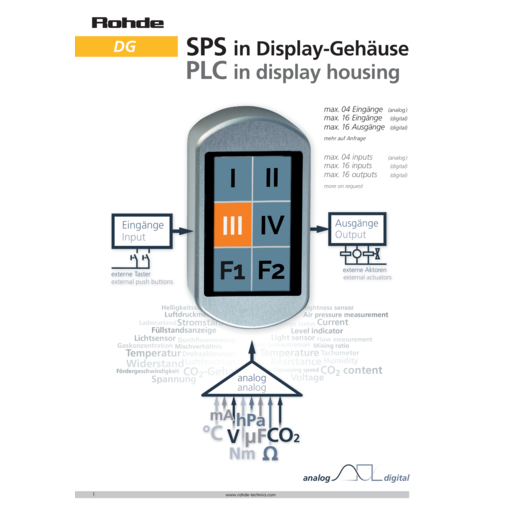

Up to 16 digital outputs or up to 16 digital inputs and up to 4 analog inputs are possible. Intelligent functions can be integrated as in a PLC.

Analog inputs for displaying physical quantities from external sources. These can be displayed visually as graphs or diagrams.

Connection:
Depending on the version, with one or two 12-pole connectors.

Note:
Can also be operated with gloves. Other connection options or housing colors on request.

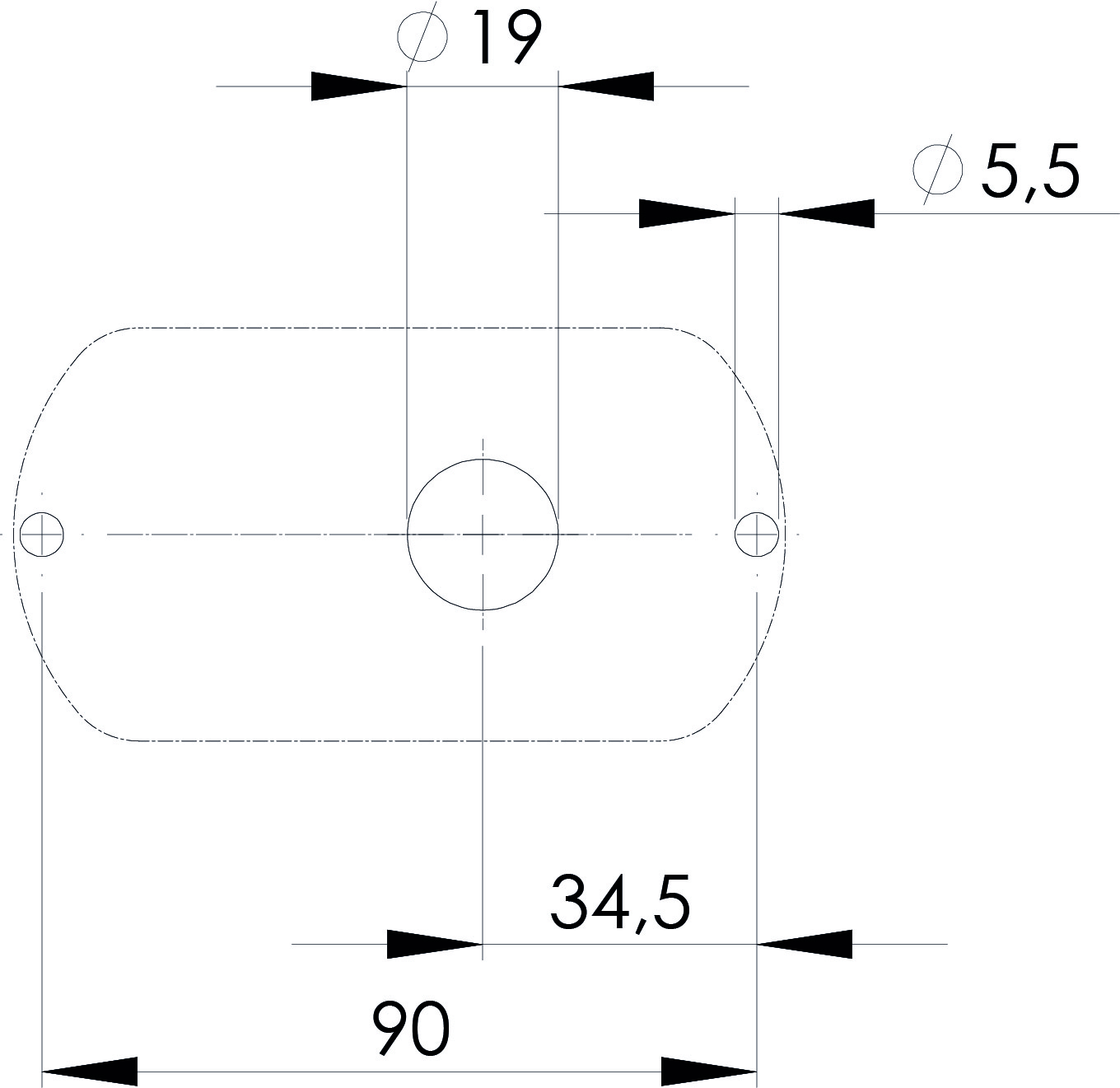

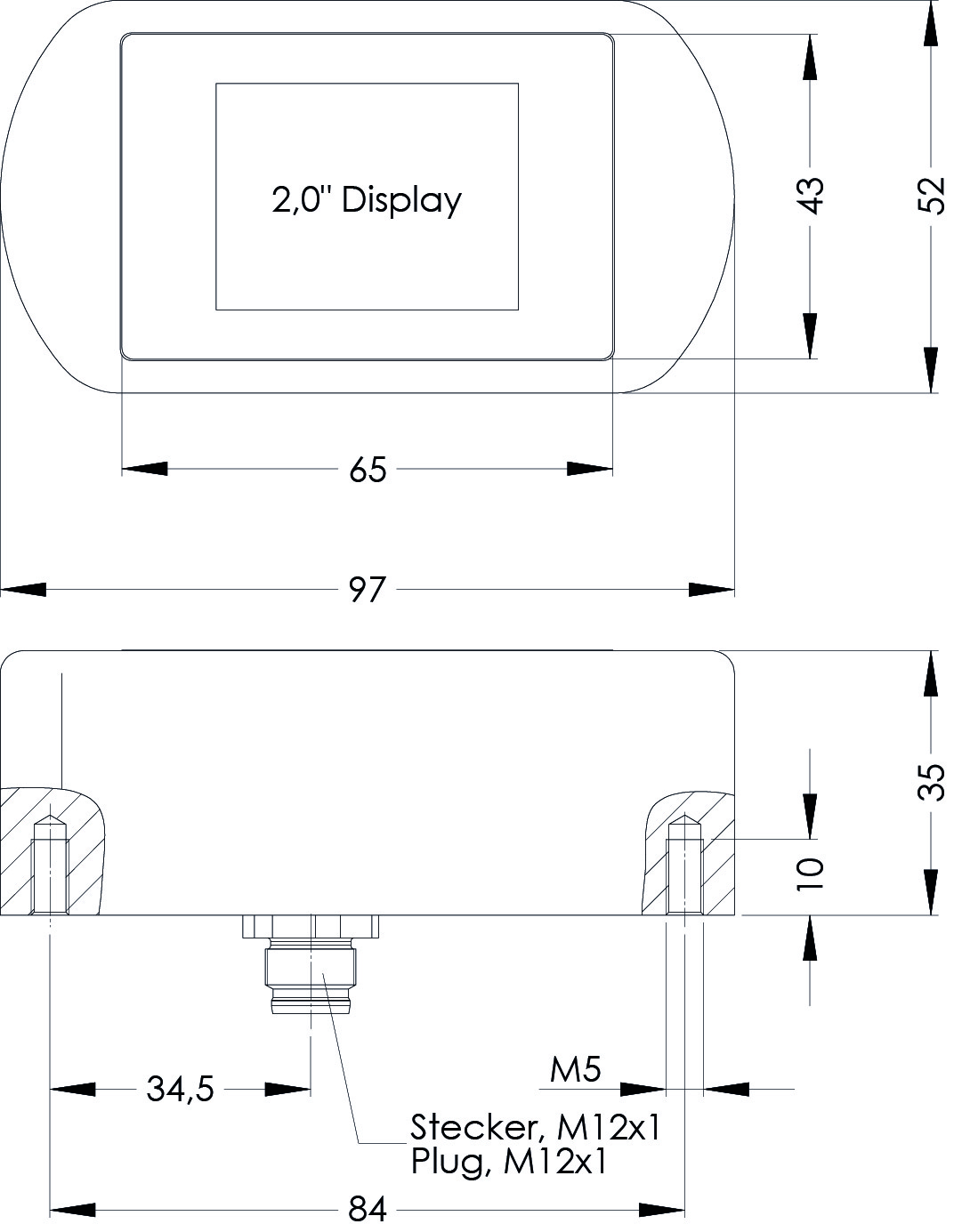

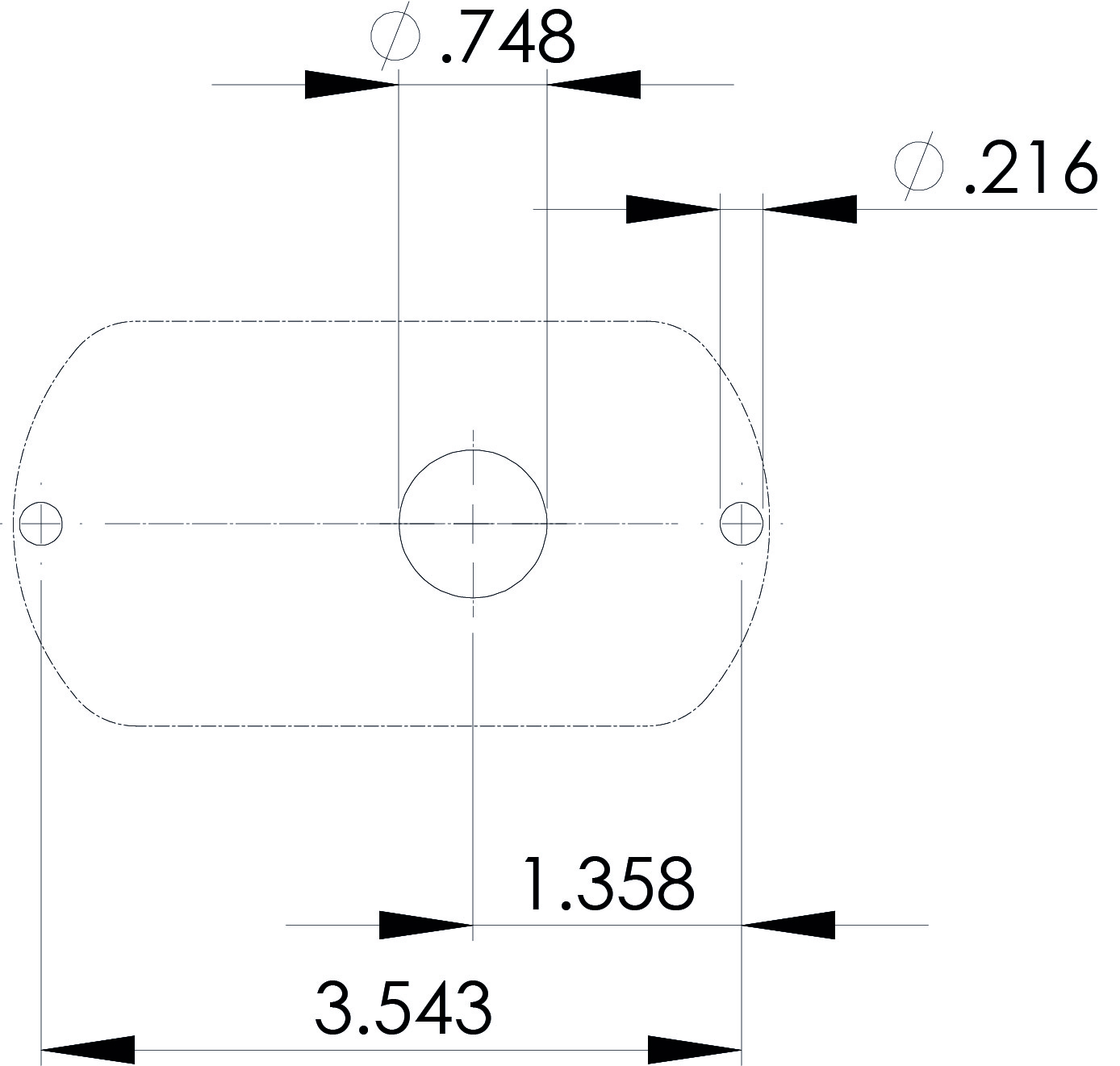

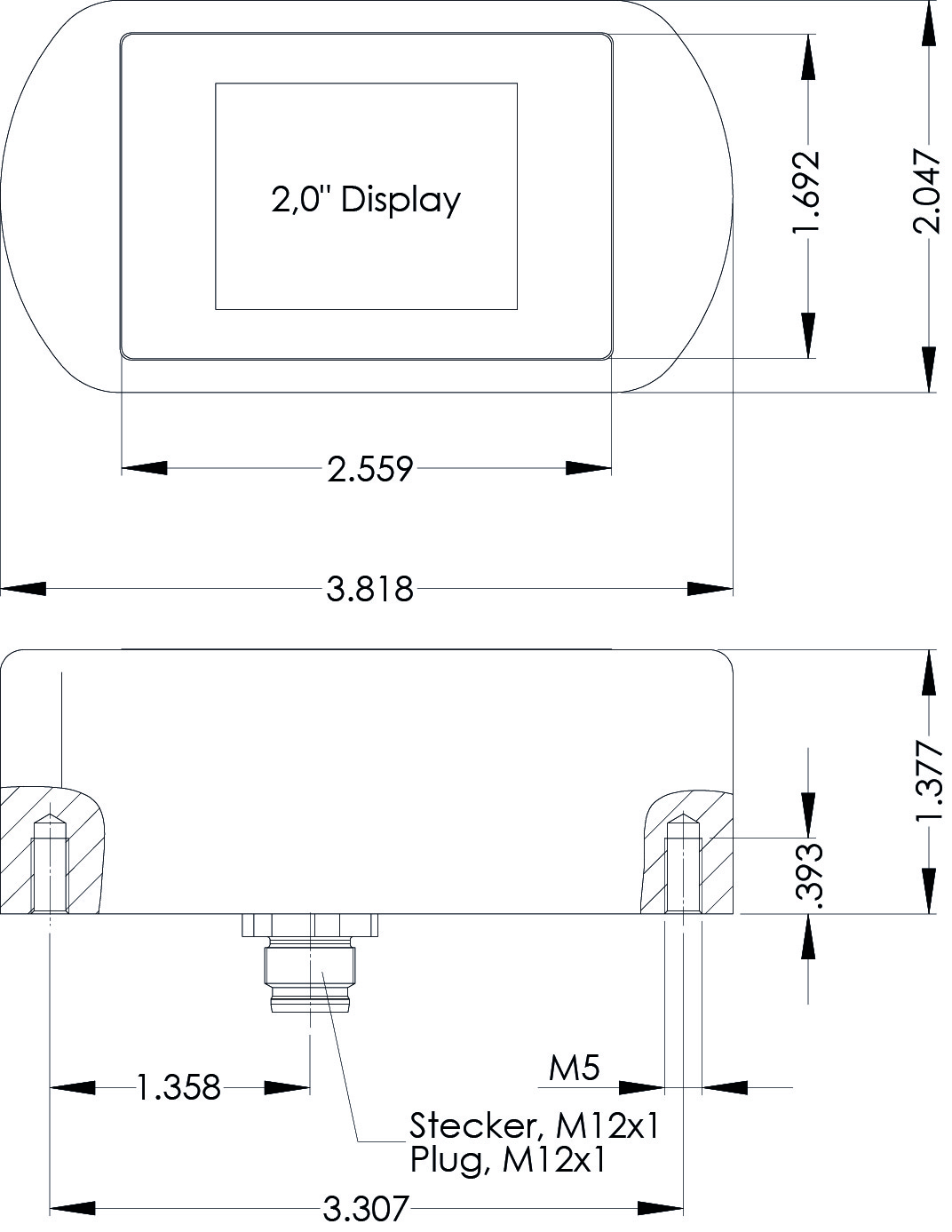

Version DG-020 | 2.0"

DG-020 | 2.0"
Unit of measure
				Anodizing version
Digital inputs	Analog inputs	Digital outputs	Connecting	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.
Digital inputs00	Analog inputs01	Digital outputs07	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-020.00.01.07.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-020.00.01.07.14 3D+CAD
Digital inputs00	Analog inputs02	Digital outputs06	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-020.00.02.06.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-020.00.02.06.14 3D+CAD
Digital inputs01	Analog inputs01	Digital outputs06	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-020.01.01.06.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-020.01.01.06.14 3D+CAD
Digital inputs02	Analog inputs02	Digital outputs04	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-020.02.02.04.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-020.02.02.04.14 3D+CAD

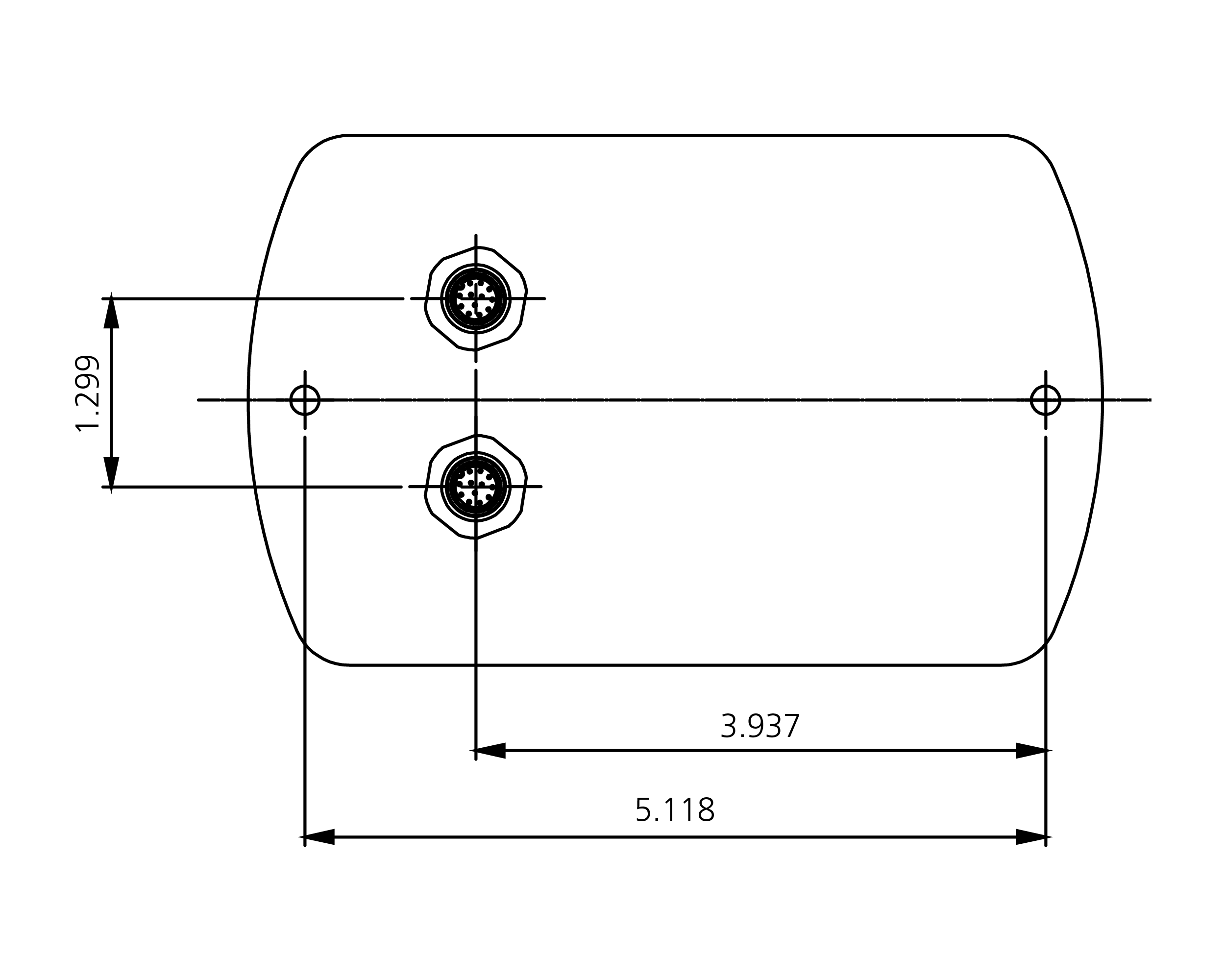

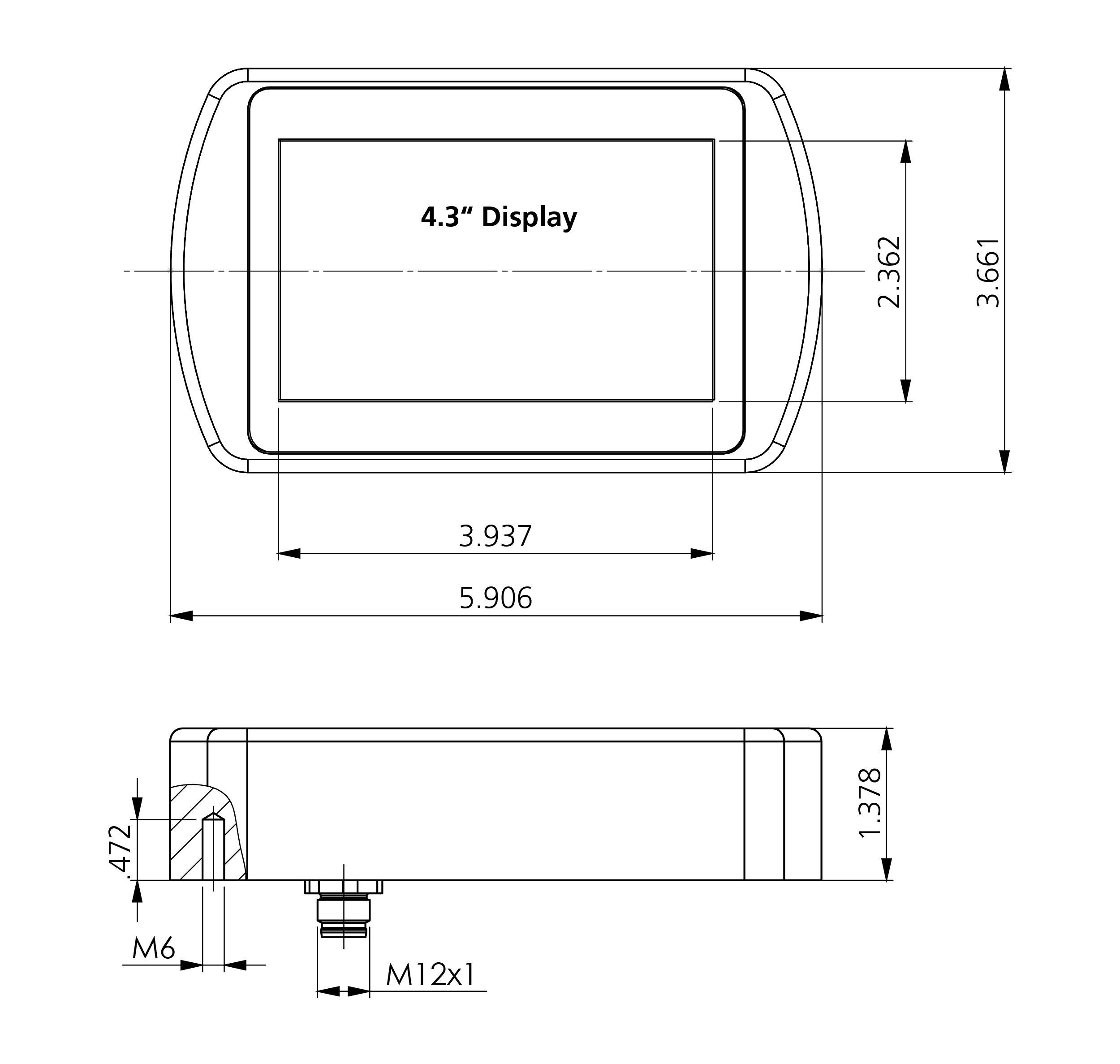

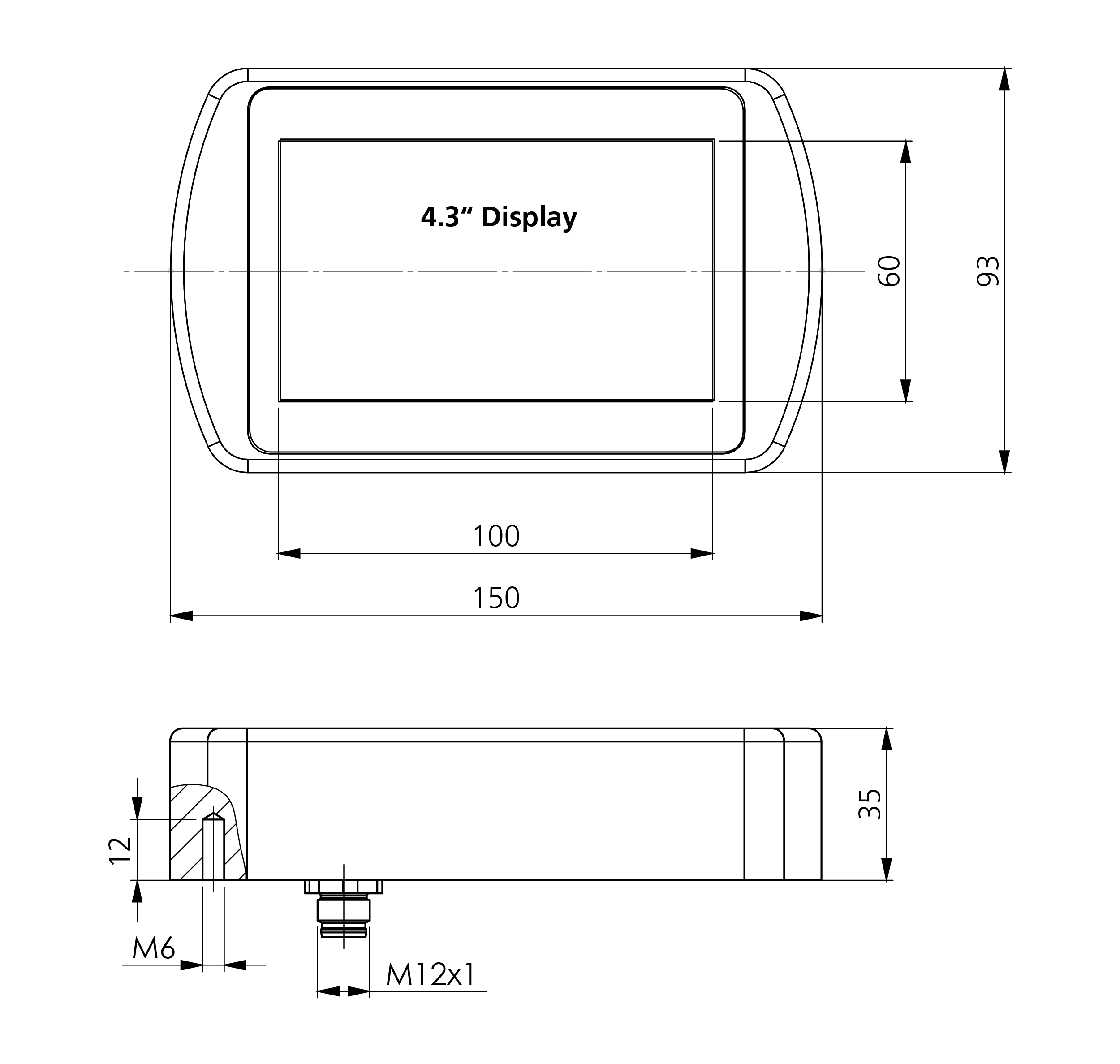

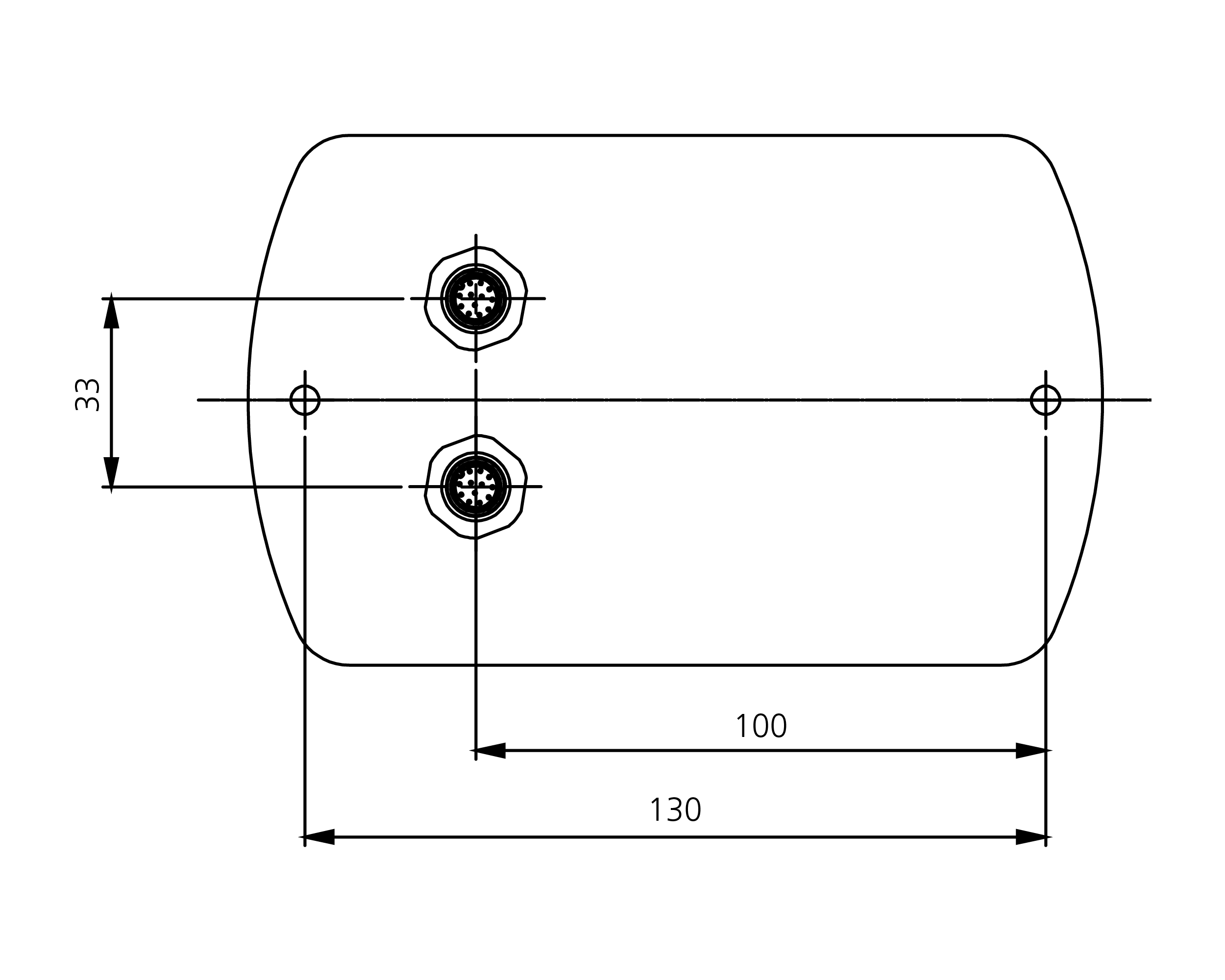

Version DG-043 | 4.3"

DG-043 | 4.3"
Unit of measure
				Anodizing version
Digital inputs	Analog inputs	Digital outputs	Connecting	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.
Digital inputs00	Analog inputs01	Digital outputs07	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.00.01.07.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.00.01.07.14 3D+CAD
Digital inputs00	Analog inputs02	Digital outputs06	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.00.02.06.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.00.02.06.14 3D+CAD
Digital inputs01	Analog inputs01	Digital outputs06	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.01.01.06.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.01.01.06.14 3D+CAD
Digital inputs02	Analog inputs02	Digital outputs04	Connecting1 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.02.02.04.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.02.02.04.14 3D+CAD
Digital inputs04	Analog inputs04	Digital outputs12	Connecting2 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.04.04.12.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.04.04.12.14 3D+CAD
Digital inputs08	Analog inputs04	Digital outputs08	Connecting2 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.08.04.08.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.08.04.08.14 3D+CAD
Digital inputs12	Analog inputs04	Digital outputs04	Connecting2 x M12	Anodizing version natural-colored with satin finish Order-No. DG-043.12.04.04.11 3D+CAD	Anodized aluminum black with satin finish Order-No. DG-043.12.04.04.14 3D+CAD

Zubehör
		Accessories
Length	Coupling	12-pole (M12 x 1) Order-No.
Length10 m	Couplingangled	12-pole (M12 x 1) Order-No. FZ-KS.W12.10
Length10 m	Couplingstraight / axial	12-pole (M12 x 1) Order-No. FZ-KS.G12.10
