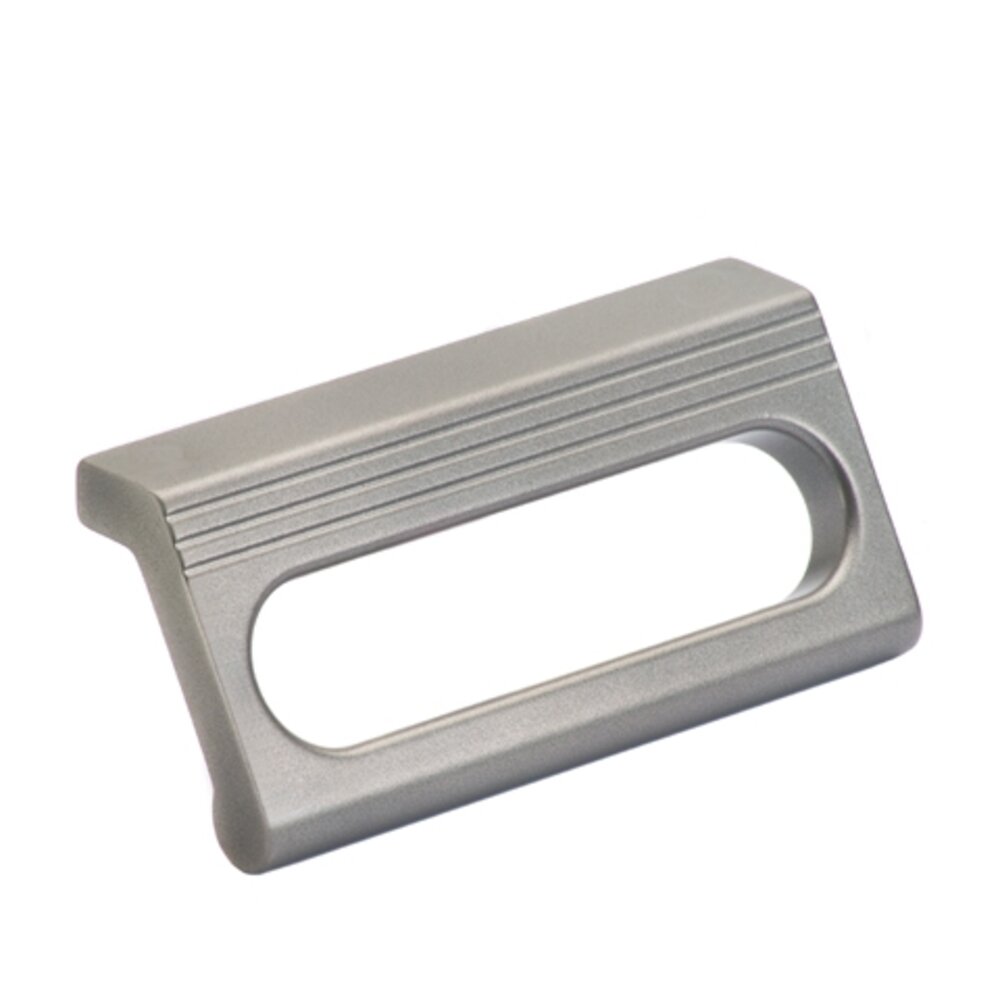

  • Rectangular aluminum front panel handle with a central cutout and horizontal grooves, titanium-colored satin finish
Rectangular aluminum front panel handle with a central cutout and horizontal grooves, titanium-colored satin finish

Handles WP

Material and surface:

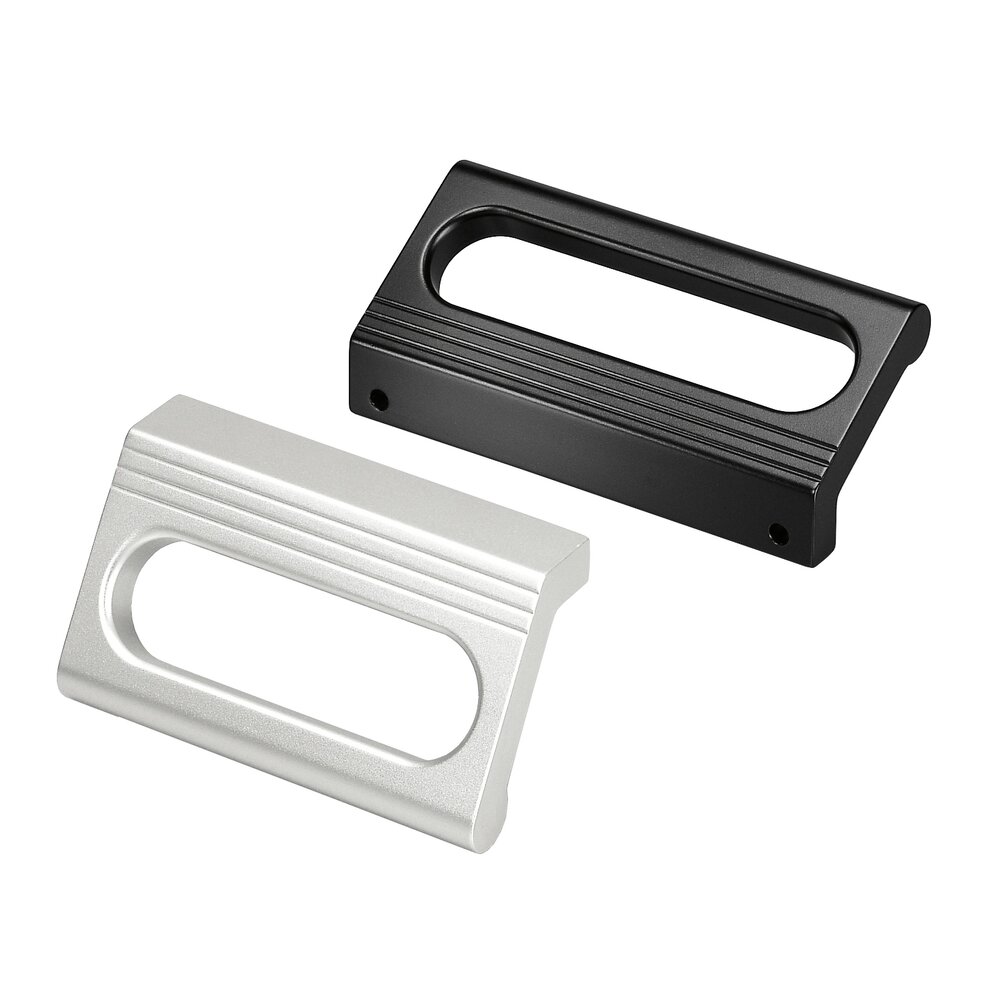

Profiled aluminium AlMgSi 0.5; satin finish anodized in 2 colours. Alternatively titanium coloured powder coated.

Version G:
With internal thread M6.

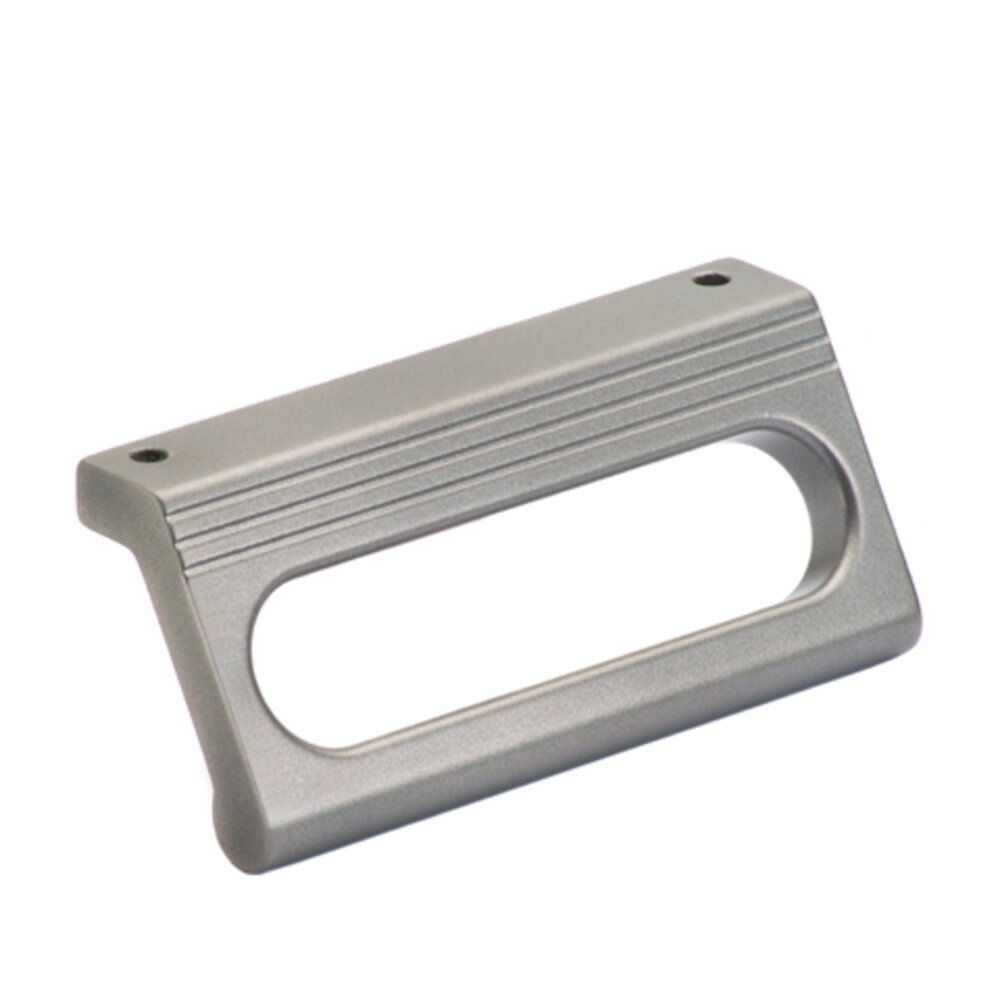

Version B:
With through hole for M5 countersunk screws for lateral assembly.

Note:
Other dimensions on request.

Stress resistance:
min. 500 N.

show more show less

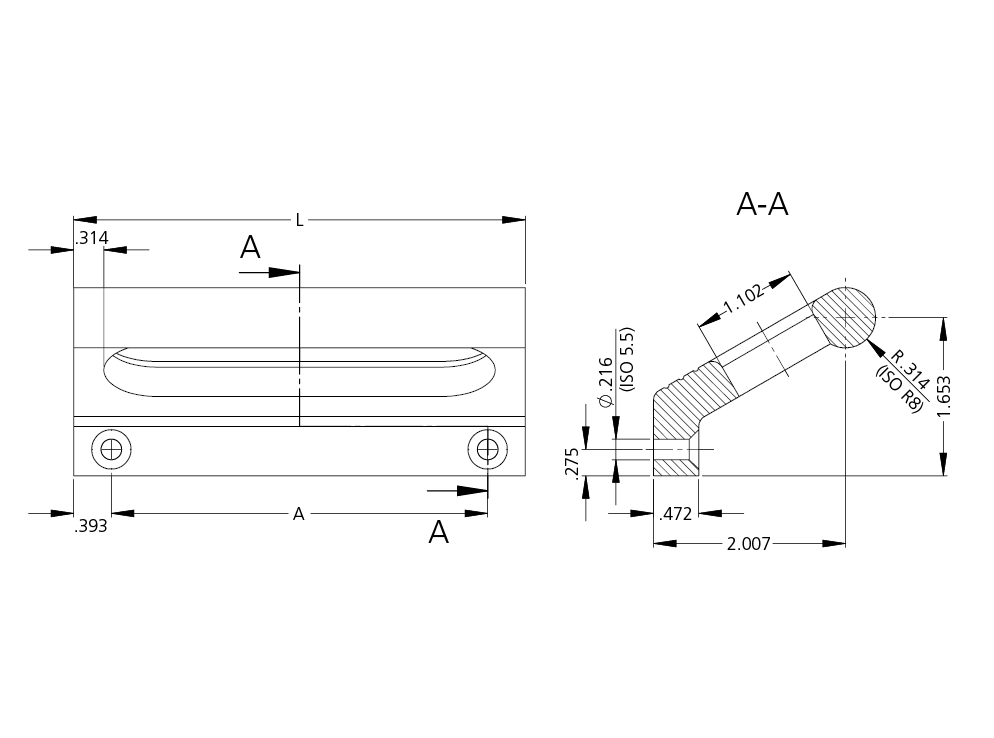

Version B

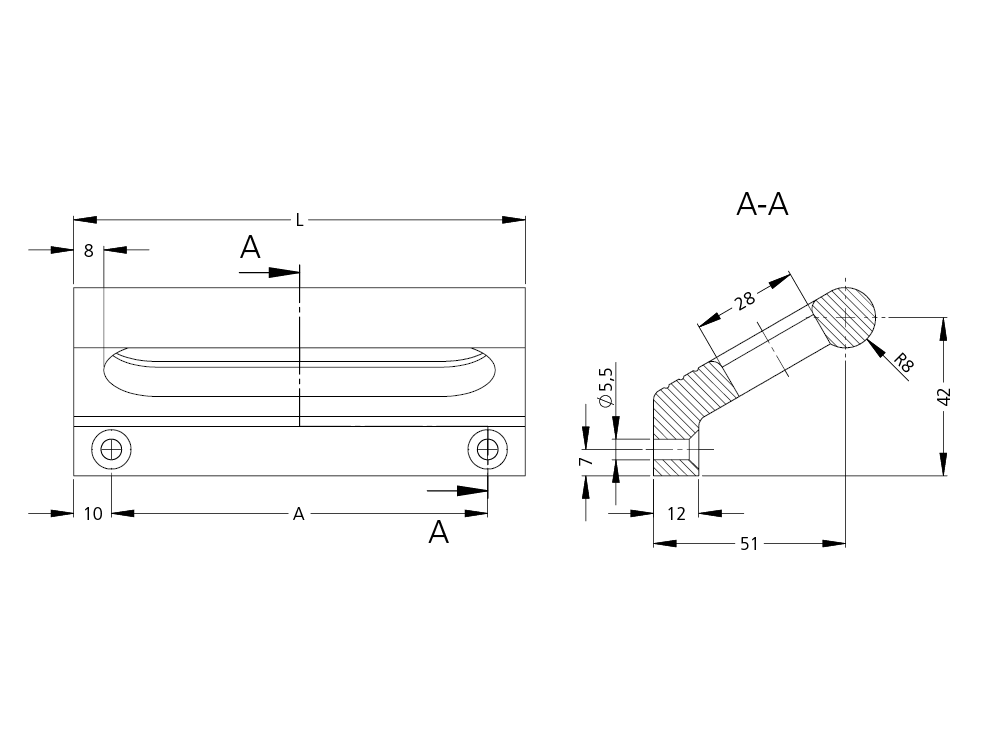

Technical drawing of WP aluminium profile showing front view and cross-section A-A with detailed measurements and hole placements.
Unit of measure
Type
A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No. 		Aluminum powder coated titanium colored
Order-No.
A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No. 		Aluminum powder coated titanium colored
Order-No.
A 86 L 106 Anodizing version natural-colored with satin finish
Order-No. WP-12.B086.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. WP-12.B086.14 3D+CAD 		Aluminum powder coated titanium colored
Order-No. WP-12.B086.55 3D+CAD
A 100 L 120 Anodizing version natural-colored with satin finish
Order-No. WP-12.B100.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. WP-12.B100.14 3D+CAD 		Aluminum powder coated titanium colored
Order-No. WP-12.B100.55 3D+CAD
A 120 L 140 Anodizing version natural-colored with satin finish
Order-No. WP-12.B120.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. WP-12.B120.14 3D+CAD 		Aluminum powder coated titanium colored
Order-No. WP-12.B120.55 3D+CAD

Version G

Unit of measure
Type
A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No. 		Aluminum powder coated titanium colored
Order-No.
A L Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No. 		Aluminum powder coated titanium colored
Order-No.
A 86 L 106 Anodizing version natural-colored with satin finish
Order-No. WP-12.G086.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. WP-12.G086.14 3D+CAD 		Aluminum powder coated titanium colored
Order-No. WP-12.G086.55 3D+CAD
A 100 L 120 Anodizing version natural-colored with satin finish
Order-No. WP-12.G100.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. WP-12.G100.14 3D+CAD 		Aluminum powder coated titanium colored
Order-No. WP-12.G100.55 3D+CAD
A 120 L 140 Anodizing version natural-colored with satin finish
Order-No. WP-12.G120.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. WP-12.G120.14 3D+CAD 		Aluminum powder coated titanium colored
Order-No. WP-12.G120.55 3D+CAD
