Handles SO-26, SO-35

Material and surface:

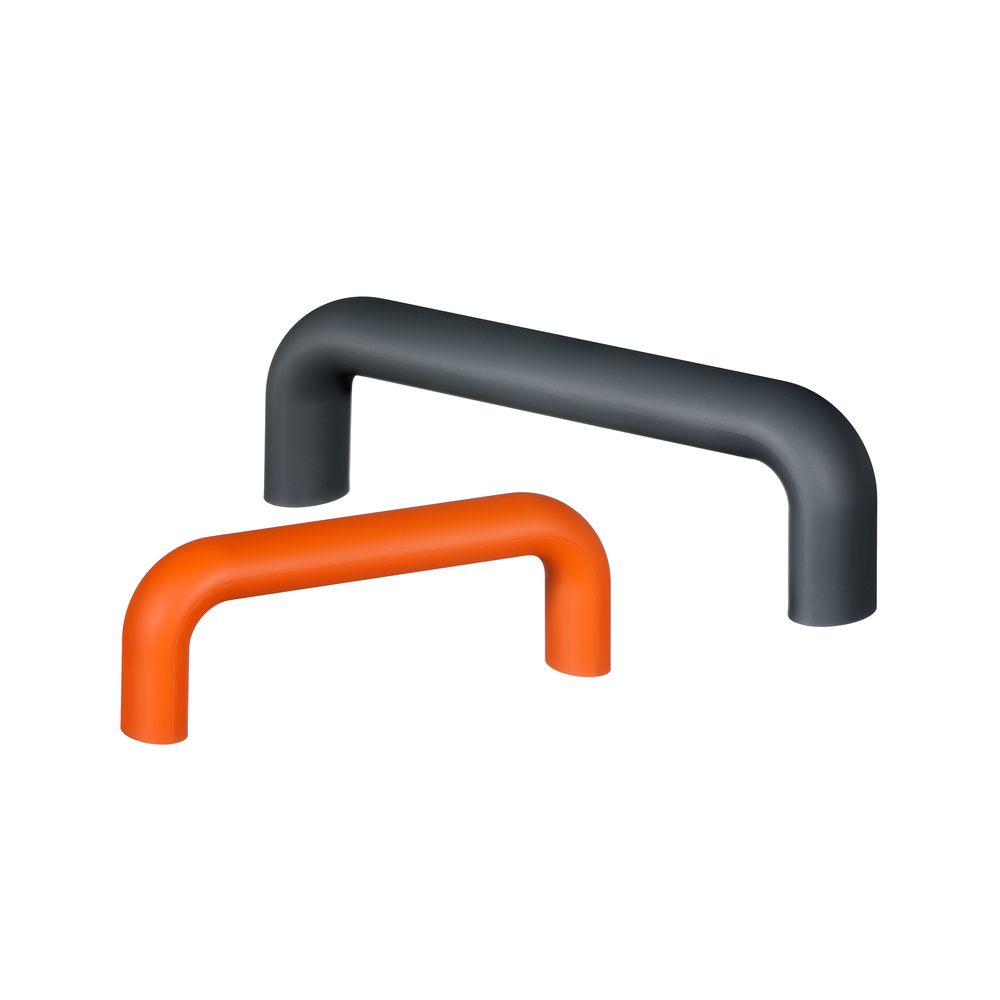

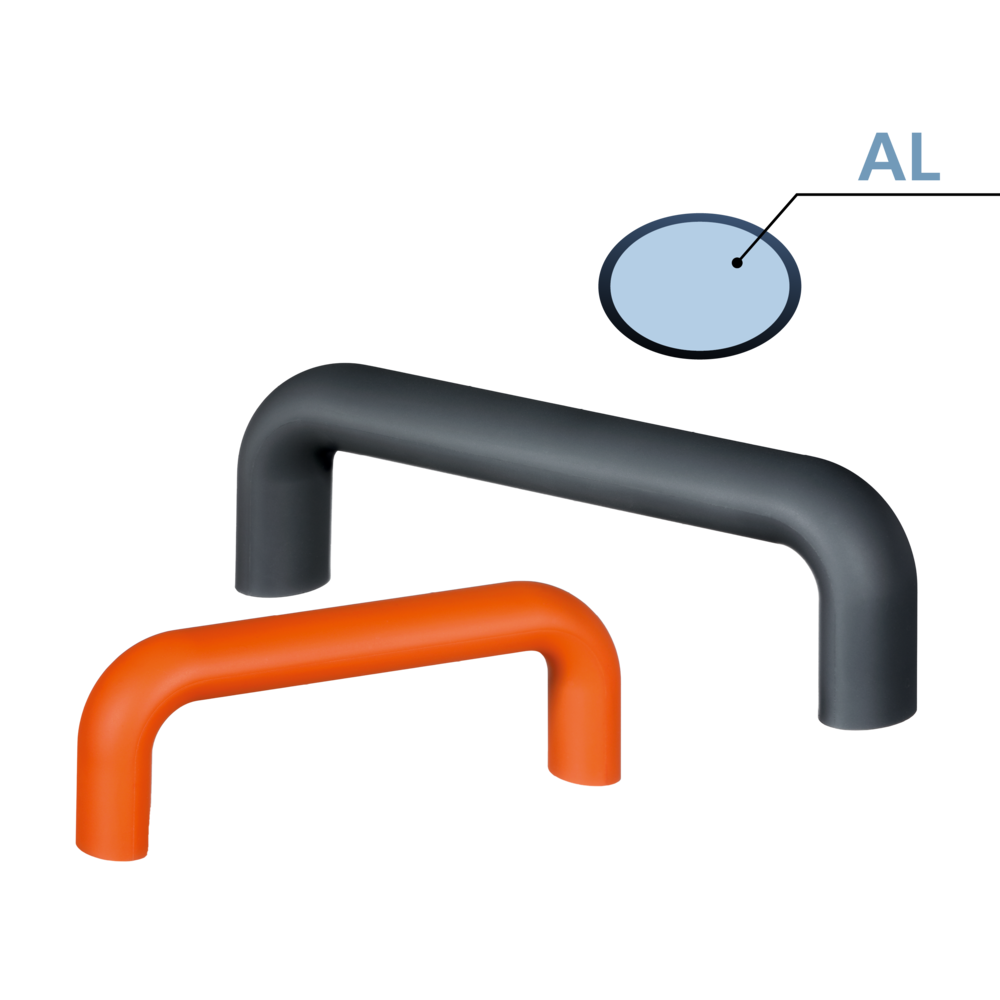

Core handle made of aluminum, coated with a heat-resistant silicone in the colors anthracite similar to RAL 7016 or orange similar to RAL 2009.

Note:
Heat resistant to 190°C.

Stress resistance:
min. 1.000 N.

Technical data
Unit of measure

A	L	Handle color	Order-No.	H	B	S
A140	L159	Handle coloranthracite	Order-No. SO-26.S140.7016 3D+CAD	H57	B26	S19
A140	L159	Handle colororange	Order-No. SO-26.S140.2009 3D+CAD	H57	B26	S19
A200	L225	Handle coloranthracite	Order-No. SO-35.S200.7016 3D+CAD	H70	B35	S25
A200	L225	Handle colororange	Order-No. SO-35.S200.2009 3D+CAD	H70	B35	S25

Zubehör

Type	Single parts	Order-No.

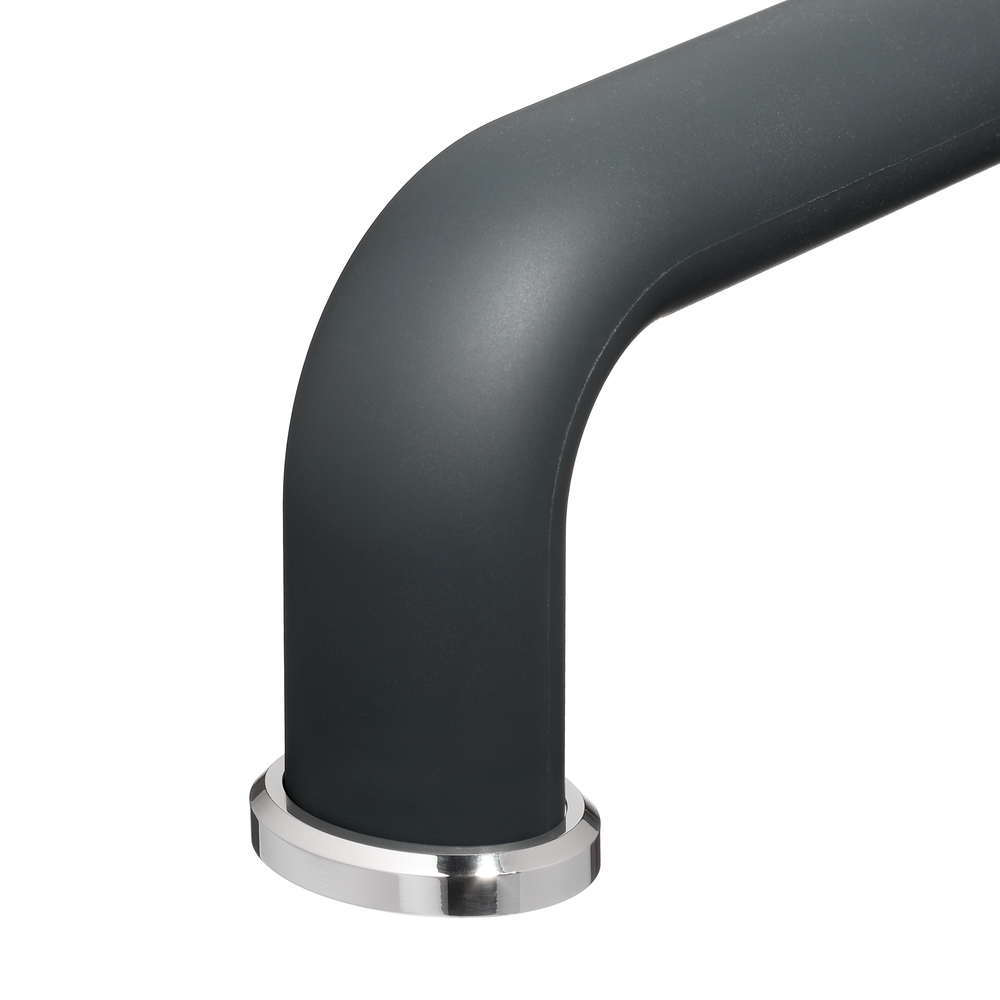

TypeSO-26	Single partsCover plates, 2 pieces	Order-No. SO-26.S000.84 3D+CAD
TypeSO-35	Single partsCover plates, 2 pieces	Order-No. SO-35.S000.49 3D+CAD
