EE-01 - Rohde AG | Aluminum, stainless steel and plastic handles

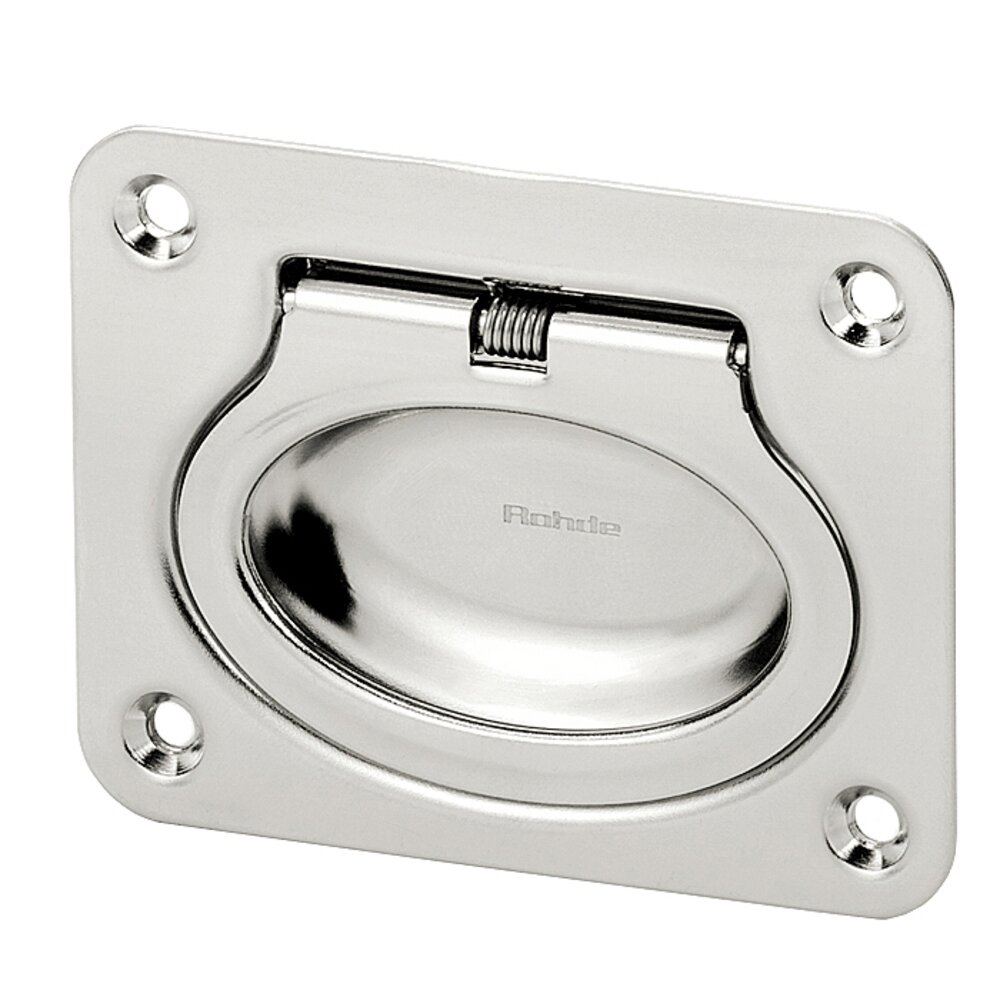

  • High-gloss electropolished stainless steel collapsible handle with rectangular mounting plate and pull-back spring mechanism.
High-gloss electropolished stainless steel collapsible handle with rectangular mounting plate and pull-back spring mechanism.

Handles EE-01

Collapsible stainless steel handles with small installation depth, for devices and clapping doors.

Material and surface:
Stainless steel high gloss electropolished, material no. 1.4301.

Design advantages:
With pull-back spring from the working to the resting position.

Stress resistance:
min. 200 N.

show more show less
Technical drawing of rectangular mounting plate with rounded corners, four screw holes at corners, and corner radius labeled as 20 mm
Technical drawing of rectangular component with four mounting holes and radius measurement R 7.87 mm
Unit of measure
Order-No.
Order-No.
Order-No. EE-01.R075.39 3D+CAD
