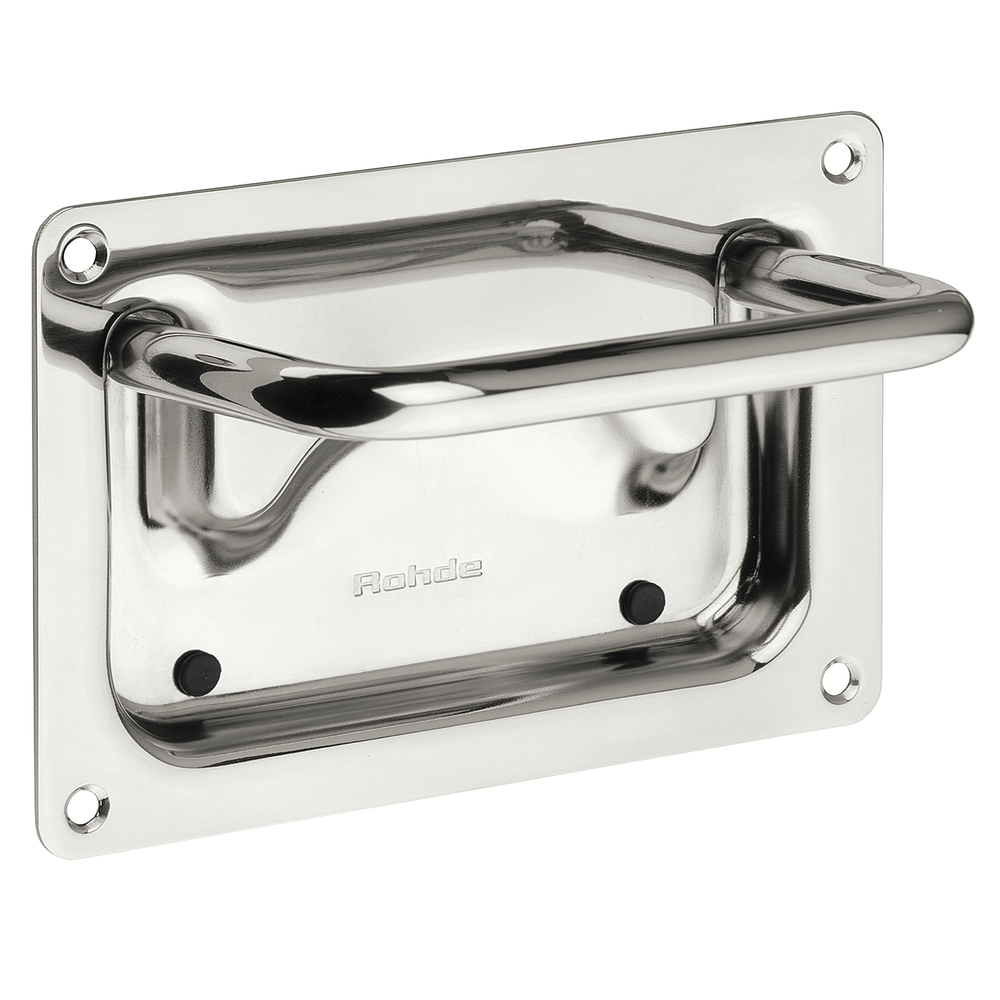

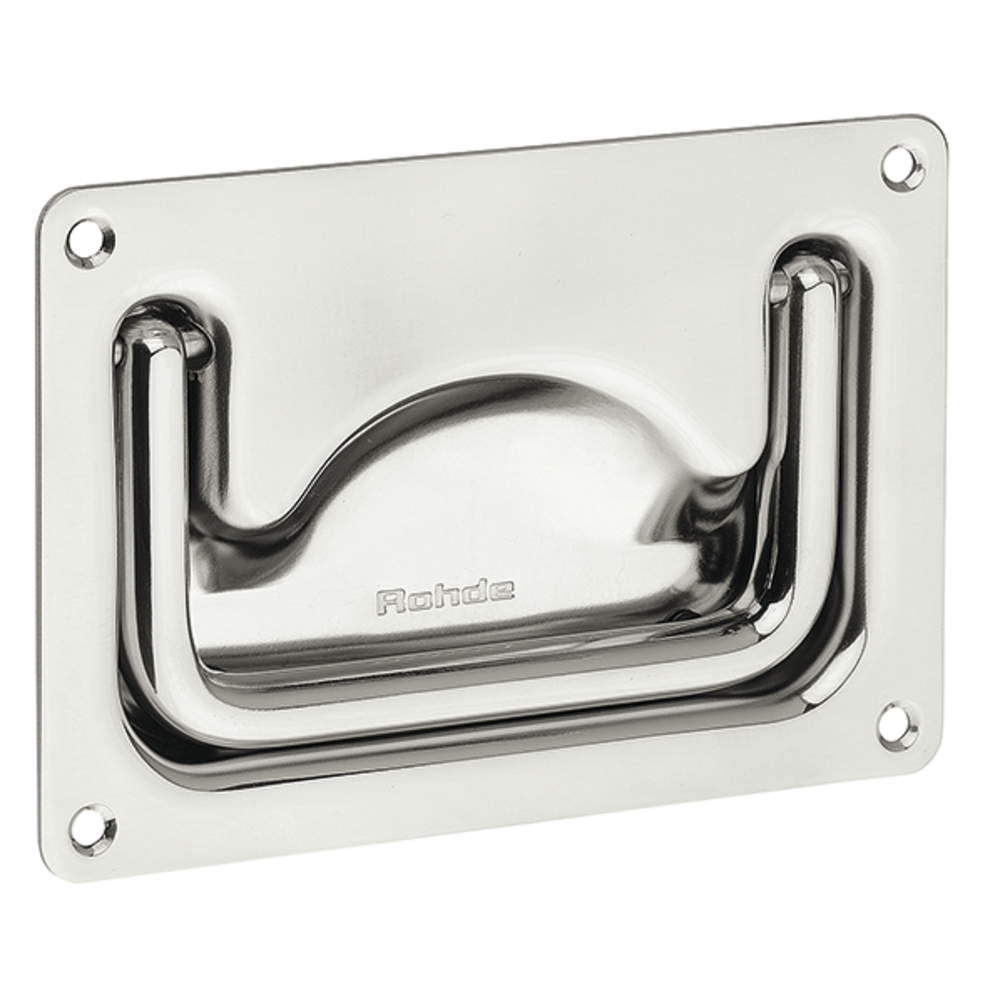

Stainless Steel Handles EE-07

ee-05-06-07.pdf

Handles EE-07

Collapsible stainless steel handles with small installation depth.

Material and surface:
Stainless steel high gloss electropolished, material no. 1.4301 or 1.4404 (316L).

Design features:
With pull-back spring from the working to the resting position.

Stress resistance:
min. 800 N.

Technical drawing showing front, side, and top views of EE-07 collapsible stainless steel handle mounted on a rectangular base plate with four screw holes.

Technical drawing showing a rectangular stainless steel handle mounting plate with four corner holes and 4 mm rounded corners

Technical drawing showing front, side, and top views of the EE-07 collapsible stainless steel handle with mounting plate and pull-back spring mechanism

Rectangular component technical drawing with rounded corners radius 1.57 and four mounting holes near corners

Technical data
Unit of measure
Material no.
1.4301 Order-No.	1.4404 Order-No.
1.4301 Order-No. EE-07.118.39 3D+CAD	1.4404 Order-No. EE-07.118.49 3D+CAD
