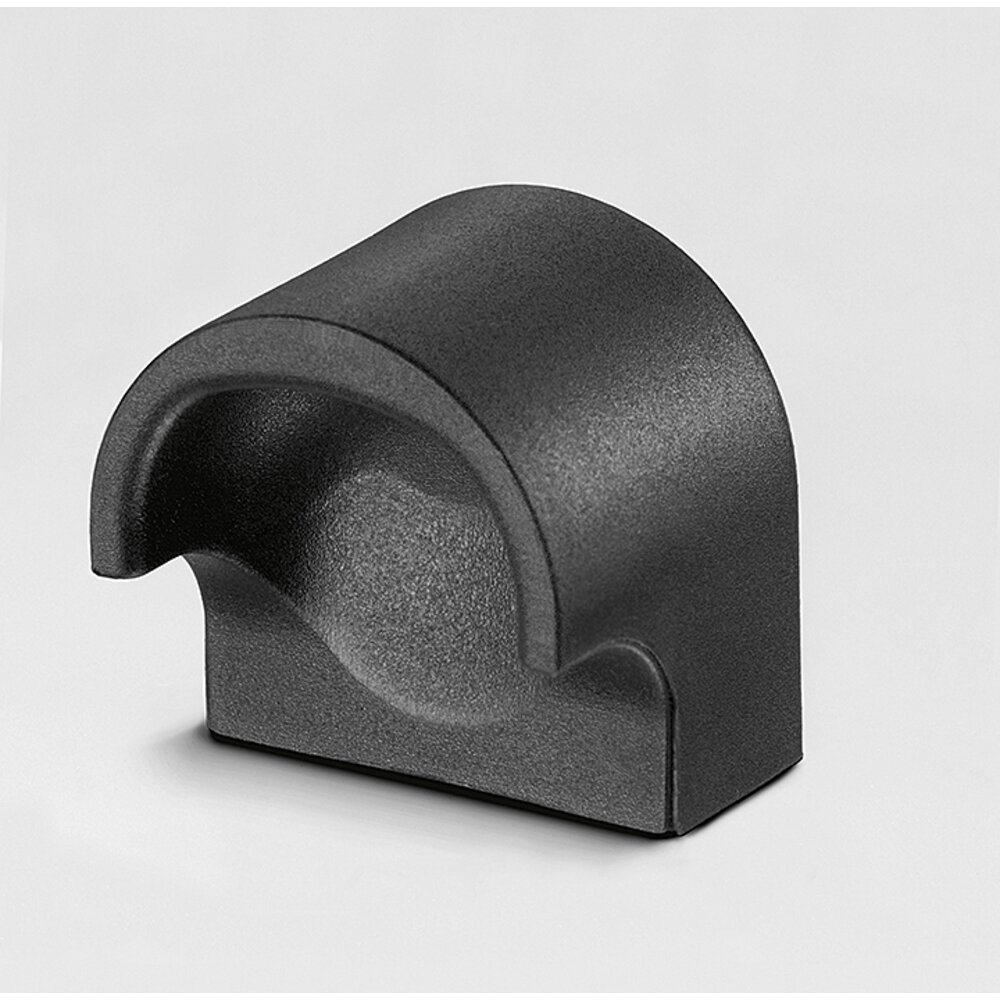

  • Black polyamide PA6 through-inset handle with curved design and fine matte texture
Black polyamide PA6 through-inset handle with curved design and fine matte texture

Handles FM

This through-inset handle, available in 2 different versions is suitable e.g. on doors or drawers.

Material and surface:
Handle of polyamide PA6, glass ball reinforced, half-matt with fine structure and threaded brass bushings. Black, similar to RAL 9005 or light-grey, similar to RAL 7035.

show more show less
Technical cross-sectional drawings of a through-inset front panel handle made from glass fibre reinforced polyamide PA6 with threaded brass bushings
Technical drawing presenting top and cross-sectional side views of a through-inset handle made of glass fibre reinforced polyamide PA 6 with threaded brass bushings.
Unit of measure
Colour version
A L B C light grey
Order-No. 		black
Order-No.
A L B C light grey
Order-No. 		black
Order-No.
A 14 L 26 B 22 C 11 light grey
Order-No. FM-14.022.7035 3D+CAD 		black
Order-No. FM-14.022.9005 3D+CAD
A 18 L 30 B 26 C 13 light grey
Order-No. FM-18.026.7035 3D+CAD 		black
Order-No. FM-18.026.9005 3D+CAD
