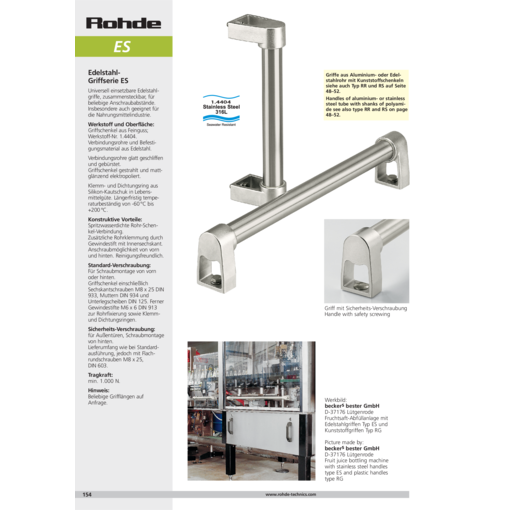

es.pdf
PDF

Handles ES

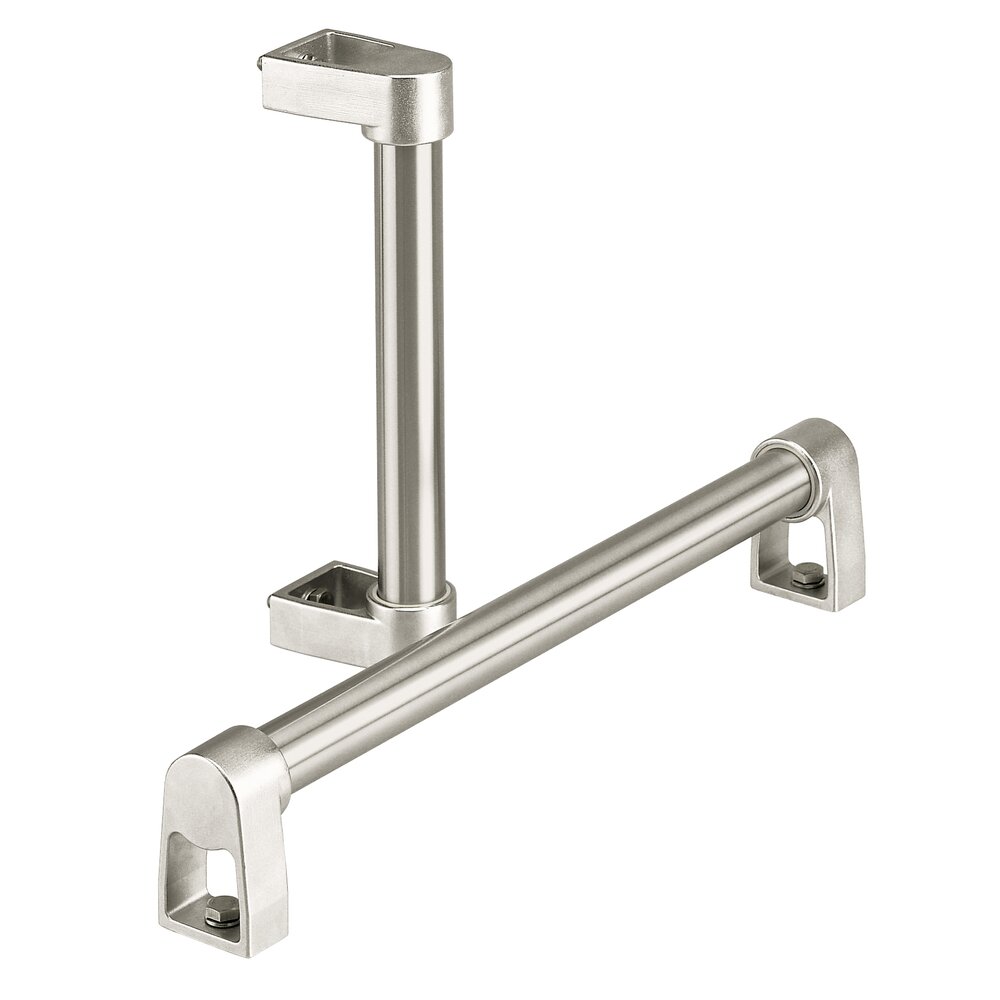

High-grade stainless steel handles for universal use, fit together for any bore clearances.

Material and surface:

Handle shank made of precision casting; material no. 1.4408. Connecting tubes and fixing material made of stainless steel.

Connection tubes finish ground and brushed. Handle shanks glass blasted and electropolished with a half-matt finish.

Clamping and packing ring of silicon rubber.

Design advantages:

Splash proof tube-shank connection. Additional tube clamping through allen set screw. Can be screwed on from front or behind. Easy to clean.

Standard screwing:

For screw attachment from in front or behind. Handle shanks including hexagon screws M8x25 DIN 933, nuts DIN 934 and washers DIN 125. Furthermore hexagon socket screws M6x6 DIN 913 for tube fixation just as clamping and packing rings.

Safety screwing:

For entrance doors, screwattachment from behind. Scope of supply same as standard version, however with cup square bolts M8x25 DIN 603.

Note:

Any desired handle lengths on request.

Stress resistance:

min. 1000 N.

tableSplitCriteria
Unit of measure
Description
AL Safety handles
Order-No. 		Standard handles
Order-No.
A200 L225 Safety handles
Order-No. ES-30.200.SI 3D+CAD 		Standard handles
Order-No. ES-30.200.ST 3D+CAD
A250 L275 Safety handles
Order-No. ES-30.250.SI 3D+CAD 		Standard handles
Order-No. ES-30.250.ST 3D+CAD
A300 L325 Safety handles
Order-No. ES-30.300.SI 3D+CAD 		Standard handles
Order-No. ES-30.300.ST 3D+CAD
A350 L375 Safety handles
Order-No. ES-30.350.SI 3D+CAD 		Standard handles
Order-No. ES-30.350.ST 3D+CAD
A400 L425 Safety handles
Order-No. ES-30.400.SI 3D+CAD 		Standard handles
Order-No. ES-30.400.ST 3D+CAD
A500 L525 Safety handles
Order-No. ES-30.500.SI 3D+CAD 		Standard handles
Order-No. ES-30.500.ST 3D+CAD
A600 L625 Safety handles
Order-No. ES-30.600.SI 3D+CAD 		Standard handles
Order-No. ES-30.600.ST 3D+CAD
Zubehör
Description
Article Single components for safety handles
Order-No. 		Single components for standard handles
Order-No.
ArticleConnection tube, 1m Single components for safety handles
Order-No. — 		Single components for standard handles
Order-No. ES-30.001.33
ArticleHandle shank, 1 piece Single components for safety handles
Order-No. ES-30.000.SI 		Single components for standard handles
Order-No. ES-30.000.ST
