Handles EK-16

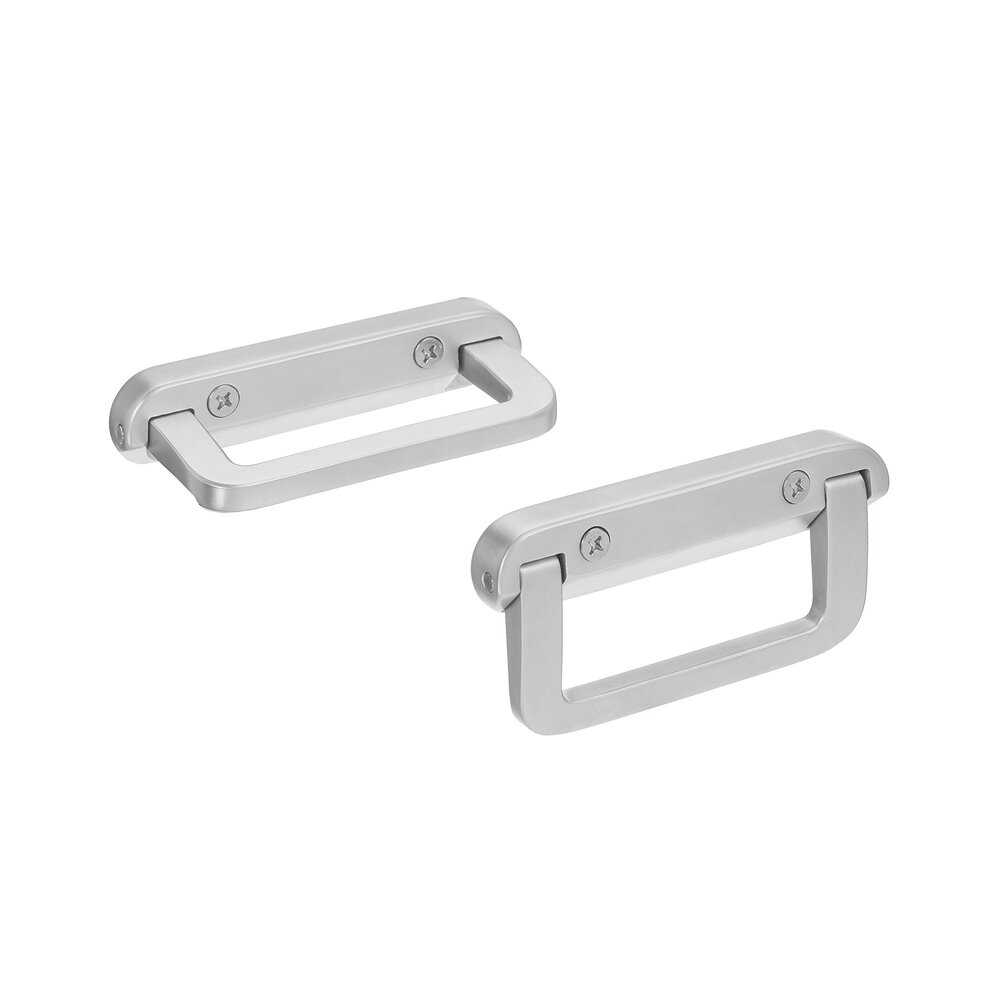

Stainless steel hinged handle, springs back automatically.

Material and surface:
Holder and handle made of stainless steel 1.4404 (316L), blasted and electropolished with a semi-gloss finish.
Arbors and restoring springs made of stainless steel.

Stress resistance:
Min. 500 N.

Scope of delivery:
Including stainless steel countersunk flat head screws, nuts and washers.

show more show less

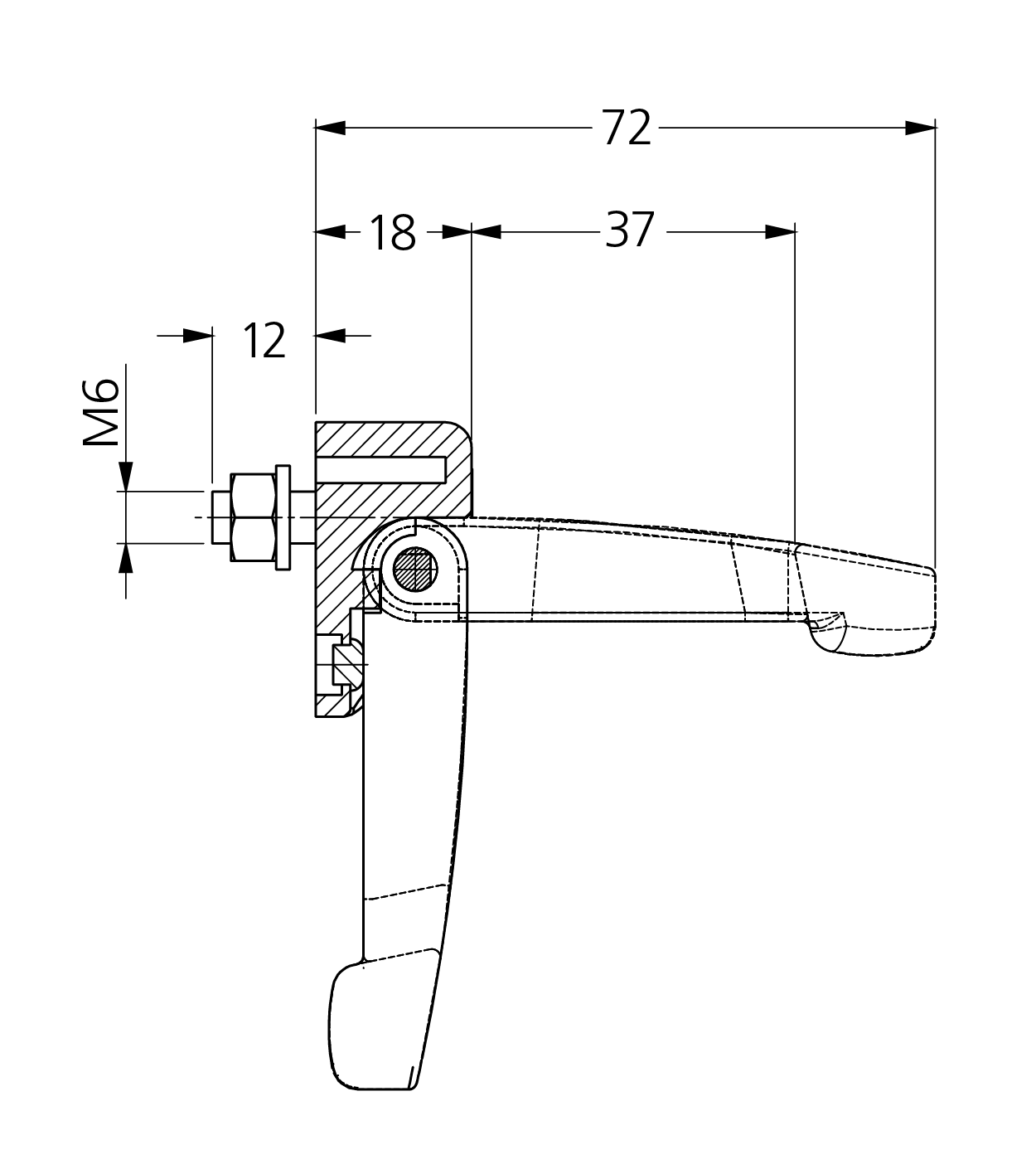

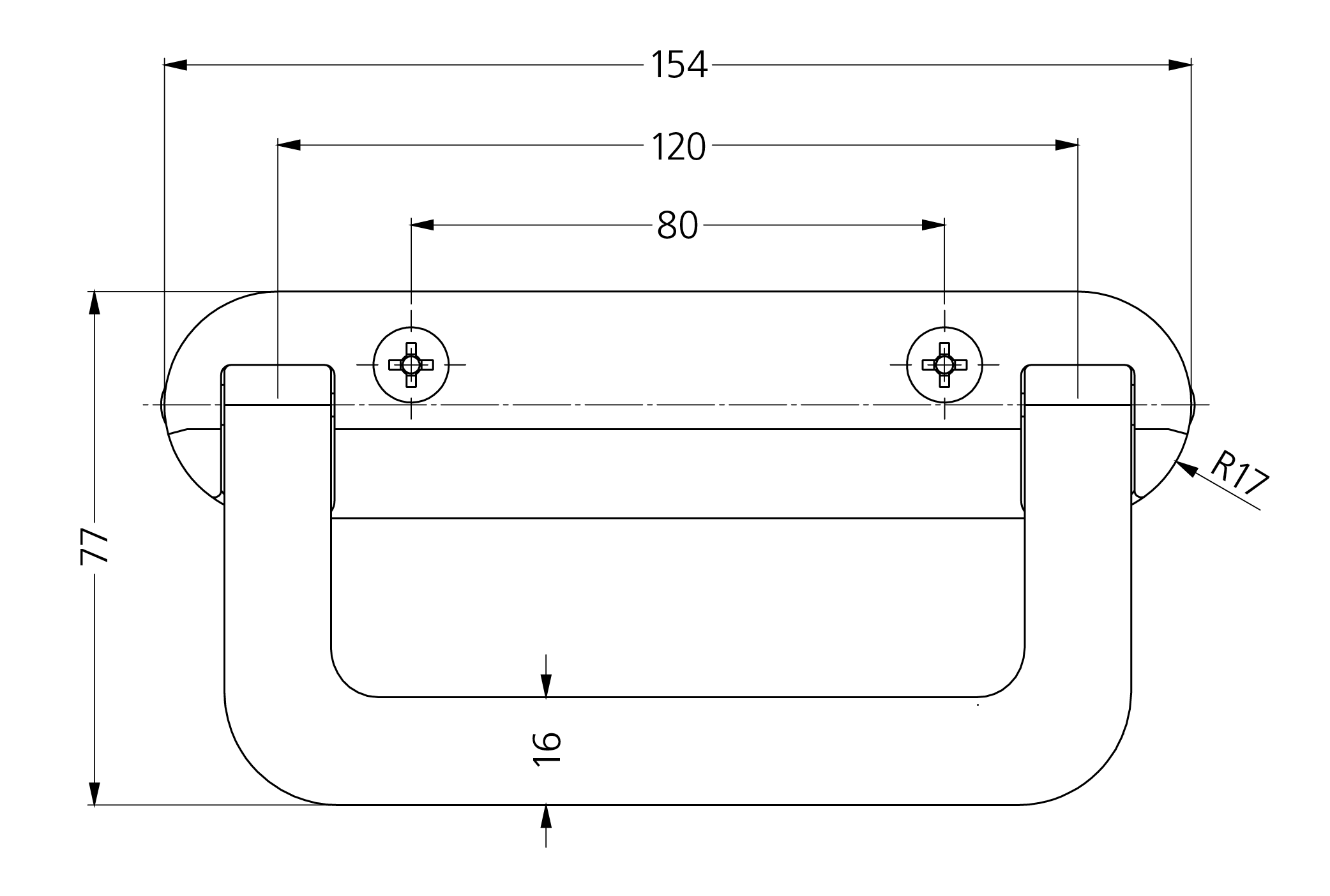

Black and white technical drawing of the EK-16 stainless steel hinged handle showing multiple orthogonal views with dimensional annotations and component details in millimeters.

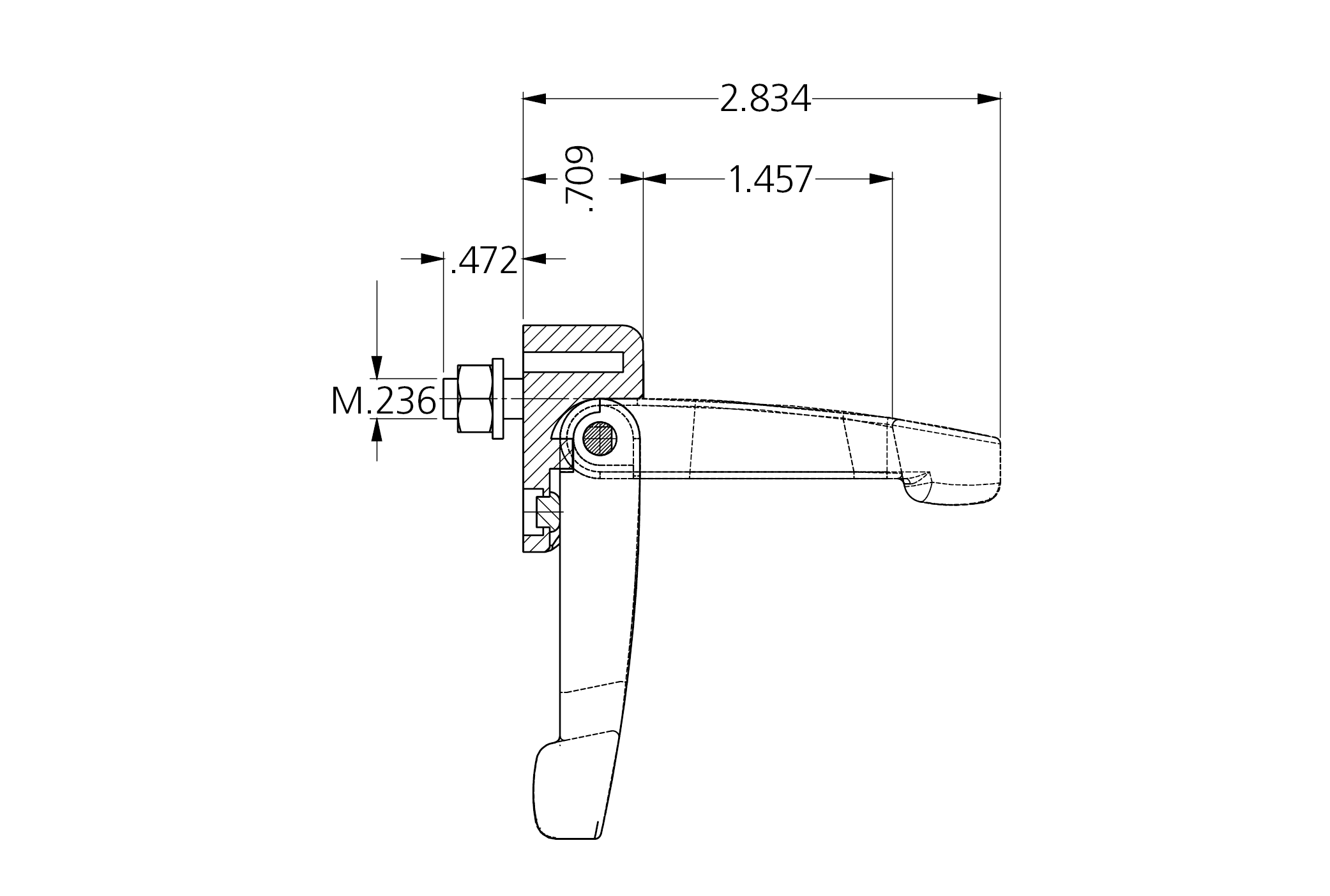

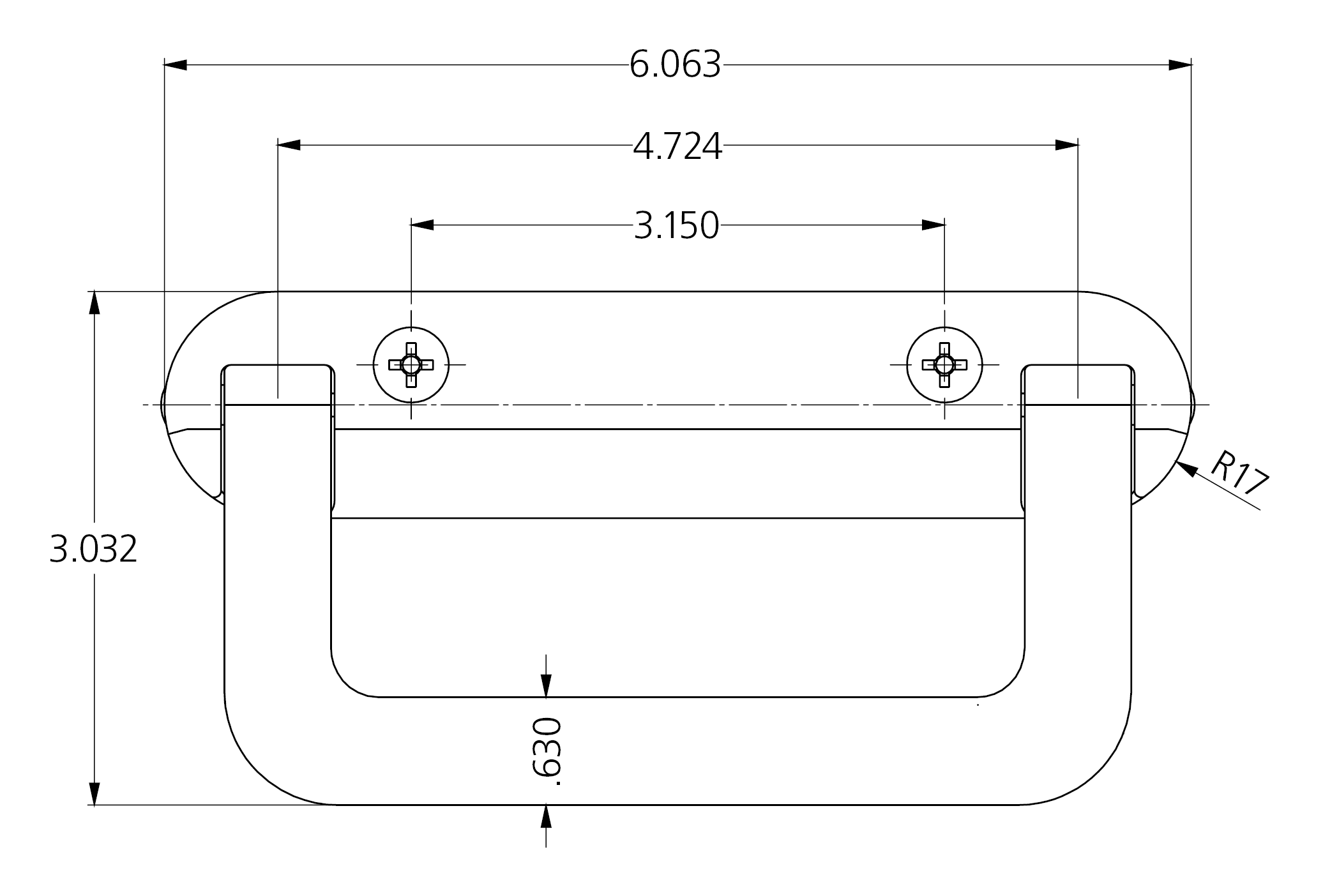

Technical line drawing of EK-16 stainless steel hinged handle with precise dimensional measurements in inches
Unit of measure
Order-No.
Order-No.
Order-No. EK-16.080.46 3D+CAD
