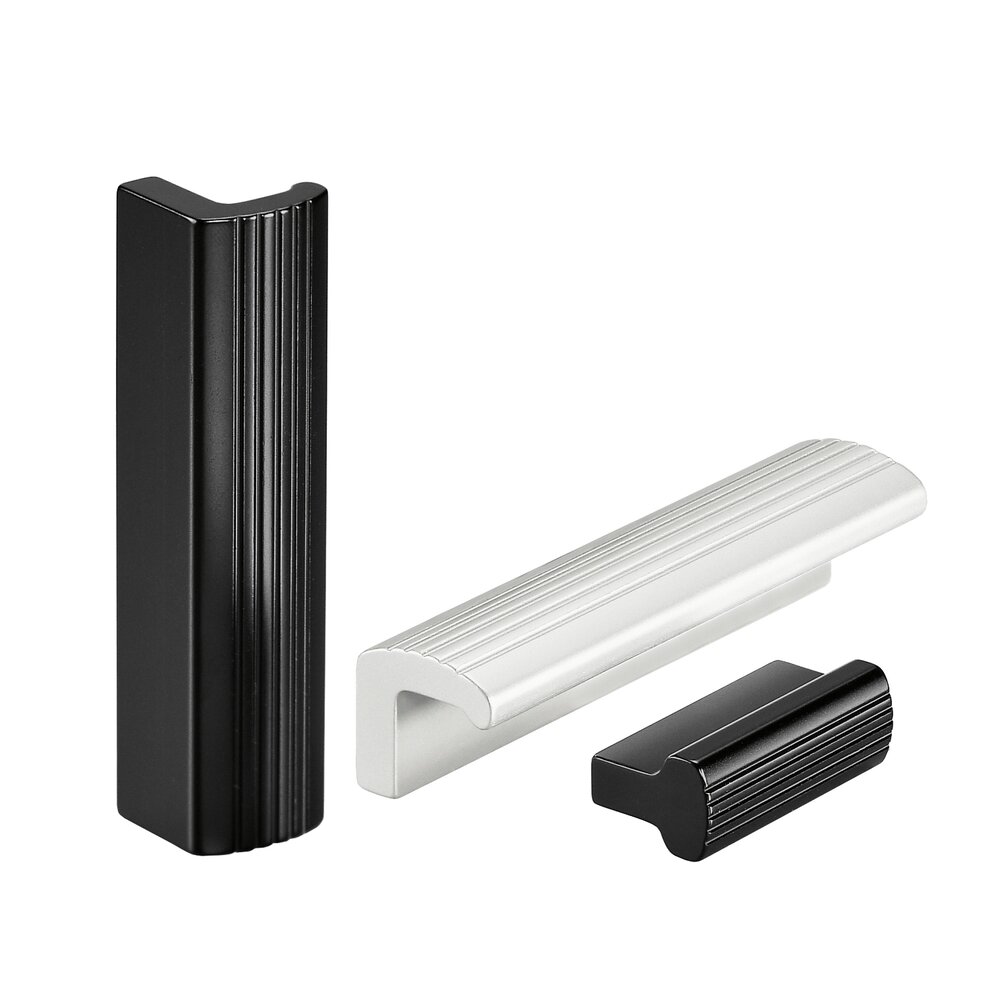

Leistengriffe AL
Material and surface:
Profiled aluminium AlMgSi 0.5; vibration ground, matted and anodized in 2 colours. Alternatively titanium coloured powder coated.
Note:
Any other handle lengths available upon request.
Stress resistance:
min. 200 N.
Version AL-16
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
Aluminum powder coated titanium colored
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
Aluminum powder coated titanium colored
Order-No. |
|---|---|---|---|---|
| A 30 | L 45 |
Anodizing version natural-colored
Order-No. AL-16.030.01 3D+CAD |
Anodized aluminum black
Order-No. AL-16.030.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-16.030.55 3D+CAD |
| A 45 | L 60 |
Anodizing version natural-colored
Order-No. AL-16.045.01 3D+CAD |
Anodized aluminum black
Order-No. AL-16.045.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-16.045.55 3D+CAD |
| A 70 | L 85 |
Anodizing version natural-colored
Order-No. AL-16.070.01 3D+CAD |
Anodized aluminum black
Order-No. AL-16.070.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-16.070.55 3D+CAD |
| A 90 | L 105 |
Anodizing version natural-colored
Order-No. AL-16.090.01 3D+CAD |
Anodized aluminum black
Order-No. AL-16.090.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-16.090.55 3D+CAD |
| A 105 | L 120 |
Anodizing version natural-colored
Order-No. AL-16.105.01 3D+CAD |
Anodized aluminum black
Order-No. AL-16.105.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-16.105.55 3D+CAD |
| A 120 | L 135 |
Anodizing version natural-colored
Order-No. AL-16.120.01 3D+CAD |
Anodized aluminum black
Order-No. AL-16.120.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-16.120.55 3D+CAD |
Version AL-26
|
Unit of measure
|
||||
|---|---|---|---|---|
| Type | ||||
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
Aluminum powder coated titanium colored
Order-No. |
| A | L |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
Aluminum powder coated titanium colored
Order-No. |
|---|---|---|---|---|
| A 30 | L 45 |
Anodizing version natural-colored
Order-No. AL-26.030.01 3D+CAD |
Anodized aluminum black
Order-No. AL-26.030.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-26.030.55 3D+CAD |
| A 45 | L 60 |
Anodizing version natural-colored
Order-No. AL-26.045.01 3D+CAD |
Anodized aluminum black
Order-No. AL-26.045.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-26.045.55 3D+CAD |
| A 70 | L 85 |
Anodizing version natural-colored
Order-No. AL-26.070.01 3D+CAD |
Anodized aluminum black
Order-No. AL-26.070.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-26.070.55 3D+CAD |
| A 90 | L 105 |
Anodizing version natural-colored
Order-No. AL-26.090.01 3D+CAD |
Anodized aluminum black
Order-No. AL-26.090.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-26.090.55 3D+CAD |
| A 105 | L 120 |
Anodizing version natural-colored
Order-No. AL-26.105.01 3D+CAD |
Anodized aluminum black
Order-No. AL-26.105.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-26.105.55 3D+CAD |
| A 120 | L 135 |
Anodizing version natural-colored
Order-No. AL-26.120.01 3D+CAD |
Anodized aluminum black
Order-No. AL-26.120.04 3D+CAD |
Aluminum powder coated titanium colored
Order-No. AL-26.120.55 3D+CAD |
| Type | ||
|---|---|---|
| Article |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
| Article |
Anodizing version natural-colored
Order-No. |
Anodized aluminum black
Order-No. |
|---|---|---|
| Article Profile-material, 1 m |
Anodizing version natural-colored
Order-No. AL-16.001.01 AL-26.001.01 |
Anodized aluminum black
Order-No. AL-16.001.04 AL-26.001.04 |
