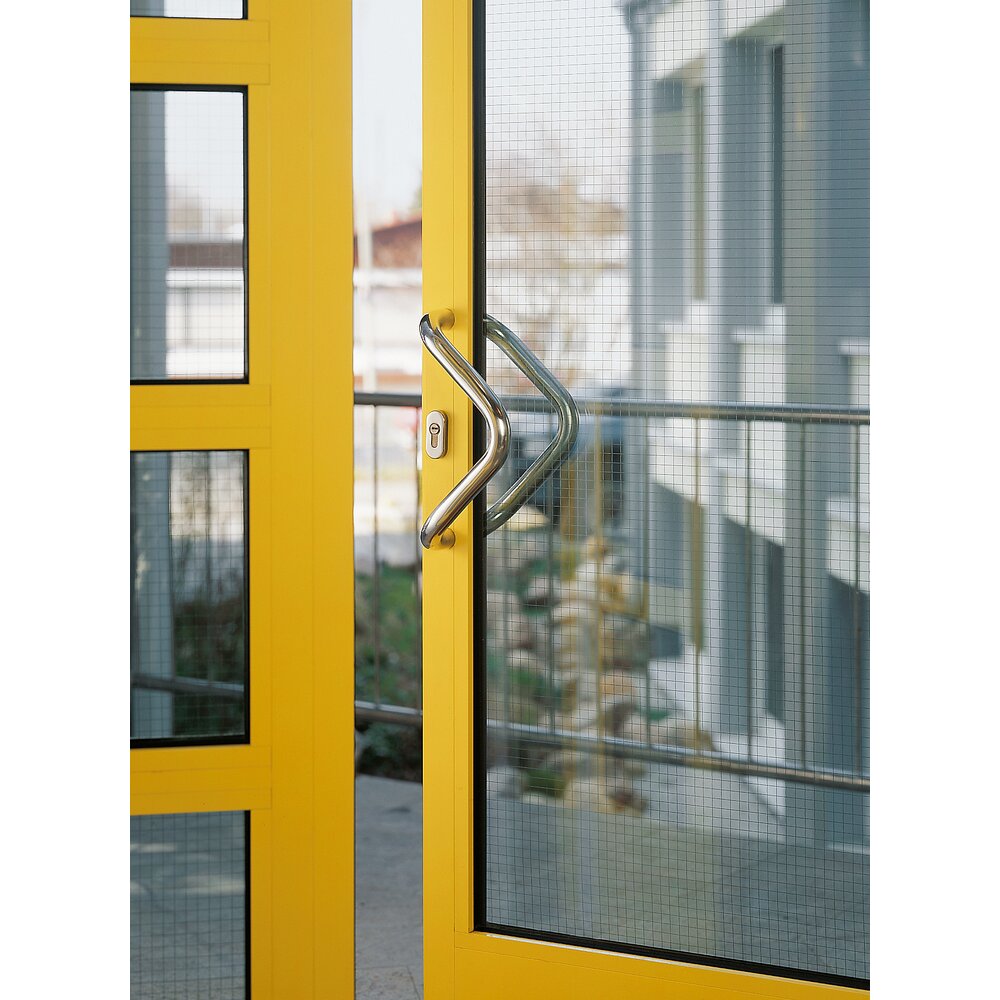

Handles ER-33

Material and surface:
Stainless steel tube, material no. 1.4301; inner parts of stainless steel, material no. 1.4305; smooth ground and brushed surface.

Design features:
The fastening technology of the Rohde handle ER types makes it possible to use them as single handles or as double handles for twosided door assembly.
Two M8 threaded bolts with inner hexagonal head assured a proper and tight seating with the handles in the elbow version K.

Assembly and order information:
With all double handle types, the supplied inner hexagonal socket head cap screw M10x60 DIN 912 permit fastening to doors with a door leaf thickness of 6–20 mm; the use of longer standard screws enables assembly to any optional door thickness.
For entrance doors, the elbow version K should be situated in the inside for reasons of safety.

Supply:
All handle models supplied ready for fixing including standard fixing materials of stainless steel.
Single G type post handle (with threaded insert): M10x30 DIN 912 bolt with washer.
Single K type post handle (with clamping sleeve): M10x40 DIN 912 bolt with washer and nut.

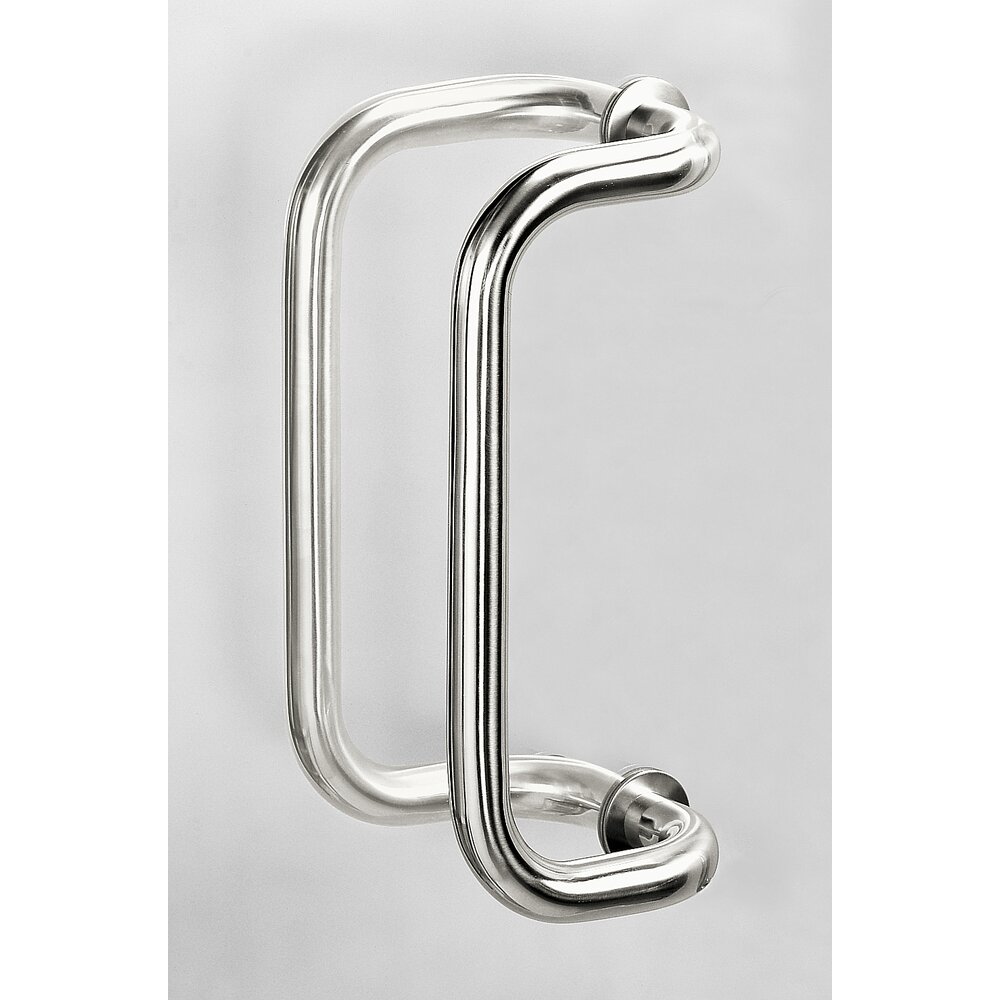

Double handle:
M10x60 DIN 912 bolt.
For stainless steel collars with plastic plates and stainless steel covers.

Note:
Other material or any optional handle lengths on request.

Stress resistance:
min. 1000 N.

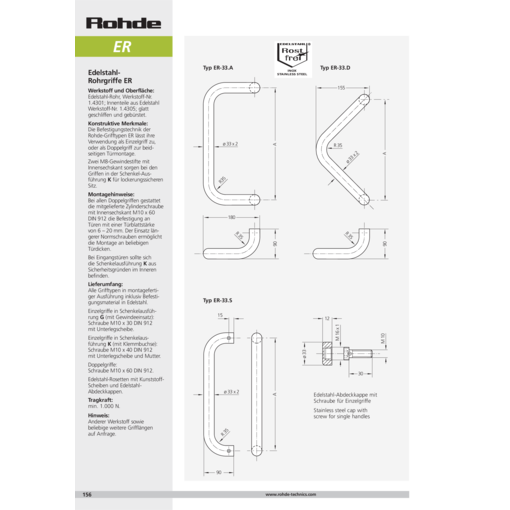

Version A

A
Unit of measure
		Description
A	Handle shank version	Type ER-33.A, double handles, angled Order-No.	Type ER-33.A, single handles, angled Order-No.
A350	Handle shank versionG	Type ER-33.A, double handles, angled Order-No. —	Type ER-33.A, single handles, angled Order-No. ER-33.A350.EG 3D+CAD
A350	Handle shank versionG/K	Type ER-33.A, double handles, angled Order-No. ER-33.A350.DO 3D+CAD	Type ER-33.A, single handles, angled Order-No. —
A350	Handle shank versionK	Type ER-33.A, double handles, angled Order-No. —	Type ER-33.A, single handles, angled Order-No. ER-33.A350.EK 3D+CAD
A500	Handle shank versionG	Type ER-33.A, double handles, angled Order-No. —	Type ER-33.A, single handles, angled Order-No. ER-33.A500.EG 3D+CAD
A500	Handle shank versionG/K	Type ER-33.A, double handles, angled Order-No. ER-33.A500.DO 3D+CAD	Type ER-33.A, single handles, angled Order-No. —
A500	Handle shank versionK	Type ER-33.A, double handles, angled Order-No. —	Type ER-33.A, single handles, angled Order-No. ER-33.A500.EK 3D+CAD

Version D

D
Unit of measure
		Description
A	Handle shank version	Type ER-33.D, double handles, diagonal Order-No.	Type ER-33.D, single handles, diagonal Order-No.
A300	Handle shank versionG	Type ER-33.D, double handles, diagonal Order-No. —	Type ER-33.D, single handles, diagonal Order-No. ER-33.D300.EG 3D+CAD
A300	Handle shank versionG/K	Type ER-33.D, double handles, diagonal Order-No. ER-33.D300.DO 3D+CAD	Type ER-33.D, single handles, diagonal Order-No. —
A300	Handle shank versionK	Type ER-33.D, double handles, diagonal Order-No. —	Type ER-33.D, single handles, diagonal Order-No. ER-33.D300.EK 3D+CAD

Version S

S
Unit of measure
		Description
A	Handle shank version	Type ER-33.S, double handles, unit Order-No.	Type ER-33.S, single handles, unit Order-No.
A350	Handle shank versionG	Type ER-33.S, double handles, unit Order-No. —	Type ER-33.S, single handles, unit Order-No. ER-33.S350.EG 3D+CAD
A350	Handle shank versionG/K	Type ER-33.S, double handles, unit Order-No. ER-33.S350.DO 3D+CAD	Type ER-33.S, single handles, unit Order-No. —
A350	Handle shank versionK	Type ER-33.S, double handles, unit Order-No. —	Type ER-33.S, single handles, unit Order-No. ER-33.S350.EK 3D+CAD
A500	Handle shank versionG	Type ER-33.S, double handles, unit Order-No. —	Type ER-33.S, single handles, unit Order-No. ER-33.S500.EG 3D+CAD
A500	Handle shank versionG/K	Type ER-33.S, double handles, unit Order-No. ER-33.S500.DO 3D+CAD	Type ER-33.S, single handles, unit Order-No. —
A500	Handle shank versionK	Type ER-33.S, double handles, unit Order-No. —	Type ER-33.S, single handles, unit Order-No. ER-33.S500.EK 3D+CAD

Zubehör

Accessories	Order-No.
AccessoriesStainless steel cover with screw for single handles	Order-No. ER-33.0000.AK
AccessoriesStainless steel roses with plastic plates	Order-No. ER-33.0050.RO
