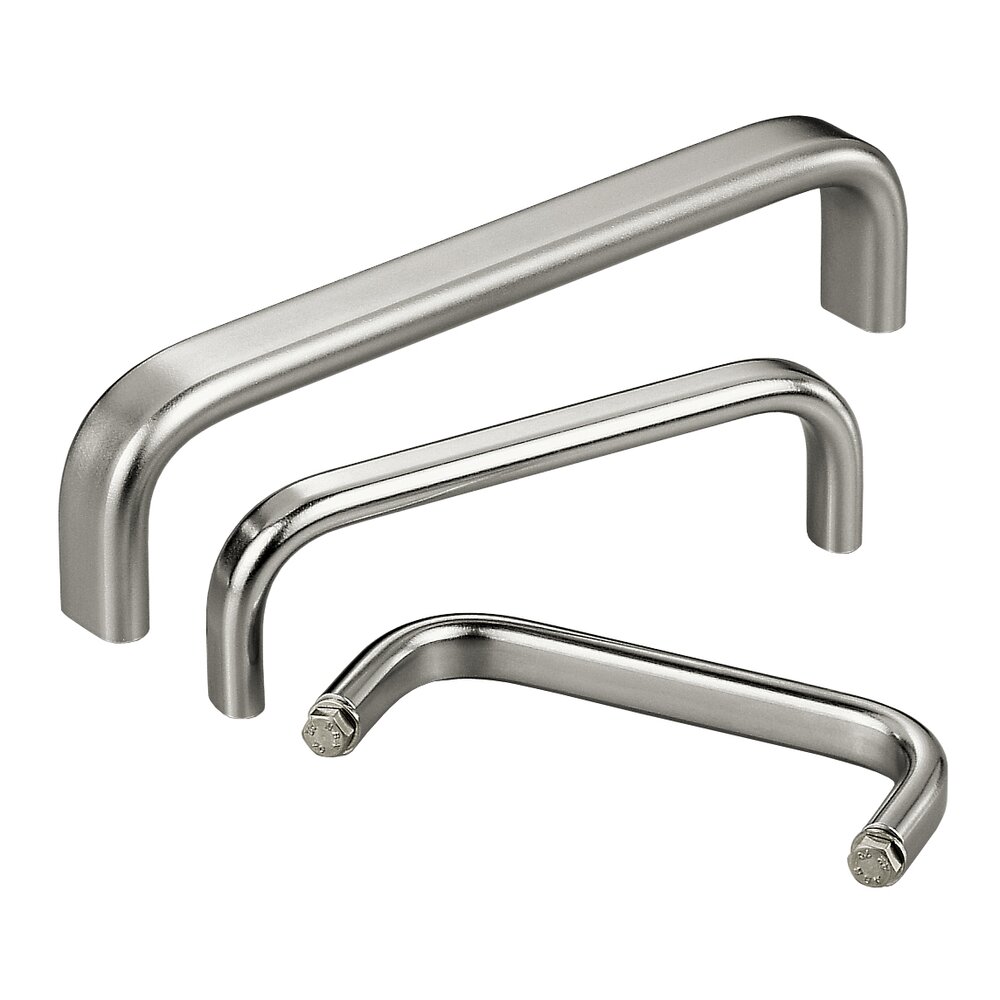

  • Three stainless steel handles with different surface finishes and sizes arranged side by side on a white background, including one with hexagonal head screws at the ends.

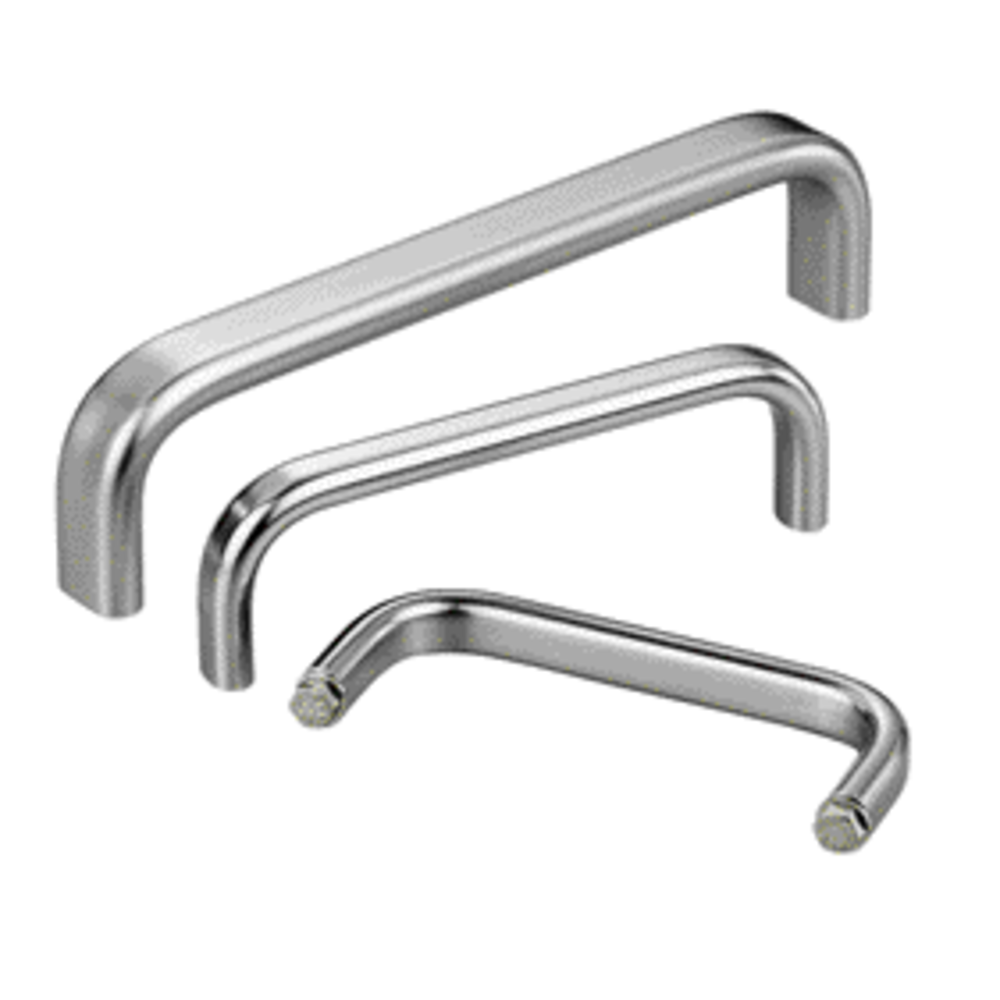

  • Three stainless steel U-shaped handles of different sizes with smooth rounded edges and screws on a white background
Three stainless steel handles with different surface finishes and sizes arranged side by side on a white background, including one with hexagonal head screws at the ends.
Three stainless steel U-shaped handles of different sizes with smooth rounded edges and screws on a white background

Handles EF

Attractively shaped handles for all applications, with high corrosive and chemical resistance.

Material:
Profiled stainless steel; Material no. 1.4404.

Version A:
Surface vibration ground with a half-matt finish.

Version B:
Surface vibration ground, blasted and electropolished with a half-matt finish.

Extent of delivery:
Includes high-grade steel hexa- gonal head screws DIN 933, and washes DIN 125.

Stress resistance:
min. 1000 N

Note:
Other dimensions on request.

Stress resistance:
min. 1000 N.

show more show less
Technical drawing showing three views of a stainless steel handle with mounting screws and cross-sectional details.
Technical drawing of EF stainless steel handle showing side, top, and end views with cross-section and mounting hardware details
Unit of measure
Type
B A Stainless steel vibration ground
Order-No. 		Stainless steel blasted and electropolished
Order-No. 		M T H D
B A Stainless steel vibration ground
Order-No. 		Stainless steel blasted and electropolished
Order-No. 		M T H D
B 12 A 100 Stainless steel vibration ground
Order-No. EF-12.100.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-12.100.36 3D+CAD 		M M 5 x 10 T 10 H 40 D 8
B 12 A 120 Stainless steel vibration ground
Order-No. EF-12.120.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-12.120.36 3D+CAD 		M M 5 x 10 T 10 H 40 D 8
B 12 A 150 Stainless steel vibration ground
Order-No. EF-12.150.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-12.150.36 3D+CAD 		M M 5 x 10 T 10 H 40 D 8
B 12 A 180 Stainless steel vibration ground
Order-No. EF-12.180.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-12.180.36 3D+CAD 		M M 5 x 10 T 10 H 40 D 8
B 12 A 250 Stainless steel vibration ground
Order-No. EF-12.250.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-12.250.36 3D+CAD 		M M 5 x 10 T 10 H 40 D 8
B 12 A 350 Stainless steel vibration ground
Order-No. EF-12.350.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-12.350.36 3D+CAD 		M M 5 x 10 T 10 H 40 D 8
B 19,5 A 100 Stainless steel vibration ground
Order-No. EF-19.100.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-19.100.36 3D+CAD 		M M 6 x 12 T 12 H 45 D 10
B 19,5 A 120 Stainless steel vibration ground
Order-No. EF-19.120.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-19.120.36 3D+CAD 		M M 6 x 12 T 12 H 45 D 10
B 19,5 A 150 Stainless steel vibration ground
Order-No. EF-19.150.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-19.150.36 3D+CAD 		M M 6 x 12 T 12 H 45 D 10
B 19,5 A 180 Stainless steel vibration ground
Order-No. EF-19.180.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-19.180.36 3D+CAD 		M M 6 x 12 T 12 H 45 D 10
B 19,5 A 250 Stainless steel vibration ground
Order-No. EF-19.250.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-19.250.36 3D+CAD 		M M 6 x 12 T 12 H 45 D 10
B 19,5 A 350 Stainless steel vibration ground
Order-No. EF-19.350.31 3D+CAD 		Stainless steel blasted and electropolished
Order-No. EF-19.350.36 3D+CAD 		M M 6 x 12 T 12 H 45 D 10
