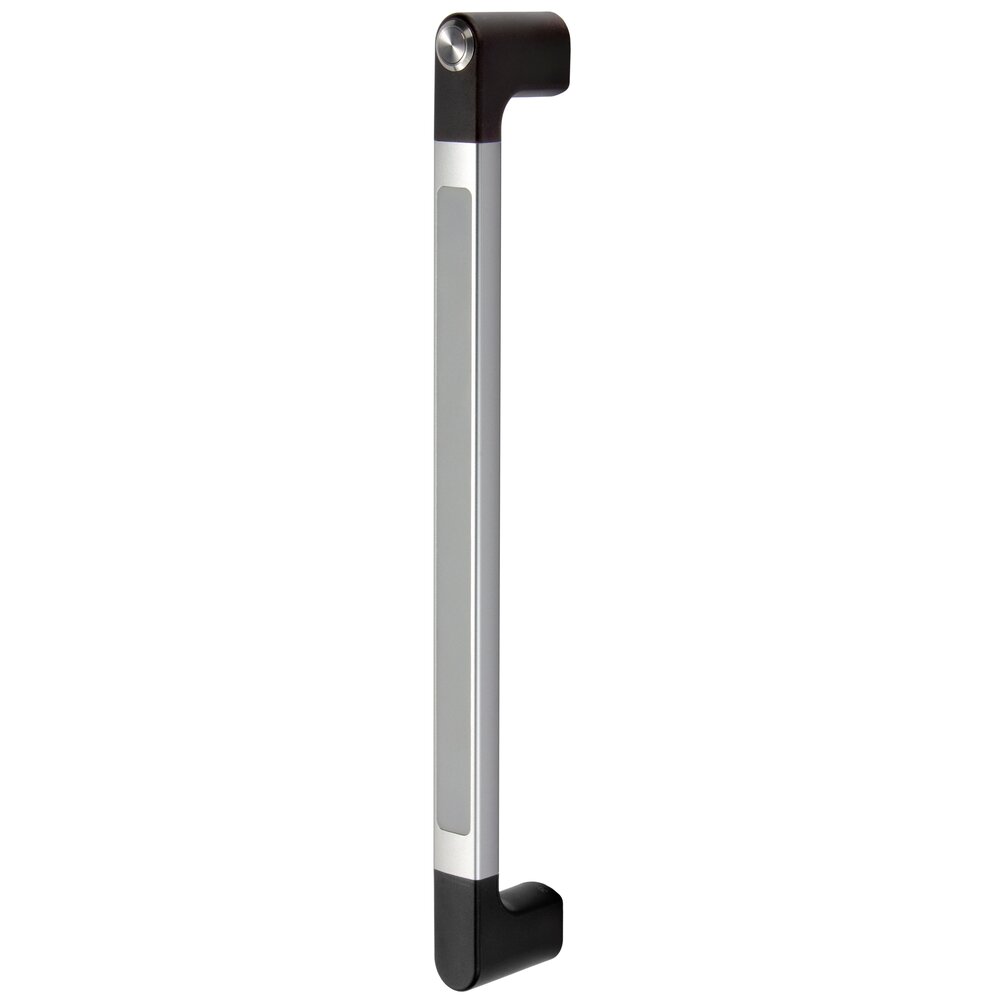

Functional handles FG4-LL

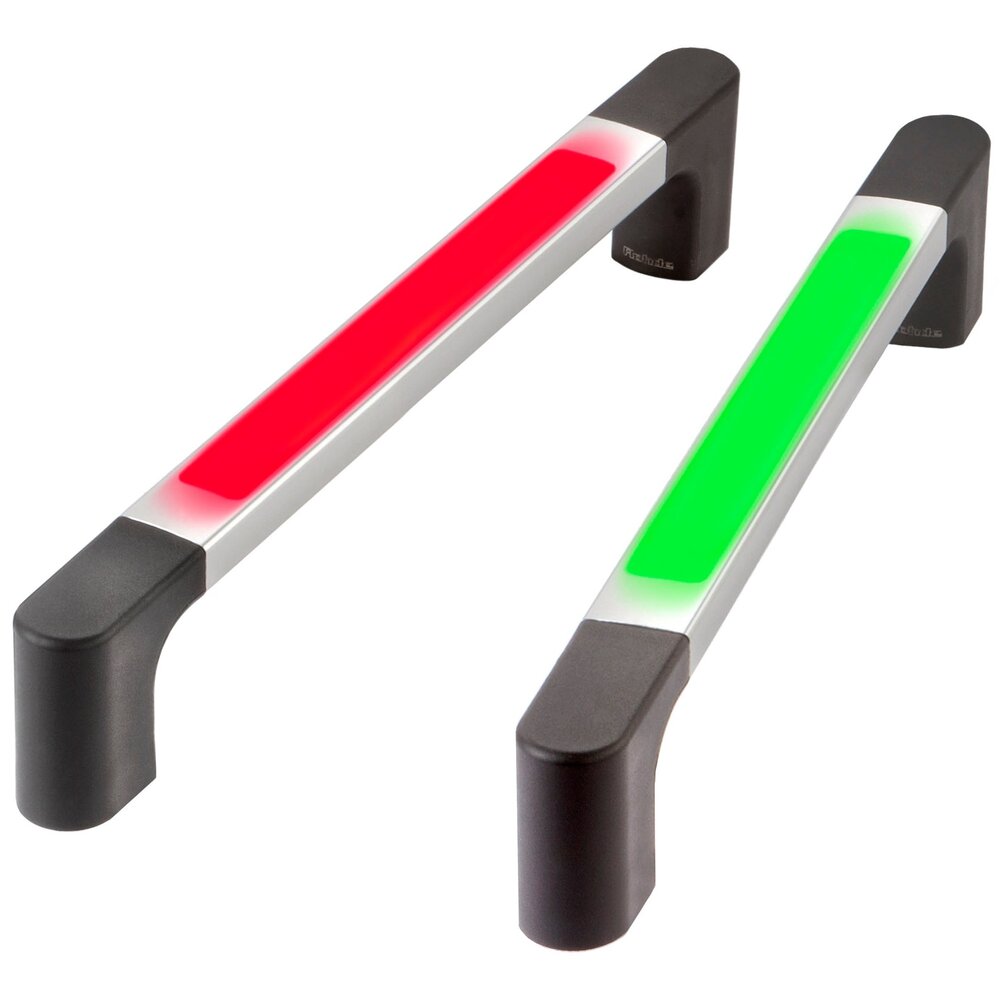

Functional handle with a three-coloured illuminatable handle ledge. The LED colours red, yellow and green can be used to display the current operating status of the machine for example.
Material and surface:
Handle shanks made of glass ball reinforced polyamide PA6, black, similar to RAL 9005, semi-matte with a fine-grain structure. Threaded bushes made of brass. Handle ledge made of extruded aluminium AlMgSi 0.5; glass ball blasted and anodized in natural colour. Illuminatable plastic insert made of translucent PMMA.
Function elements:

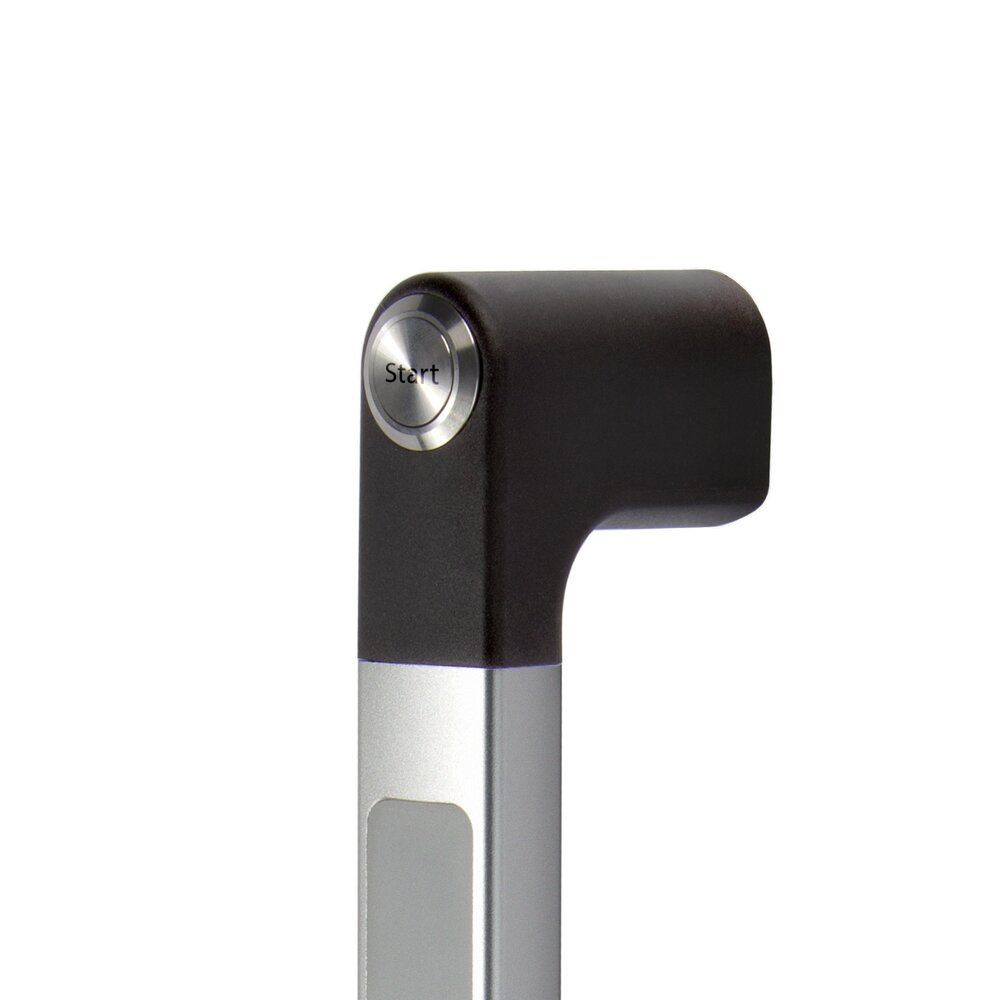

One push button, as a changeover contact.
Connection:

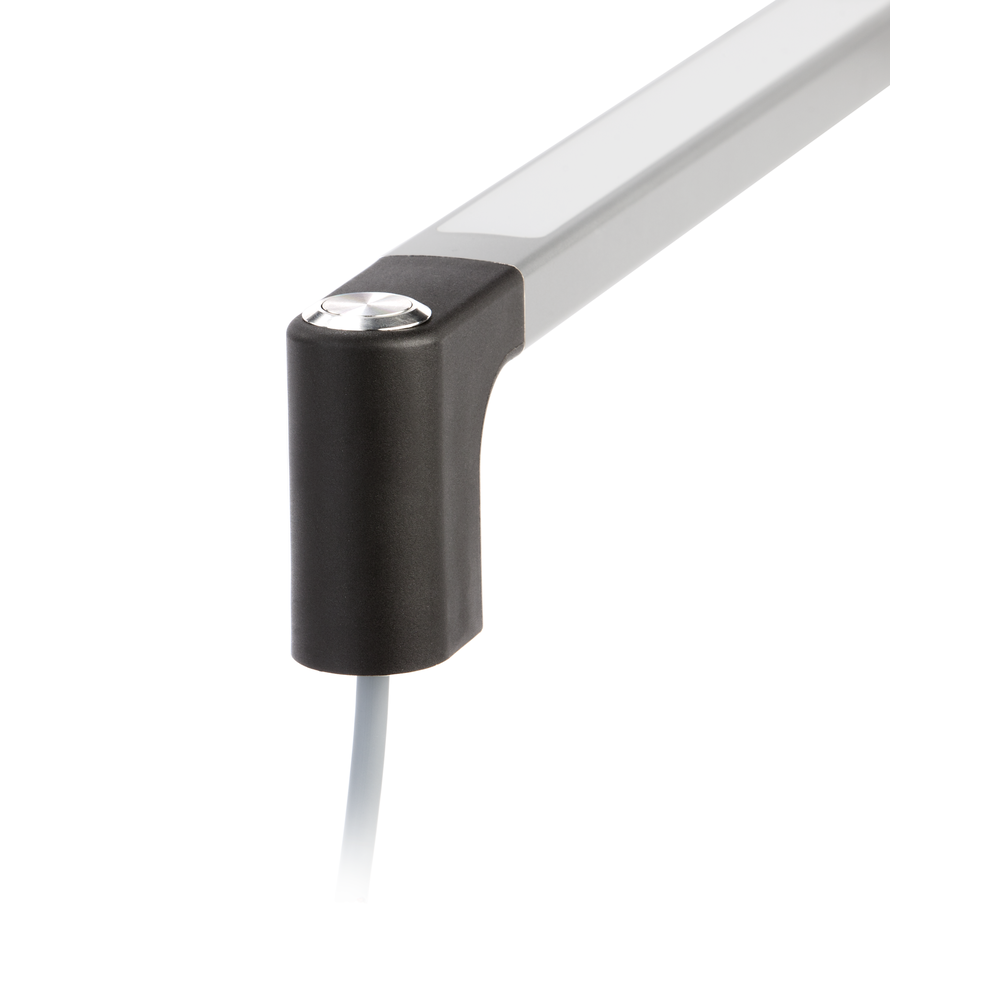

5m connection cable leading out of the mounting surface of the handle shank. Version with an 8-pin connector on request.
Note:
Other handle lengths and switching element assignments, as well as white handle ledge lighting on request.
- handle lengths customized
- button assignment according to customer requirements
- button / LED colors according to customer specifications
- further connection possibilities
- labeling possible
- further color versions
|
Unit of measure
|
||||
|---|---|---|---|---|
| Product Type | Description | A | L | Order-No. |
