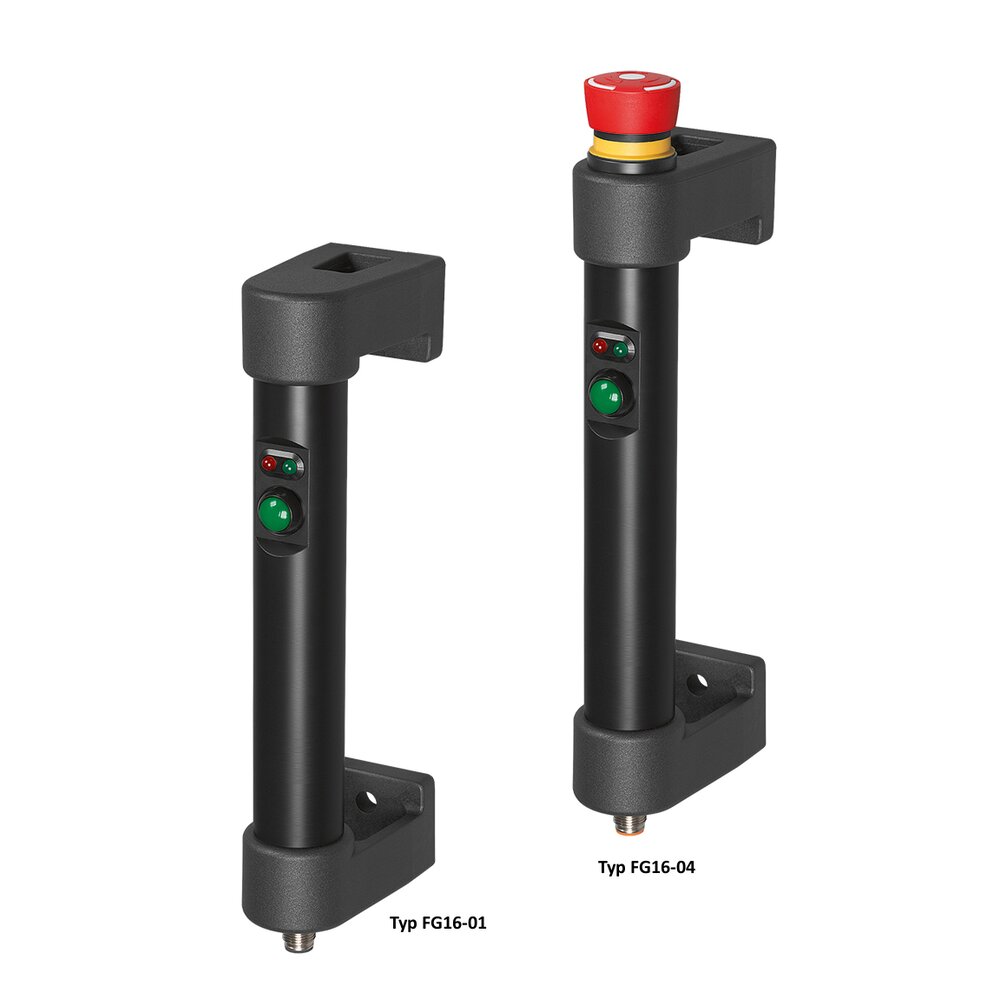

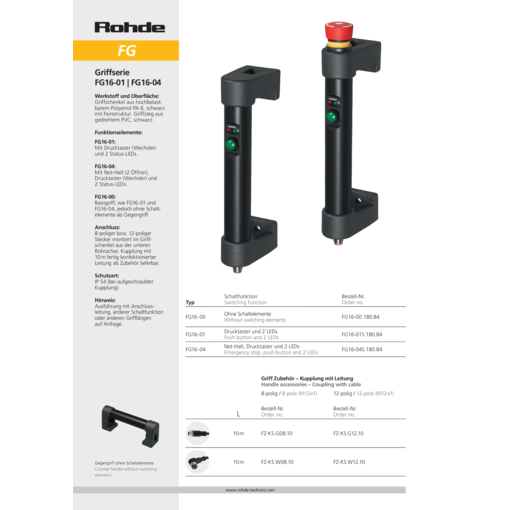

Functional handles FG16-01, FG16-04

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC black.

Function elements:
FG16-01:
Push button (change-over contact)
2 LEDs.

FG16-04:
Emergency-stop (2 NC contacts)
Push button (change-over contact)
2 LEDs

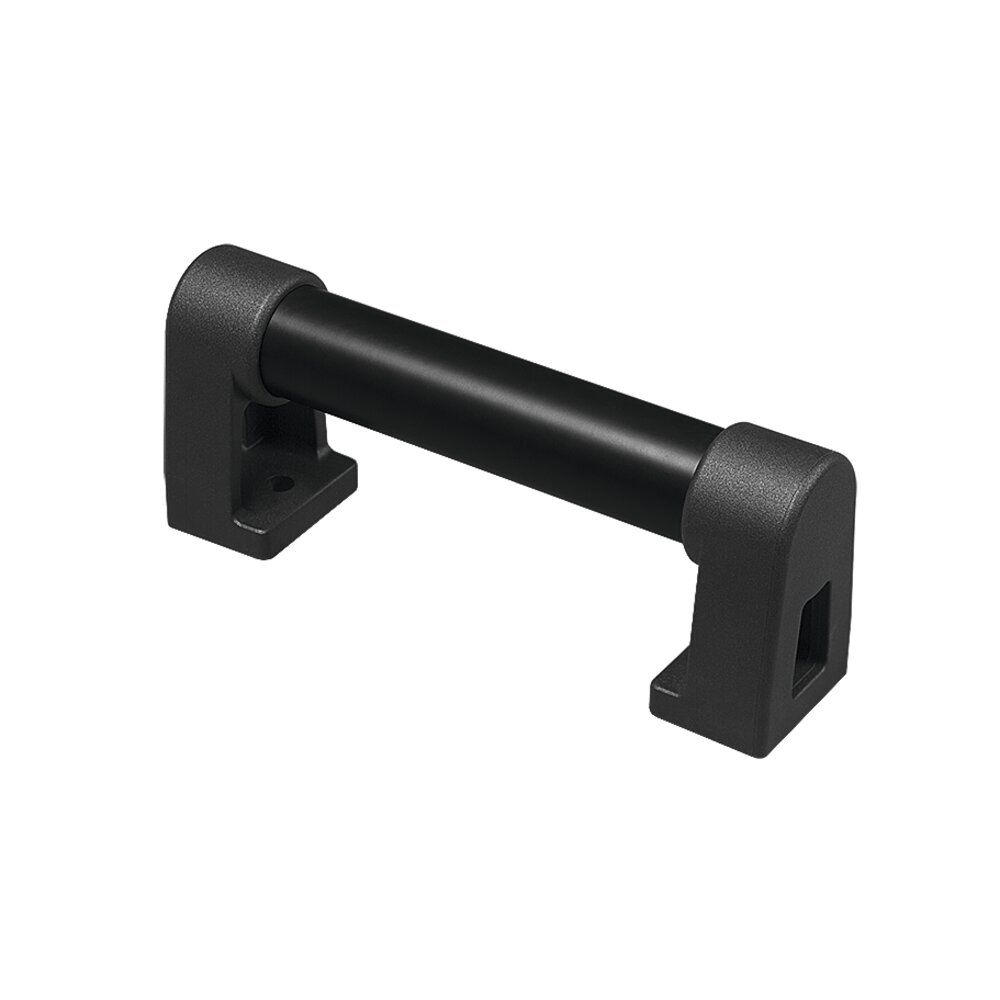

FG16-00:
Basic handle, as FG16-01 and FG16-04, but without switch elements as counterhandle.

Connection:
8-pole or 12-pole connectorn positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m readymade cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

Note:
With connection cable other push button assignment or other handle lengths on request.

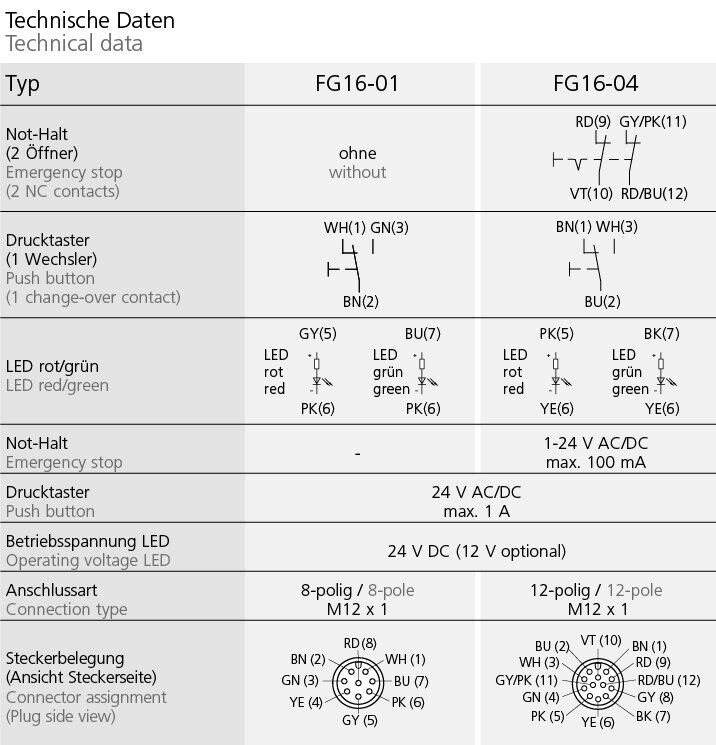

Technical data
Unit of measure

Product Type	Description	Order-No.
Product TypeFG16-00	DescriptionCounter handle without function	Order-No. FG16-00.180.84 3D+CAD
Product TypeFG16-01S	Description1 push button and 2 LEDs	Order-No. FG16-01S.180.84 3D+CAD
Product TypeFG16-04S	Description1 pushbutton, emergency stop and 2 LEDs	Order-No. FG16-04S.180.84 3D+CAD

Zubehör
		Handle accessories
Length	Coupling	8-pole (M12 x 1) Order-No.	12-pole (M12 x 1) Order-No.
Length10 m	Couplingangled	8-pole (M12 x 1) Order-No. FZ-KS.W08.10	12-pole (M12 x 1) Order-No. FZ-KS.W12.10
Length10 m	Couplingstraight / axial	8-pole (M12 x 1) Order-No. FZ-KS.G08.10	12-pole (M12 x 1) Order-No. FZ-KS.G12.10
