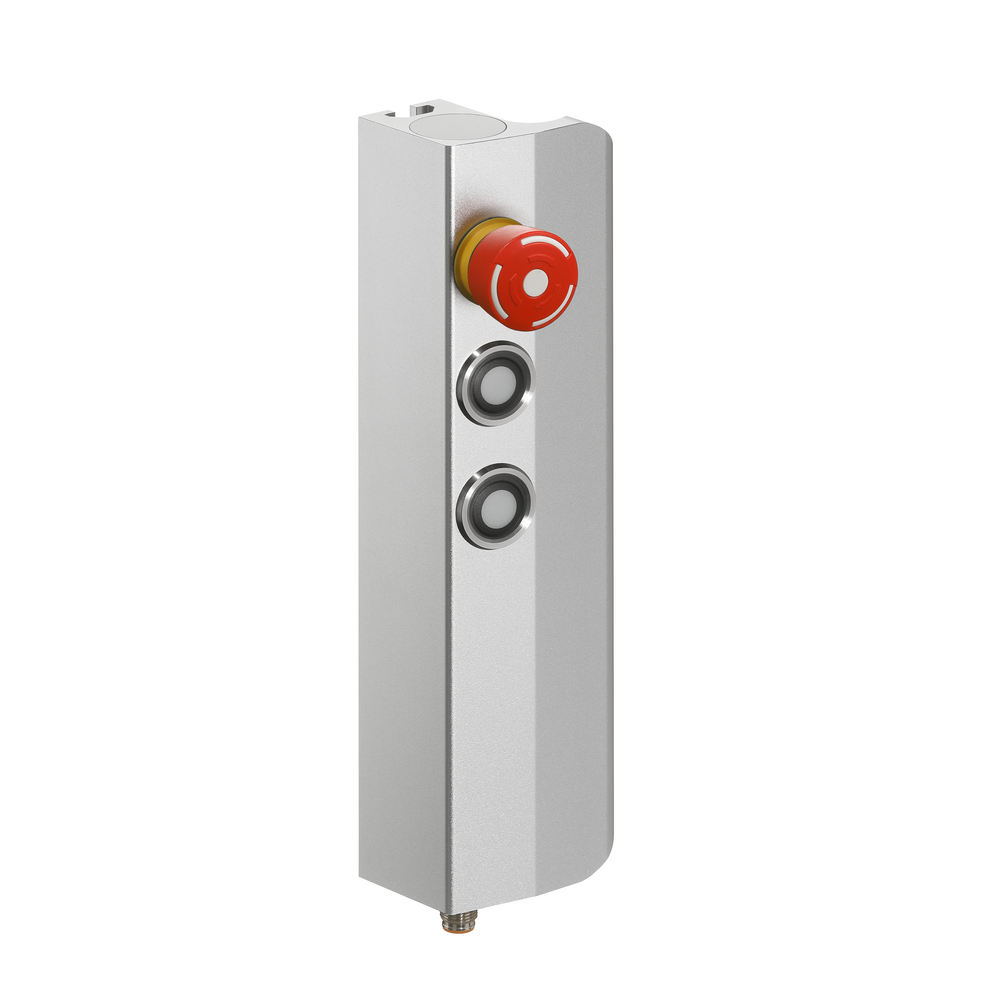

An aluminum switch housing with a red emergency stop button and two black and white circular push buttons, mounted vertically.
Switch housing TG2

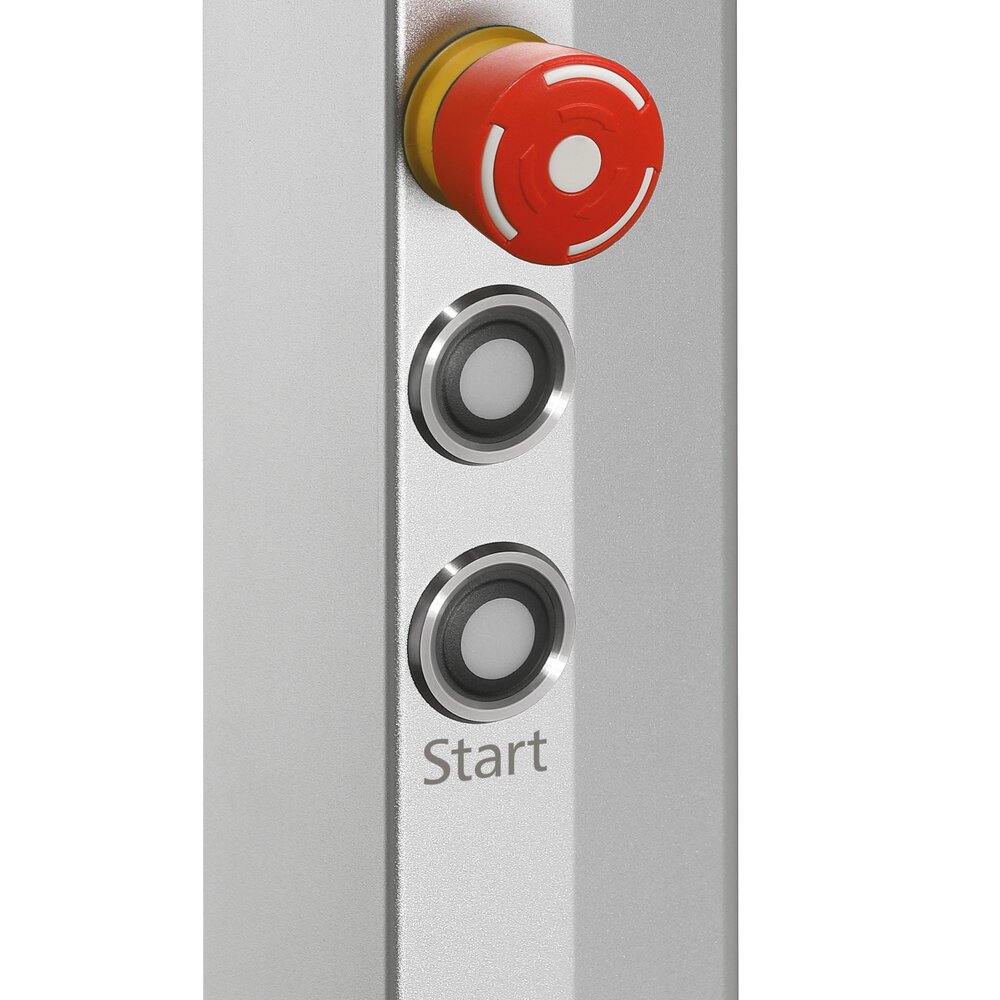

Metallic switch housing panel with a red emergency stop button at the top and two black push buttons below, one labeled 'Start'.

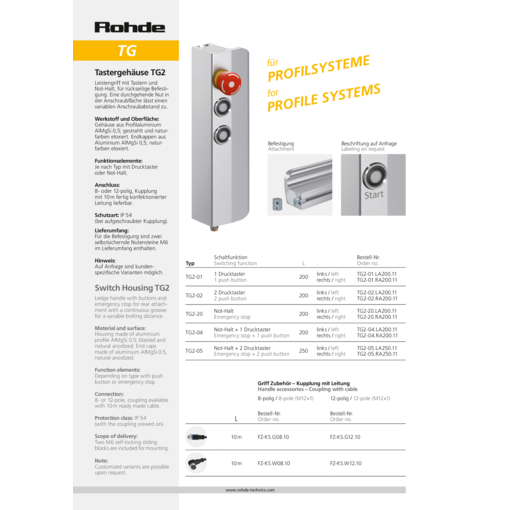

TG2.pdf
PDF

Switch housing TG2

Ledge handle with buttons and emergency stop for rear attachment with a continuous groove for a variable bolting distance.

Material and surface:
Housing made of aluminum profile AlMgSi 0.5; blasted and natural anodized. End caps made of aluminum AlMgSi 0.5; natural anodized.

Function elements:
Depending on type with push button or emergency stop.

Connection:
8- or 12-pole, coupling available with 10 m ready made cable.

Protection class:
IP 54 with screwed coupling.

Scope of delivery:

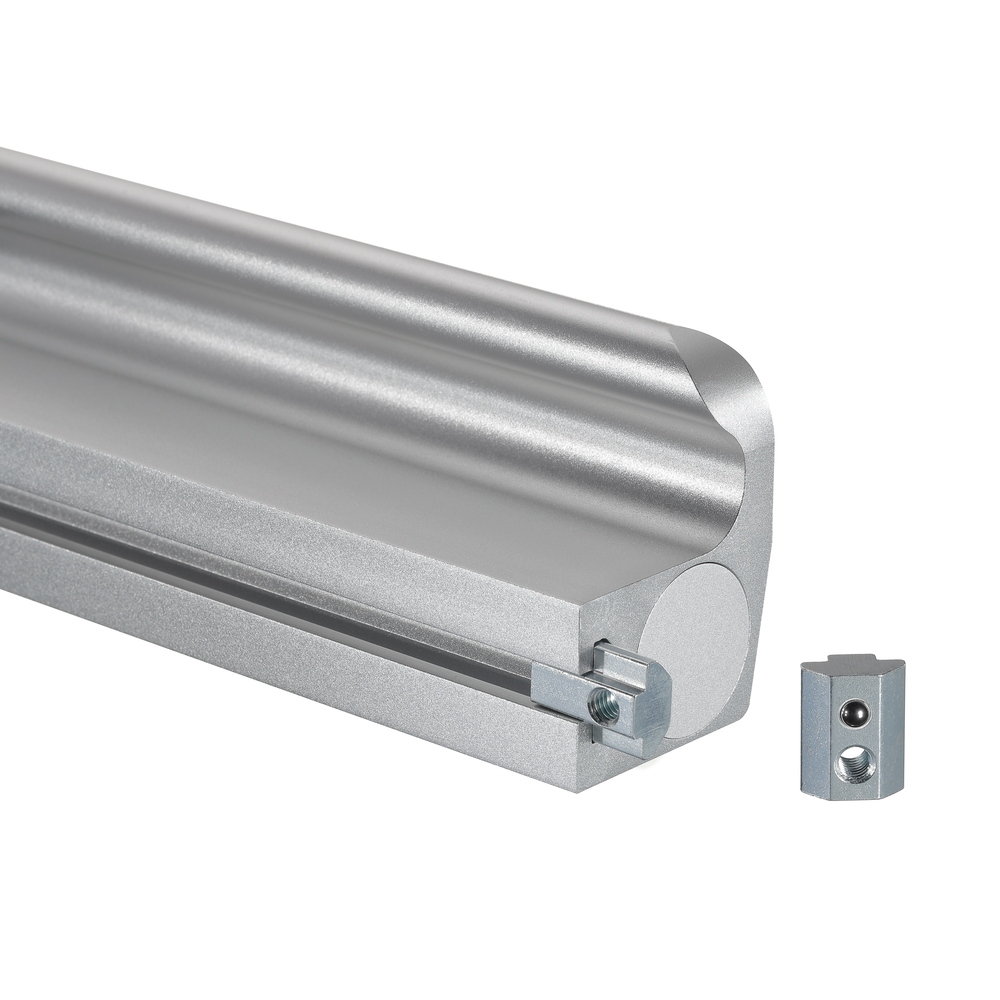

Two M6 self-locking sliding blocks are included for mounting.

Note:
Customized variants are possible on request.

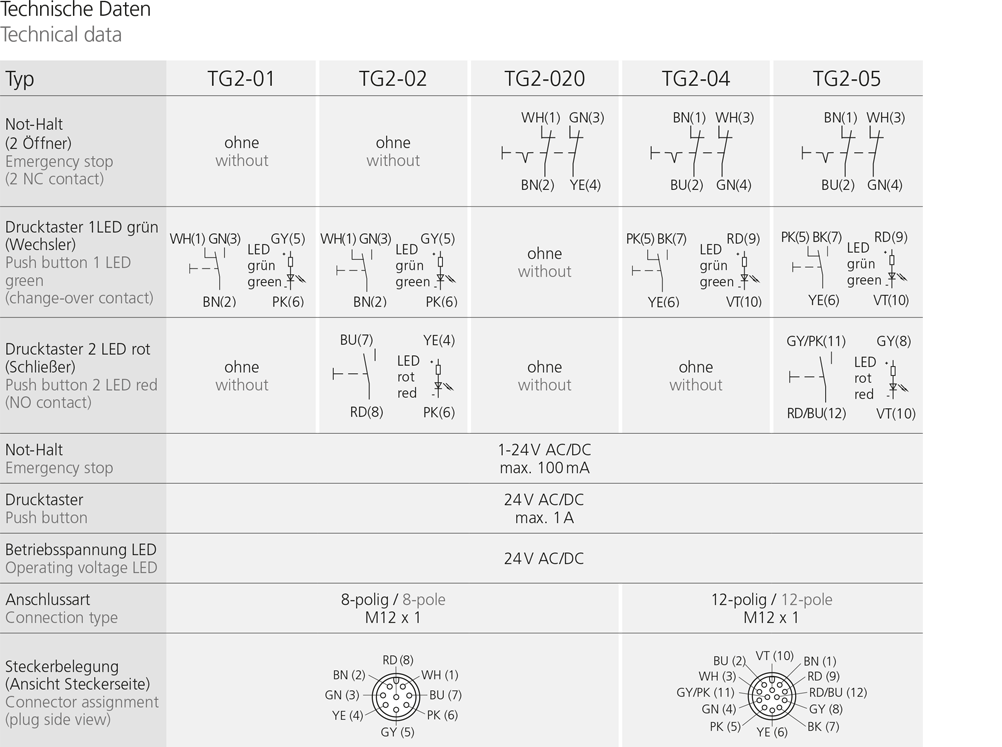

Technical data
Unit of measure
Product TypeDescriptionLVersion Order-No.

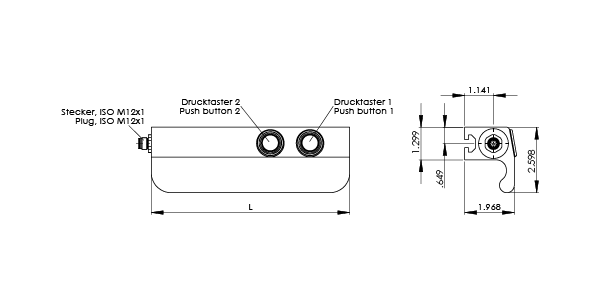

Product TypeTG2-01 Description1 push button L200 Versionleft Order-No. TG2-01.LA200.11 3D+CAD
Product TypeTG2-01 Description1 push button L200 Versionright Order-No. TG2-01.RA200.11 3D+CAD
Product TypeTG2-02 Description2 push buttons L200 Versionleft Order-No. TG2-02.LA200.11 3D+CAD
Product TypeTG2-02 Description2 push buttons L200 Versionright Order-No. TG2-02.RA200.11 3D+CAD
Product TypeTG2-04 Description1 push button and emergency stop L200 Versionleft Order-No. TG2-04.LA200.11 3D+CAD
Product TypeTG2-04 Description1 push button and emergency stop L200 Versionright Order-No. TG2-04.RA200.11 3D+CAD

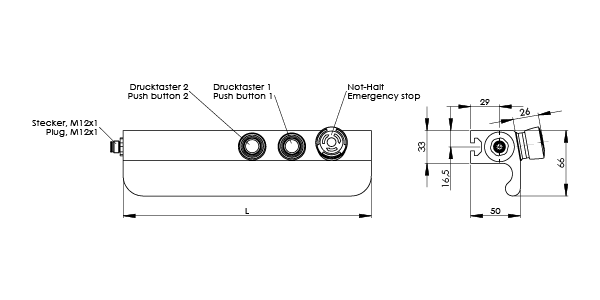

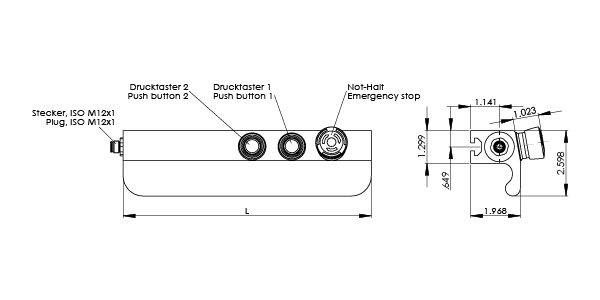

Product TypeTG2-05 Description2 push buttons and emergency stop L250 Versionleft Order-No. TG2-05.LA250.11 3D+CAD
Product TypeTG2-05 Description2 push buttons and emergency stop L250 Versionright Order-No. TG2-05.RA250.11 3D+CAD
Product TypeTG2-20 Description1 emergency stop L200 Versionleft Order-No. TG2-20.LA200.11 3D+CAD
Product TypeTG2-20 Description1 emergency stop L200 Versionright Order-No. TG2-20.RA200.11 3D+CAD
Zubehör
Accessories
LengthCoupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length10 m Couplingangled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.W12.10
Length10 m Couplingstraight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.G12.10
