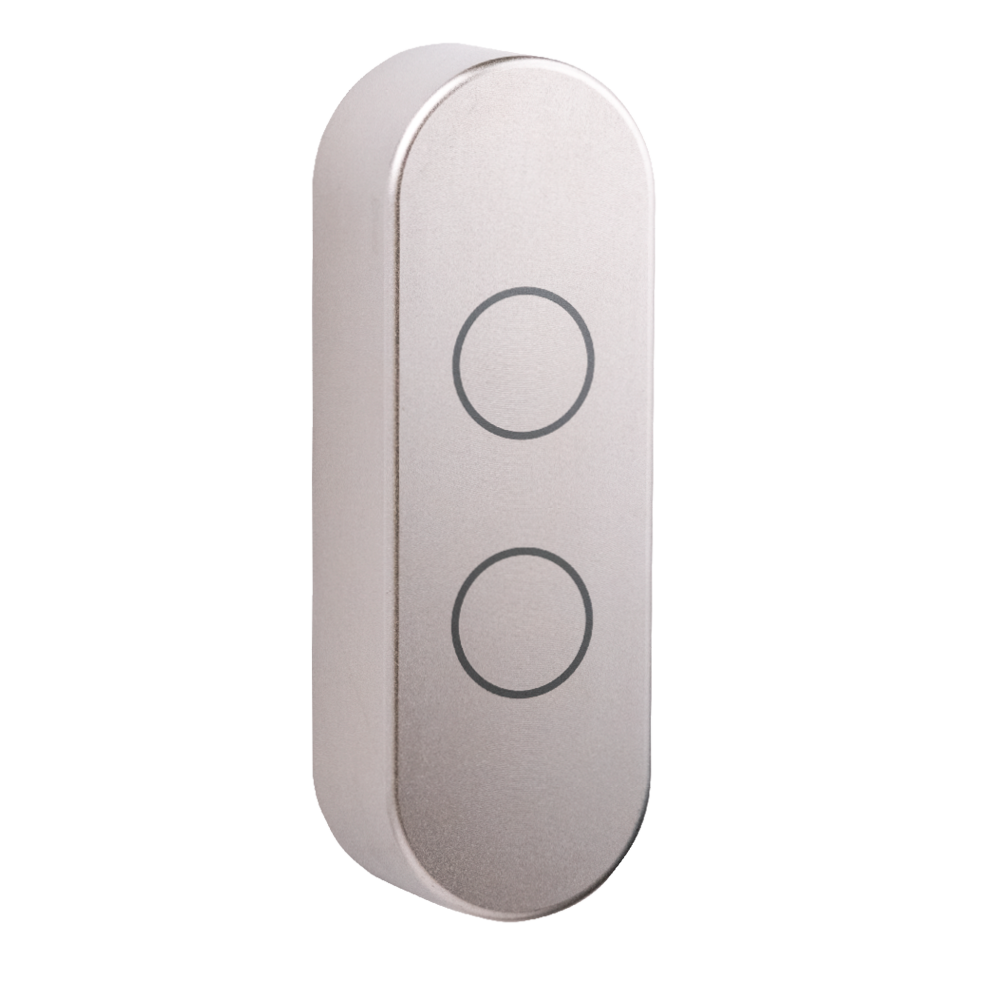

Rectangular stainless steel control housing with two vertically aligned circular touch-sensitive areas on the front surface | © Rohde AG

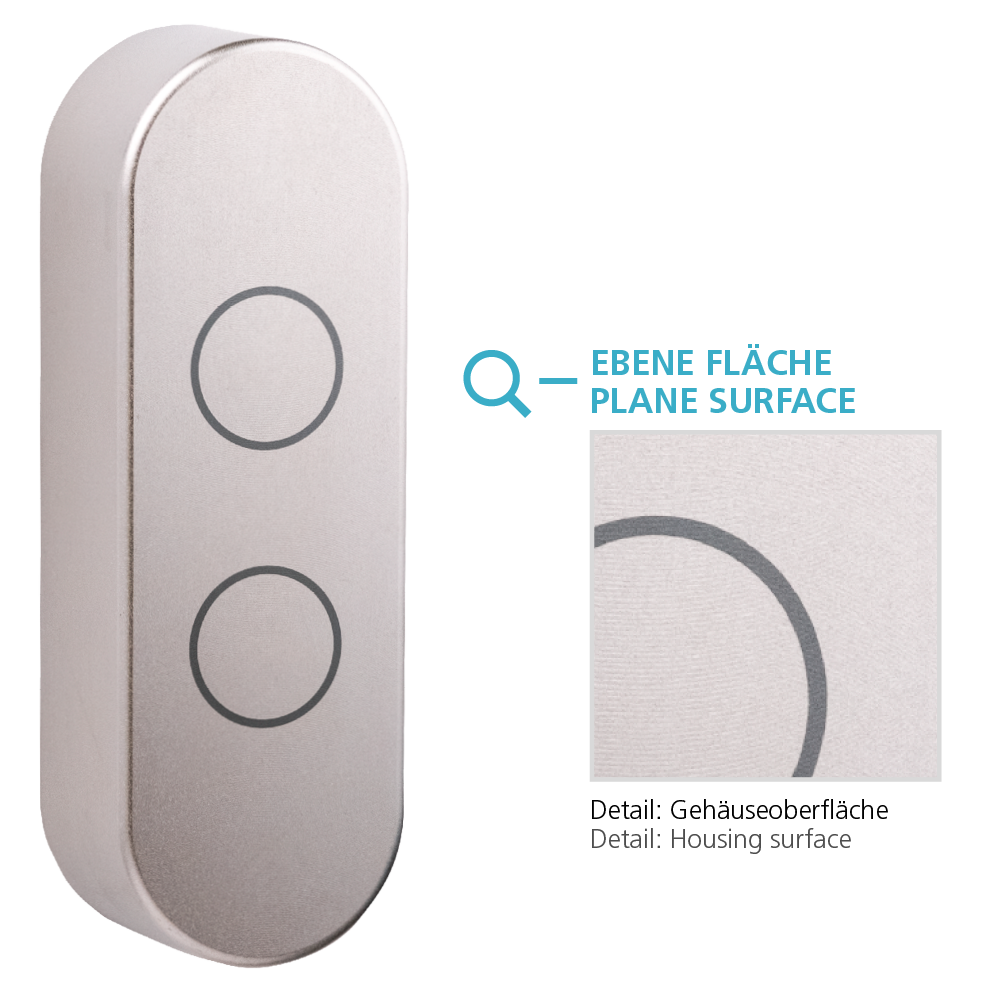

Switch housing with piezo elements | © Rohde AG

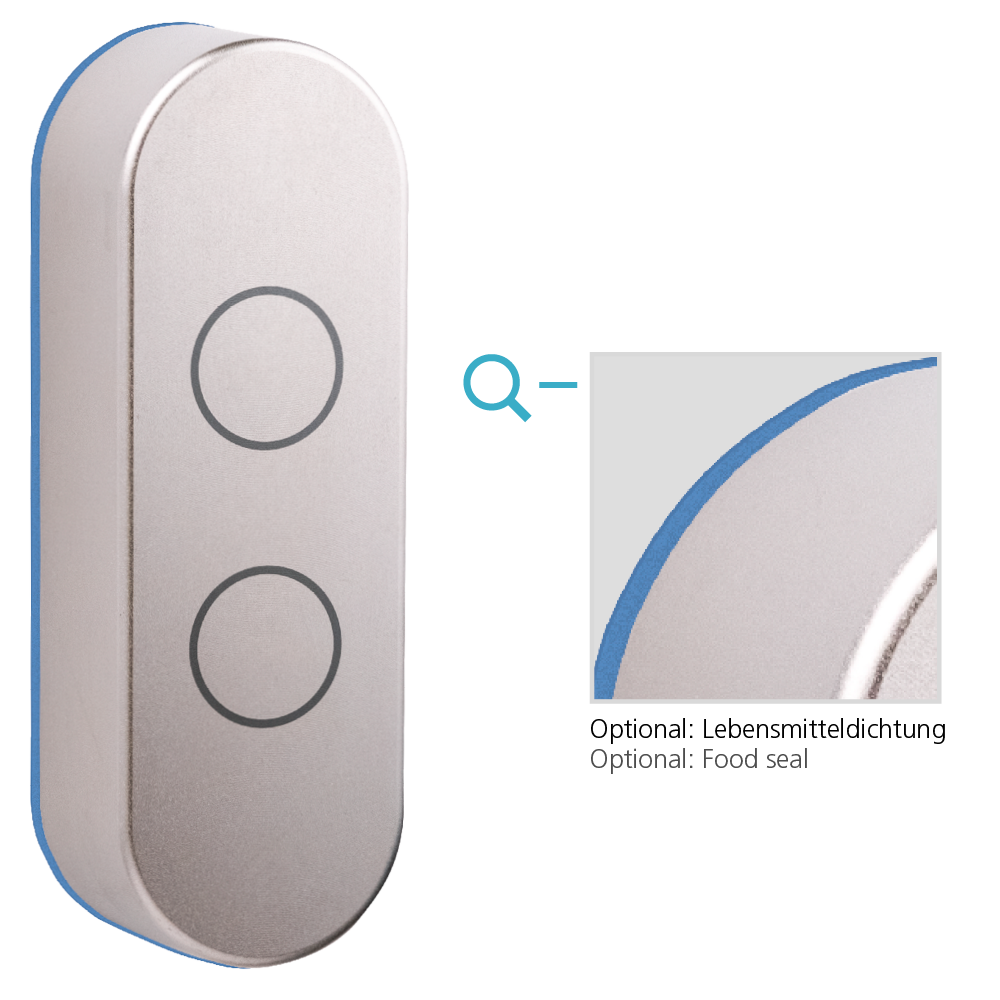

Option: food seal | © Rohde AG
TG8.pdf
PDF

Switch Housing TG8

Control housing with piezo technology. Very good cleaning through flat surfaces.

Material and surface:
Housing made of stainless steel 1.4404 (AISI 316L); blasted and electropolished.

Function elements:
2 piezo elements as normally open contacts. Actuation by pressing marked housing area.

Connection:
4-pin connector on the back of the switch housing.

Protection class:
IP 67.

Note:
Labeling according to customer requirements possible.
Food seal optional.

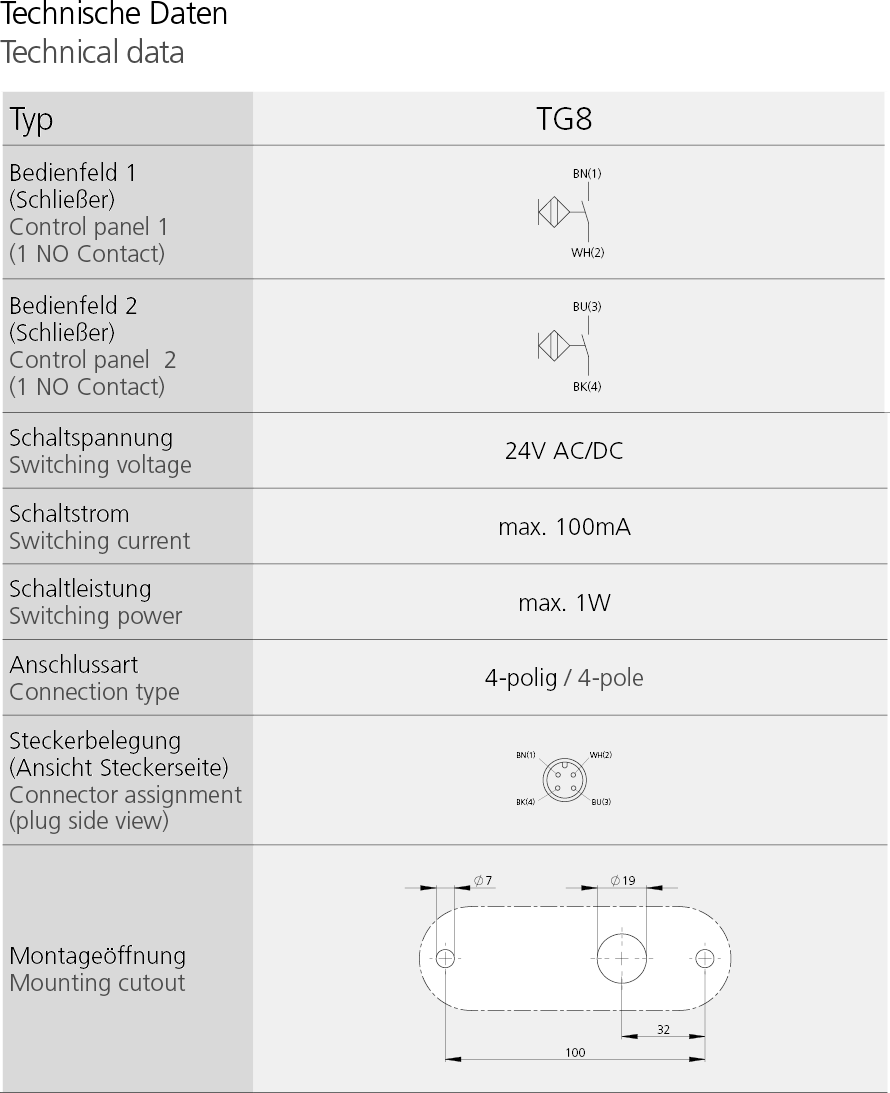

Technical data
Unit of measure
Description Order-No.
Description2 Control panels Order-No. TG8-PI2.100.46 3D+CAD
Zubehör
Accessories
LengthCoupling 4-pole (M12 x 1)
Order-No.
Length10 m Couplingangled 4-pole (M12 x 1)
Order-No. FZ-KS.W04.10
Length10 m Couplingstraight / axial 4-pole (M12 x 1)
Order-No. FZ-KS.G04.10
