Switch housing TG4

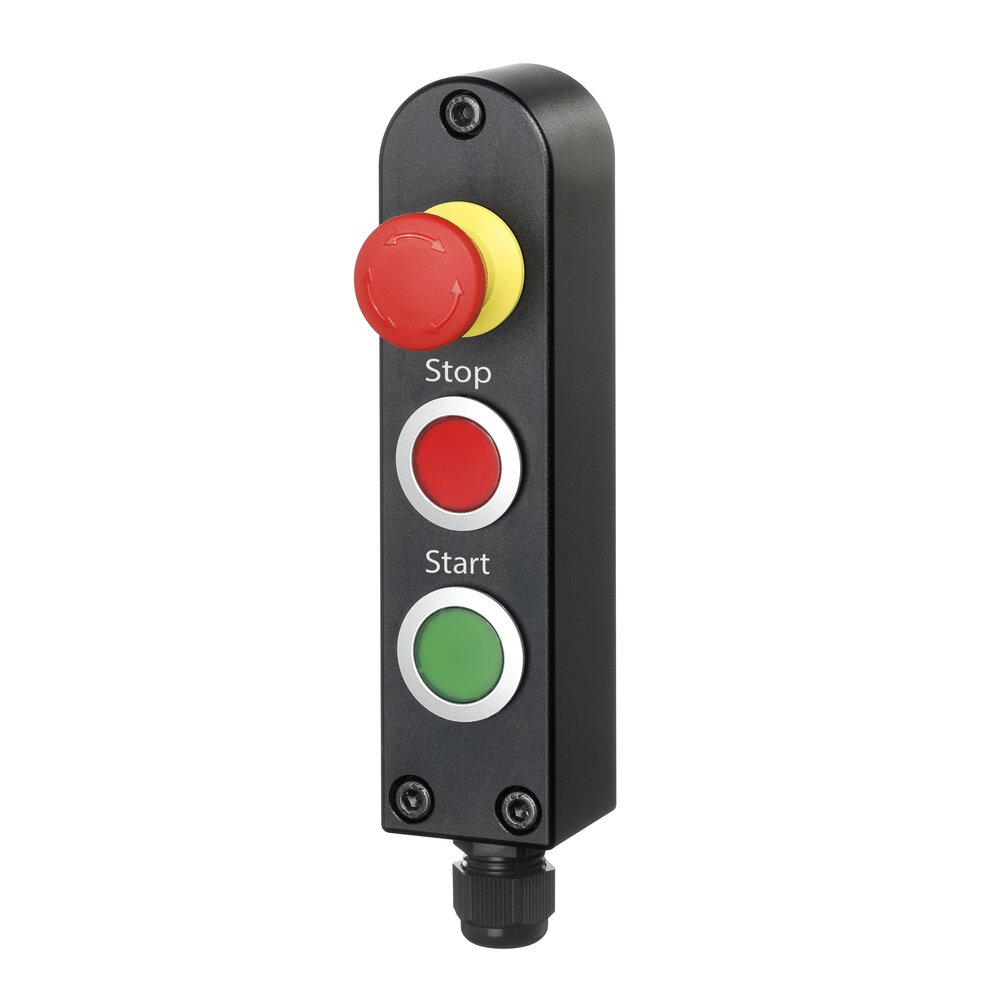

Black rectangular TG4 switch housing with a red emergency stop button, red stop button, and green start button on the front panel, with cable gland at the bottom

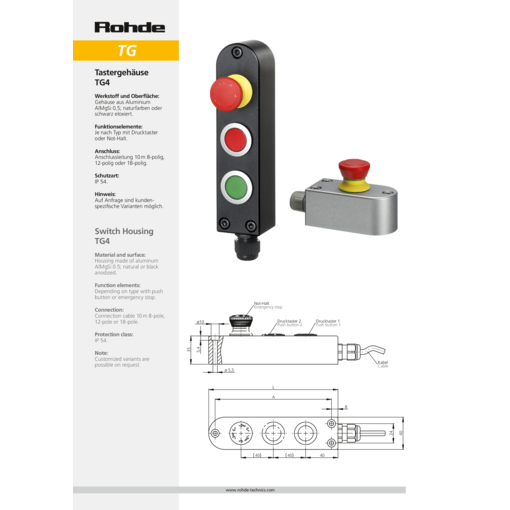

TG4.pdf
PDF

Switch housing TG4

Material and surface:
Housing made of aluminum AlMgSi 0.5; natural or black anodized.

Function elements:
Depending on type with push button or emergency stop.

Connection:
Connection cable 10 m 8-pole, 12-pole or 18-pole.

Protection class:
IP 54.

Note:
Customized variants are possible on request.

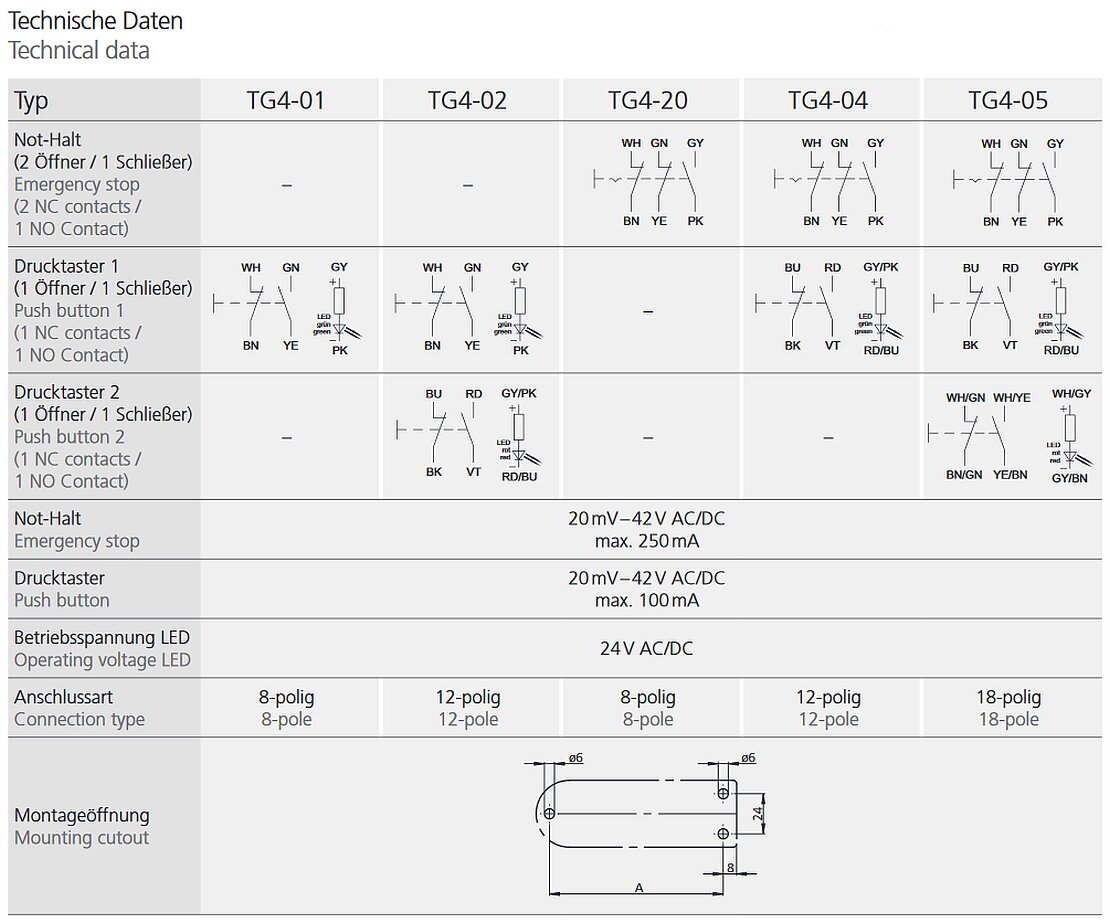

Technical data
Unit of measure
Anodizing version
Product TypeDescriptionAL Anodizing version natural-colored
Order-No. 		Anodized aluminum black
Order-No. 		Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Product TypeTG4-01 Description1 push button A64 L80 Anodizing version natural-colored
Order-No. TG4-01.080.01 3D+CAD 		Anodized aluminum black
Order-No. TG4-01.080.04 3D+CAD 		Anodizing version natural-colored with satin finish
Order-No. TG4-01.080.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. TG4-01.080.14 3D+CAD
Product TypeTG4-02 Description2 push buttons A104 L120 Anodizing version natural-colored
Order-No. TG4-02.120.01 3D+CAD 		Anodized aluminum black
Order-No. TG4-02.120.04 3D+CAD 		Anodizing version natural-colored with satin finish
Order-No. TG4-02.120.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. TG4-02.120.14 3D+CAD
Product TypeTG4-04 Description1 push button and emergency stop A104 L120 Anodizing version natural-colored
Order-No. TG4-04.120.01 3D+CAD 		Anodized aluminum black
Order-No. TG4-04.120.04 3D+CAD 		Anodizing version natural-colored with satin finish
Order-No. TG4-04.120.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. TG4-04.120.14 3D+CAD

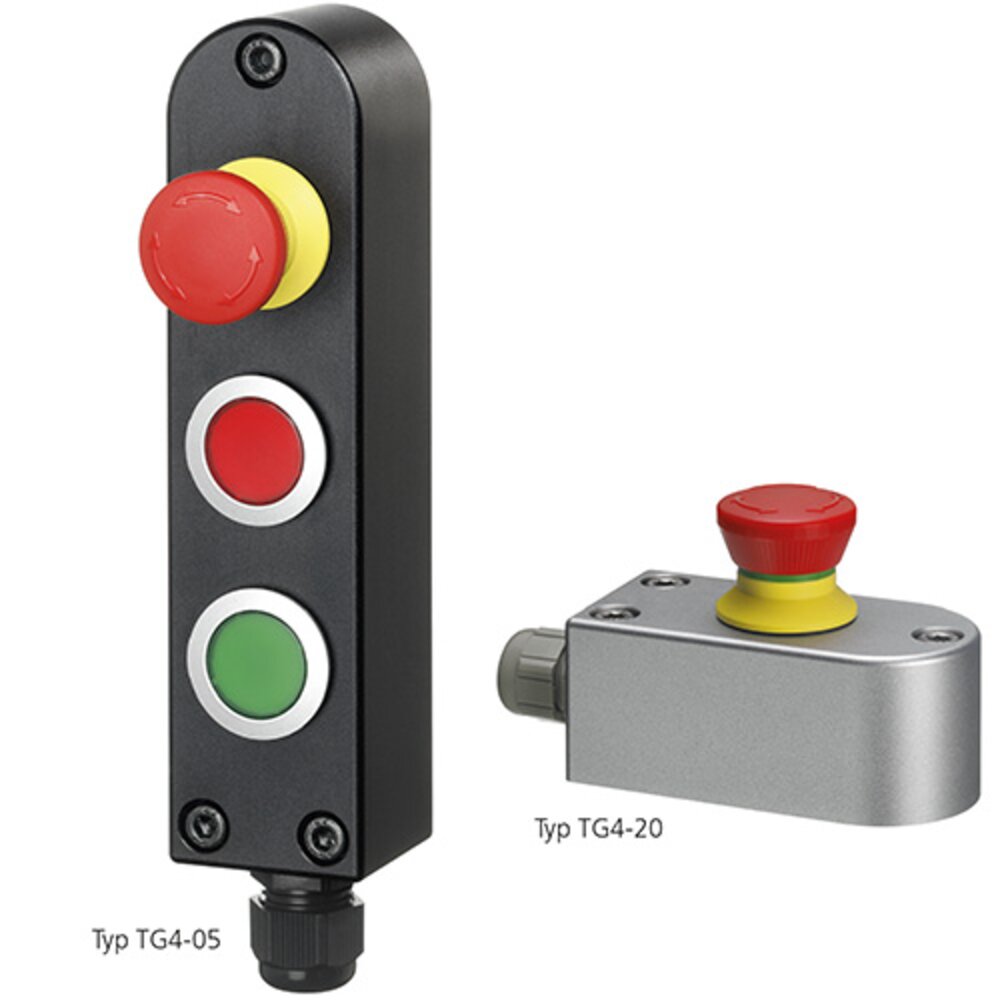

Product TypeTG4-05 Description2 push buttons and emergency stop A144 L160 Anodizing version natural-colored
Order-No. TG4-05.160.01 3D+CAD 		Anodized aluminum black
Order-No. TG4-05.160.04 3D+CAD 		Anodizing version natural-colored with satin finish
Order-No. TG4-05.160.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. TG4-05.160.14 3D+CAD
Product TypeTG4-20 Description1 emergency stop A64 L80 Anodizing version natural-colored
Order-No. TG4-20.080.01 3D+CAD 		Anodized aluminum black
Order-No. TG4-20.080.04 3D+CAD 		Anodizing version natural-colored with satin finish
Order-No. TG4-20.080.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. TG4-20.080.14 3D+CAD
