Functional handles FG15
Functional handles FG15

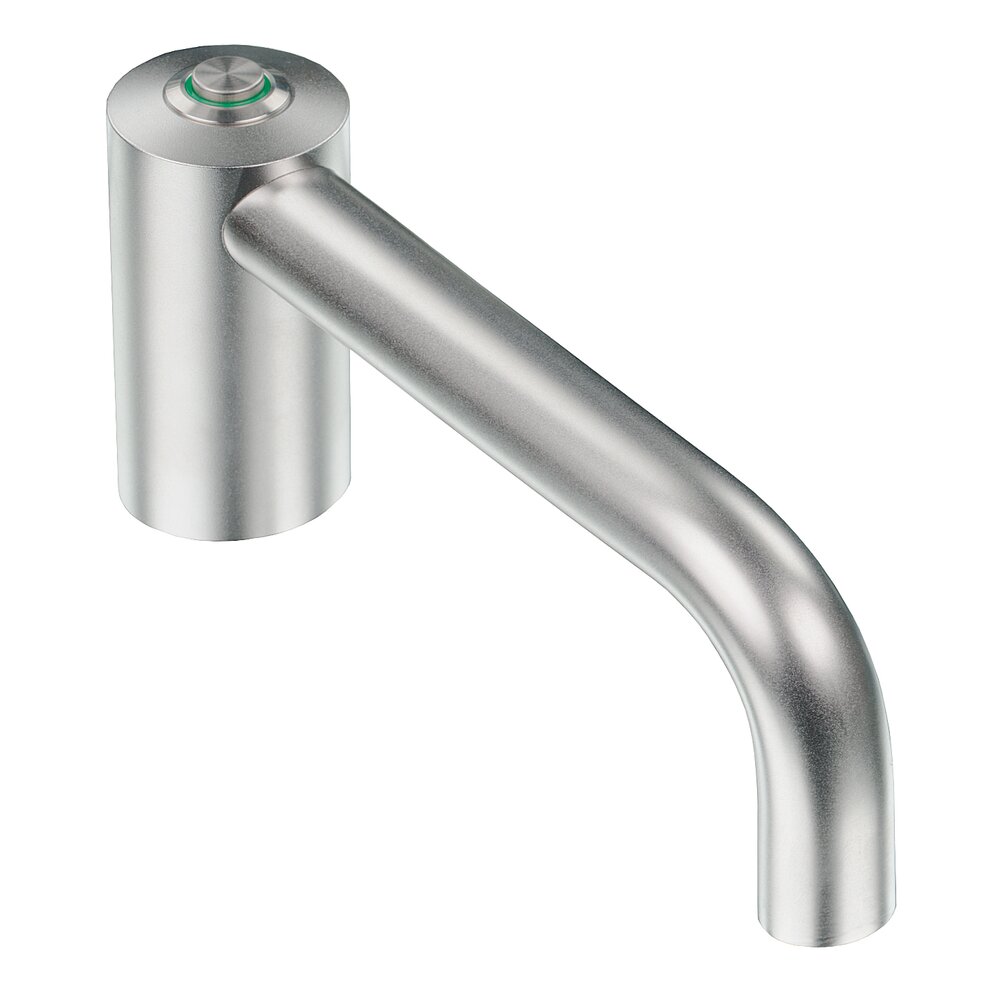

Stainless steel handle FG15 with a cylindrical base and curved lever, featuring a circular push button with green ring on top
Stainless steel metallic handle with two cylindrical mounts and a push button with green ring on one mount
Functional handles FG15
fg15.pdf
PDF

Functional handles FG15

Material and surface:
Handle shanks and handle ledge made of stainless steel 1.4305. Surface vibration ground, blasted and electropolished with a semi-gloss finish. Push button made of stainless steel.

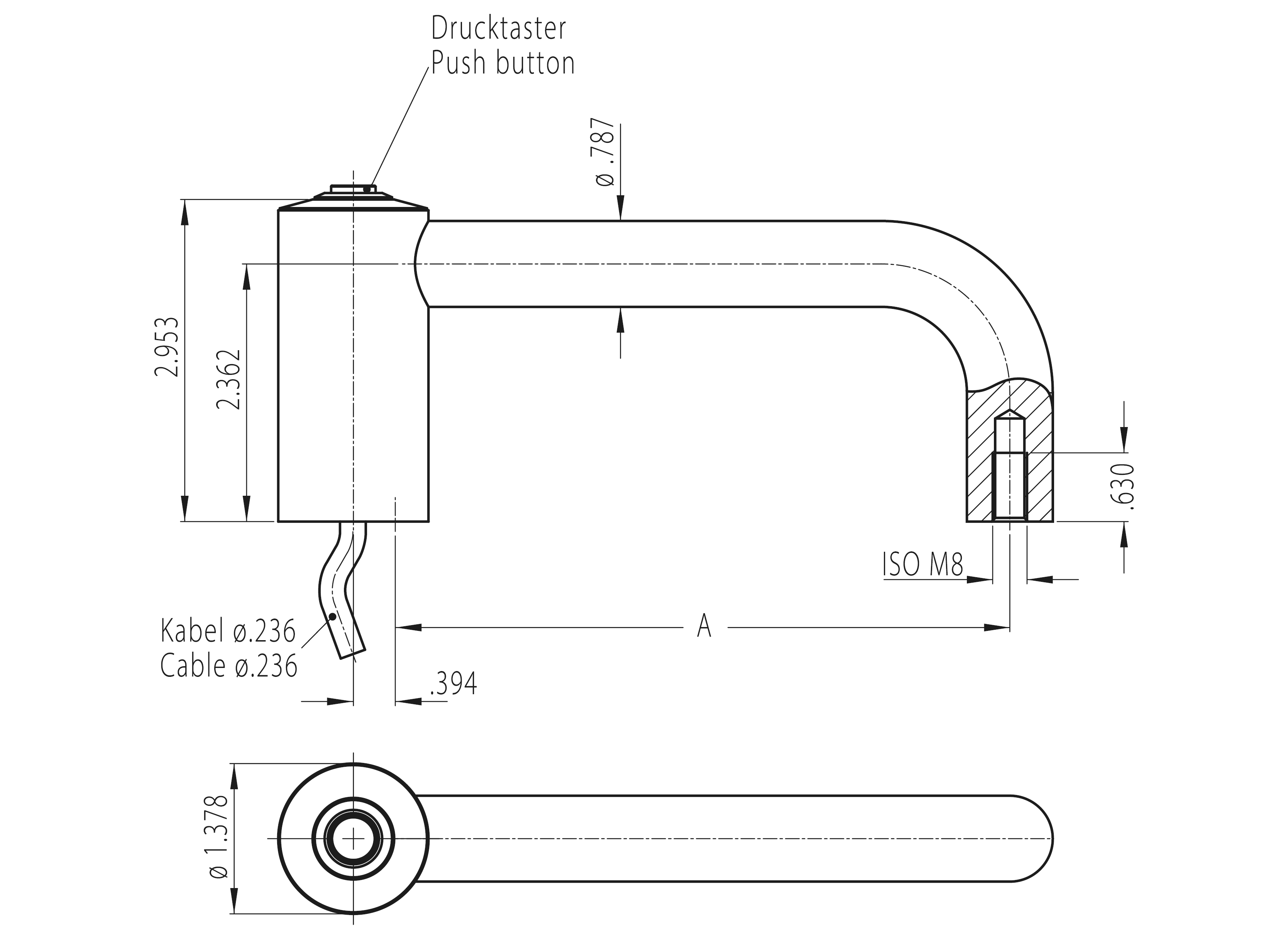

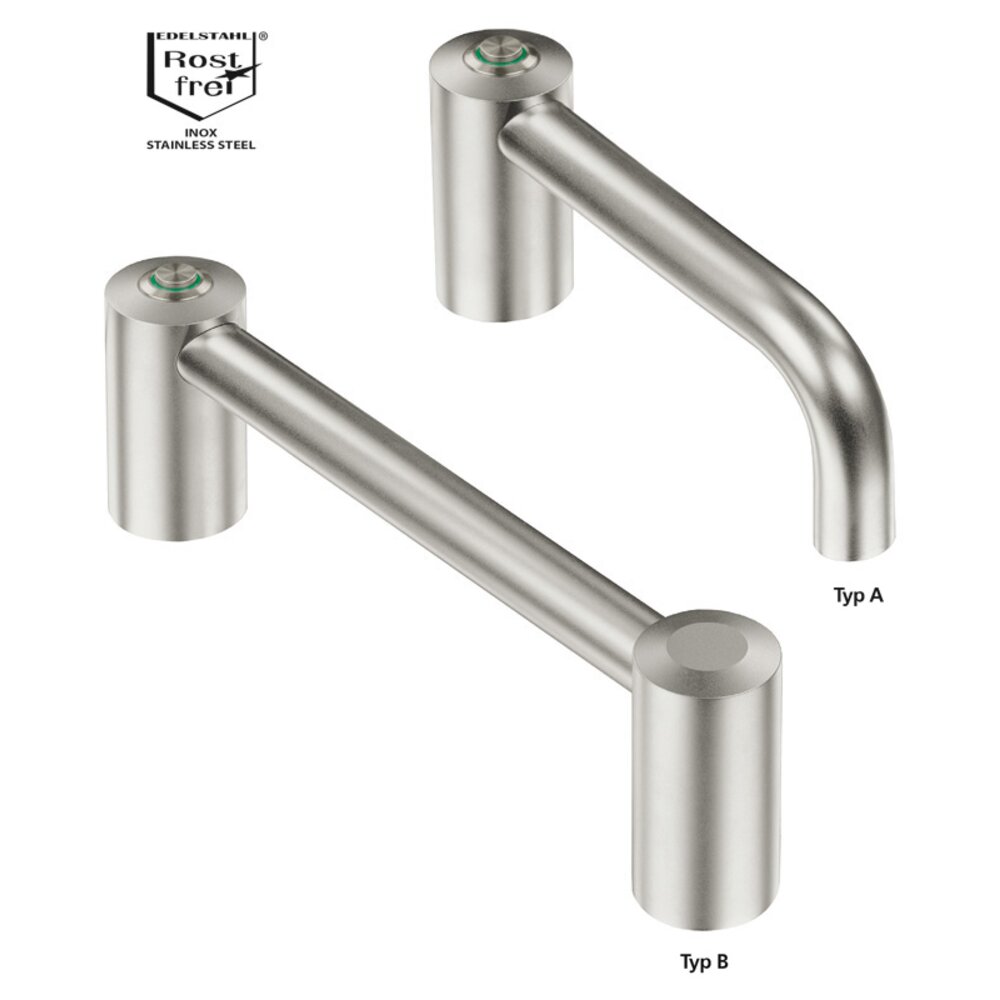

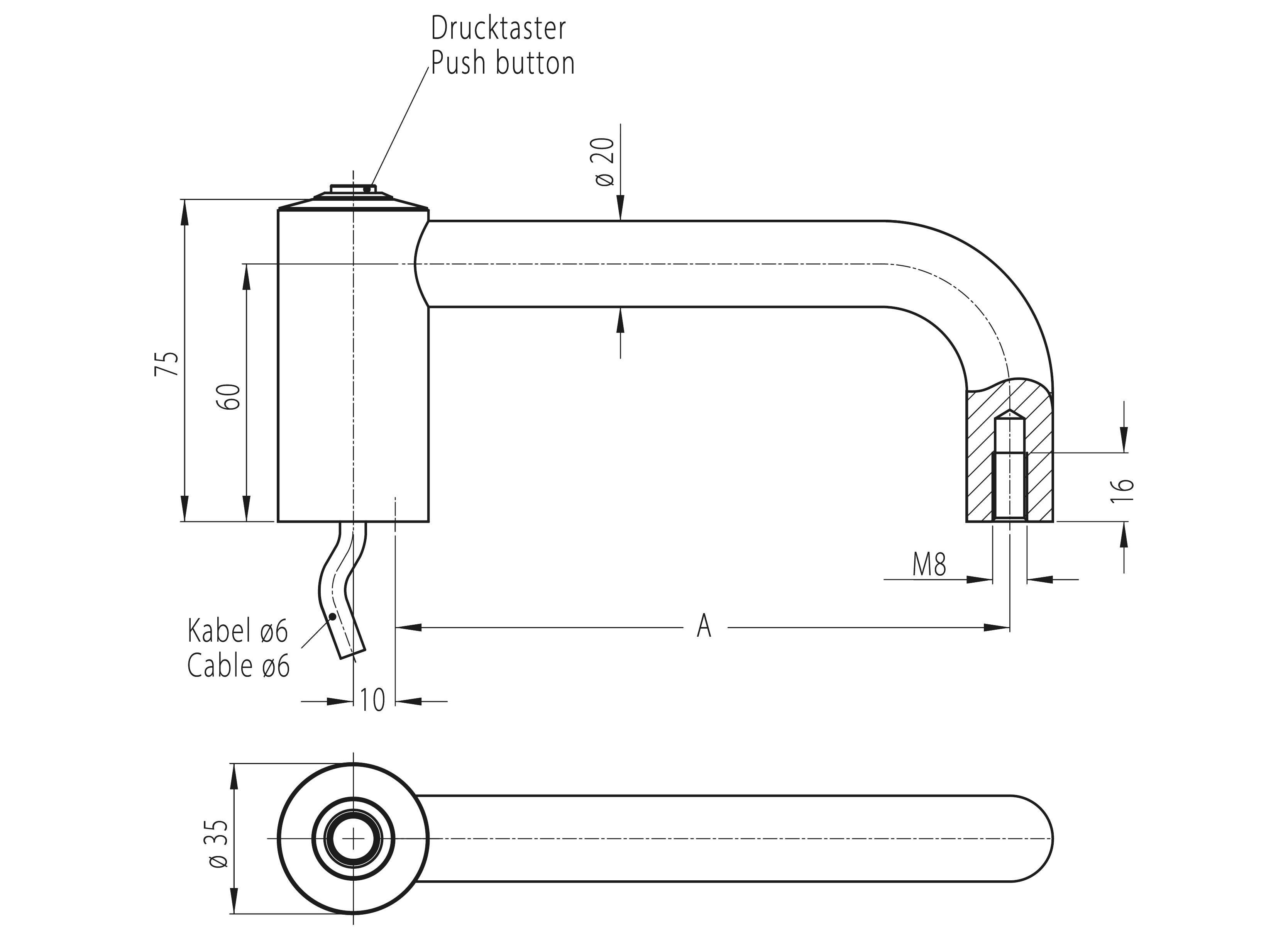

Type A:
With curved handle ledge and one shank.

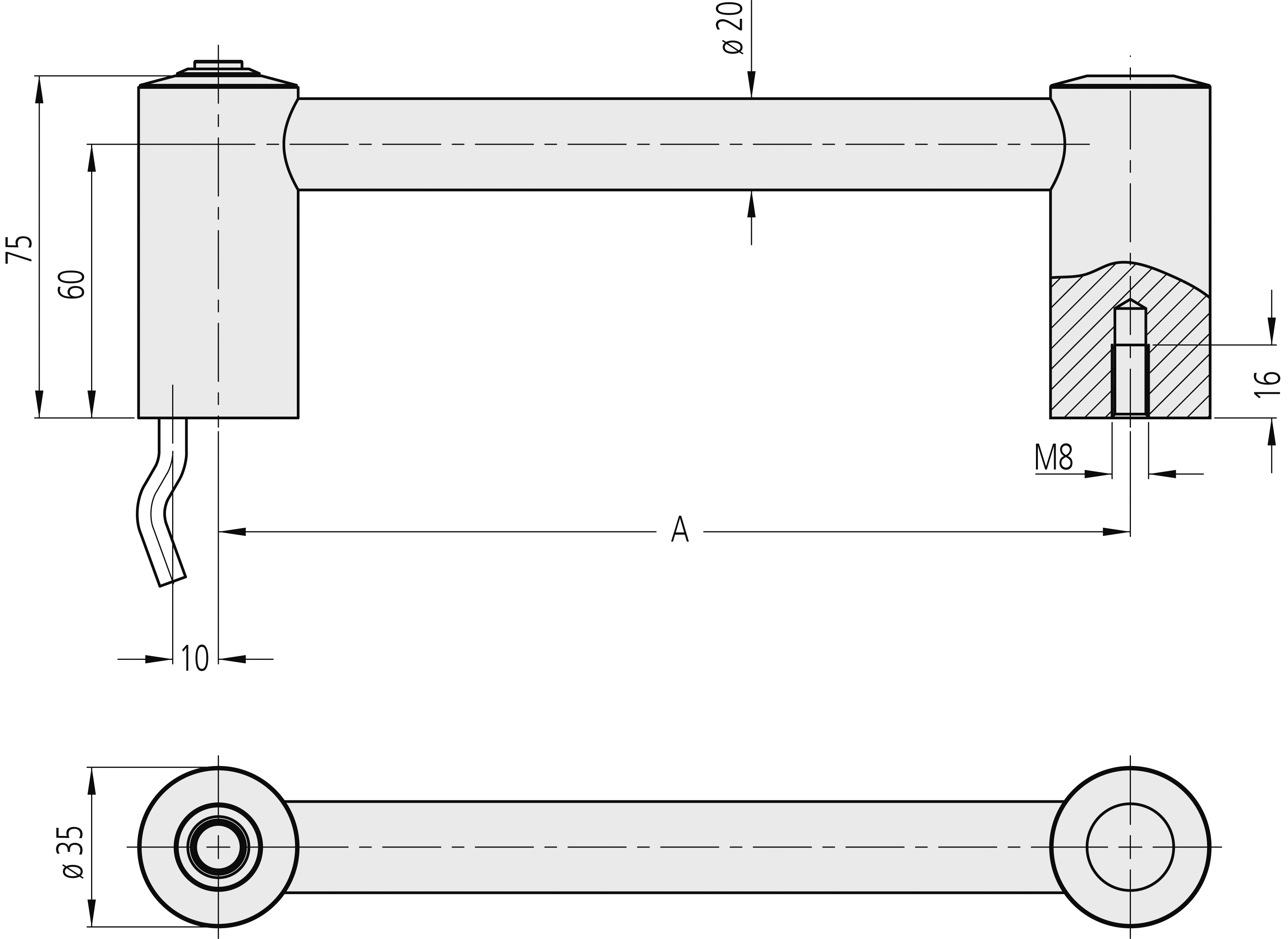

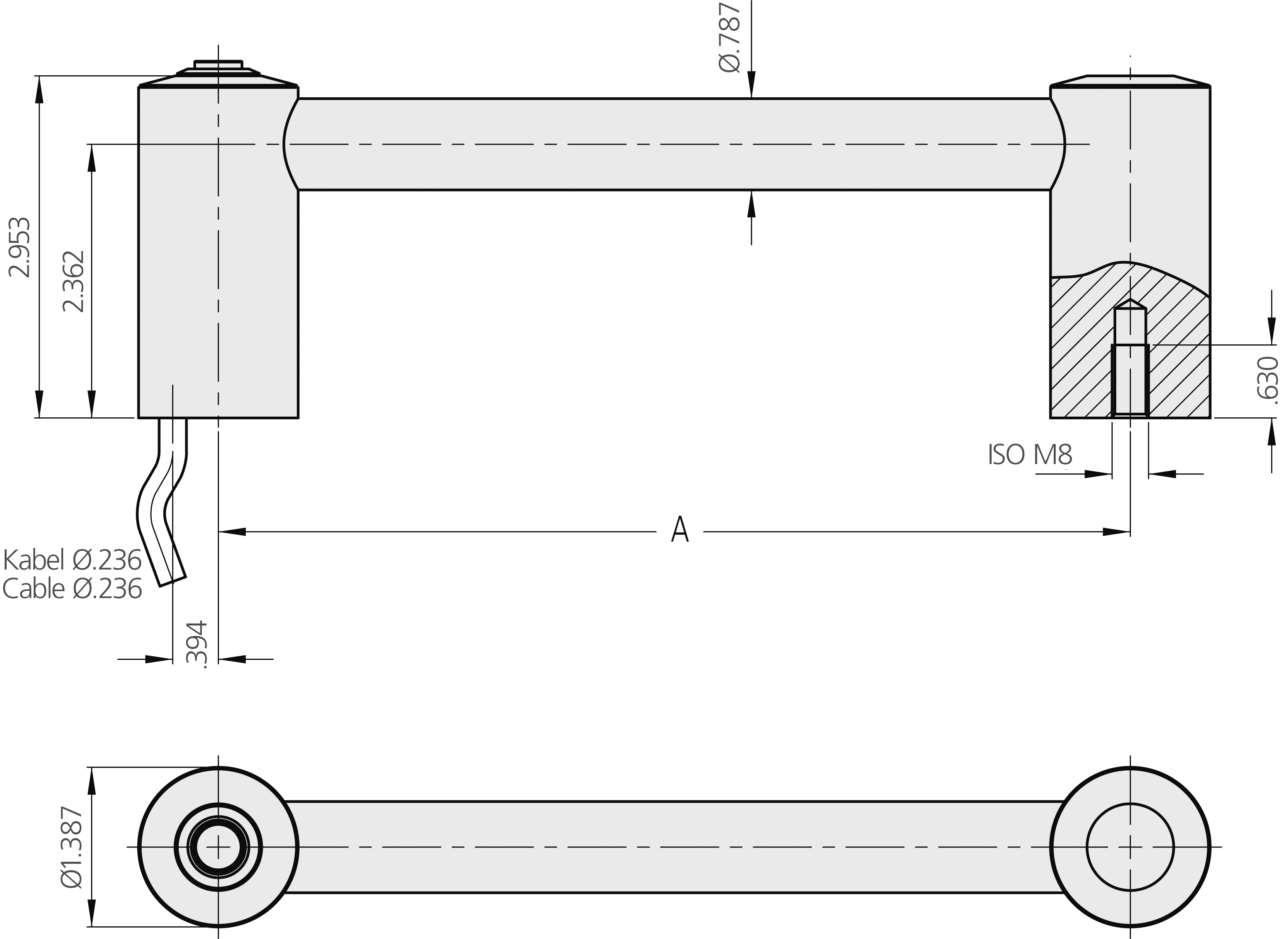

Type B:
With straight handle ledge and 2 shanks.

Function elements:

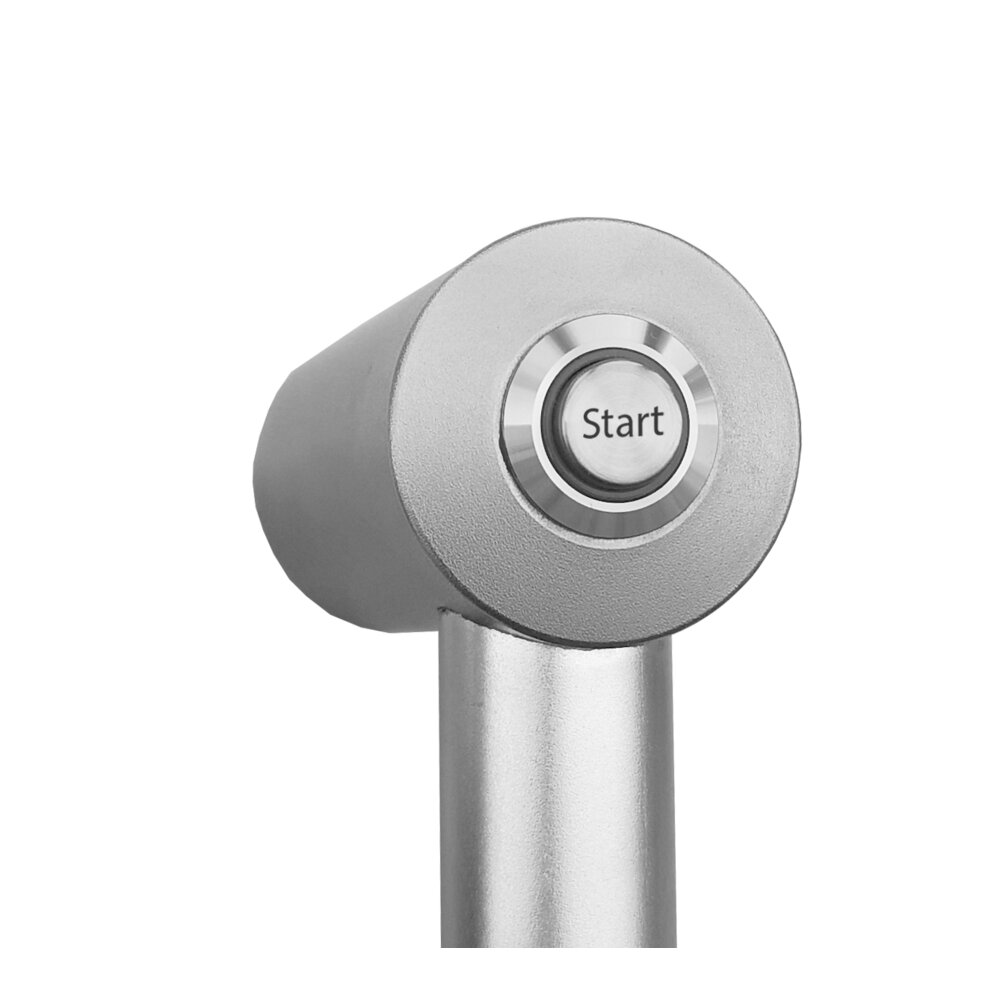

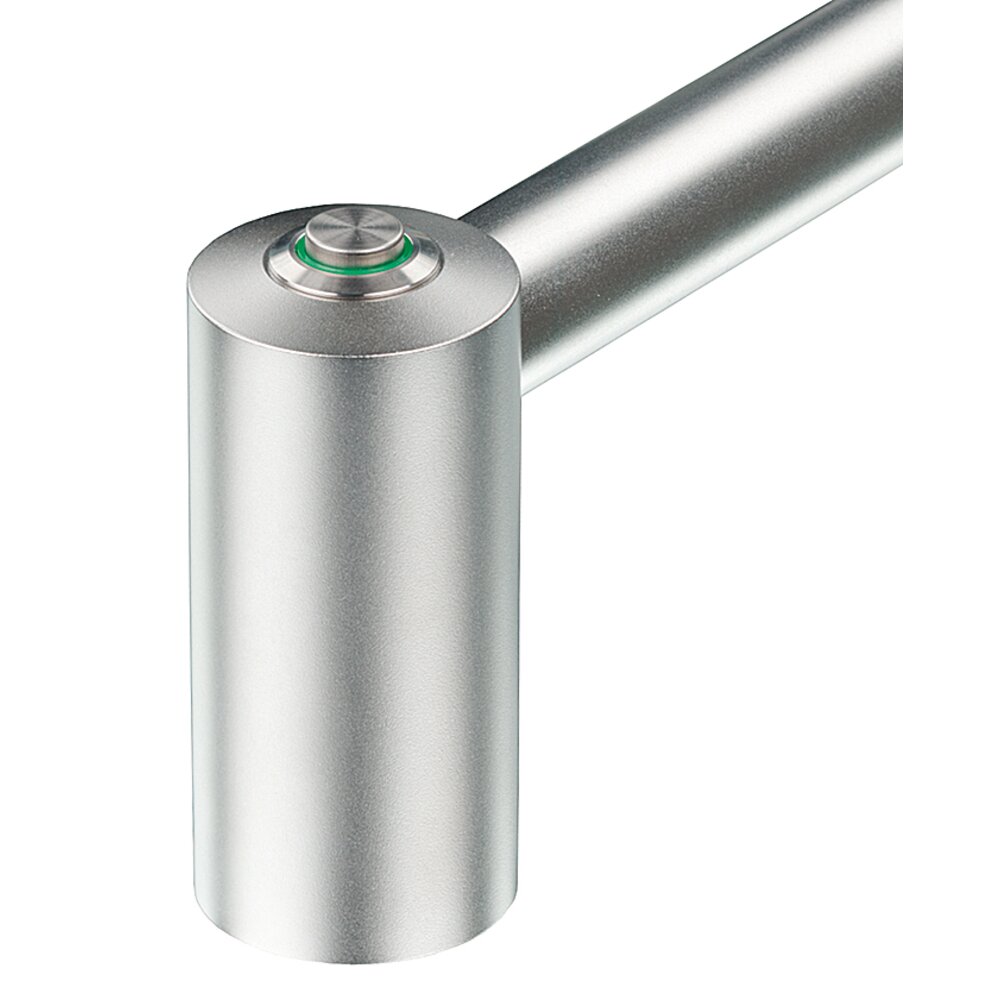

One push button, as a changeover contact.

Connection:
5m connection cable leading out of the screw-on surface of the handle shank.

Protection class:
IP 54.

Note:
Other handle lengths and push button assignments possible. Opposite handle without electrical function by request.

Technical data
Unit of measure
Description
TypeSwitching functionA Type A curved ledge
Order-No. 		Type B ledge straight
Order-No.
TypeFG15-01 Switching function1 push button A150 Type A curved ledge
Order-No. FG15-A01.150.36 3D+CAD 		Type B ledge straight
Order-No. —
TypeFG15-01 Switching function1 push button A180 Type A curved ledge
Order-No. — 		Type B ledge straight
Order-No. FG15-B01.180.36 3D+CAD
Functional handles FG15
