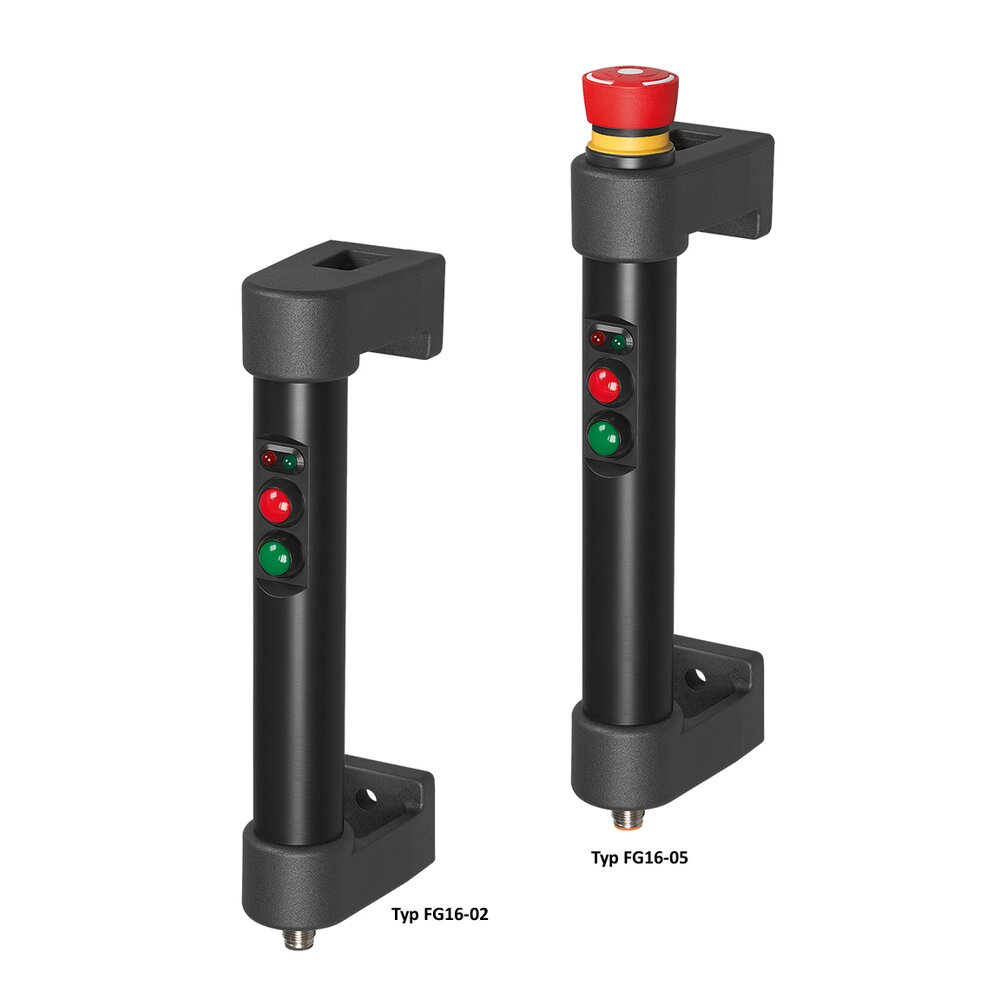

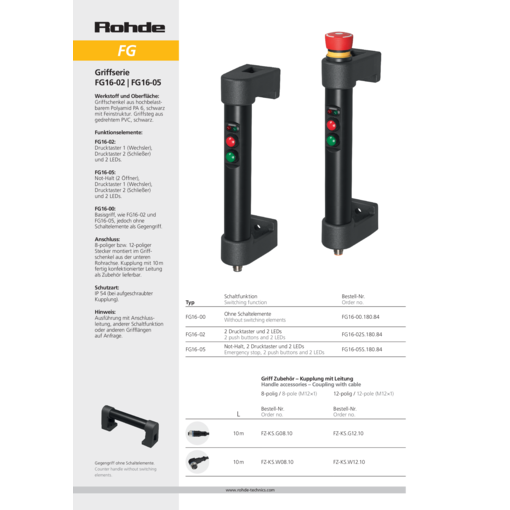

Functional handles FG16-02, FG16-05

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC black.

Function elements:
FG16-02:
push button 1 (change-over contact)
push button 2 (NO contact)
2 LEDs.

FG16-05:
Emergency stop (2 NC contacts)
push button 1 (change-over contact)
push button 2 (NO contact)
2 LEDs

FG16-00:

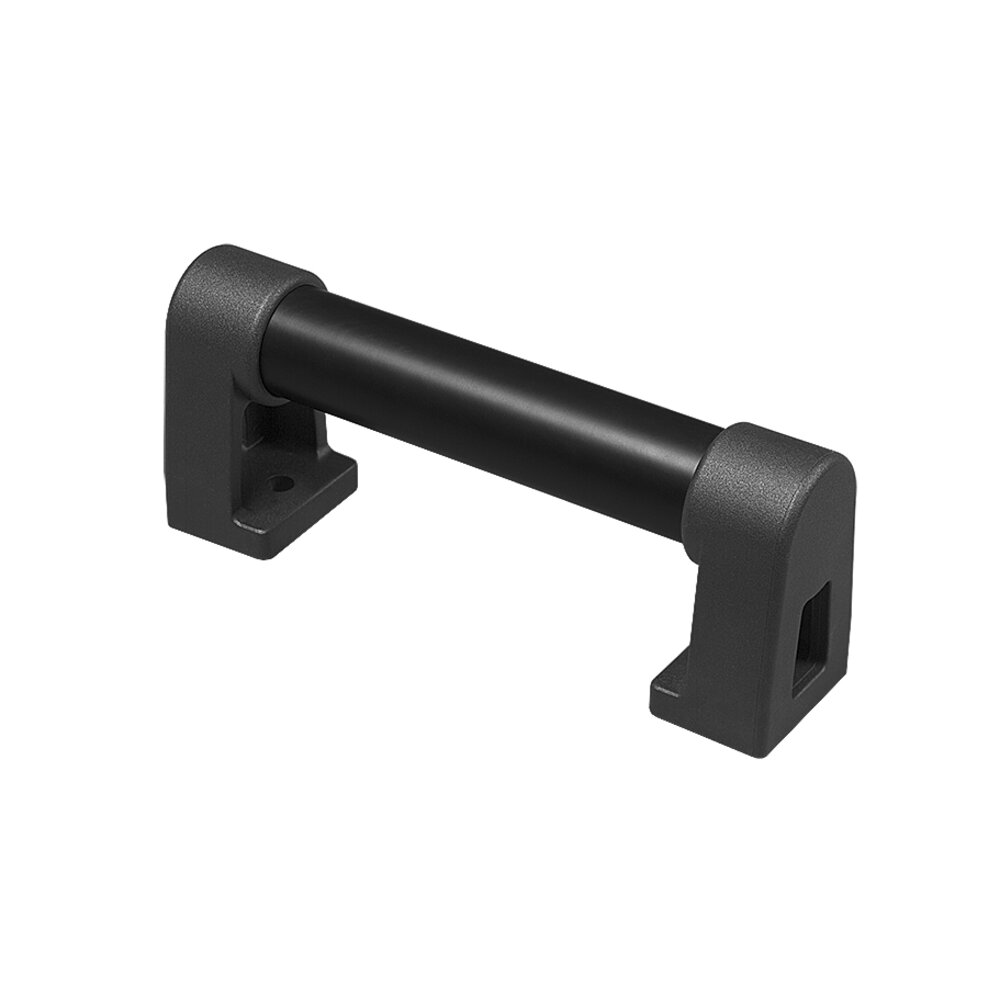

Basic handle, as FG16-02 and FG16-05, but without switch elements as counterhandle.

Connection:
8-pole or 12-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m readymade cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

Note:
With connection cable, other push button assignment or other handle lengths on request.

show more show less
  • handle lengths customized
  • button assignment according to customer requirements
  • button / LED colors according to customer specifications
  • further connection possibilities

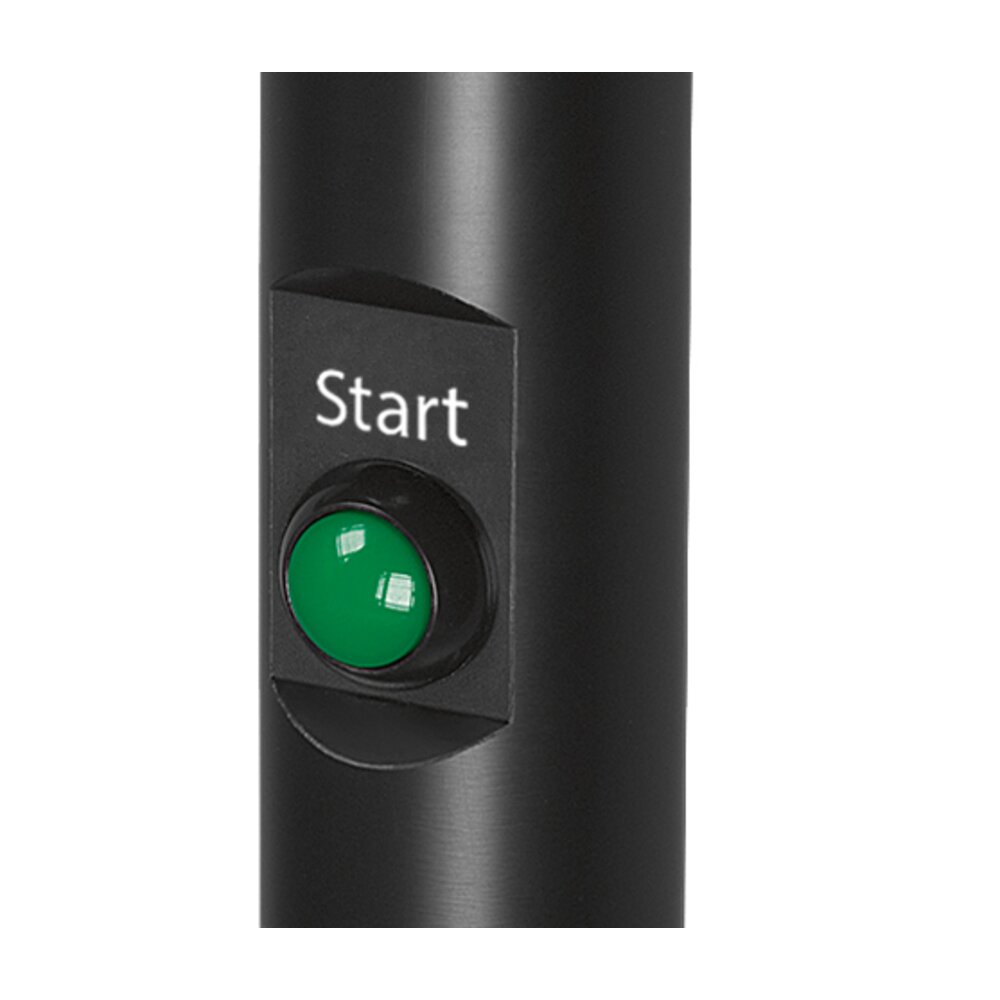

  • labeling possible
  • further color versions
show more show less

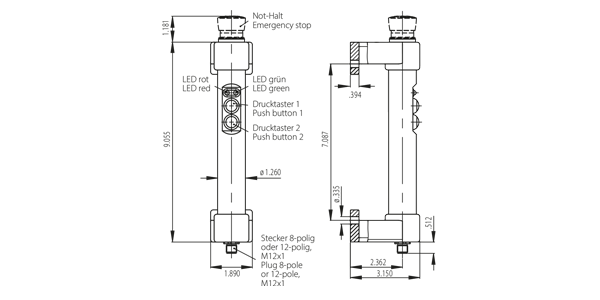

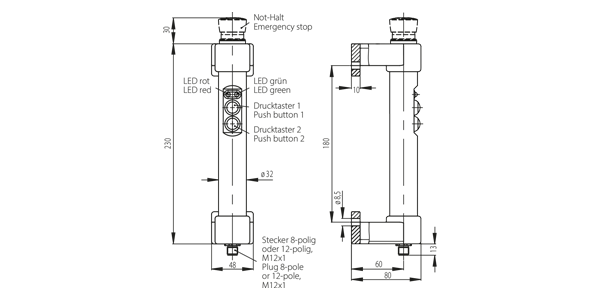

Technical drawing showing front and side views of handle FG16-02 and FG16-05 with labeled emergency stop, push buttons, LEDs, and connector dimensions
Unit of measure
Product Type Description Order-No.
Product Type Description Order-No.
Product Type FG16-00 Description Counter handle without function Order-No. FG16-00.180.84 3D+CAD
Product Type FG16-02S Description 2 push buttons and 2 LEDs Order-No. FG16-02S.180.84 3D+CAD
Product Type FG16-05S Description 2 push buttons, emergency stop and 2 LEDs Order-No. FG16-05S.180.84 3D+CAD
Handle accessories
Length Coupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length Coupling 8-pole (M12 x 1)
Order-No. 		12-pole (M12 x 1)
Order-No.
Length 10 m Coupling angled 8-pole (M12 x 1)
Order-No. FZ-KS.W08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.W12.10
Length 10 m Coupling straight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10 		12-pole (M12 x 1)
Order-No. FZ-KS.G12.10
Table showing technical specifications for FG16-02 and FG16-05 types including emergency stop, push button contacts, LED colors, voltage ratings, and connector pin assignments.
