Safety fence with frame SZ-01
Safety fence with frame SZ-01
Safety fence with frame SZ-01
Safety fence with frame SZ-01
Safety fence with frame SZ-01

Safety fence with frame SZ-01

Material

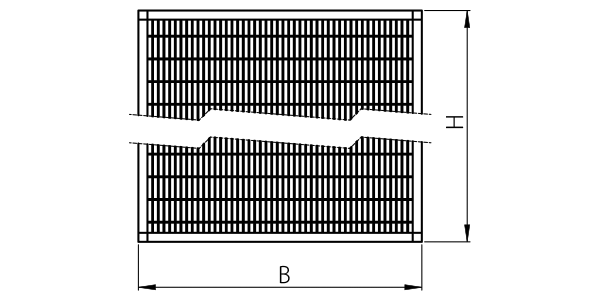

The fence elements are made of a frame with spot welding grid wire diamenter Ø3mm.

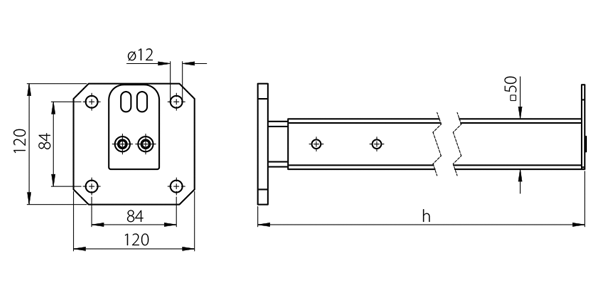

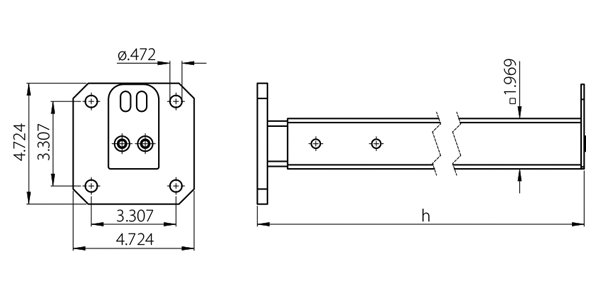

The posts are made of square tube 50x50x2mm and are delivered with anchoring base.

Advantages

  • installation by single person, this reduces the assembly costs
  • no open wire ends
  • high rigidity
  • any angles are possible
  • the frame can be used as a door by replacing the hinge
  • different filling elements possible
  • mounting plates for safety technology can be pre-assembled
  • cable management on the fence
  • project planning for safety fence possible
  • different colors
  • feet are adjustable in height
  • compliant with ISO 13857

Version Fence field

Fence field
Unit of measure
Height
Width 500
Order-No. 		1000
Order-No. 		1500
Order-No. 		2000
Order-No. 		2500
Order-No.
Width250 500
Order-No. SZ-01.0500.0250.9005 		1000
Order-No. SZ-01.1000.0250.9005 		1500
Order-No. SZ-01.1500.0250.9005 		2000
Order-No. SZ-01.2000.0250.9005 		2500
Order-No. SZ-01.2500.0250.9005
Width500 500
Order-No. SZ-01.0500.0500.9005 		1000
Order-No. SZ-01.1000.0500.9005 		1500
Order-No. SZ-01.1500.0500.9005 		2000
Order-No. SZ-01.2000.0500.9005 		2500
Order-No. SZ-01.2500.0500.9005
Width750 500
Order-No. SZ-01.0500.0750.9005 		1000
Order-No. SZ-01.1000.0750.9005 		1500
Order-No. SZ-01.1500.0750.9005 		2000
Order-No. SZ-01.2000.0750.9005 		2500
Order-No. SZ-01.2500.0750.9005
Width1000 500
Order-No. SZ-01.0500.1000.9005 		1000
Order-No. SZ-01.1000.1000.9005 		1500
Order-No. SZ-01.1500.1000.9005 		2000
Order-No. SZ-01.2000.1000.9005 		2500
Order-No. SZ-01.2500.1000.9005
Width1250 500
Order-No. SZ-01.0500.1250.9005 		1000
Order-No. SZ-01.1000.1250.9005 		1500
Order-No. SZ-01.1500.1250.9005 		2000
Order-No. SZ-01.2000.1250.9005 		2500
Order-No. SZ-01.2500.1250.9005
Width1500 500
Order-No. SZ-01.0500.1500.9005 		1000
Order-No. SZ-01.1000.1500.9005 		1500
Order-No. SZ-01.1500.1500.9005 		2000
Order-No. SZ-01.2000.1500.9005 		2500
Order-No. SZ-01.2500.1500.9005
Width1750 500
Order-No. SZ-01.0500.1750.9005 		1000
Order-No. SZ-01.1000.1750.9005 		1500
Order-No. SZ-01.1500.1750.9005 		2000
Order-No. SZ-01.2000.1750.9005 		2500
Order-No. SZ-01.2500.1750.9005
Width2000 500
Order-No. SZ-01.0500.2000.9005 		1000
Order-No. SZ-01.1000.2000.9005 		1500
Order-No. SZ-01.1500.2000.9005 		2000
Order-No. SZ-01.2000.2000.9005 		2500
Order-No. SZ-01.2500.2000.9005

Version Posts

Posts
Unit of measure
Height
670
Order-No. 		1170
Order-No. 		1670
Order-No. 		2170
Order-No. 		2670
Order-No.
670
Order-No. SZ-01.5050.0500.1023 		1170
Order-No. SZ-01.5050.1000.1023 		1670
Order-No. SZ-01.5050.1500.1023 		2170
Order-No. SZ-01.5050.2000.1023 		2670
Order-No. SZ-01.5050.2500.1023
