  • Black extension leg made of glass fibre reinforced polyamide PA 6 with snap-in lock and rubber feet

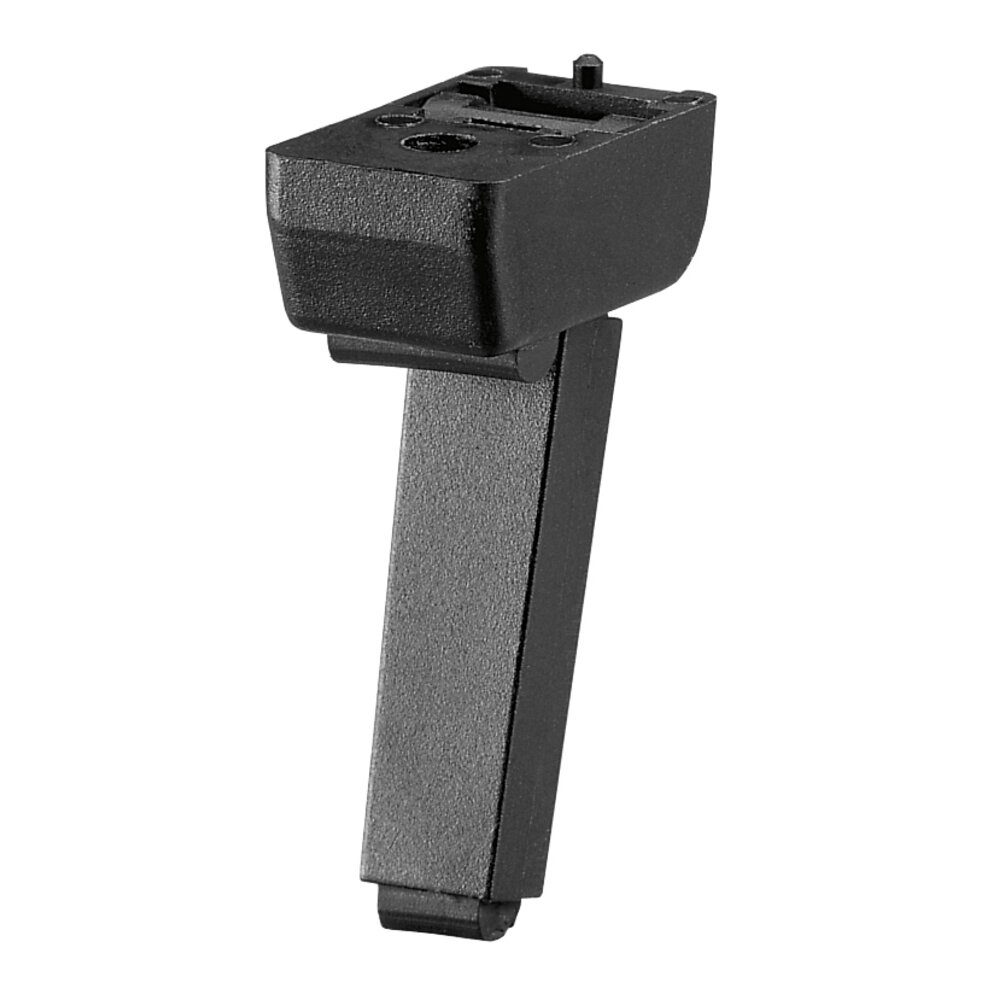

Black extension leg made of glass fibre reinforced polyamide PA 6 with snap-in lock and rubber feet

Casing feet GK

Material:
Glass fibre reinforced polyamide PA 6, black satin finished.

Construction:
Extension leg with snap-in lock in both positions. Slide proof rubber feet for safety even in the extended position. 4.8 ø through bore for screw attachment.

Stress resistance:
min. 50 N.

Supply unit:
Supplied in sets (see table), including sheet metal screws with oval crossslotted head B 3.9 x 6.5 DIN 7981.

Stress resistance:
min. 50 N.

show more show less

Version GK-14

Technical drawing of GK extension leg handle showing side and top views with dimensions and attachment bore.
Unit of measure
Type
Description black
Order-No.
Description black
Order-No.
Description 2 pcs. with lift lever, 2 pcs. without lift lever black
Order-No. GK-14.048.84S 3D+CAD
Description 4 pcs. without tilt bracket, incl. screws black
Order-No. GK-14.000.84S 3D+CAD

Version GK-15

Technical drawing showing top and side views of GK extension leg handle with snap-in lock and rubber feet, detailed dimensions and mounting hole indicated.
Technical line drawing showing the top and side views of a GK extension leg with snap-in lock and rubber feet
Unit of measure
Type
Description black
Order-No.
Description black
Order-No.
Description 2 pcs. with lift lever, 2 pcs. without lift lever black
Order-No. GK-15.050.84S 3D+CAD
Description 4 pcs. without tilt bracket, incl. screws black
Order-No. GK-15.000.84S 3D+CAD
