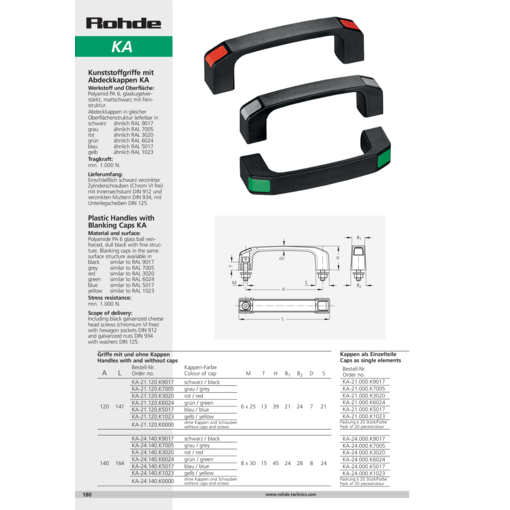

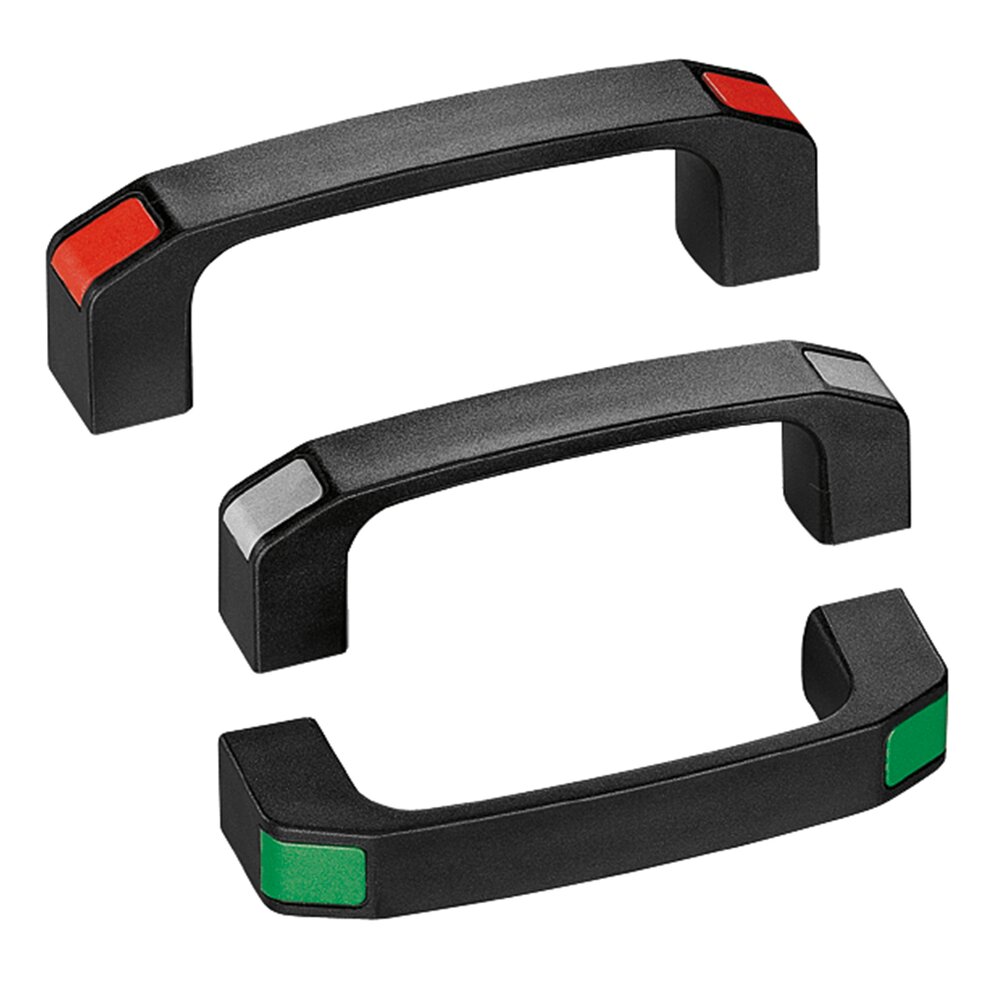

Handles KA
Material and surface:
Polyamide PA 6 glass ball reinforced, dull black with fine structure. Blanking caps in the same surface structure available in
black - similar to RAL 9017
grey - similar to RAL 7005
red - similar to RAL 3020
green - similar to RAL 6024
blue - similar to RAL 5017
yellow - similar to RAL 1023
Scope of delivery:
Including black galvanized cheese head screws (chromium VI free) with hexagon sockets DIN 912 and galvanized nuts DIN 934 with washers DIN 125.
Stress resistance:
min. 1000 N.
Version KA-21
|
Unit of measure
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | L | Order-No. | Color of caps | M | T | H | B₁ | B₂ | D | S |
| A | L | Order-No. | Color of caps | M | T | H | B₁ | B₂ | D | S |
|---|---|---|---|---|---|---|---|---|---|---|
| A 120 | L 141 | Order-No. KA-21.120.K5017 3D+CAD | Color of caps blue | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
| A 120 | L 141 | Order-No. KA-21.120.K1023 3D+CAD | Color of caps yellow | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
| A 120 | L 141 | Order-No. KA-21.120.K7005 3D+CAD | Color of caps grey | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
| A 120 | L 141 | Order-No. KA-21.120.K6024 3D+CAD | Color of caps green | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
| A 120 | L 141 | Order-No. KA-21.120.K3020 3D+CAD | Color of caps red | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
| A 120 | L 141 | Order-No. KA-21.120.K9017 3D+CAD | Color of caps black | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
| A 120 | L 141 | Order-No. KA-21.120.K0000 3D+CAD | Color of caps without caps and screws | M 6x25 | T 13 | H 39 | B₁ 21 | B₂ 24 | D 7 | S 21 |
Version KA-24
|
Unit of measure
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | L | Order-No. | Color of caps | M | T | H | B₁ | B₂ | D | S |
| A | L | Order-No. | Color of caps | M | T | H | B₁ | B₂ | D | S |
|---|---|---|---|---|---|---|---|---|---|---|
| A 140 | L 164 | Order-No. KA-24.140.K5017 3D+CAD | Color of caps blue | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| A 140 | L 164 | Order-No. KA-24.140.K1023 3D+CAD | Color of caps yellow | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| A 140 | L 164 | Order-No. KA-24.140.K7005 3D+CAD | Color of caps grey | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| A 140 | L 164 | Order-No. KA-24.140.K6024 3D+CAD | Color of caps green | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| A 140 | L 164 | Order-No. KA-24.140.K3020 3D+CAD | Color of caps red | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| A 140 | L 164 | Order-No. KA-24.140.K9017 3D+CAD | Color of caps black | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| A 140 | L 164 | Order-No. KA-24.140.K0000 3D+CAD | Color of caps without caps and screws | M 8x30 | T 15 | H 45 | B₁ 24 | B₂ 28 | D 8 | S 24 |
| Kappen als Einzelteile | ||
|---|---|---|
| Color of caps |
Typ KA-21
Order-No. |
Typ KA-24
Order-No. |
| Color of caps |
Typ KA-21
Order-No. |
Typ KA-24
Order-No. |
|---|---|---|
| Color of caps blue |
Typ KA-21
Order-No. KA-21.000.K5017 |
Typ KA-24
Order-No. KA-24.000.K5017 |
| Color of caps yellow |
Typ KA-21
Order-No. KA-21.000.K1023 |
Typ KA-24
Order-No. KA-24.000.K1023 |
| Color of caps grey |
Typ KA-21
Order-No. KA-21.000.K7005 |
Typ KA-24
Order-No. KA-24.000.K7005 |
| Color of caps green |
Typ KA-21
Order-No. KA-21.000.K6024 |
Typ KA-24
Order-No. KA-24.000.K6024 |
| Color of caps red |
Typ KA-21
Order-No. KA-21.000.K3020 |
Typ KA-24
Order-No. KA-24.000.K3020 |
| Color of caps black |
Typ KA-21
Order-No. KA-21.000.K9017 |
Typ KA-24
Order-No. KA-24.000.K9017 |
