Handles EG

product details

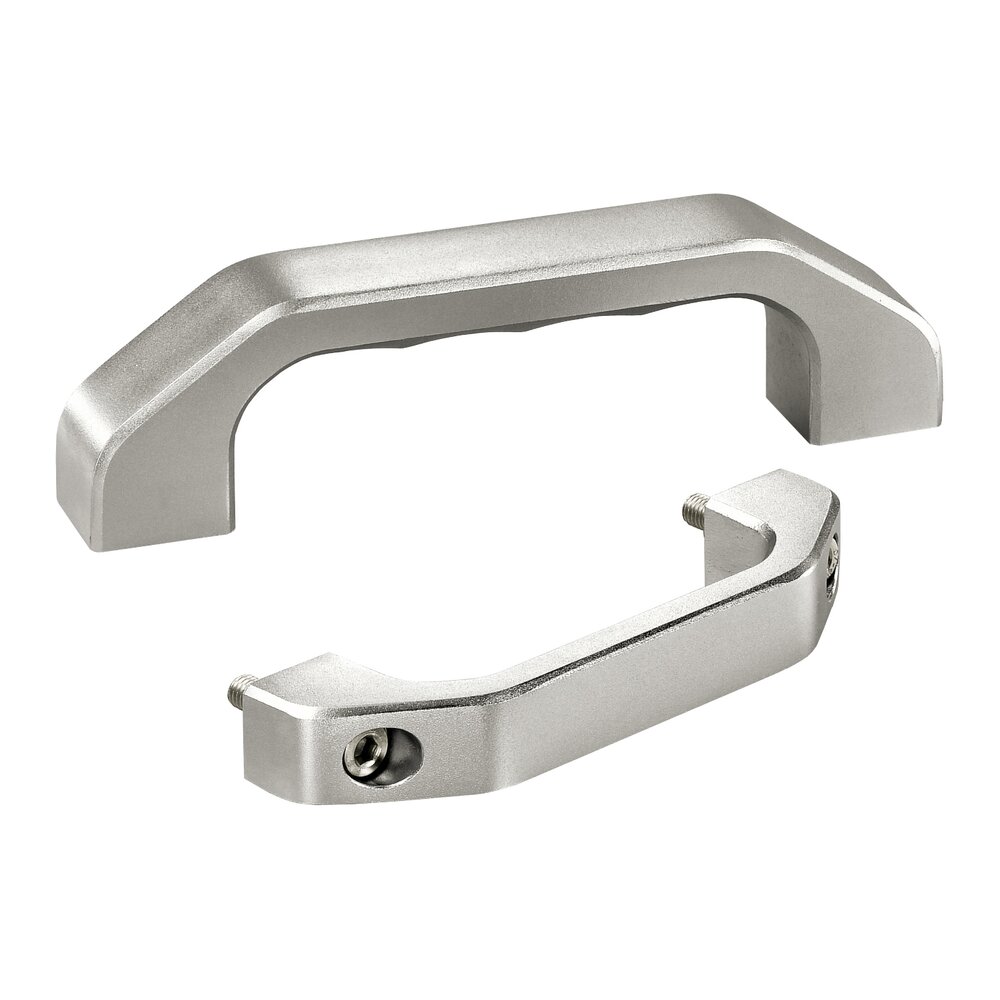

Solid version in the same industrial design to the aluminium handle series AG.

Material and surface:
Stainless steel precision casting; material no. 1.4404. Blasted and electropolished with a half-matt finish. Fixing material made of Stainless steel.

Scope of delivery:
EG-1F including cheese head screws with hexagon sockets DIN 912, nuts DIN 934 and washers DIN 125.

EG-1R including hexagon head screws DIN 933 and washers DIN 125.

Stress resistance:
min. 1000 N.

show more show less

Version EG-1F

Unit of measure
		Fitting type
A	L	attachment from the front Order-No.	M	T	H	B	D	S

A	L	attachment from the front Order-No.	M	T	H	B	D	S
A 140	L 170	attachment from the front Order-No. EG-1F.140.36 3D+CAD	M 8x30	T 15	H 45	B 25	D 12	S 28
A 180	L 218	attachment from the front Order-No. EG-1F.180.36 3D+CAD	M 10x40	T 18	H 58	B 35	D 15	S 36

Version EG-1R

Unit of measure
		Fitting type
A	L	attachment from behind Order-No.	M	T	H	B	D	S

A	L	attachment from behind Order-No.	M	T	H	B	D	S
A 140	L 170	attachment from behind Order-No. EG-1R.140.36 3D+CAD	M 8x18	T 15	H 45	B 25	D 12	S 28
A 180	L 218	attachment from behind Order-No. EG-1R.180.36 3D+CAD	M 10x20	T 18	H 58	B 35	D 15	S 36
