Handles KM-61
cl km-61.pdf
PDF

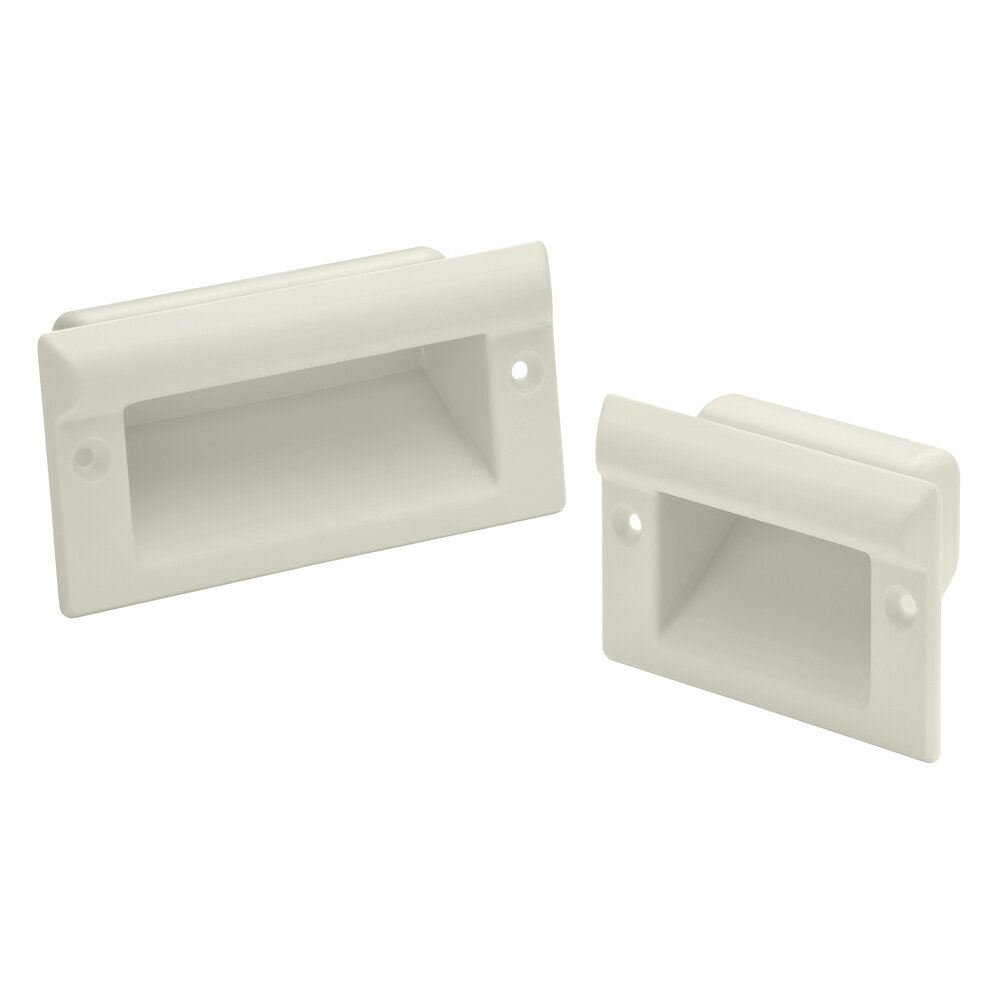

Handles KM-61

Material and surface:
Polyamide PA6, glass ball reinforced, fine structure in visible surfaces, colour shade similar to RAL 9002 grey white.

Stress resistance:
min. 1000 N.

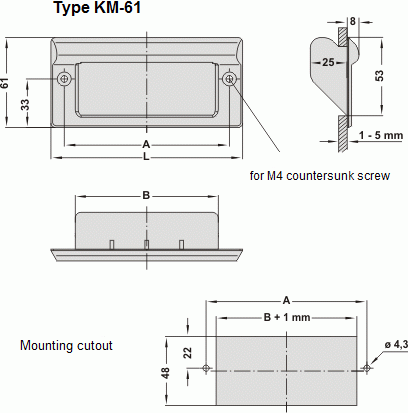

Technical data
Unit of measure
Type
ALB grey white
Order-No.
A82 L100 B67 grey white
Order-No. KM-61.082.9002 3D+CAD
A112 L130 B97 grey white
Order-No. KM-61.112.9002 3D+CAD
