Handles RG

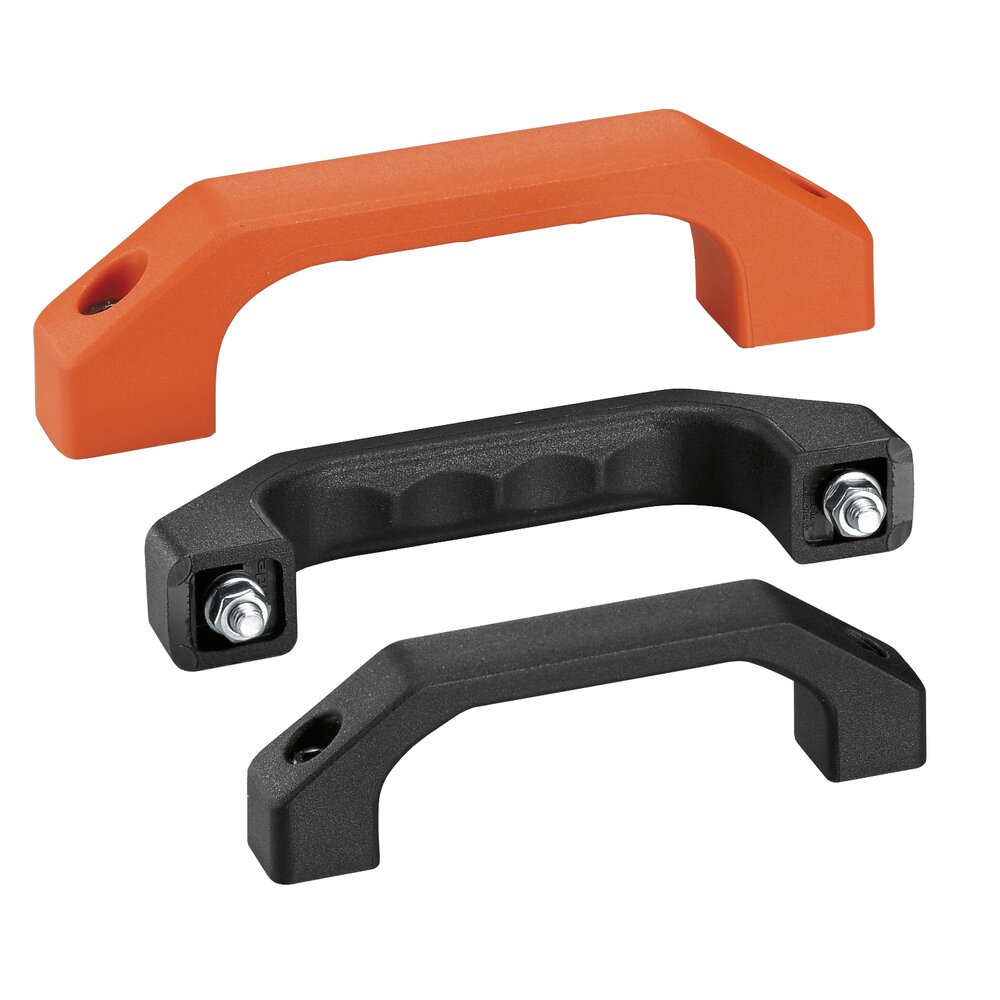

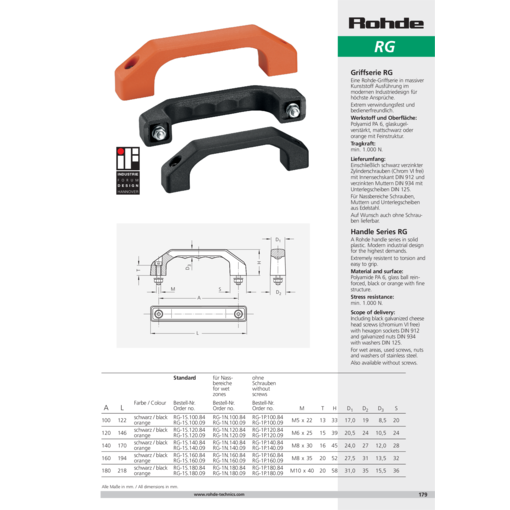

A Rohde handle series in solid plastic. Modern industrial design for the highest demands. Extremely resistent to torsion and easy to grip.
Material and surface:
Polyamide PA6, glass ball reinforced, black or orange with fine structure.
Scope of supply:
Including black galvanized cheese head screws (chromium VI free) with hexagon sockets DIN 912 and galvanized nuts DIN 934 with washers DIN 125.
For wet areas, used screws, nuts and washers of stainless steel (material no. 1.4301).
Also available without screws.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | ||||||||||||
| A | L | Color |
Standard
Order-No. |
for wet zone
Order-No. |
without screws
Order-No. |
M | T | H | D₁ | D₂ | D₃ | S |
| A | L | Color |
Standard
Order-No. |
for wet zone
Order-No. |
without screws
Order-No. |
M | T | H | D₁ | D₂ | D₃ | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A 100 | L 122 | Color orange |
Standard
Order-No. RG-1S.100.09 3D+CAD |
for wet zone
Order-No. RG-1N.100.09 3D+CAD |
without screws
Order-No. RG-1P.100.09 3D+CAD |
M M5x22 | T 13 | H 33 | D₁ 17 | D₂ 19 | D₃ 8,5 | S 20 |
| A 100 | L 122 | Color black |
Standard
Order-No. RG-1S.100.84 3D+CAD |
for wet zone
Order-No. RG-1N.100.84 3D+CAD |
without screws
Order-No. RG-1P.100.84 3D+CAD |
M M5x22 | T 13 | H 33 | D₁ 17 | D₂ 19 | D₃ 8,5 | S 20 |
| A 120 | L 146 | Color orange |
Standard
Order-No. RG-1S.120.09 3D+CAD |
for wet zone
Order-No. RG-1N.120.09 3D+CAD |
without screws
Order-No. RG-1P.120.09 3D+CAD |
M M6x25 | T 15 | H 39 | D₁ 20,5 | D₂ 24 | D₃ 10,5 | S 24 |
| A 120 | L 146 | Color black |
Standard
Order-No. RG-1S.120.84 3D+CAD |
for wet zone
Order-No. RG-1N.120.84 3D+CAD |
without screws
Order-No. RG-1P.120.84 3D+CAD |
M M6x25 | T 15 | H 39 | D₁ 20,5 | D₂ 24 | D₃ 10,5 | S 24 |
| A 140 | L 170 | Color orange |
Standard
Order-No. RG-1S.140.09 3D+CAD |
for wet zone
Order-No. RG-1N.140.09 3D+CAD |
without screws
Order-No. RG-1P.140.09 3D+CAD |
M M8x30 | T 16 | H 45 | D₁ 24 | D₂ 27 | D₃ 12 | S 28 |
| A 140 | L 170 | Color black |
Standard
Order-No. RG-1S.140.84 3D+CAD |
for wet zone
Order-No. RG-1N.140.84 3D+CAD |
without screws
Order-No. RG-1P.140.84 3D+CAD |
M M8x30 | T 16 | H 45 | D₁ 24 | D₂ 27 | D₃ 12 | S 28 |
| A 160 | L 194 | Color orange |
Standard
Order-No. RG-1S.160.09 3D+CAD |
for wet zone
Order-No. RG-1N.160.09 3D+CAD |
without screws
Order-No. RG-1P.160.09 3D+CAD |
M M8x35 | T 20 | H 52 | D₁ 27,5 | D₂ 31 | D₃ 13,5 | S 32 |
| A 160 | L 194 | Color black |
Standard
Order-No. RG-1S.160.84 3D+CAD |
for wet zone
Order-No. RG-1N.160.84 3D+CAD |
without screws
Order-No. RG-1P.160.84 3D+CAD |
M M8x35 | T 20 | H 52 | D₁ 27,5 | D₂ 31 | D₃ 13,5 | S 32 |
| A 180 | L 218 | Color orange |
Standard
Order-No. RG-1S.180.09 3D+CAD |
for wet zone
Order-No. RG-1N.180.09 3D+CAD |
without screws
Order-No. RG-1P.180.09 3D+CAD |
M M10x40 | T 20 | H 58 | D₁ 31 | D₂ 35 | D₃ 15,5 | S 36 |
| A 180 | L 218 | Color black |
Standard
Order-No. RG-1S.180.84 3D+CAD |
for wet zone
Order-No. RG-1N.180.84 3D+CAD |
without screws
Order-No. RG-1P.180.84 3D+CAD |
M M10x40 | T 20 | H 58 | D₁ 31 | D₂ 35 | D₃ 15,5 | S 36 |
