ø 30 mm - Rohde AG | Aluminum, stainless steel and plastic handles

Tube connectors for ø30 mm

Material:
Chill casting of high-grade aluminium alloy in accordance with DIN 1725.

Supply range:
The tube connectors are supplied with bolts and sockets nuts of stainless steel (material no. 1.4301).

Special versions:
Other diameters on request.

Colour/surface Surface-code
Rough state * -0.0
Barrel polished * -1.0
High-gloss polished * -1.1
Vibratory ground, dull finished
and technically anodized		 * -2.0
Polished and anodized * -2.1
Powder-coatings * -3-RAL…

Variants

Angle connector 90°, 2-shell

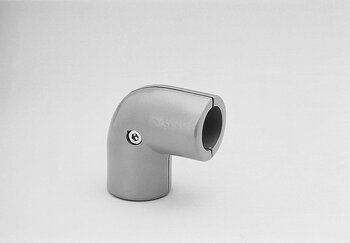

Grey 90-degree angle tube connector with metal screw and two-part design on a plain background

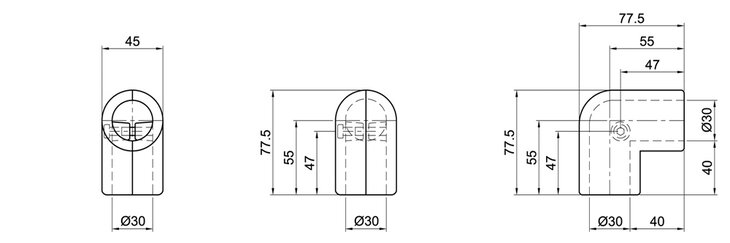

Engineering technical drawing of a 90-degree, two-layer angle tube connector with detailed dimensions and views
Bestell-Nr.: RV-1711 Request

Angle connector 50° / 130°, 2-shell

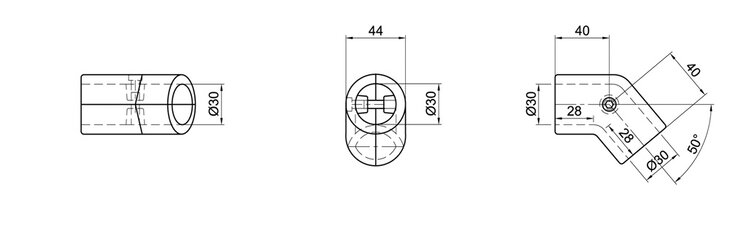

Technical drawing showing dimensions and angles of a two-layer tube connector with 30 mm diameter, including side, top, and angled views.
Bestell-Nr.: RV-1865 Request

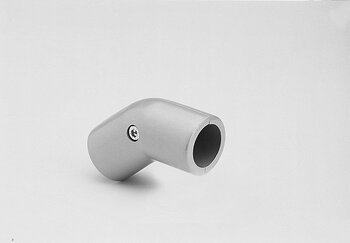

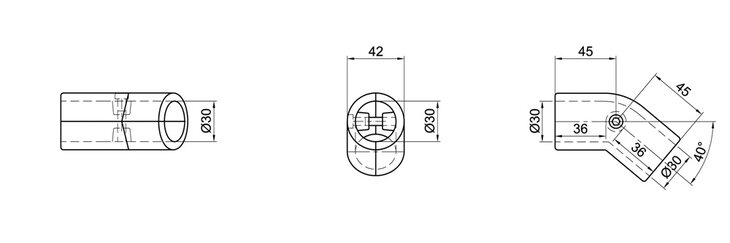

Angle connector 40° / 140°, 2-shell

Bestell-Nr.: RV-1867 Request

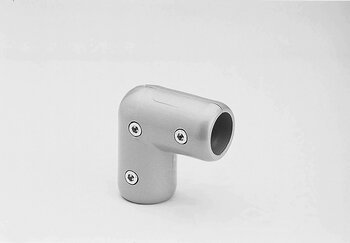

Angle connector 90°, 2-shell

Bestell-Nr.: RV-1888 Request

Angle connector 45° / 135°, 2-shell

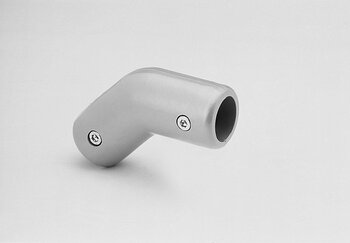

Grey two-layer angled tube connector with 45 and 135 degree angles and two hexagonal screws

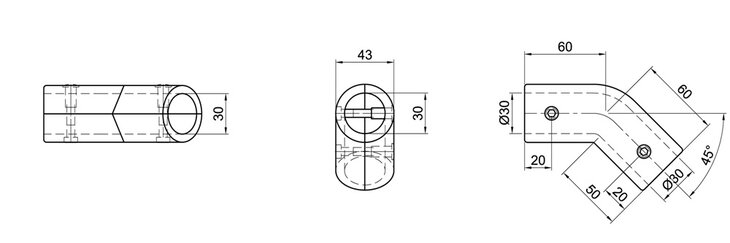

Technical drawing showing three views of a 45° / 135° angle tube connector with 30 mm diameter and detailed dimensions.
Bestell-Nr.: RV-2370 Request

Angle connector 30° / 150°, 1-shell

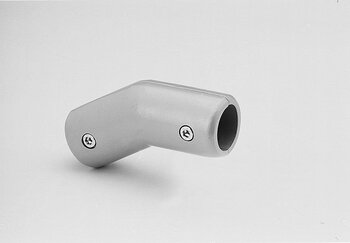

Single 1-shelled angled tube connector with screws on a plain background

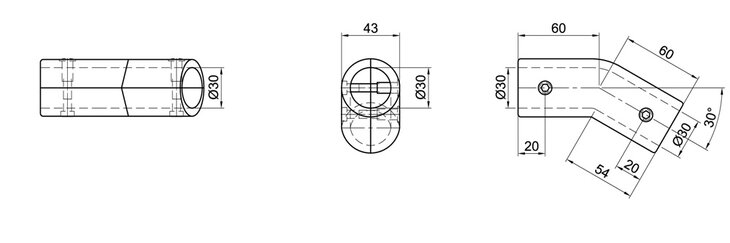

Technical drawing showing side, top, and angled views of a single-layer tube connector with 30° angle and 30 mm diameter, including detailed dimensional measurements
Bestell-Nr.: RV-2380 Request

Angle joint connector, 1-shell

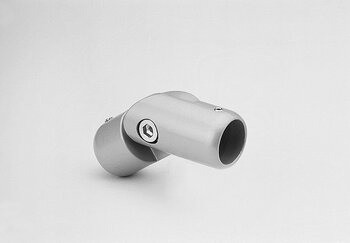

Silver single-joint angled metal tube connector with hex screw fastening
Bestell-Nr.: RV-1924a Request

Centre prop, 1-shell

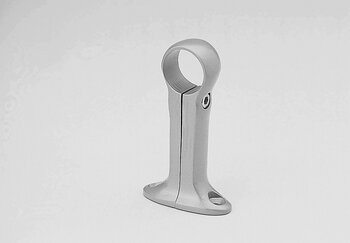

Silver metal tube connector support stand with circular top opening and two holes in the base for mounting on a plain gray background
Bestell-Nr.: RV-1684 Request

Centre prop, 1-shell

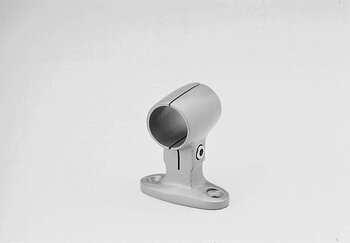

Metallic single-piece tube connector clamp with cylindrical holder and mounting base on plain background

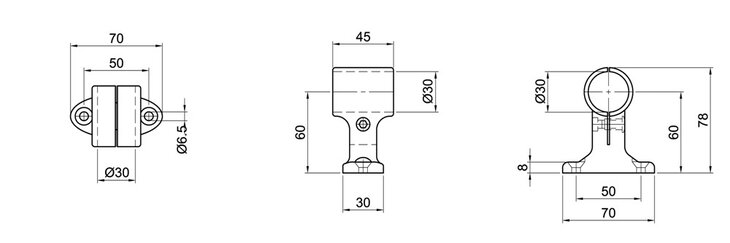

Technical drawing showing front, side, and top views of a Mittelstütze single-shelled tube connector with measurements.
Bestell-Nr.: RV-1695 Request

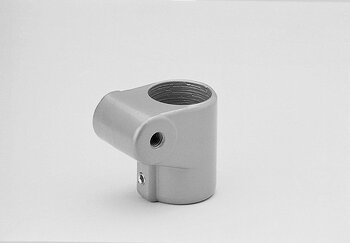

Connection piece open, 1-shell

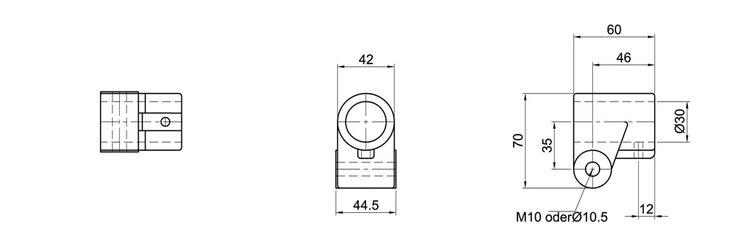

Technical drawing showing front, side, and top views of a single-layer open tube connector with detailed measurements including 70 mm height and 30 mm diameter
Bestell-Nr.: RV-2410 Request

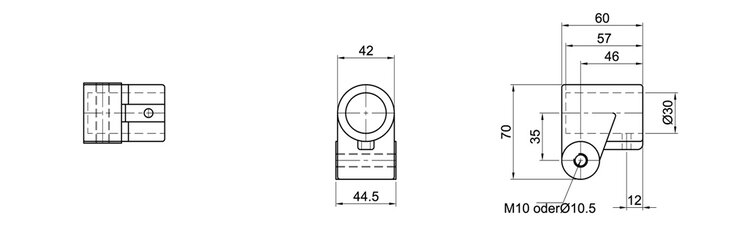

Connection piece closed, 1-shell

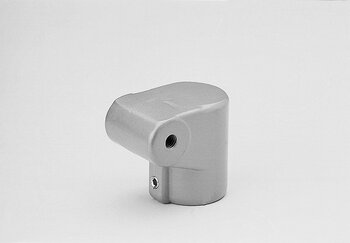

Closed one-layer metal tube connector with a right-angle bend and threaded hole on a white background
Bestell-Nr.: RV-2411 Request

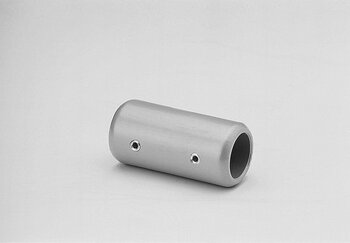

Tube connector piece, 1-shell

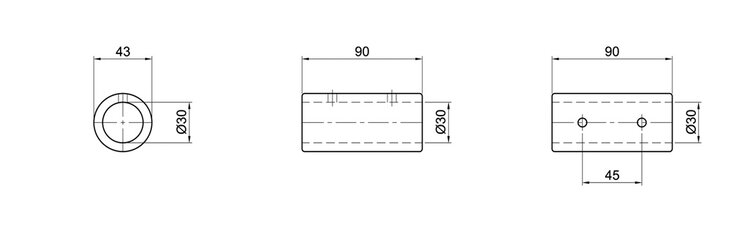

Technical drawing showing front, side, and top views of a single-shell tube connector with dimensions 30 mm in diameter, 90 mm in length, and two holes spaced 45 mm apart.
Bestell-Nr.: RV-1680 Request

Corner connector 90°, open, 2-shell

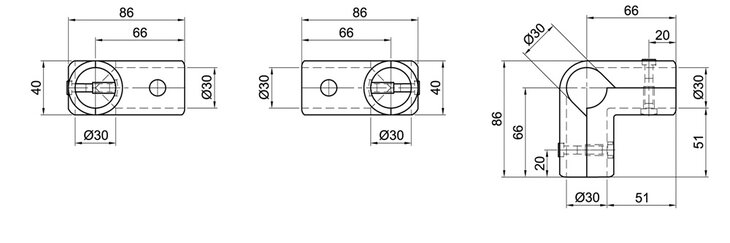

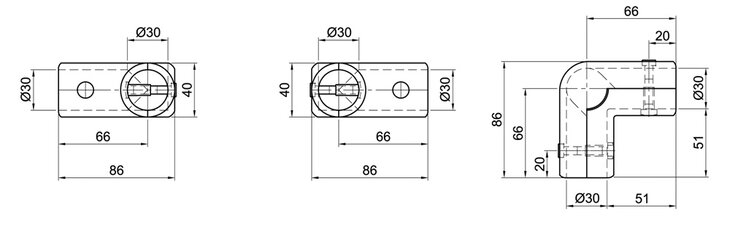

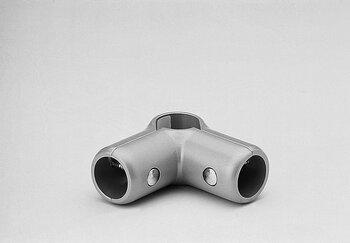

Technical drawing showing three views of a 90-degree open corner tube connector with two layers, including measurements and specifications.
Bestell-Nr.: RV-1685a Request

Corner connector 90°, Headpiece, 2-shell

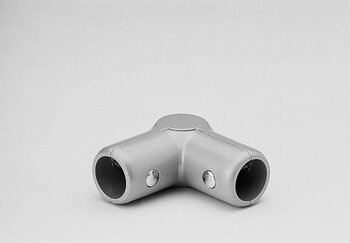

Bestell-Nr.: RV-1685c Request

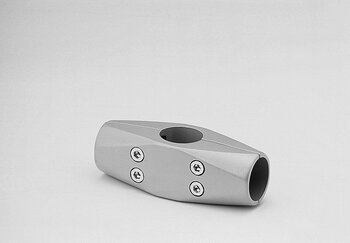

Cross-joint connector, 2-shell

Bestell-Nr.: RV-1688a Request

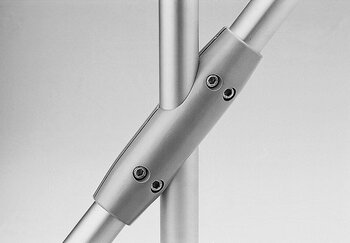

Cross-joint connector 40° / 140°, 2-shell

Bestell-Nr.: RV-1712 Request

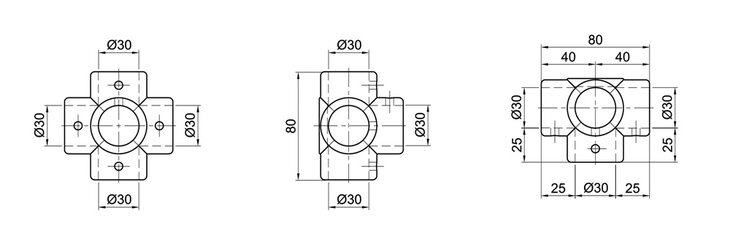

Cross-connector 5 end, 1-shell

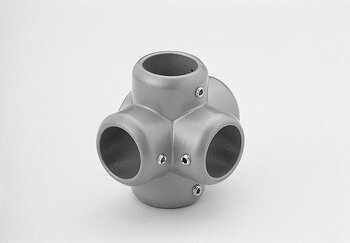

Bestell-Nr.: RV-1716a Request

Cross-connector 6 end, 1-shell

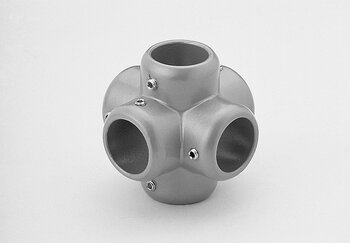

Metallic six-way cross tube connector with six cylindrical openings and hex screws on a plain light background

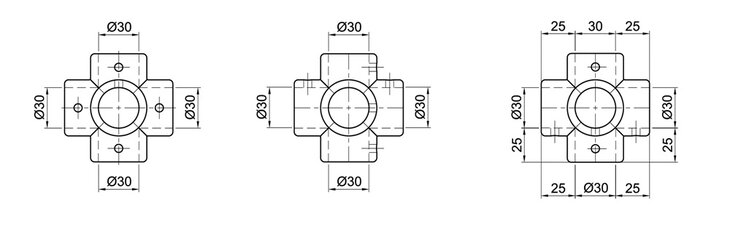

Technical schematic drawings of a 6-way cross tube connector with single layer, showing tube connections of 30 mm diameter and mounting hole placements with measurements.
Bestell-Nr.: RV-1716b Request

Cross-joint connector, 1-shell

Technical engineering drawing of a single-layer tube cross connector showing front, top, and side views with detailed measurements including 30 mm diameter openings and 80 mm length.
Bestell-Nr.: RV-2086a Request

Cross-joint connector 50° / 130°, 2-shell

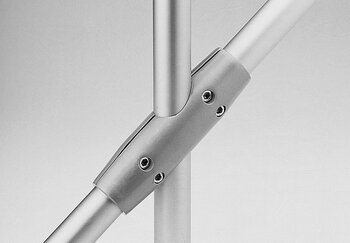

Silver metal tube connector with 50°/130° angle connecting three cylindrical tubes, secured by hex screws on a plain gray background.

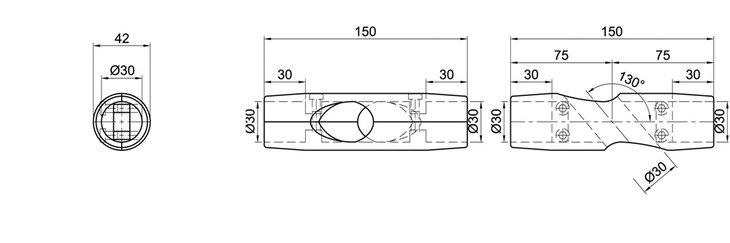

Technical drawing showing multiple views and measurements of a double-shell cross tube connector with angles 50 and 130 degrees and diameter 30 mm.
Bestell-Nr.: RV-2217 Request

Cross-joint connector, 2-shell

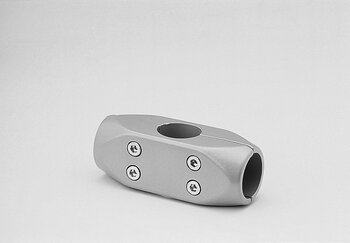

Silver metal tube connector with two circular openings and four screws

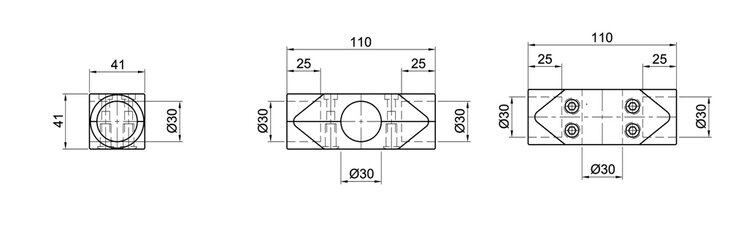

Bestell-Nr.: RV-2330 Request

Cross-joint connector, 2-shell

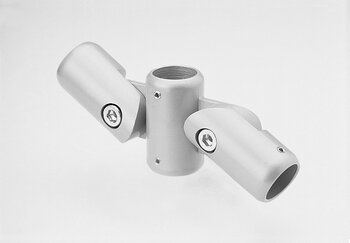

Silver-colored two-tier cross joint connector for tubes with hex socket screws and a central threaded hole

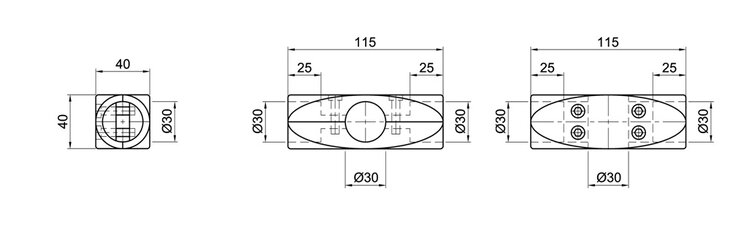

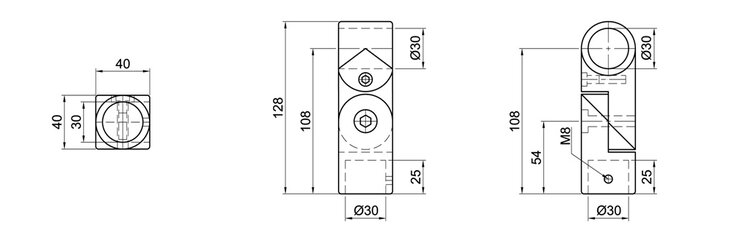

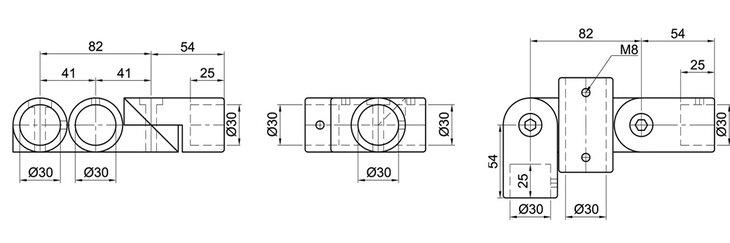

Technical drawing showing three views of a two-layer cross joint connector with precise measurements and dimensions.
Bestell-Nr.: RV-1687 Request

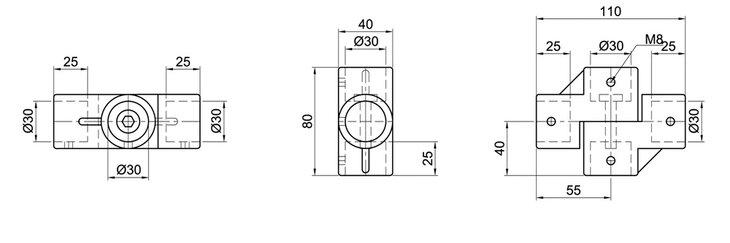

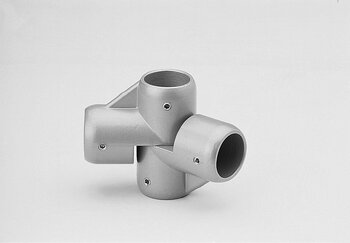

Cross-joint connector, 1-shell

Bestell-Nr.: RV-1924b Request

Cross-joint connector, 1-shell, persistant

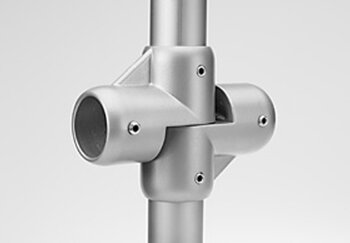

Silver single-wall cross joint connector attached to two intersecting cylindrical tubes with screws securing the connection

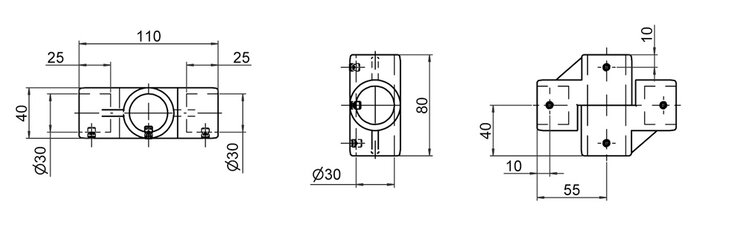

Technical drawing showing front, side, and top views of a single-wall cross-joint tube connector with detailed measurements and dimensions.
Bestell-Nr.: RV-1924f Request

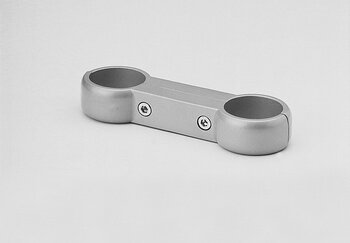

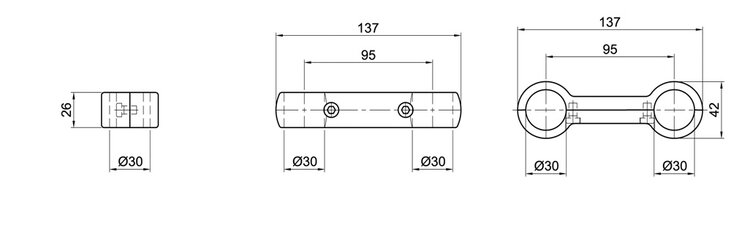

Double clamp, 2-shell

Bestell-Nr.: RV-1681c Request

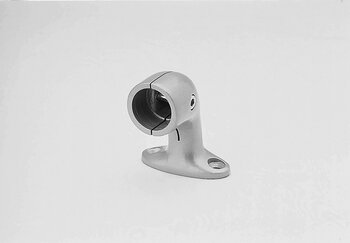

End prop, 1-shell

Bestell-Nr.: RV-1693 Request

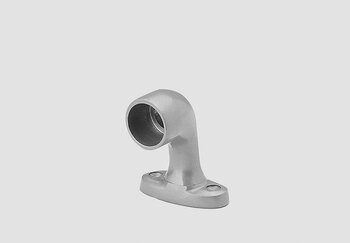

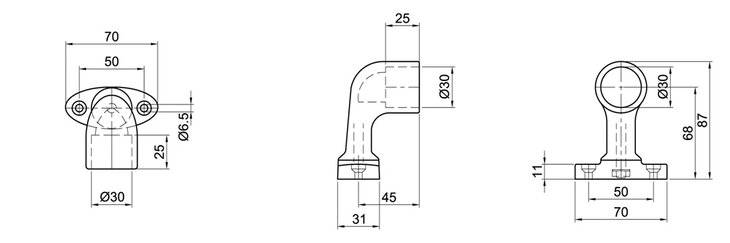

End prop turnable, 1-shell

Bestell-Nr.: RV-1694 Request

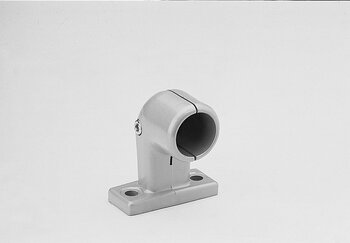

End prop, 1-shell

Bestell-Nr.: RV-2390 Request

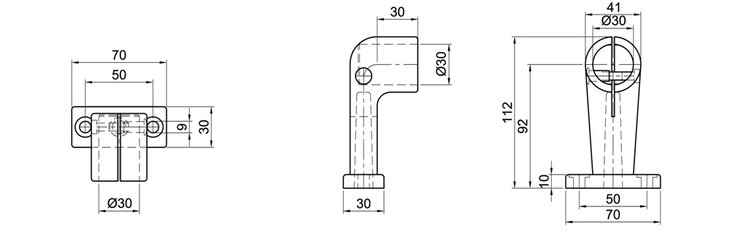

End prop, 1-shell

Bestell-Nr.: RV-2400 Request

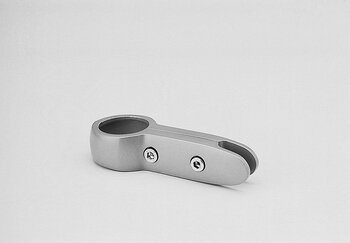

Glass holder, 2-shell

Metal tube connector with circular clamp and two screws on white background

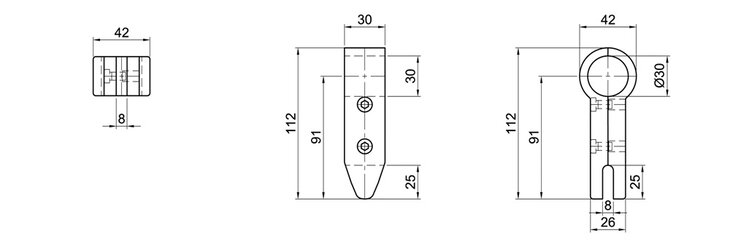

Technical drawing of a two-part glass holder with three views showing detailed dimensions including diameters, lengths, and mounting hole positions.
Bestell-Nr.: RV-1681a Request

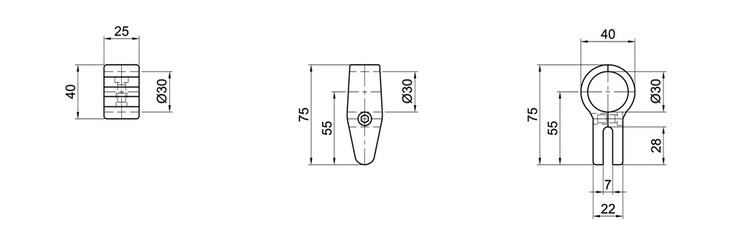

Glass holder, 2-shell

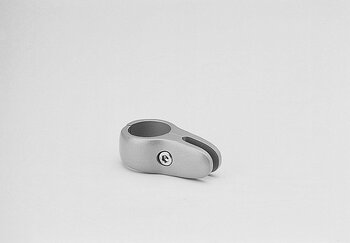

Silver metal two-part glass holder with a circular clamp and slit, secured by a hex screw, on a plain light background.
Bestell-Nr.: RV-1692 Request

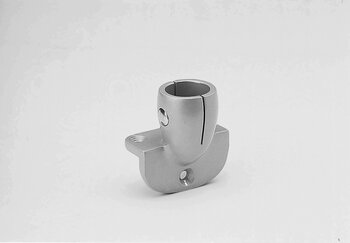

Ground- wall bearing, 1-shell

Bestell-Nr.: RV-1679 Request

Ground bearing, 2-shell

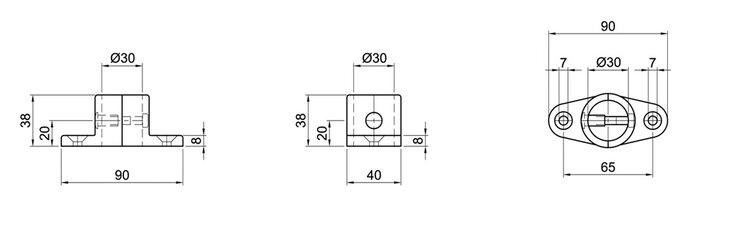

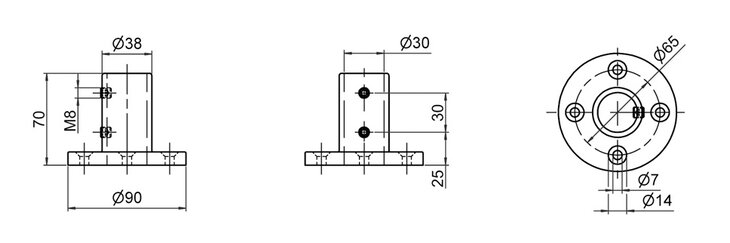

Technical line drawing of a two-shelled floor bearing showing front, side and top views with precise measurements in millimeters.
Bestell-Nr.: RV-1691 Request

Ground bearing, 1-shell

Bestell-Nr.: RV-1709a Request

Ground bearing, 1-shell

Bestell-Nr.: RV-1710 Request

Ground bearing, 1-shell

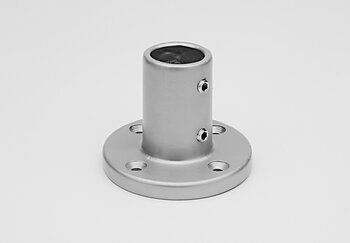

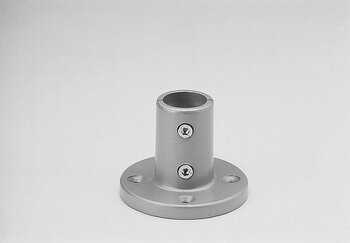

Metal single-sleeve floor bearing tube connector with round base and four screw holes on gray background
Technical drawing showing front, side, and top views of a single-stage floor bearing with all dimensions and hole placements indicated.
Bestell-Nr.: RV-1710c Request

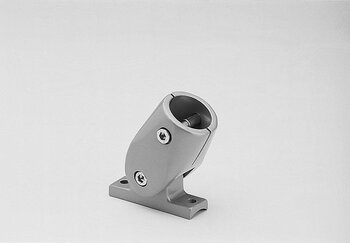

Ground bearing variable, 1-shell

Single-piece adjustable floor bearing mount with hex screws and base plate

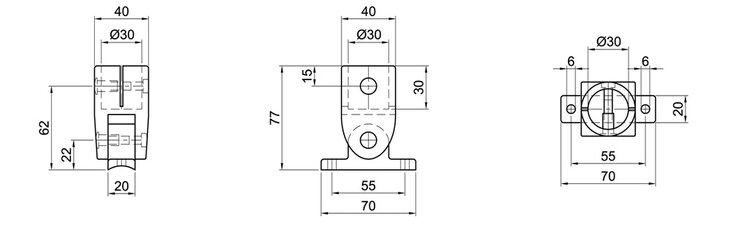

Technical drawing showing front, side, and top views of a single-layer variable floor bearing tube connector with detailed measurements in millimeters.
Bestell-Nr.: RV-1715 Request

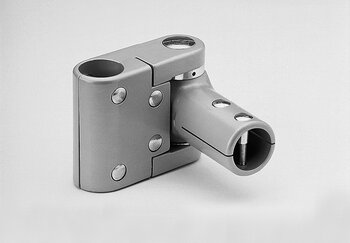

Swivel bearing 30 x 30 option of 90° or 180°

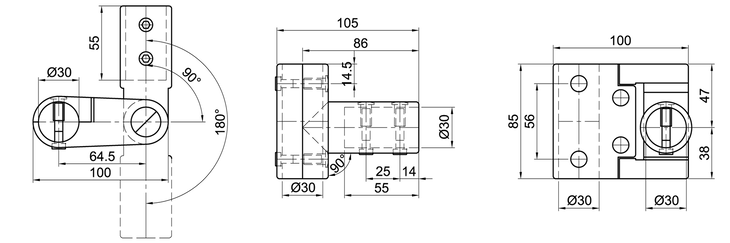

Bestell-Nr.: RV-30/2230 Request

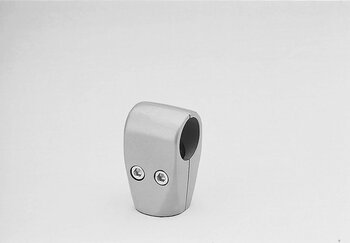

T-connector, 2-shell

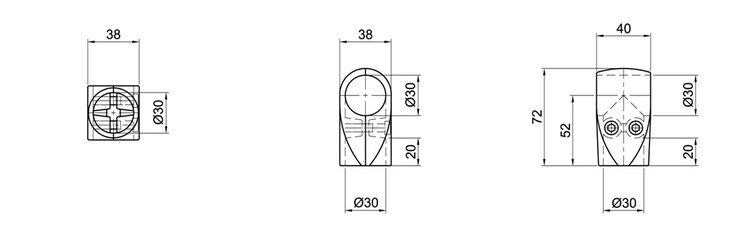

Bestell-Nr.: RV-1690 Request

T-connector 40° / 140°, 2-shell

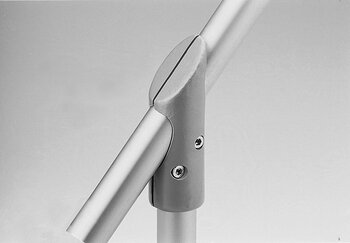

Metallic T-shaped tube connector joining three cylindrical tubes with two visible screws.

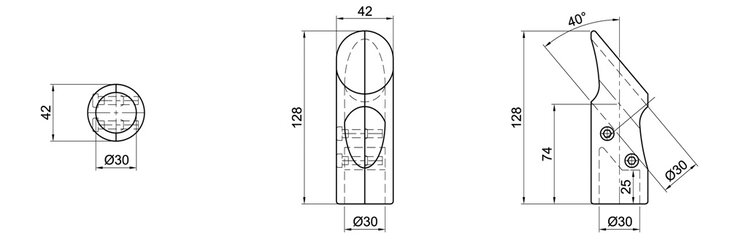

Technical drawing of a double-layer T-tube connector with 40 and 140 degree angles, dimensions annotated in millimeters.
Bestell-Nr.: RV-1866 Request

T-connector, 2-shell

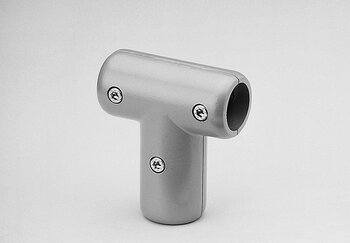

Metallic T-shaped tube connector with three hex screws against plain grey background
Bestell-Nr.: RV-1889 Request

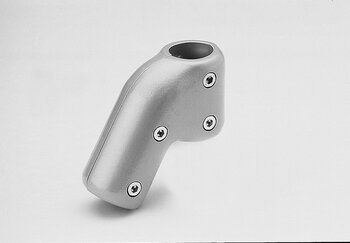

T-connector 30° / 150°, 1-shell

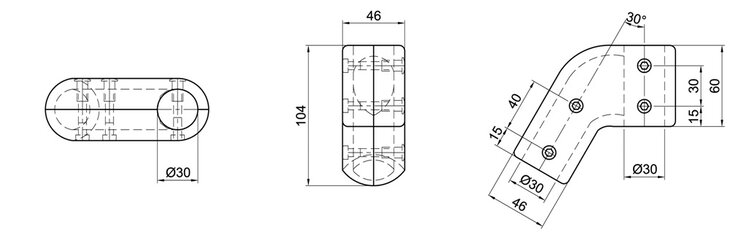

Technical drawing of a single-layer T-shaped tube connector with 30 degree and 150 degree angles, including detailed measurements and hole placements.
Bestell-Nr.: RV-1890 Request

T-connector 60° / 120°, 1-shell

Bestell-Nr.: RV-1890a Request

T-connector 45° / 135°, 2-shell

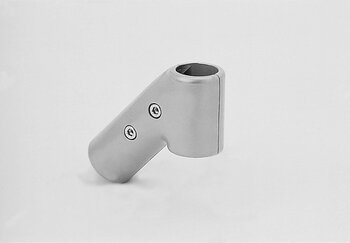

Metallic T-shaped tube connector at angle 45° / 135° with two hexagonal socket screws, isolated on light background

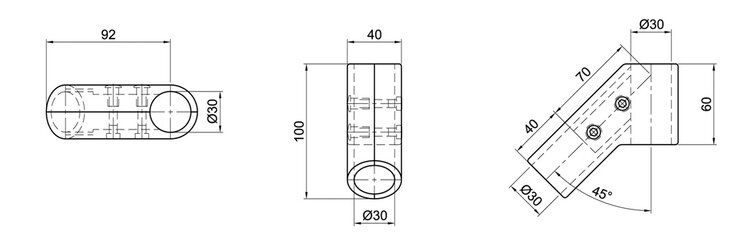

Technical drawing showing three views of a T-shaped tube connector with 45-degree angle, dimensions labeled in millimeters, featuring 30 mm diameter tubes
Bestell-Nr.: RV-1891 Request

T-connector 50° / 130°, 2-shell

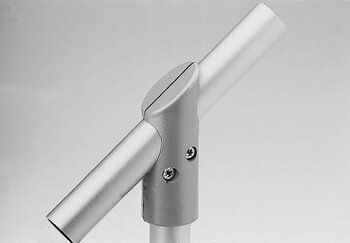

Close-up of a silver two-layered metallic T-shaped tube connector with an angled joint and two screws, connecting three cylindrical tubes

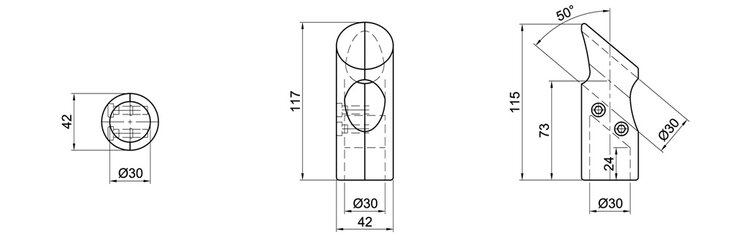

Bestell-Nr.: RV-2218 Request

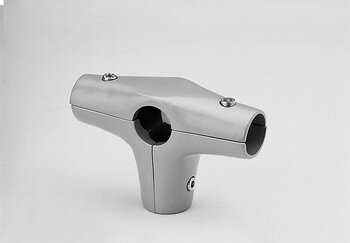

T-connector, 1-shell

Bestell-Nr.: RV-2225 Request

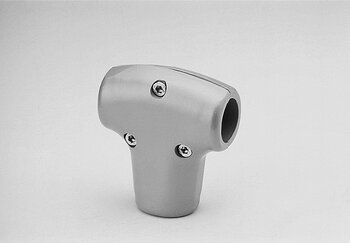

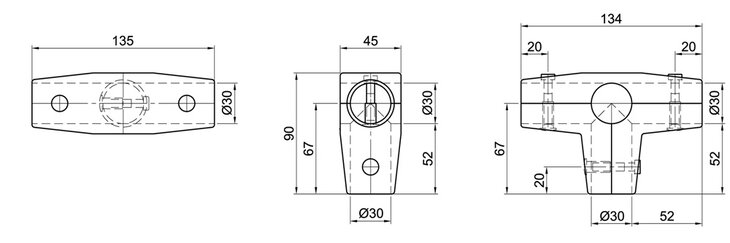

T-connector, 2-shell

Bestell-Nr.: RV-2310 Request

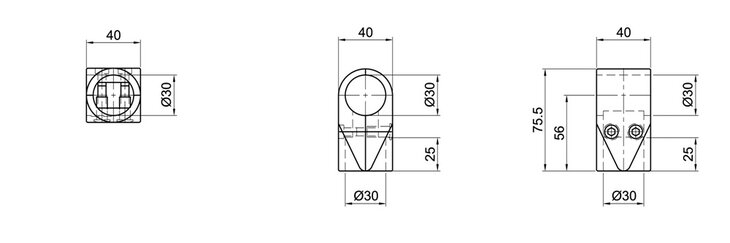

T-connector, 2-shell

Bestell-Nr.: RV-2320 Request

T-joint connector, 2-shell

Bestell-Nr.: RV-1686 Request

T-joint connector, 1-shell

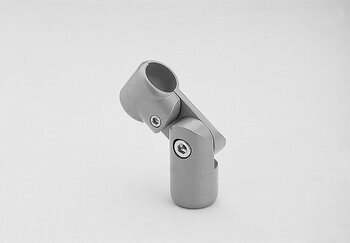

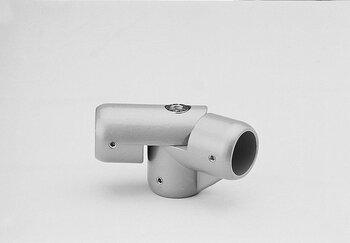

Metal T-joint tube connector with three cylindrical openings and securing screws on a white background

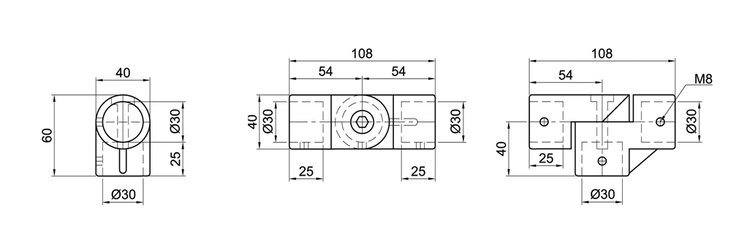

Technical CAD drawing showing front, top, and side views of a single-layer T-joint tube connector with detailed measurements.
Bestell-Nr.: RV-1924 Request

Ground- wall bearing, 1-shell

Bestell-Nr.: RV-1679 Request

Wall bearing- corner fastening, 1-shell

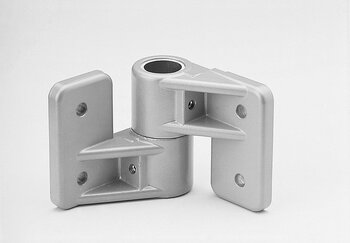

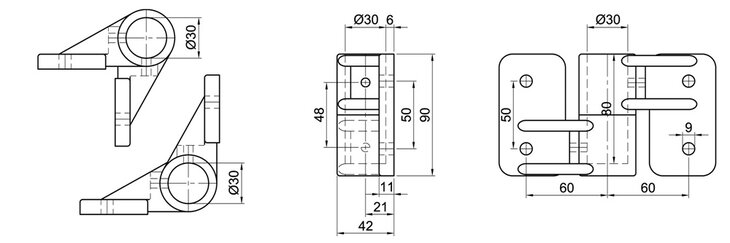

Technical drawing showing three views of a single-shell wall bracket corner connector with detailed dimensions for tube of 30 mm diameter.
Bestell-Nr.: RV-1713 Request

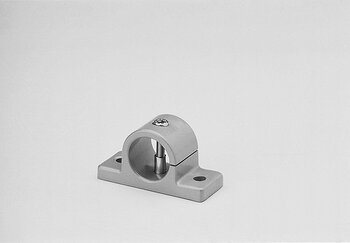

Wall bearing, 1-shell

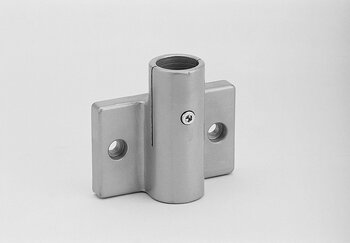

Metallic wall bearing bracket with cylindrical tube holder and flat base with screw holes

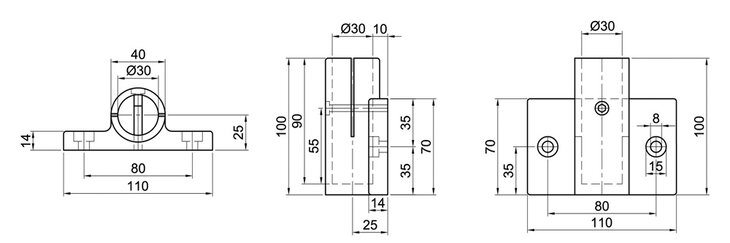

Technical line drawing of a single-shell wall bearing with front, side, and top views showing detailed dimensions and measurements in millimeters.
Bestell-Nr.: RV-1714 Request

Wall bearing, 1-shell

Bestell-Nr.: RV-1864 Request

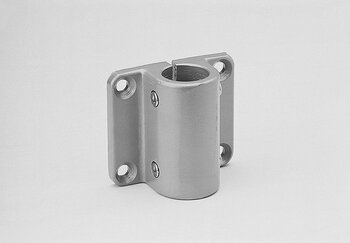

Wall bearing, 1-shell

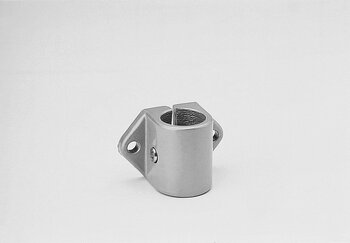

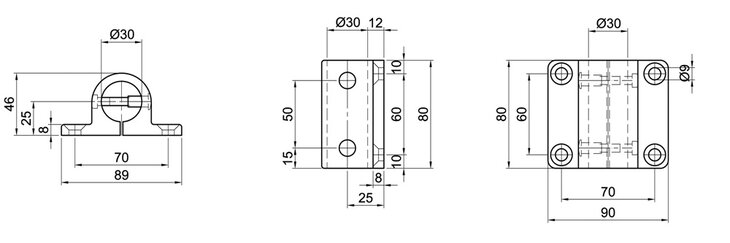

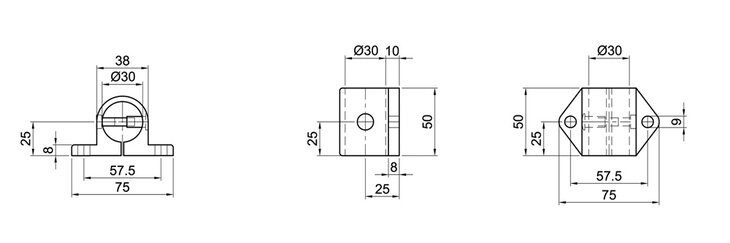

Technical drawing showing front, side, and top views of a single-shell wall bracket for tube connectors with detailed dimensions.
Bestell-Nr.: RV-1868 Request

Wall bearing, 1-shell

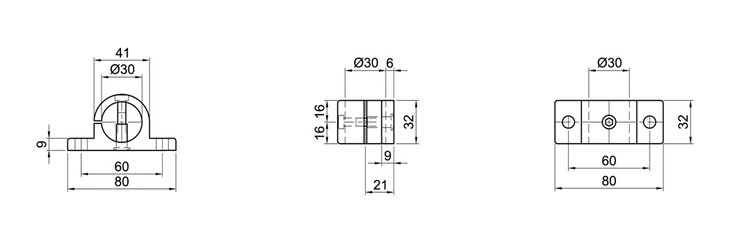

Technical drawing of a single-layer wall bracket for tube connectors with three views showing dimensions and design features
Bestell-Nr.: RV-2350 Request

Wall bearing, 1-shell

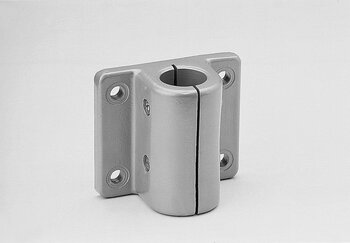

Bestell-Nr.: RV-2360 Request

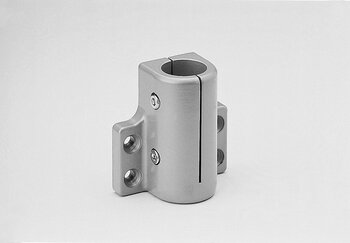

Wall bearing, 1-shell

Bestell-Nr.: RV-2365 Request
