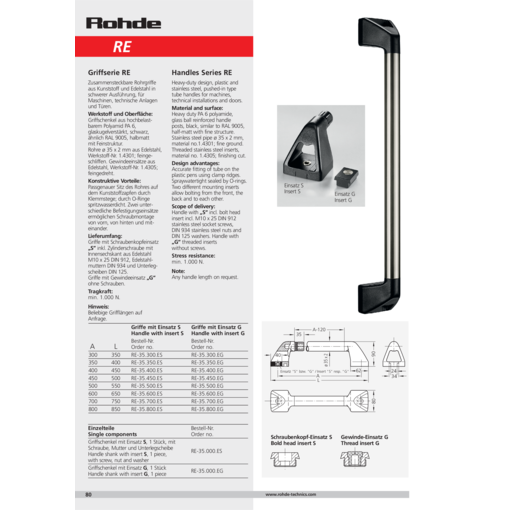

Handles RE

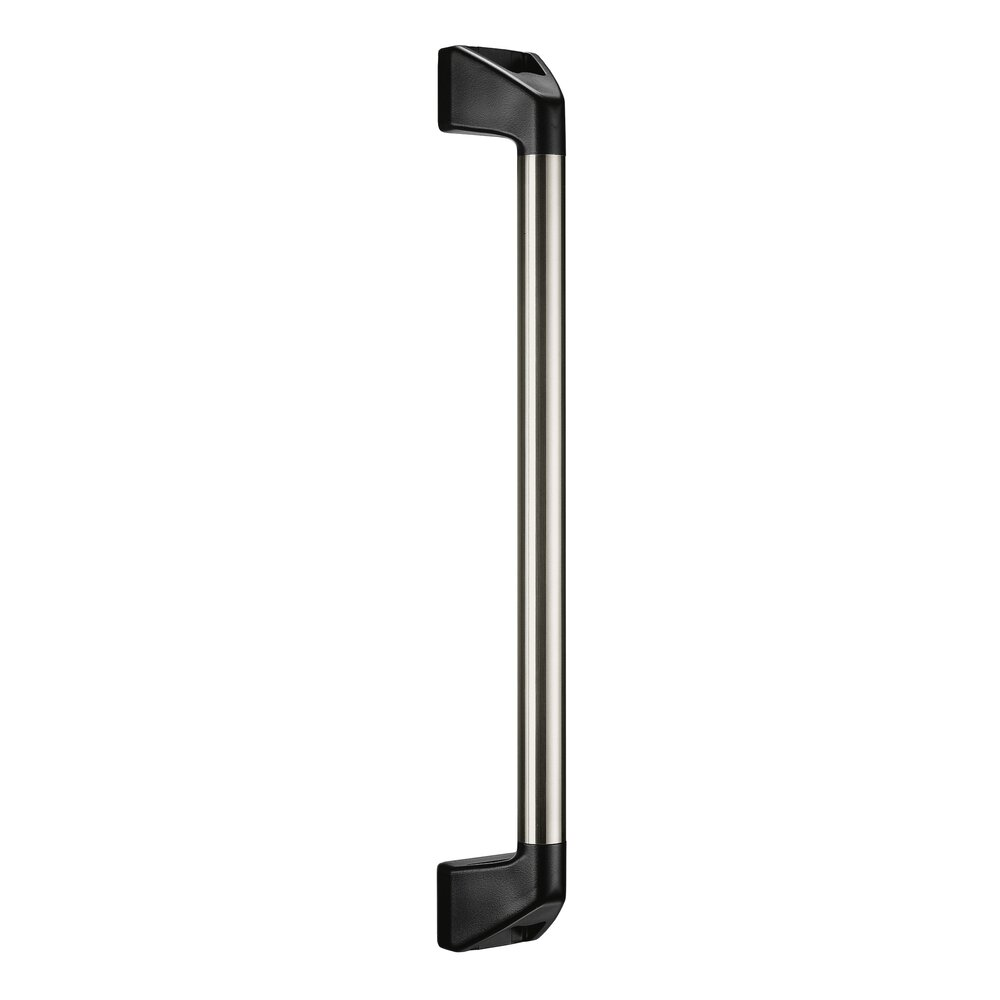

Heavy-duty design, plastic and stainless steel, pushed-in type tube handles for machines, technical installations and doors.

Material and surface:
Heavy duty PA6 polyamide, glass ball reinforced handle posts, black, similar to RAL 9005, half-matt with fine structure. Stainless steel pipe ø35x2 mm, material no. 1.4301; fine ground. Threaded stainless steel inserts, material no. 1.4305; finishing cut.

Design benefits:

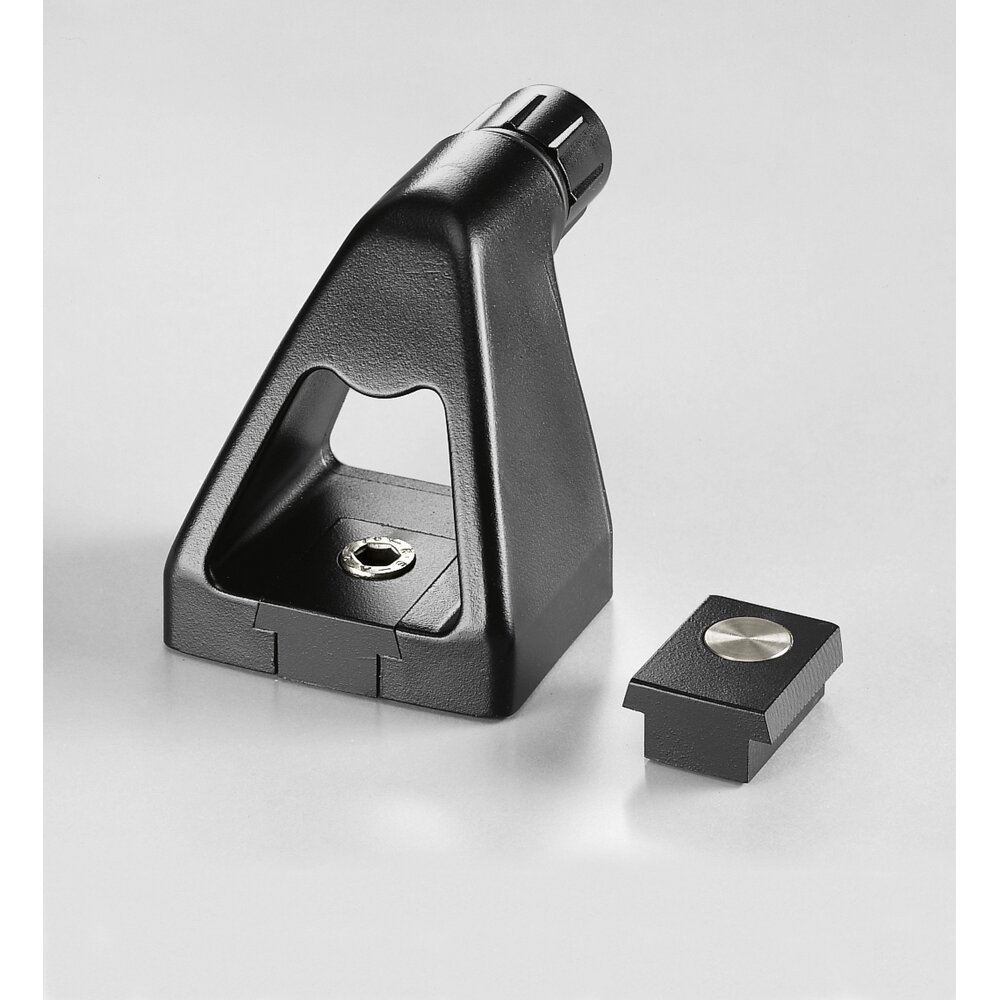

Accurate fitting of tube on the plastic pens using clamp ridges. Spraywatertight sealed by O-rings. Two different mounting inserts allow bolting from the front, the back and to each other.

Supply:
Handle with „S“ incl. bolt head insert incl. M10x25 DIN 912 stainless steel socket screws, DIN 934 stainless steel nuts and DIN 125 washers. Handle with „G“ threaded inserts without screws.

Note:
Any handle length on request.

Stress resistance:
min. 1000 N.

Technical data
Unit of measure
		Description

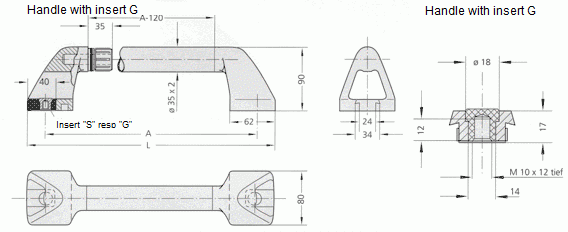

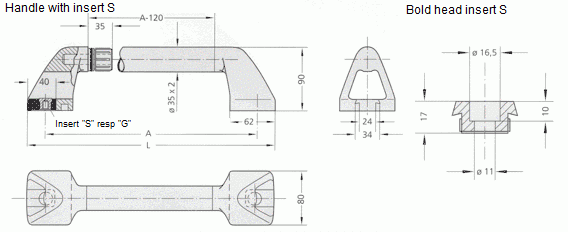

A	L	With bold head insert Order-No.	With thread insert Order-No.
A300	L350	With bold head insert Order-No. RE-35.300.ES 3D+CAD	With thread insert Order-No. RE-35.300.EG 3D+CAD
A350	L400	With bold head insert Order-No. RE-35.350.ES 3D+CAD	With thread insert Order-No. RE-35.350.EG 3D+CAD
A400	L450	With bold head insert Order-No. RE-35.400.ES 3D+CAD	With thread insert Order-No. RE-35.400.EG 3D+CAD
A450	L500	With bold head insert Order-No. RE-35.450.ES 3D+CAD	With thread insert Order-No. RE-35.450.EG 3D+CAD
A500	L550	With bold head insert Order-No. RE-35.500.ES 3D+CAD	With thread insert Order-No. RE-35.500.EG 3D+CAD
A600	L650	With bold head insert Order-No. RE-35.600.ES 3D+CAD	With thread insert Order-No. RE-35.600.EG 3D+CAD
A700	L750	With bold head insert Order-No. RE-35.700.ES 3D+CAD	With thread insert Order-No. RE-35.700.EG 3D+CAD
A800	L850	With bold head insert Order-No. RE-35.800.ES 3D+CAD	With thread insert Order-No. RE-35.800.EG 3D+CAD
