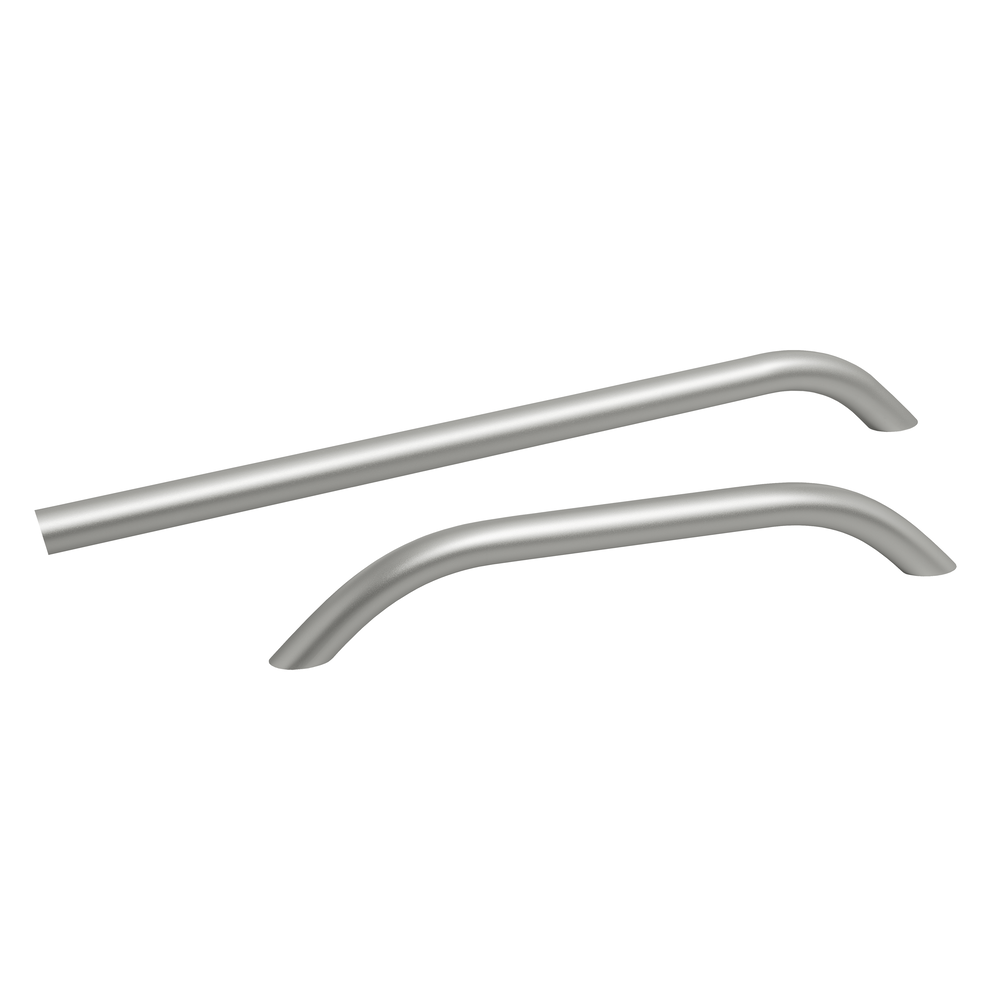

Stainless Steel Handles ER-30, marine grade

Handles ER-30

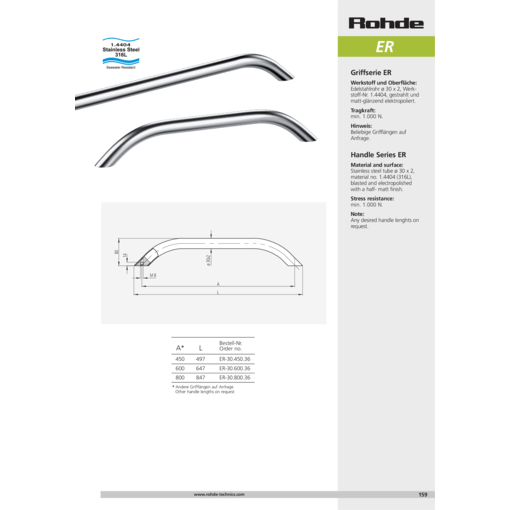

er-30_1.pdf

Handles ER-30

Material and surface:

Stainless steel tube ø 30 x 2, material no. 1.4404 (316L), blasted and electropolished with a half- matt finish.

Due to design constraints, dimension L may vary.

Stress resistance:

min. 1.000 N.

Note:

Any desired handle lenghts on request.

Technical drawing

Technical data
Unit of measure

A	L	Order-No.
A450	Lca. 497	Order-No. ER-30.450.36 3D+CAD
A600	Lca. 647	Order-No. ER-30.600.36 3D+CAD
A800	Lca. 847	Order-No. ER-30.800.36 3D+CAD
