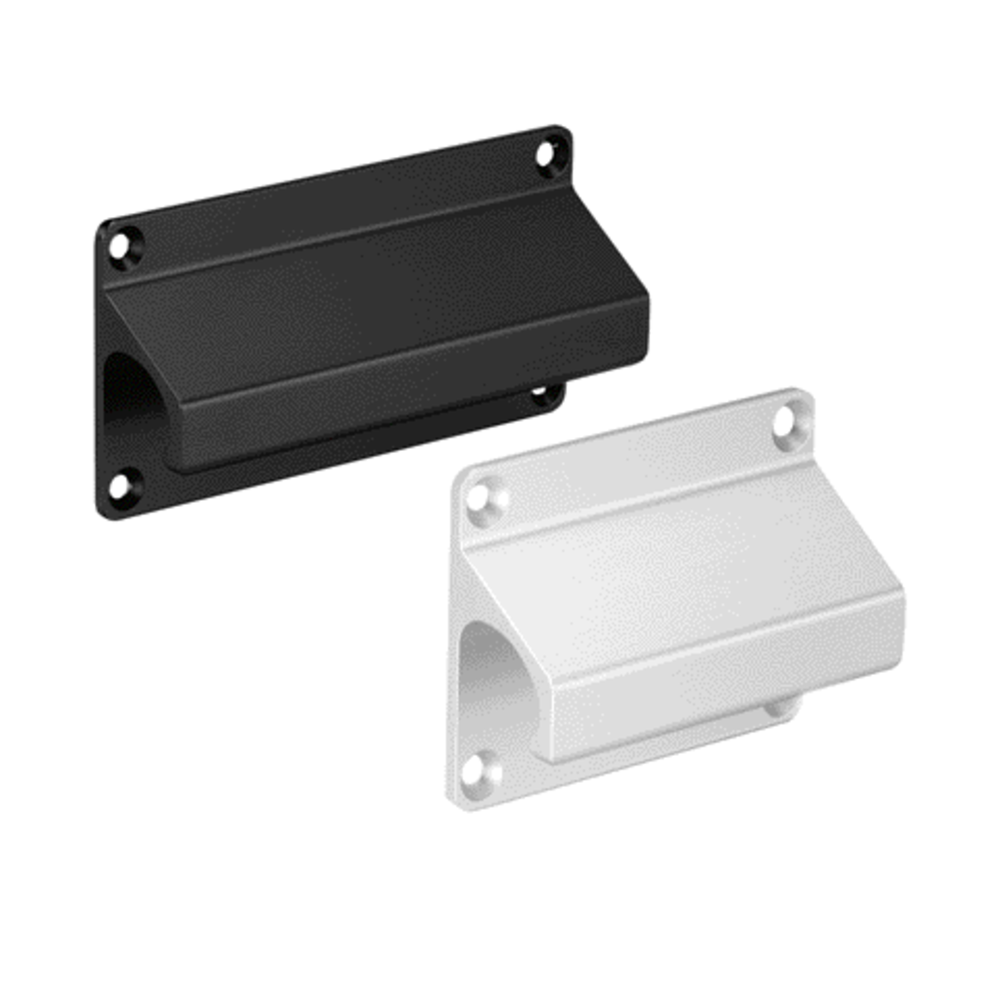

Handles LF-01

Material and surface:
Profiled aluminium AlMgSi 0.5; vibration ground and anodized in natural or black colour with a matt finish.

Note:
Any other handle lengths and further colour combinations on request.

Stress resistance:
min. 500 N.

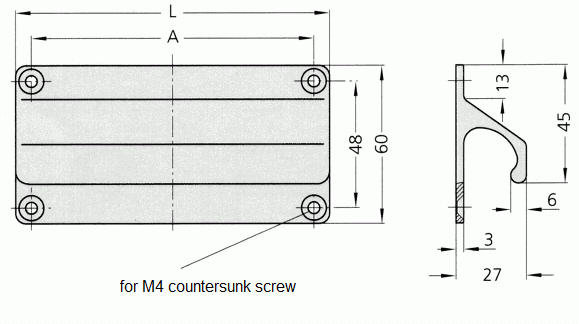

Technical data
Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.
A68	L80	Anodizing version natural-colored Order-No. LF-01.068.01 3D+CAD	Anodized aluminum black Order-No. LF-01.068.04 3D+CAD
A88	L100	Anodizing version natural-colored Order-No. LF-01.088.01 3D+CAD	Anodized aluminum black Order-No. LF-01.088.04 3D+CAD
A108	L120	Anodizing version natural-colored Order-No. LF-01.108.01 3D+CAD	Anodized aluminum black Order-No. LF-01.108.04 3D+CAD
