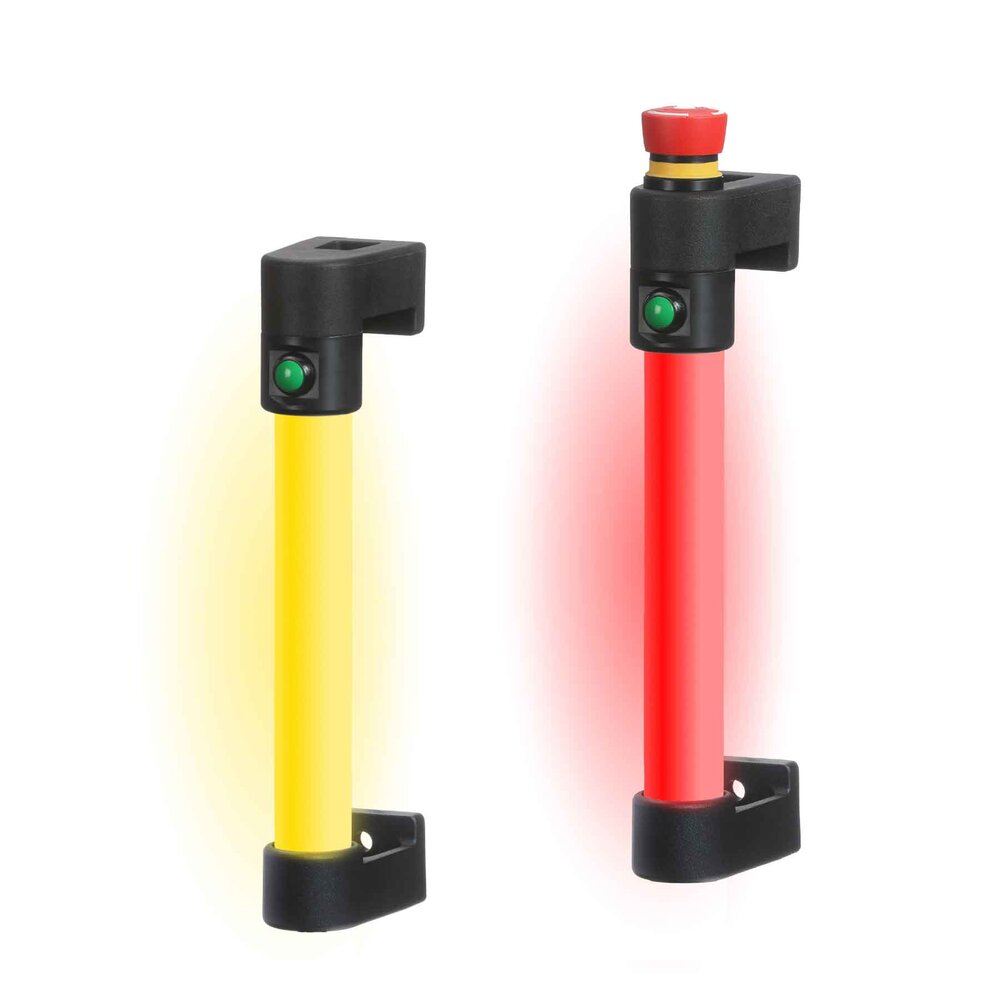

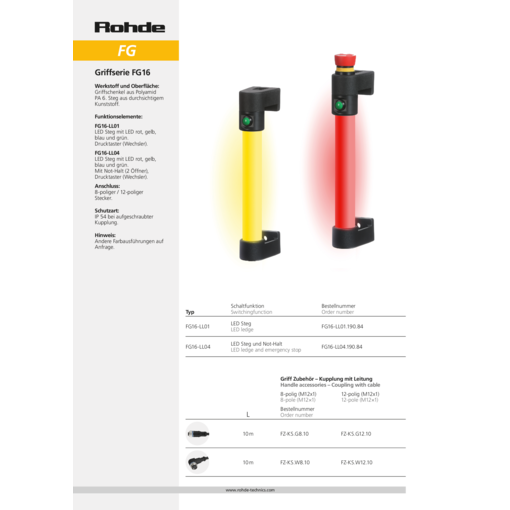

Functional handles FG16-LL01, FG16-LL04

Material and surface:

Handle shanks made of high strength polyamide PA6.

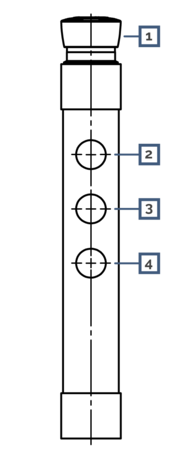

Function elements:

FG16-01:

Push button (change-over contact)

2 LEDs.

FG16-04:

Emergency-stop (2 NC contacts)

Push button (change-over contact)

2 LEDs

FG16-00:

Basic handle, as FG16-01 and FG16-04, but without switch elements as counterhandle.

Connection:

8-pole or 12-pole connectorn positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m readymade cable available as accessory.

Protection class:

IP 54 with coupling screwed on.

Note:

With connection cable other push button assignment or other handle lengths on request.

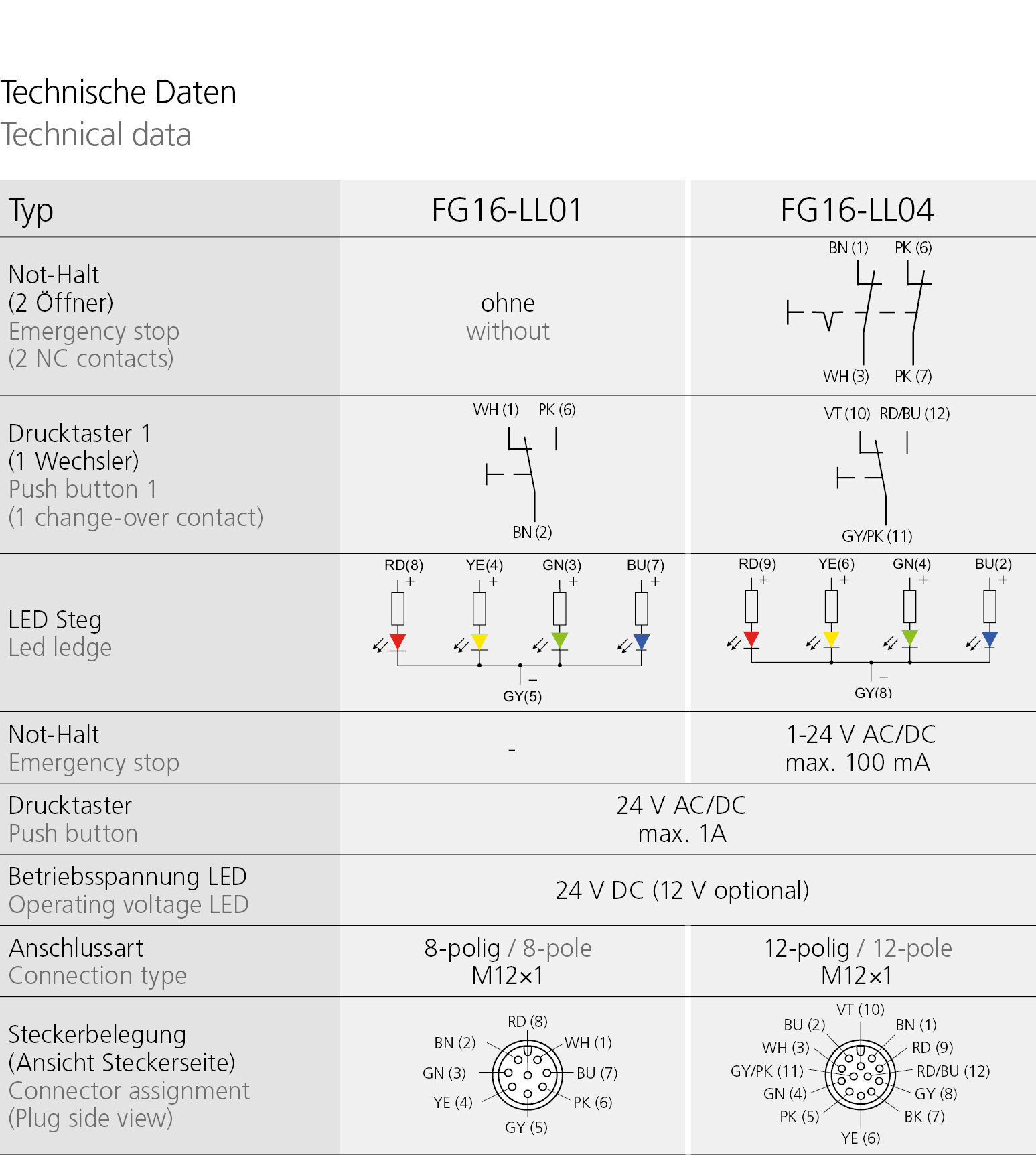

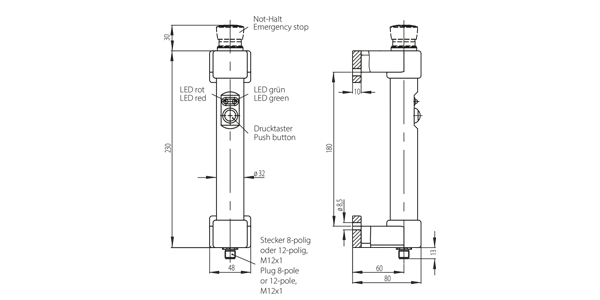

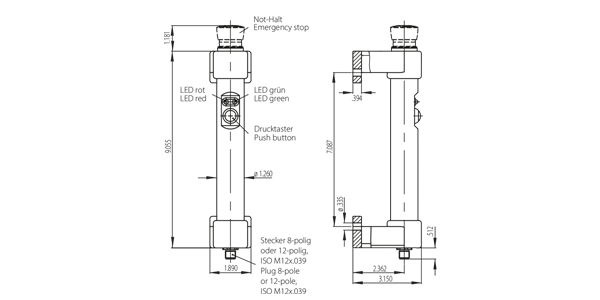

Technical data
Unit of measure

Product Type	Description	Order-No.
Product TypeFG16-LL01	DescriptionCounter handle without function	Order-No. FG16-LL01.190.84 3D+CAD
Product TypeFG16-LL04	Description1 push button and 2 LEDs	Order-No. FG16-LL04.190.84 3D+CAD

Zubehör
		Handle accessories
Length	Coupling	8-pole (M12 x 1) Order-No.	12-pole (M12 x 1) Order-No.
Length10 m	Couplingangled	8-pole (M12 x 1) Order-No. FZ-KS.W08.10	12-pole (M12 x 1) Order-No. FZ-KS.W12.10
Length10 m	Couplingstraight / axial	8-pole (M12 x 1) Order-No. FZ-KS.G08.10	12-pole (M12 x 1) Order-No. FZ-KS.G12.10
