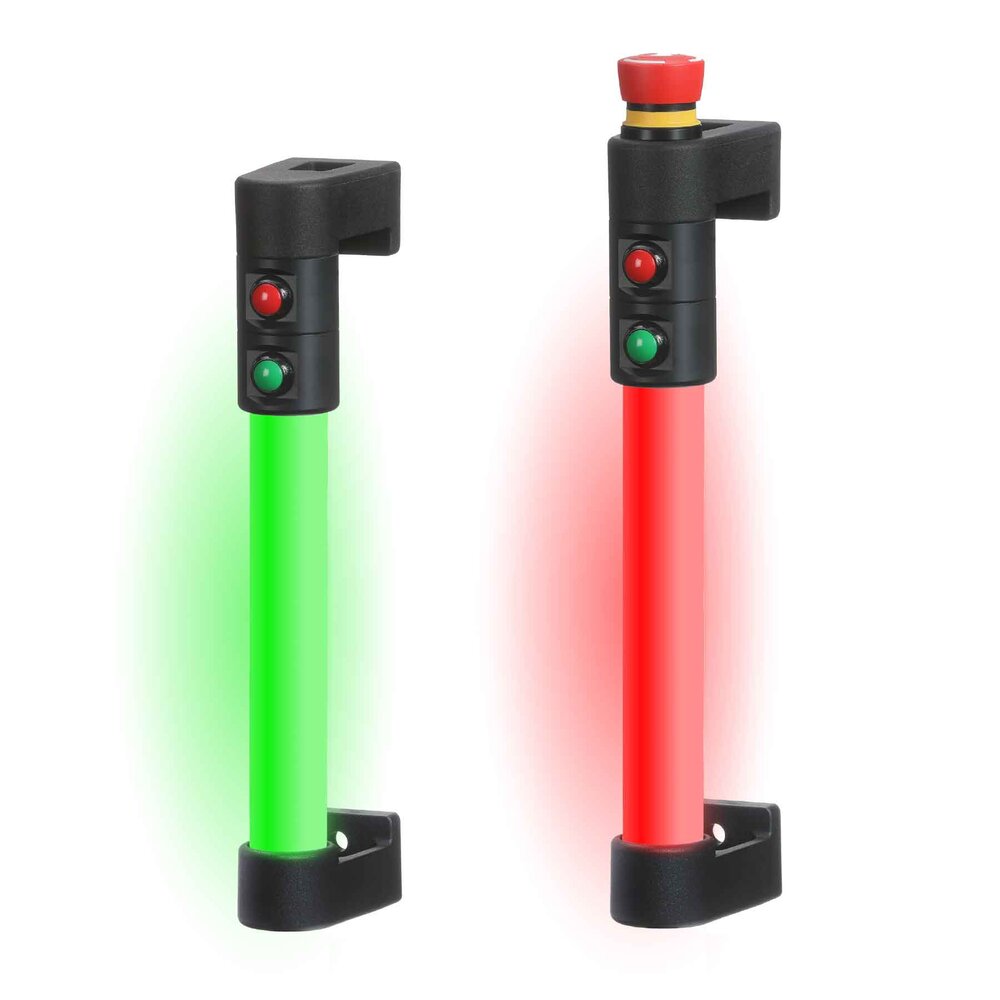

Functional handles FG16-LL02, FG16-LL05

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC black.

Function elements:
FG16-01:
Push button (change-over contact)
2 LEDs.

FG16-04:

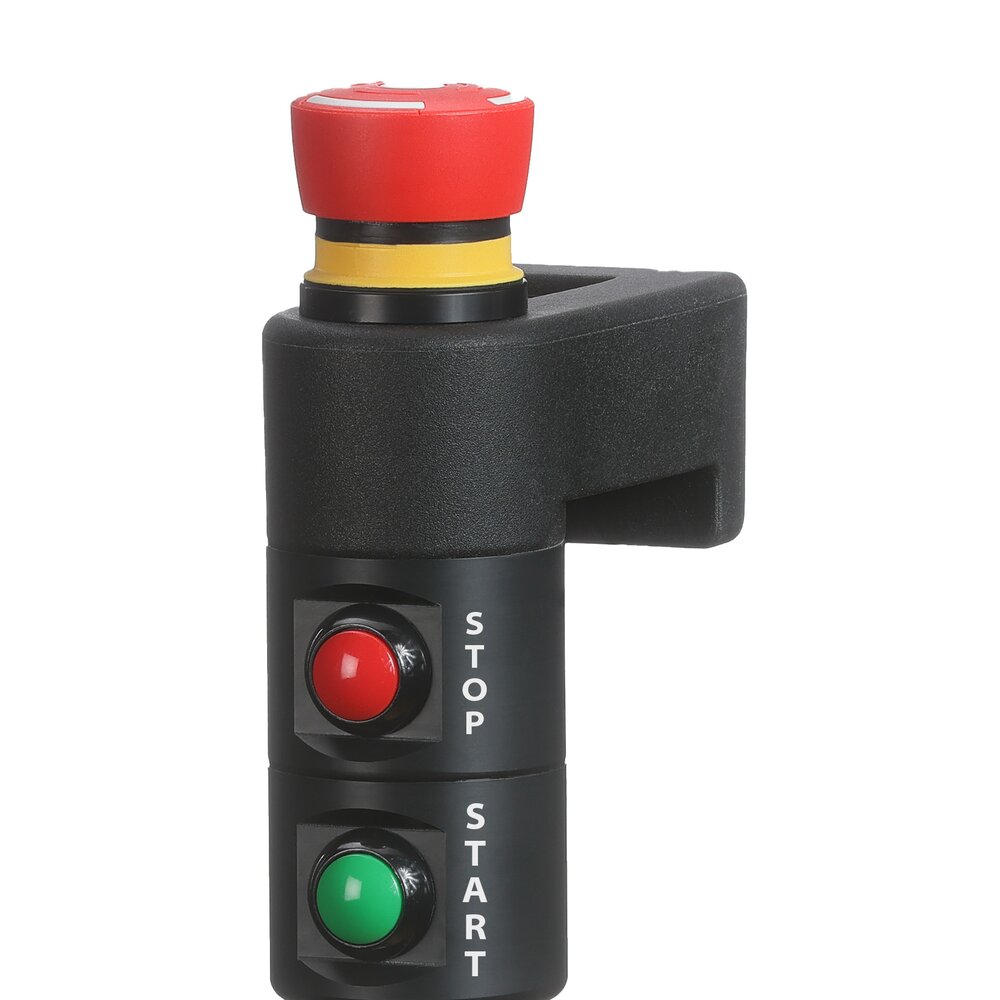

Emergency-stop (2 NC contacts)
Push button (change-over contact)
2 LEDs

FG16-00:
Basic handle, as FG16-01 and FG16-04, but without switch elements as counterhandle.

Connection:
8-pole or 12-pole connectorn positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m readymade cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

Note:
With connection cable other push button assignment or other handle lengths on request.

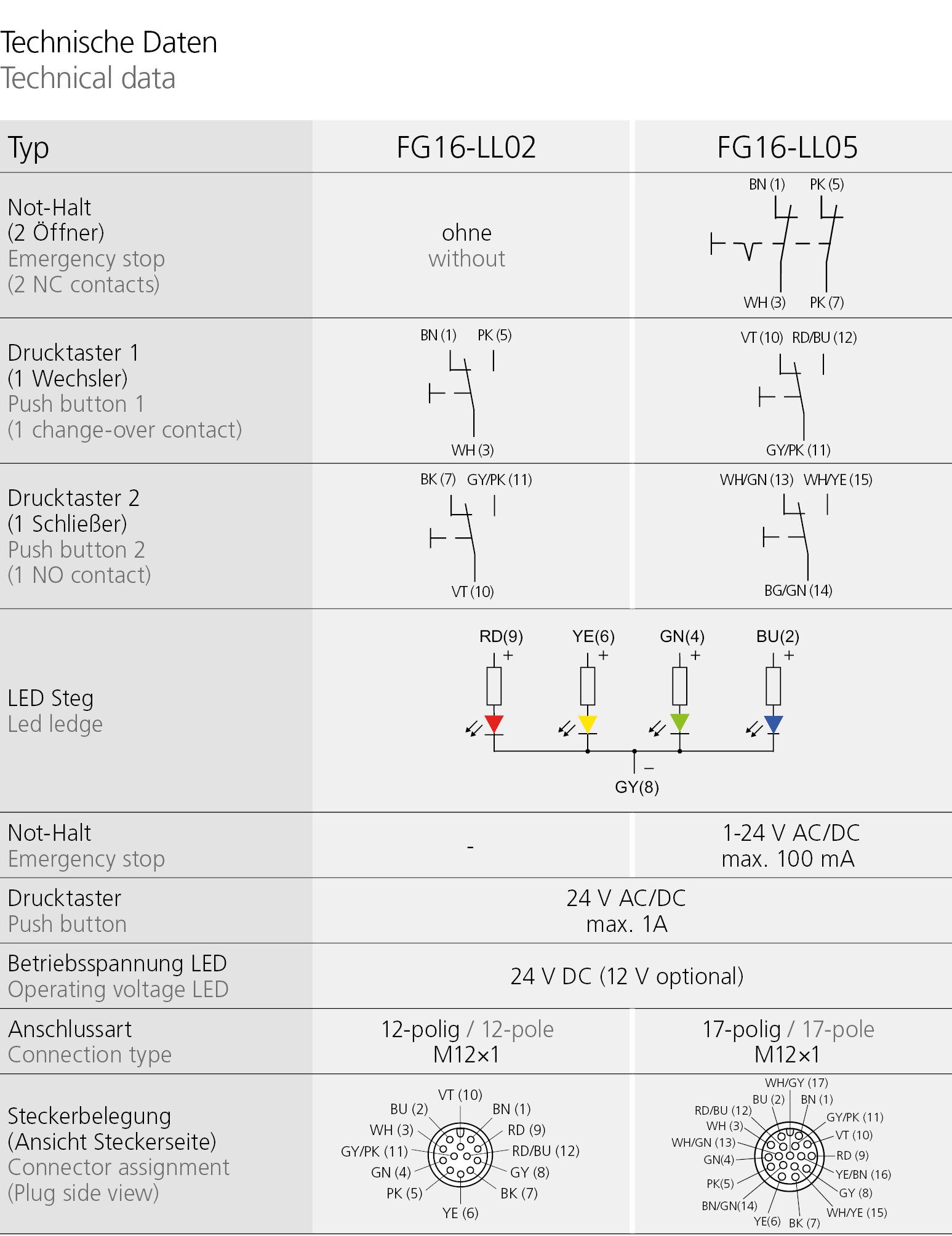

Technical data
Unit of measure

Product Type	Description	Order-No.
Product TypeFG16-LL02	DescriptionCounter handle without function	Order-No. FG16-LL02.220.84 3D+CAD
Product TypeFG16-LL05	Description1 push button and 2 LEDs	Order-No. FG16-LL05.220.84 3D+CAD

Zubehör
		Handle accessories
Length	Coupling	12-pole (M12x1) Order-No.	12-pole (M17x1) Order-No.
Length10 m	Couplingangled	12-pole (M12x1) Order-No. FZ-KS.W12.10	12-pole (M17x1) Order-No. FZ-KS.W17.10
Length10 m	Couplingstraight / axial	12-pole (M12x1) Order-No. FZ-KS.G12.10	12-pole (M17x1) Order-No. FZ-KS.G17.10
