Handles WR

Tubular angled handles in various material combinations.

Material and surface:

Version A
Handle shanks, connecting tube and end caps of extruded aluminium AIMgSi 0.5. Fixing sleeves of anodized aluminium, clamping screws and pegs of stainless steel. Handle shanks anodized with dull bright finish, connecting tube fine ground and anodized.
Handle finish in natural colour or black.

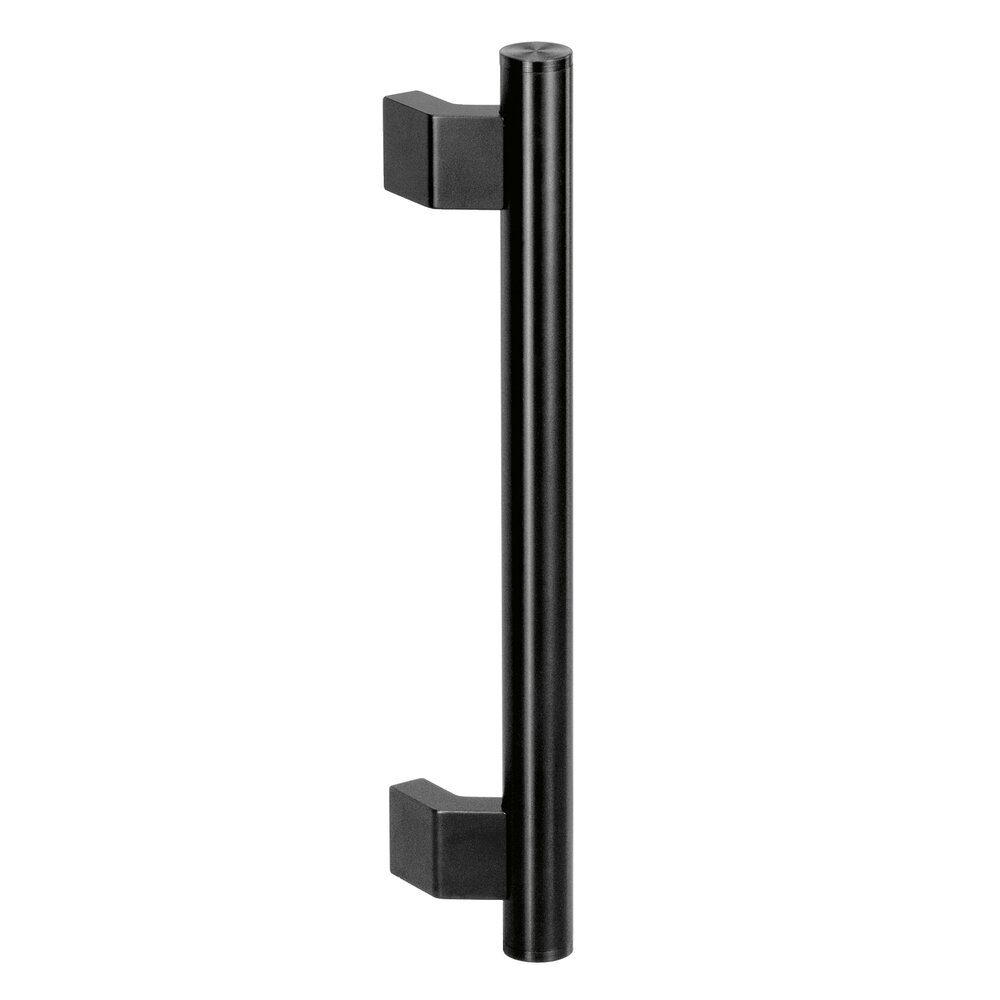

Version B
Handle shanks of extruded aluminium AlMgSi 0.5; with black anodized dull bright finish. Connection tube and end caps of stainless steel, internal fixing parts as version A.

Note:
Other handle lengths or colour combination on request.

Stress resistance:
min. 1000 N.

Version WR-20

WR-20
Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.	Polished stainless steel Order-No.
A200	L260	Anodizing version natural-colored Order-No. WR-20.200.01 3D+CAD	Anodized aluminum black Order-No. WR-20.200.04 3D+CAD	Polished stainless steel Order-No. WR-20.200.37 3D+CAD
A250	L310	Anodizing version natural-colored Order-No. WR-20.250.01 3D+CAD	Anodized aluminum black Order-No. WR-20.250.04 3D+CAD	Polished stainless steel Order-No. WR-20.250.37 3D+CAD
A300	L360	Anodizing version natural-colored Order-No. WR-20.300.01 3D+CAD	Anodized aluminum black Order-No. WR-20.300.04 3D+CAD	Polished stainless steel Order-No. WR-20.300.37 3D+CAD

Version WR-30

WR-30
Unit of measure
		Type
A	L	Anodizing version natural-colored Order-No.	Anodized aluminum black Order-No.	Polished stainless steel Order-No.
A300	L390	Anodizing version natural-colored Order-No. WR-30.300.01 3D+CAD	Anodized aluminum black Order-No. WR-30.300.04 3D+CAD	Polished stainless steel Order-No. WR-30.300.37 3D+CAD
A350	L440	Anodizing version natural-colored Order-No. WR-30.350.01 3D+CAD	Anodized aluminum black Order-No. WR-30.350.04 3D+CAD	Polished stainless steel Order-No. WR-30.350.37 3D+CAD
A400	L490	Anodizing version natural-colored Order-No. WR-30.400.01 3D+CAD	Anodized aluminum black Order-No. WR-30.400.04 3D+CAD	Polished stainless steel Order-No. WR-30.400.37 3D+CAD
A500	L590	Anodizing version natural-colored Order-No. WR-30.500.01 3D+CAD	Anodized aluminum black Order-No. WR-30.500.04 3D+CAD	Polished stainless steel Order-No. WR-30.500.37 3D+CAD
A600	L690	Anodizing version natural-colored Order-No. WR-30.600.01 3D+CAD	Anodized aluminum black Order-No. WR-30.600.04 3D+CAD	Polished stainless steel Order-No. WR-30.600.37 3D+CAD
