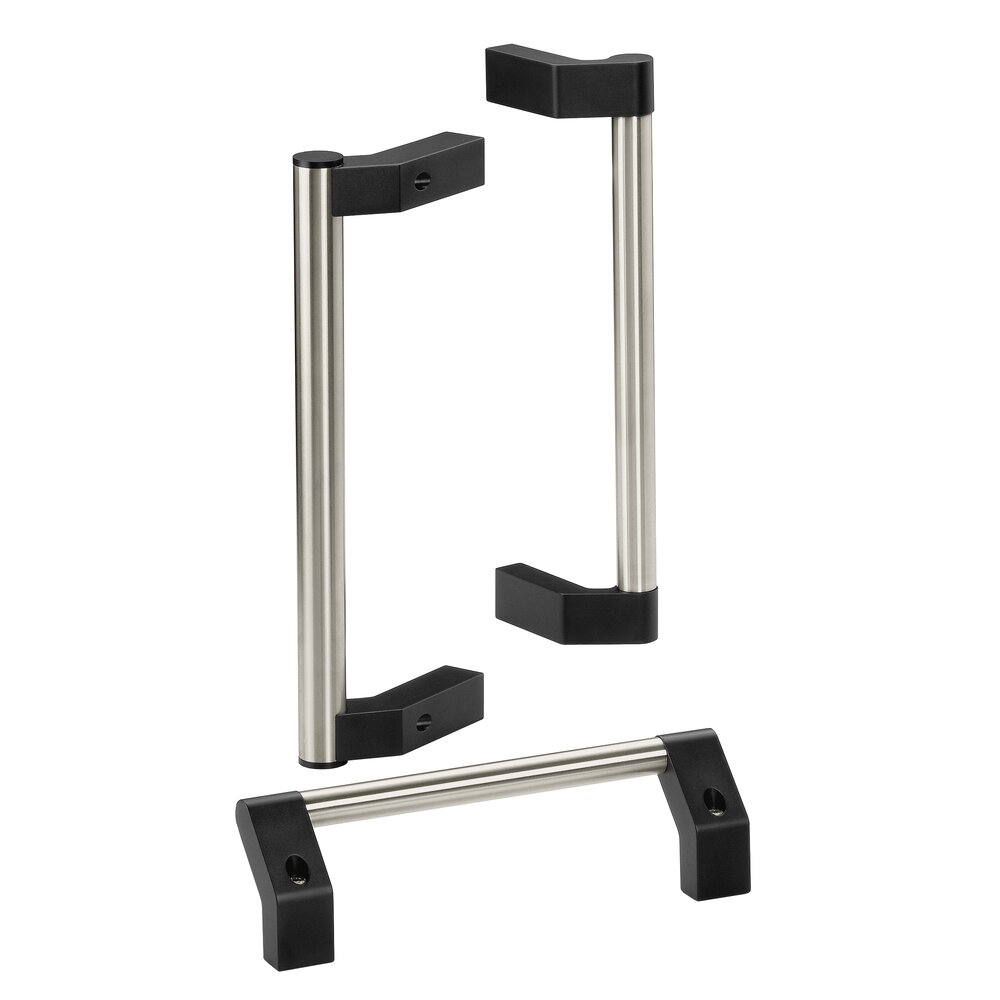

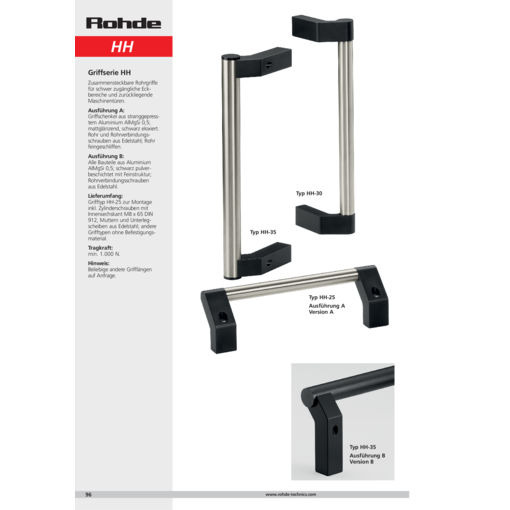

Handles HH

Fit together tubular handles for difficult edged areas and back laying machinery doors.

Version A:
Handle shanks of extruded aluminium AlMgSi 0.5; black anodized with dull bright finish. Tube and tube connecting screws of stainless steel; tube fine ground.

Version B:
All parts of aluminium AlMgSi 0.5; black powder coated with fine structure, tube connecting screws of stainless steel.

Scope of supply:
Version HH-25 for mounting incl. cheese head screws with hexagon sockets M8 x 65 DIN 912, nuts and washers of stainless steel; other versions without fixing material.

Note:
Any other handle lengths available on request.

Stress resistance:
min. 1000 N.

show more show less

Version HH-25

Technical line drawing showing front and side sectional views of the TL.HH-25 handle with aluminium profile shank and stainless steel connection elements.
Unit of measure
Description
A L Version A (Tubes made of stainless steel)
Order-No. 		Version B (Grip ledge black powder coated)
Order-No.
A L Version A (Tubes made of stainless steel)
Order-No. 		Version B (Grip ledge black powder coated)
Order-No.
A 200 L 240 Version A (Tubes made of stainless steel)
Order-No. HH-25.200.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-25.200.54 3D+CAD
A 300 L 340 Version A (Tubes made of stainless steel)
Order-No. HH-25.300.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-25.300.54 3D+CAD
A 400 L 440 Version A (Tubes made of stainless steel)
Order-No. HH-25.400.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-25.400.54 3D+CAD
A 500 L 540 Version A (Tubes made of stainless steel)
Order-No. HH-25.500.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-25.500.54 3D+CAD
A 600 L 640 Version A (Tubes made of stainless steel)
Order-No. HH-25.600.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-25.600.54 3D+CAD

Version HH-30

Unit of measure
Description
A L Version A (Tubes made of stainless steel)
Order-No. 		Version B (Grip ledge black powder coated)
Order-No.
A L Version A (Tubes made of stainless steel)
Order-No. 		Version B (Grip ledge black powder coated)
Order-No.
A 200 L 240 Version A (Tubes made of stainless steel)
Order-No. HH-30.200.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-30.200.54 3D+CAD
A 300 L 340 Version A (Tubes made of stainless steel)
Order-No. HH-30.300.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-30.300.54 3D+CAD
A 400 L 440 Version A (Tubes made of stainless steel)
Order-No. HH-30.400.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-30.400.54 3D+CAD
A 500 L 540 Version A (Tubes made of stainless steel)
Order-No. HH-30.500.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-30.500.54 3D+CAD
A 600 L 640 Version A (Tubes made of stainless steel)
Order-No. HH-30.600.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-30.600.54 3D+CAD

Version HH-35

Technical drawing with sectional and elevation views of a tubular handle consisting of aluminium shanks and a stainless steel tube, showing dimensions and mounting details.
Technical line drawing showing a 35-inch tubular handle with aluminum shanks and stainless steel tube, including sectional views detailing internal components and dimensions.
Unit of measure
Description
A L Version A (Tubes made of stainless steel)
Order-No. 		Version B (Grip ledge black powder coated)
Order-No.
A L Version A (Tubes made of stainless steel)
Order-No. 		Version B (Grip ledge black powder coated)
Order-No.
A 400 L 445 Version A (Tubes made of stainless steel)
Order-No. HH-35.400.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-35.400.54 3D+CAD
A 500 L 545 Version A (Tubes made of stainless steel)
Order-No. HH-35.500.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-35.500.54 3D+CAD
A 600 L 645 Version A (Tubes made of stainless steel)
Order-No. HH-35.600.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-35.600.54 3D+CAD
A 700 L 745 Version A (Tubes made of stainless steel)
Order-No. HH-35.700.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-35.700.54 3D+CAD
A 800 L 845 Version A (Tubes made of stainless steel)
Order-No. HH-35.800.37 3D+CAD 		Version B (Grip ledge black powder coated)
Order-No. HH-35.800.54 3D+CAD
